Oil Charger Pipe: Installation

Install the oil charger pipe with new O-ring.
1. Tightening torque: 41 N.m (4.2 kgf-m, 30.4 ft-lb)

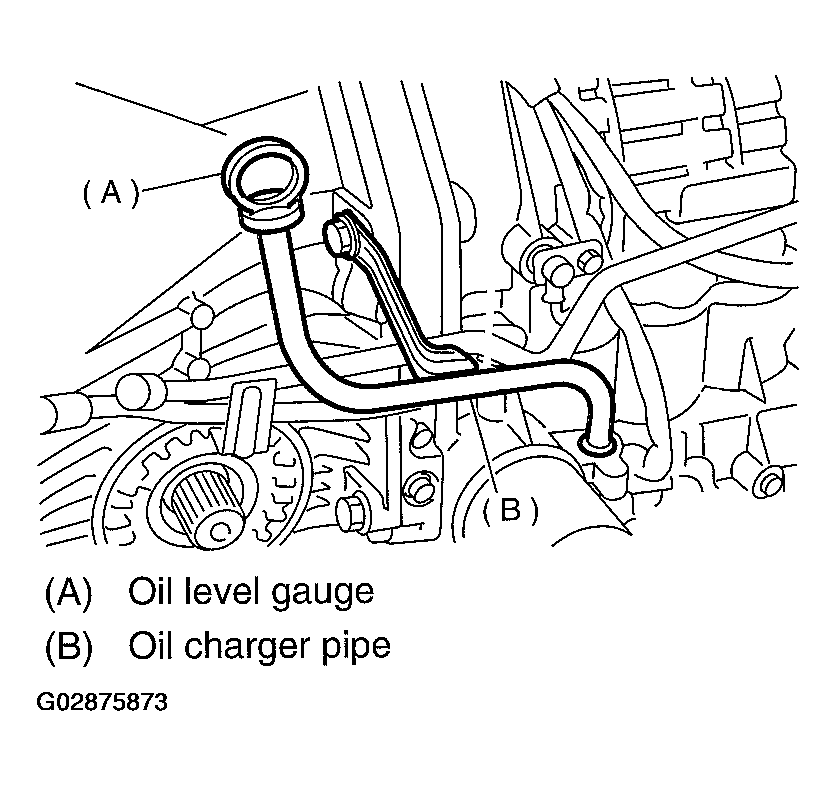

Fig 1: Installing Oil Charger Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the air cleaner case. (2.5 L model)
< Ref. to INSTALLATION , Air Cleaner Case.>
Install air intake chamber. (3.0 L model)
< Ref. to INSTALLATION , Air Intake Chamber.>
