Oil Pump: Assembly

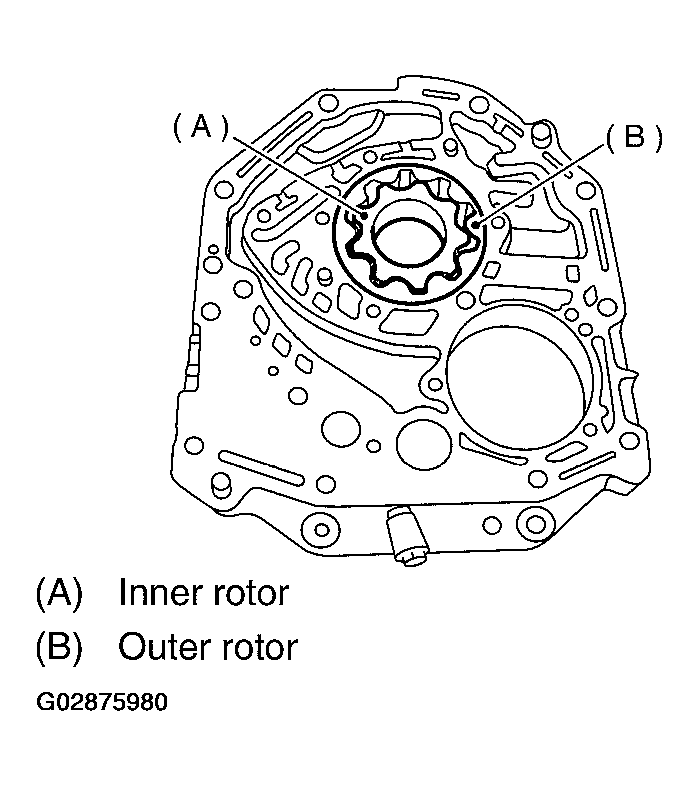

- Install oil pump rotor assembly to oil pump housing.
Courtesy of SUBARU OF AMERICA, INC.

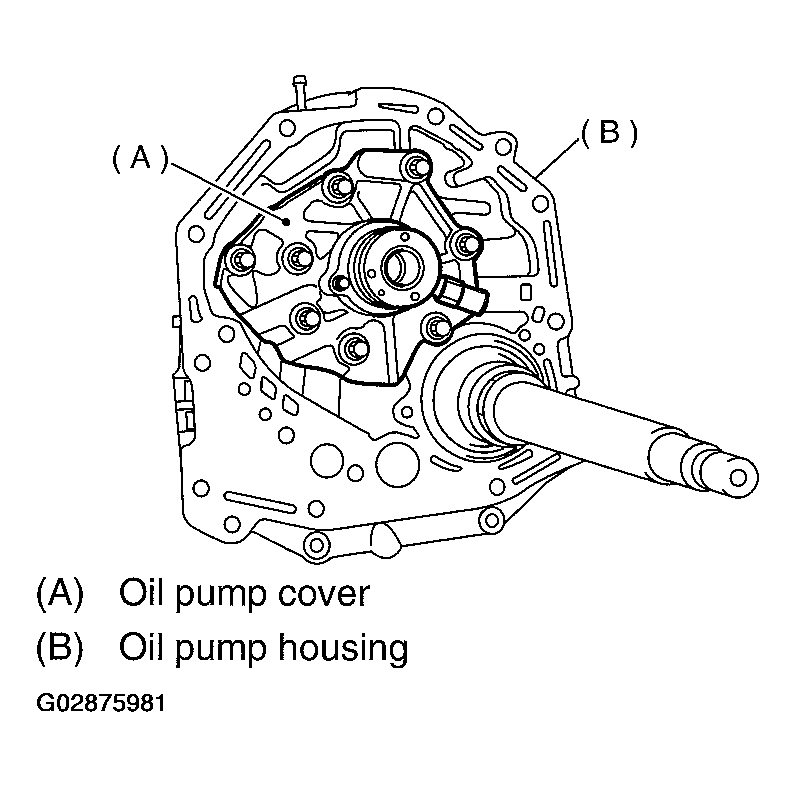

- Align both pivots with the pivot holes of the cover, and install the oil pump cover being careful not to apply undue force to the pivots.
- Tightening torque:
25 N.m (23 kgf-m, 18.1 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.
- After assembling, turn the oil pump shaft to check for smooth rotation of the rotor.

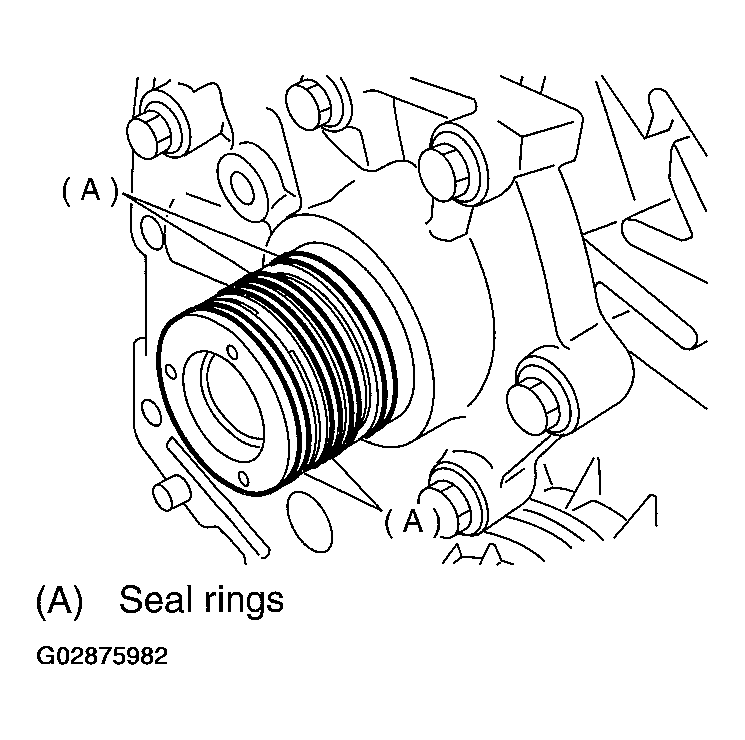

- Install the oil seal retainer and new seal rings. After adjusting the drive pinion backlash and tooth contact. < Ref. to
ADJUSTMENT , Oil Pump.>
Courtesy of SUBARU OF AMERICA, INC.
