Fresh/Recirc Does Not Change

FRESH/RECIRC DOES NOT CHANGE

TROUBLE SYMPTOM:

Wiring Diagram:




WIRING DIAGRAM:

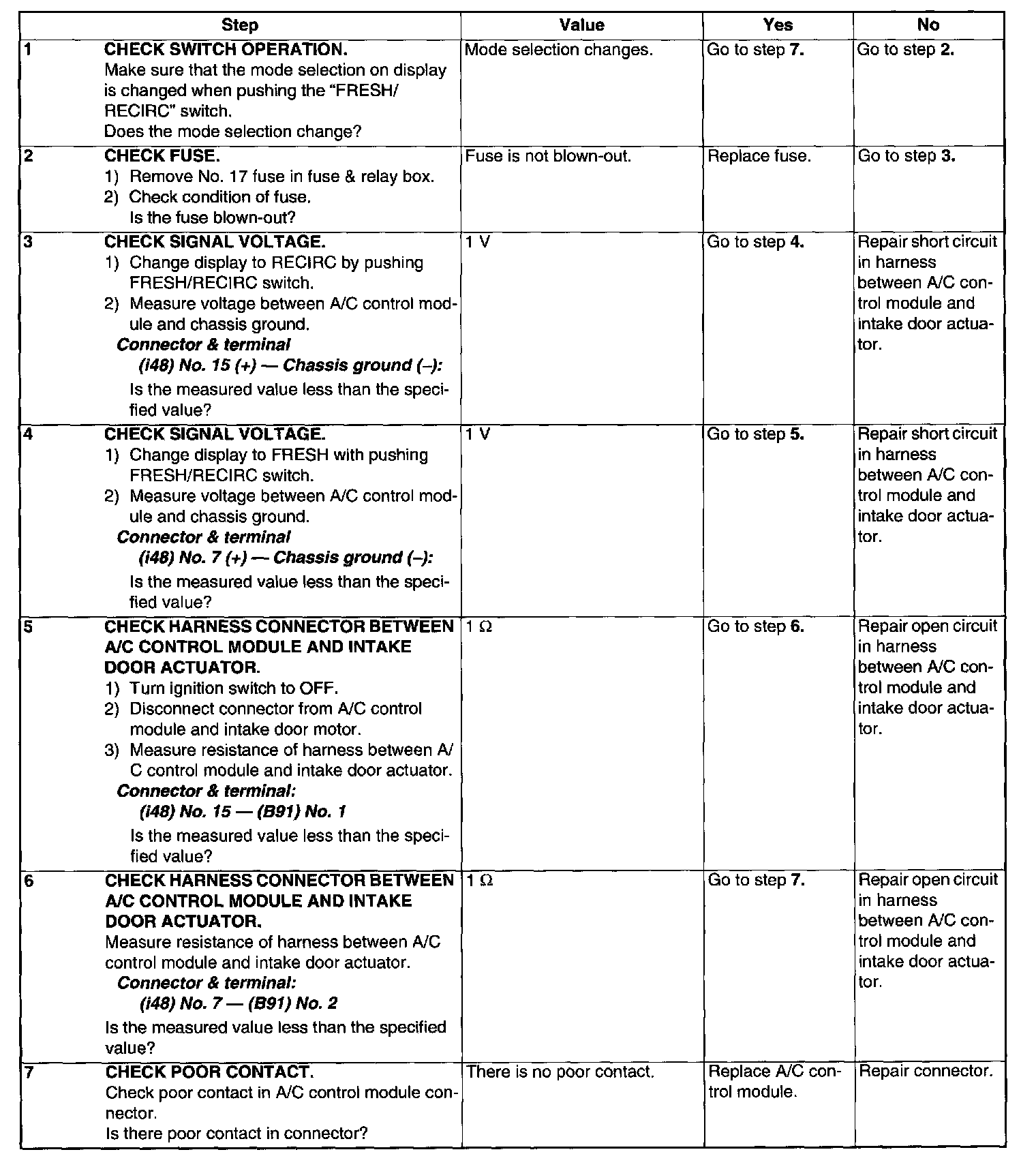

Step 1 - 7:




FRESH/RECIRC mode door does not change.
