Coolant Temperature Sensor/Switch (For Computer): Service and Repair

Engine Coolant Temperature Sensor

REMOVAL

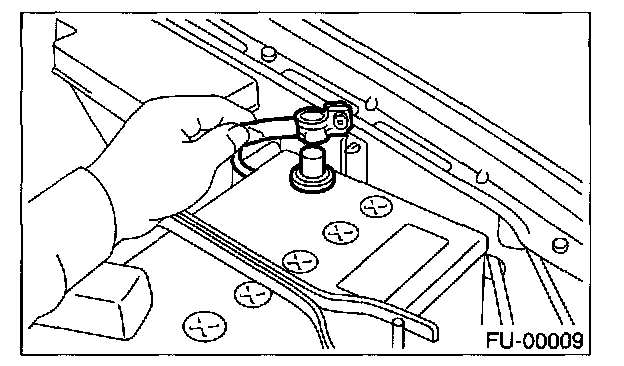

1. Disconnect battery ground cable.
2. Remove air intake duct and air cleaner case.

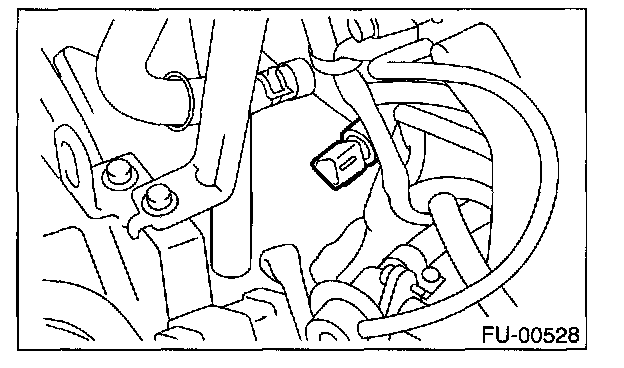

3. Disconnect connector from engine coolant temperature sensor.

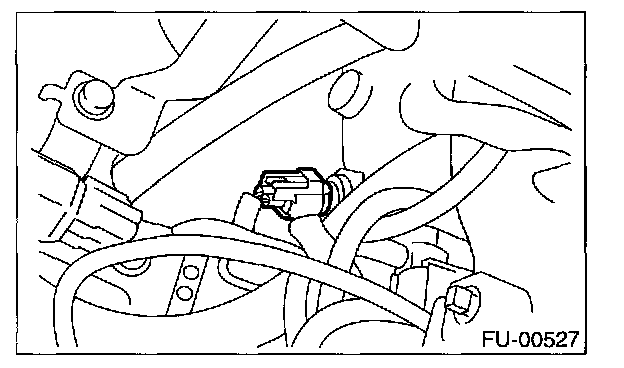

4. Remove engine coolant temperature sensor.

INSTALLATION




Install in the reverse order of removal.

Tightening torque: 18 N.m (1.8 kgf-m, 1.3 ft-lb)
