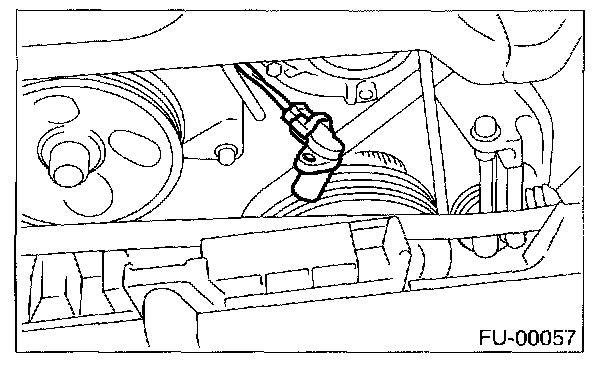

Crankshaft Position Sensor: Service and Repair

REMOVAL

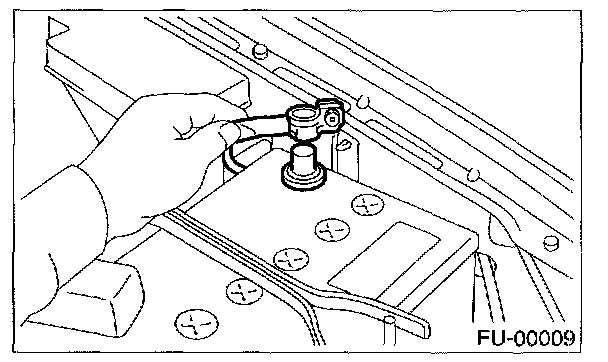

1. Disconnect battery ground cable.

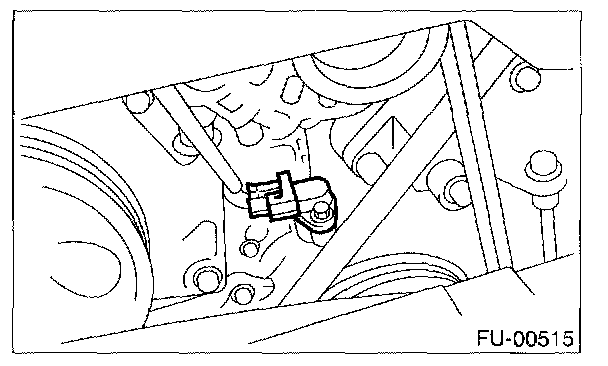

2. Remove bolt which installs crankshaft position sensor to cylinder block.




3. Remove crankshaft position sensor, and disconnect connector from it.

INSTALLATION




Install in the reverse order of removal.

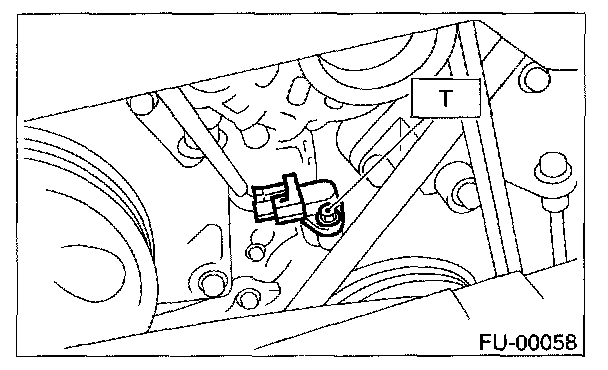

Tightening torque:
T: 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)
