Ignition Control Module: Service and Repair

Ignition System:

Ignition Coil and Ignitor Assembly

REMOVAL




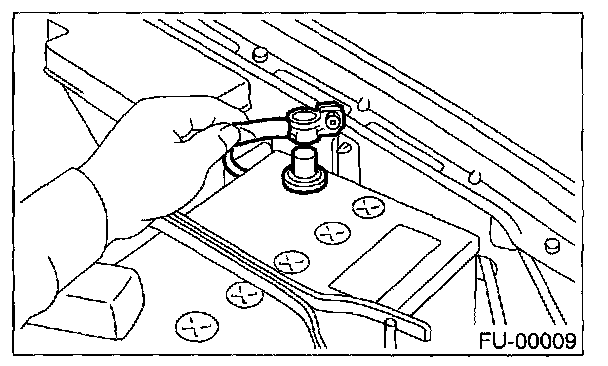

1. Disconnect battery ground cable.
2. Disconnect spark plug cords from ignition coil and ignitor assembly.




3. Disconnect connector from ignition coil and ignitor assembly.

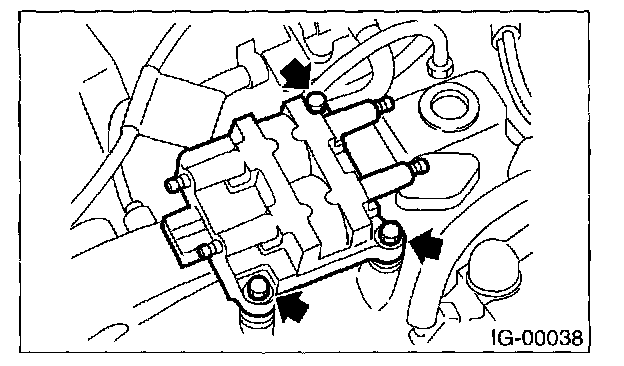

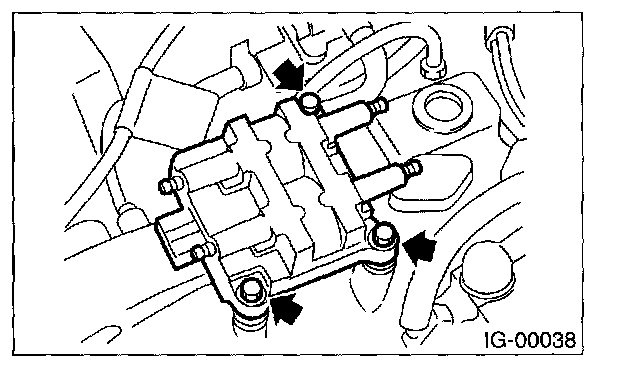

4. Remove ignition coil and ignitor assembly.

INSTALLATION




1. Install in the reverse order of removal.

Tightening torque: 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

CAUTION: Be sure to connect spark plug cords to their proper positions. Failure to do so will damage unit.
