Knock Sensor: Service and Repair

REMOVAL

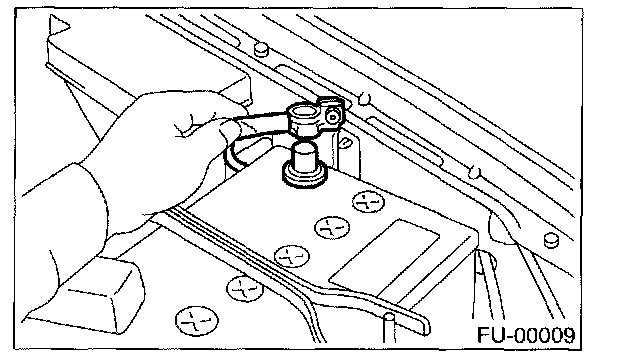

1. Disconnect battery ground cable.
2. Remove air cleaner case.

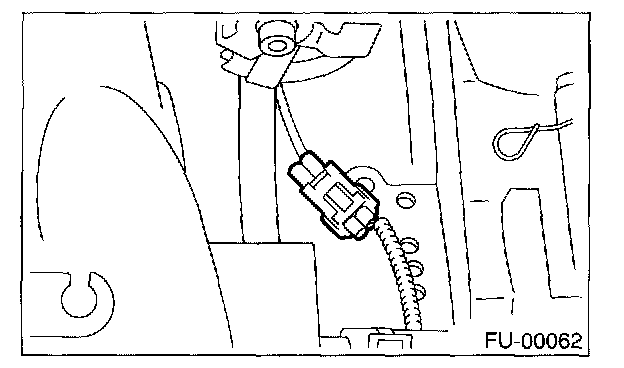

3. Disconnect knock sensor connector.

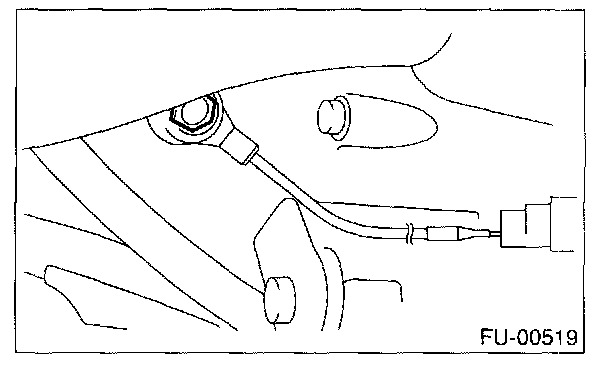

4. Remove knock sensor from cylinder block.

INSTALLATION

1. Install knock sensor to cylinder block.

Tightening torque: 24 N.m (2.4 kgf-m, 17.4 ft-lb)

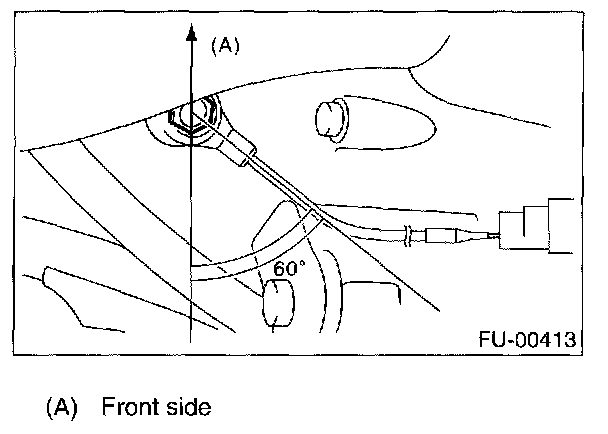

NOTE: The extraction area of the knock sensor cord must be positioned at a 60 ° angle relative to the engine rear.




2. Connect knock sensor connector.
3. Install air cleaner case.

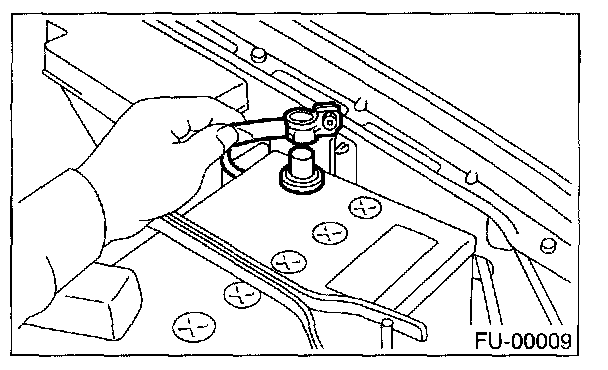

4. Connect battery ground cable.
