Without Sports Shift Model

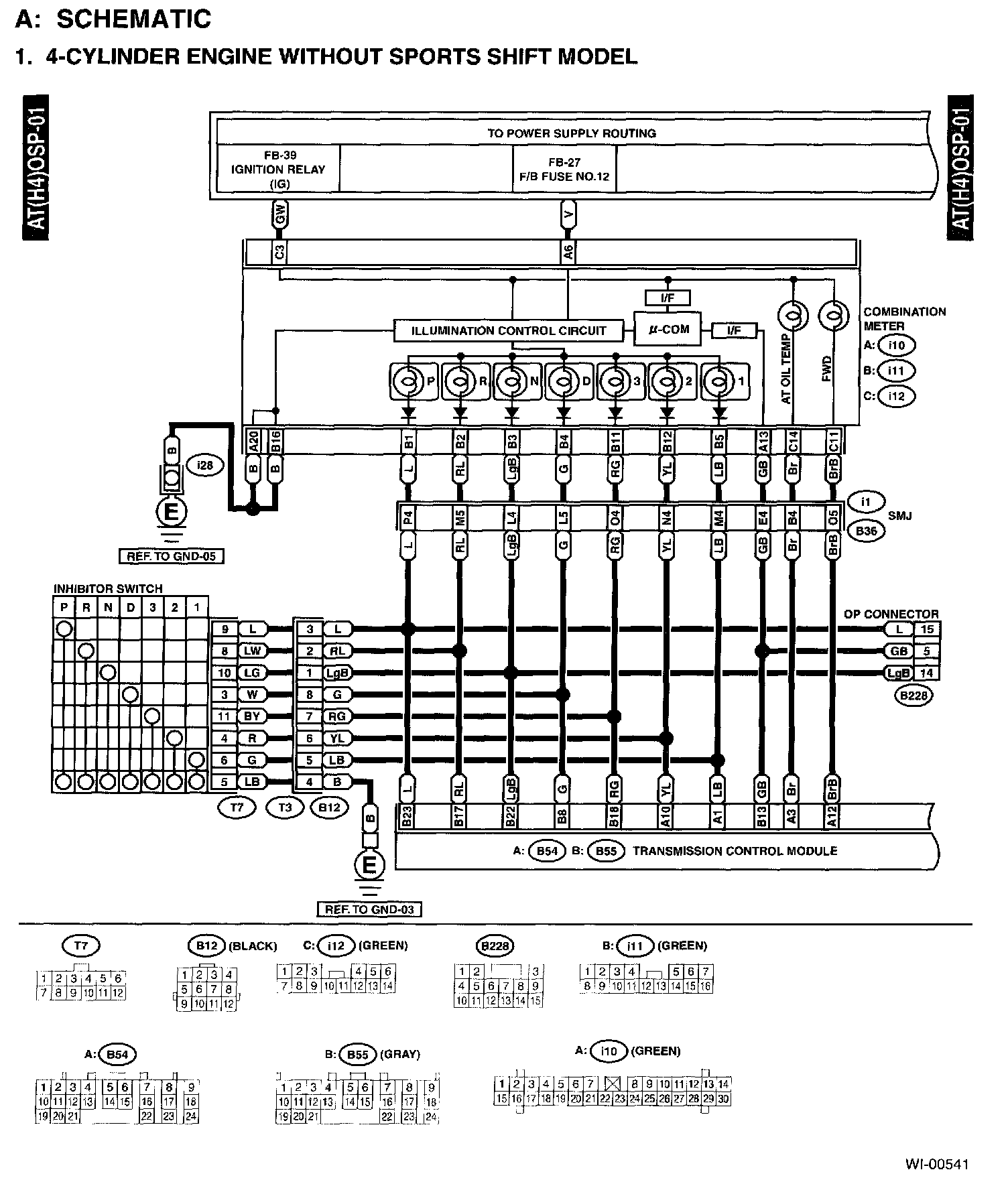

AT(H4)OSP-01:

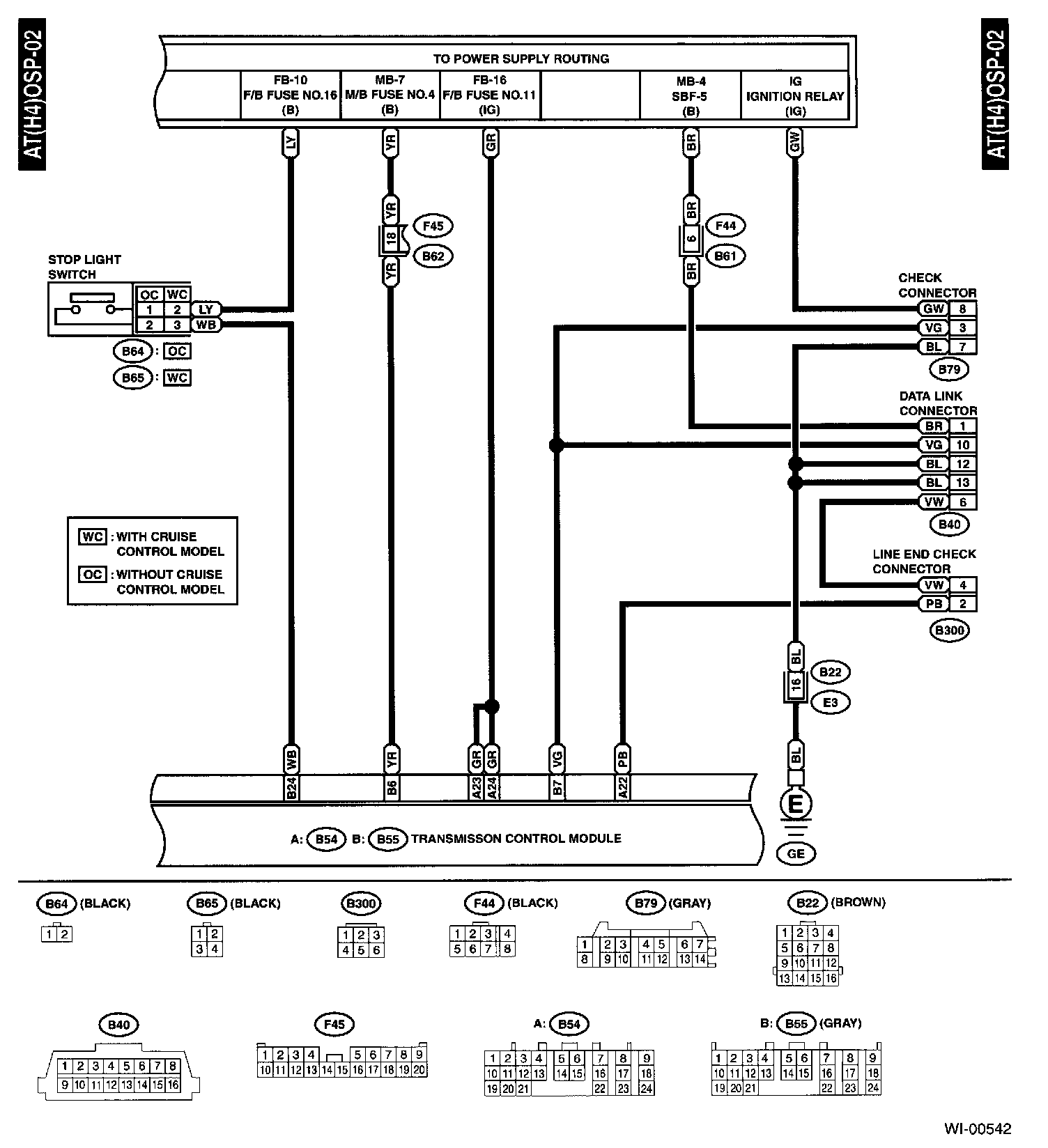

AT(H4)OSP-02:

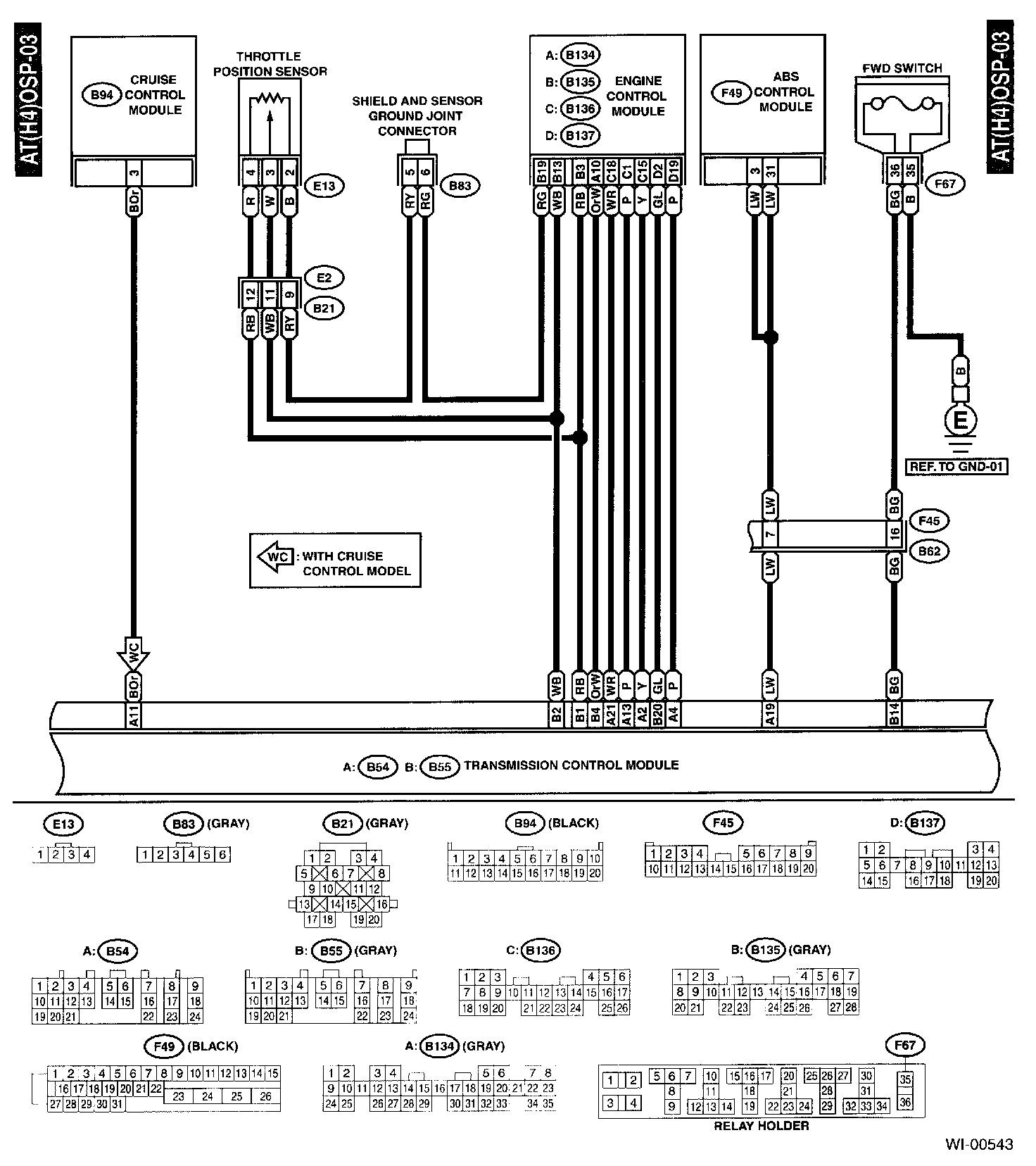

AT(H4)OSP-03:

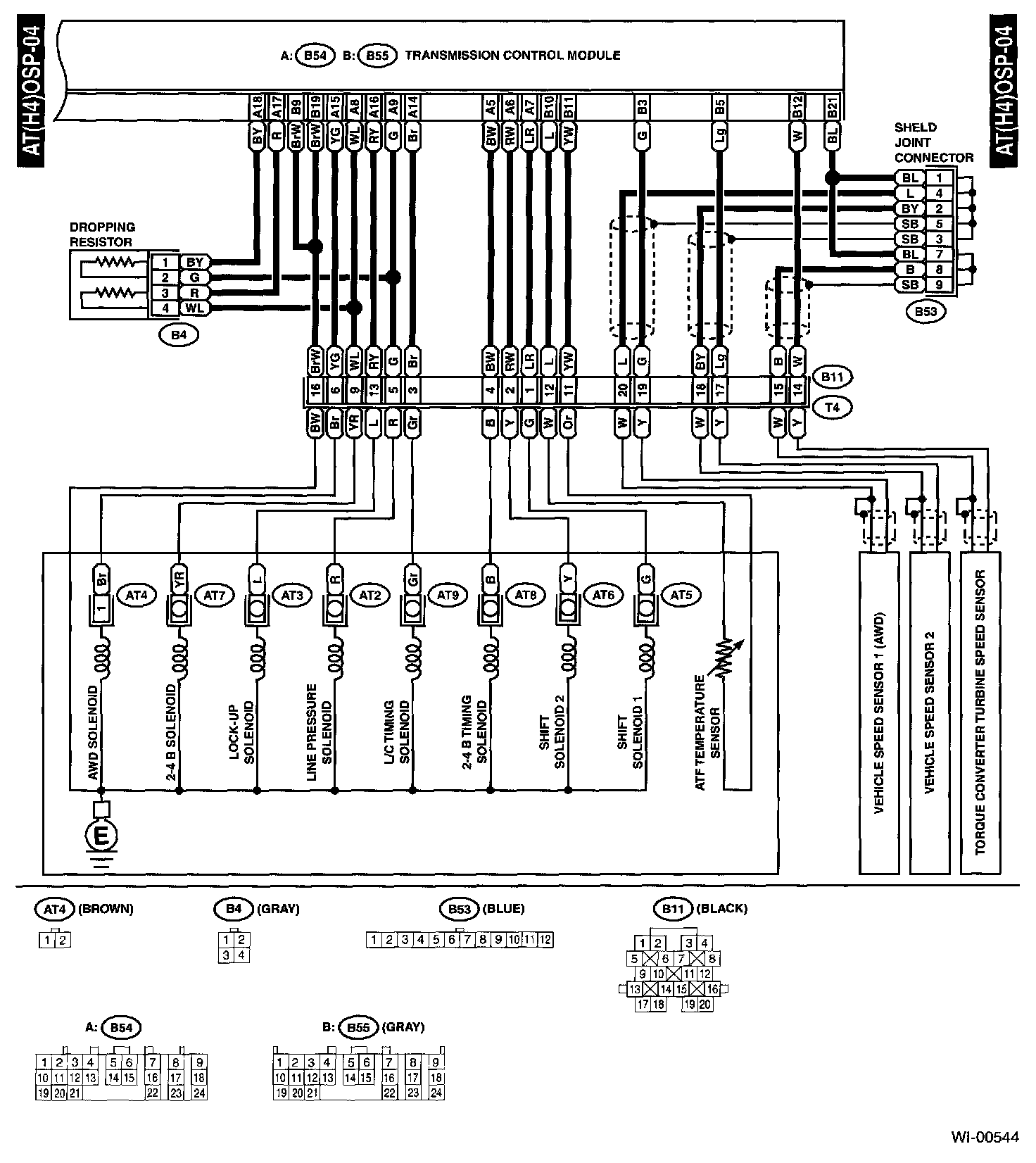

AT(H4)OSP-04:
Diagrams: Other diagrams referred to by name within these diagrams (i.e. "REF. TO GND-01", etc) can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
Diagrams: Other diagrams referred to by name within these diagrams (i.e. "REF. TO GND-01", etc) can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
