Button Assembly

Button Assembly

REMOVAL

1. Disconnect the ground cable from battery.
2. Remove meter visor.
3. Remove audio body.

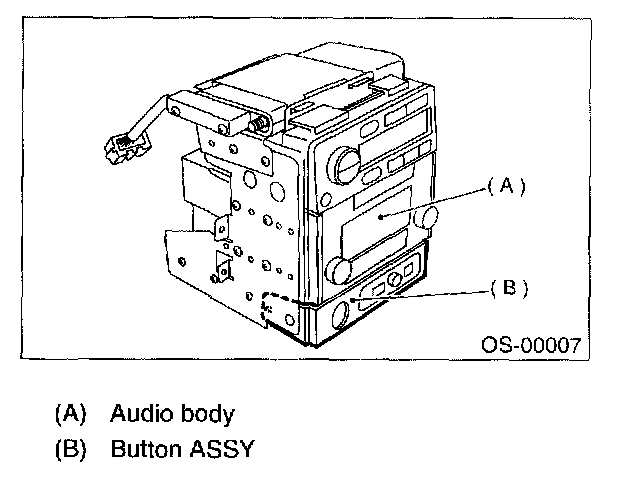

4. Remove button assembly from the audio body.

INSTALLATION

Install in the reverse order of removal.

Tightening torque: 4.6 N.m (0.47 kgf.m, 3.4 ft.lb)
