Keyless Entry Module: Service and Repair

Keyless Entry Control Module

REMOVAL

1. Disconnect ground cable from battery.
2. Remove glove box.

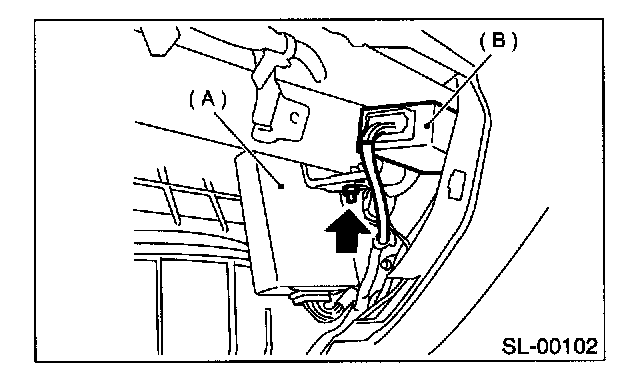

3. Remove nut, then remove keyless entry control module (B) and the other electrical control module (A) while disconnecting connector.




4. Disconnect keyless entry control module and the other electrical control module.

INSTALLATION

Install in the reverse order of removal.
