Vehicle Dynamic Control System

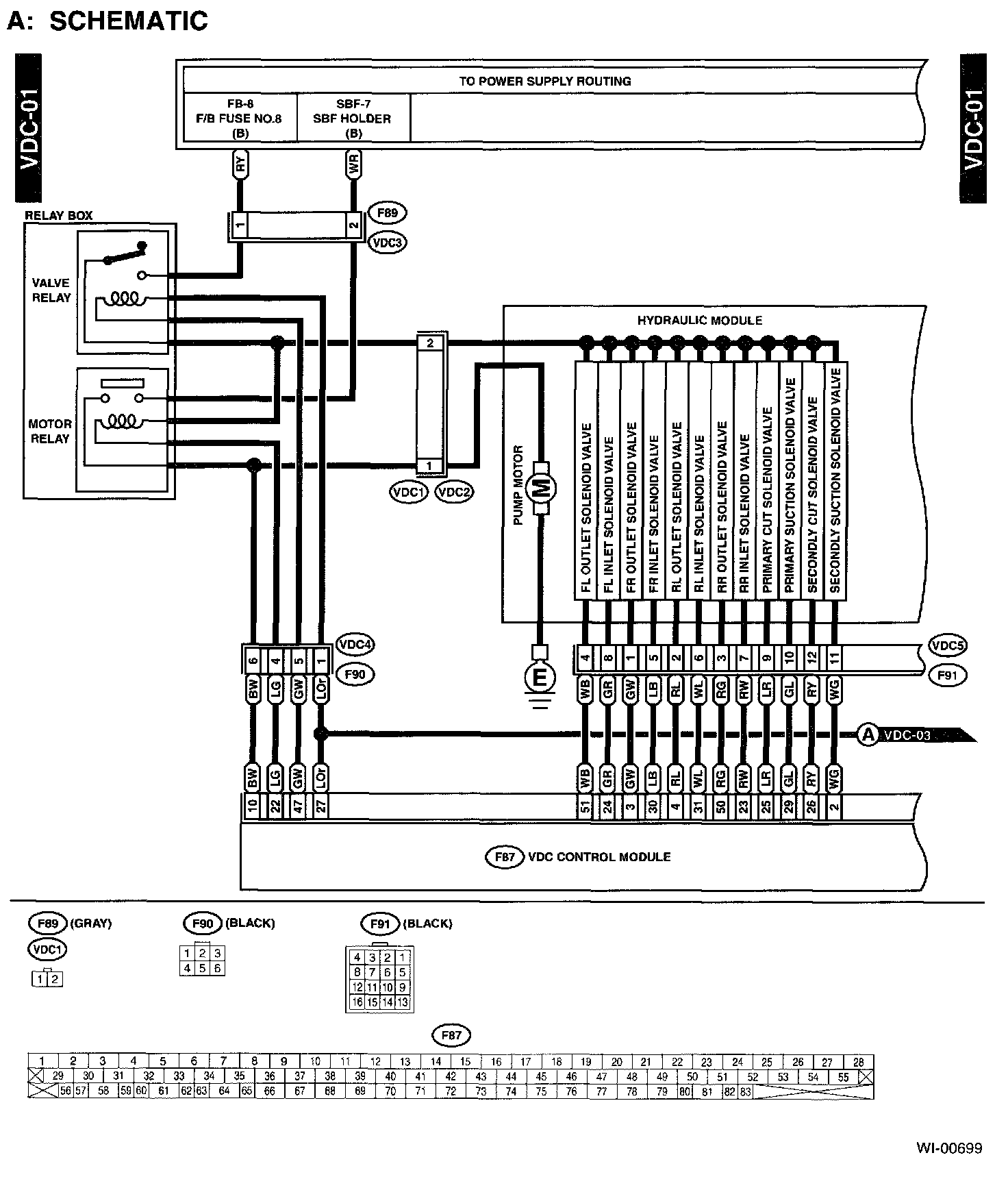

VDC-01:

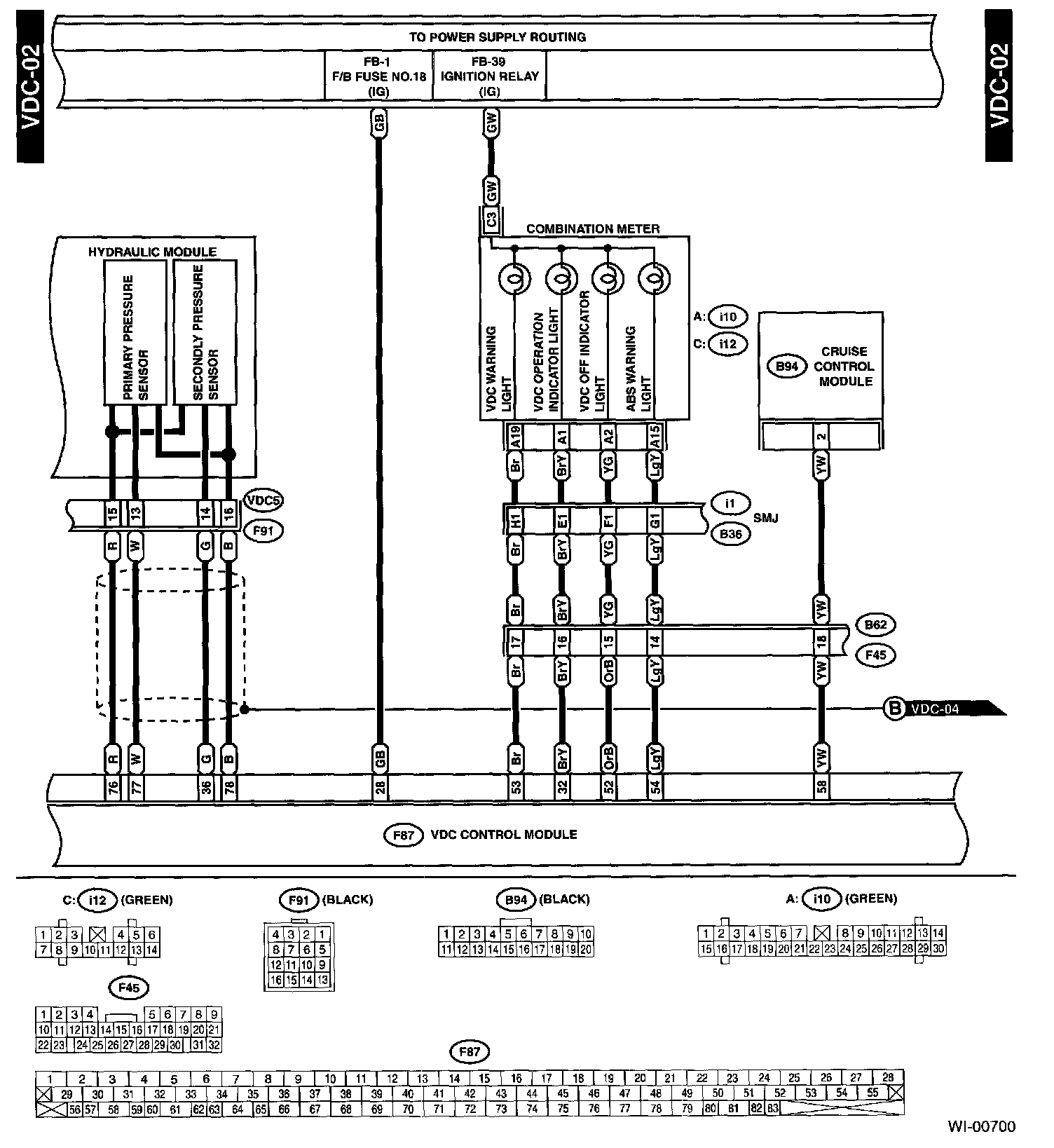

VDC-02:

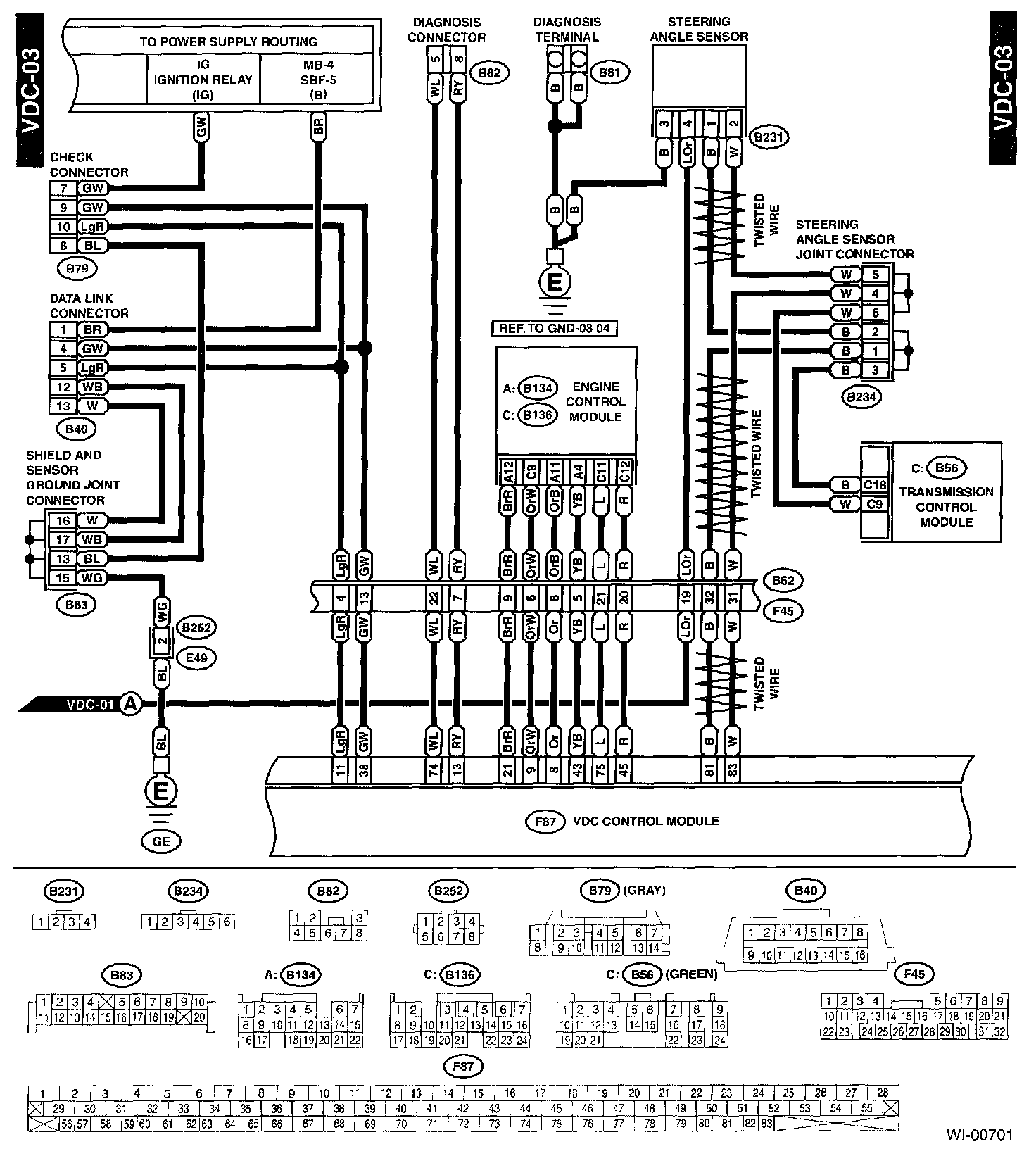

VDC-03:

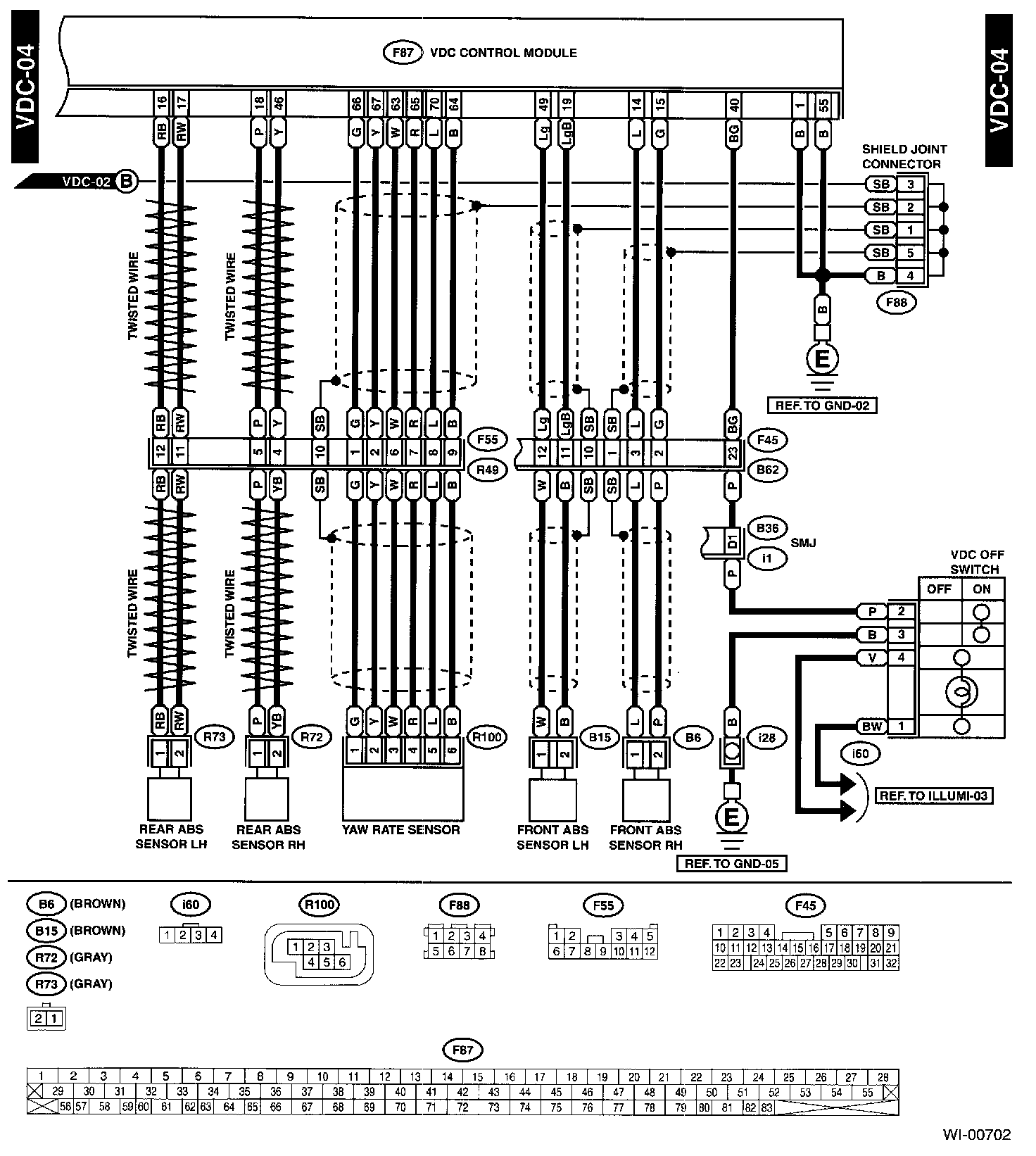

VDC-04:

Diagrams: Other diagrams referred to by name within these diagrams (i.e. "REF. TO GND-01", etc) can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
