System Diagram
COMPONENT

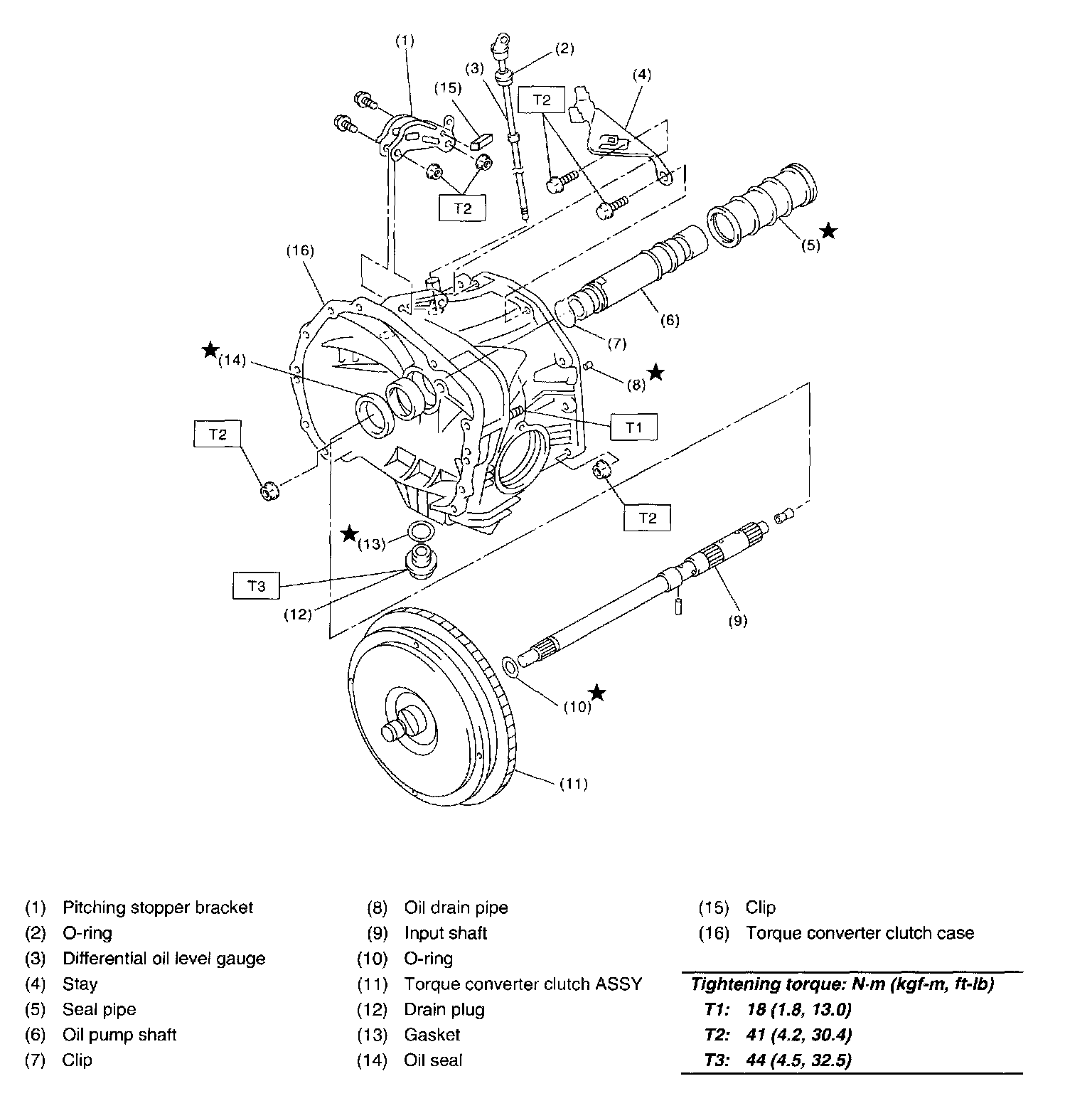

TORQUE CONVERTER CLUTCH AND CASE

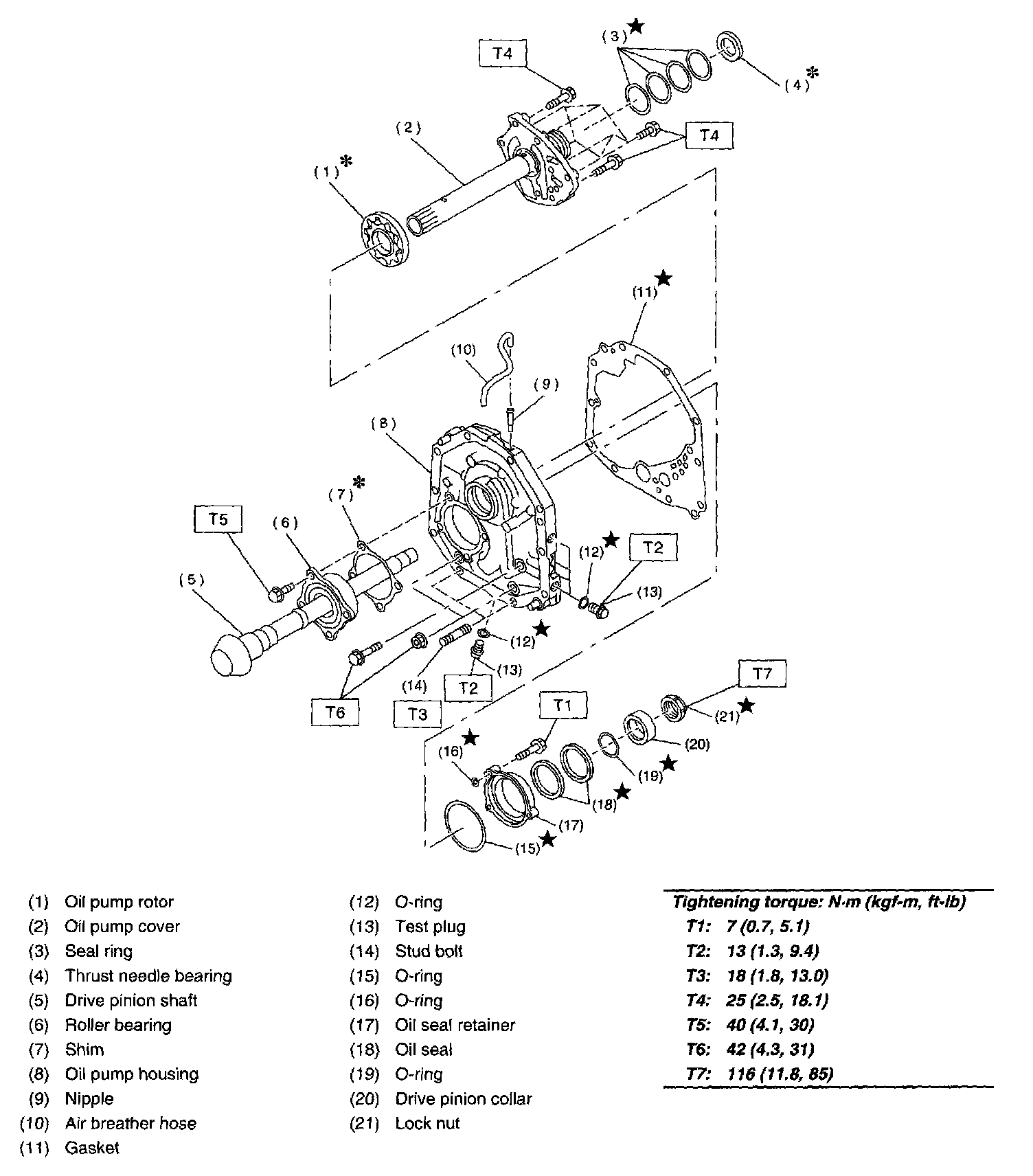

OIL PUMP

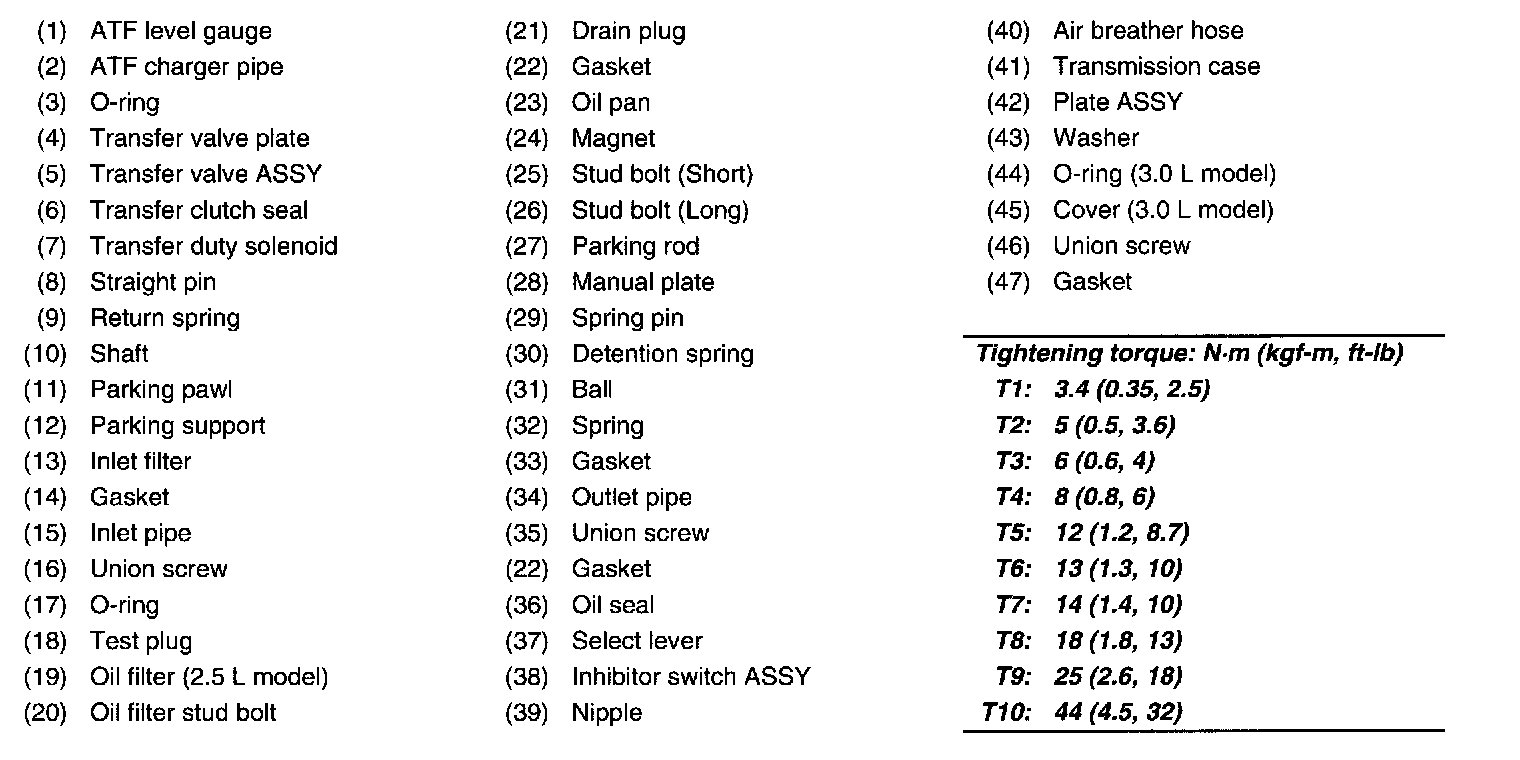

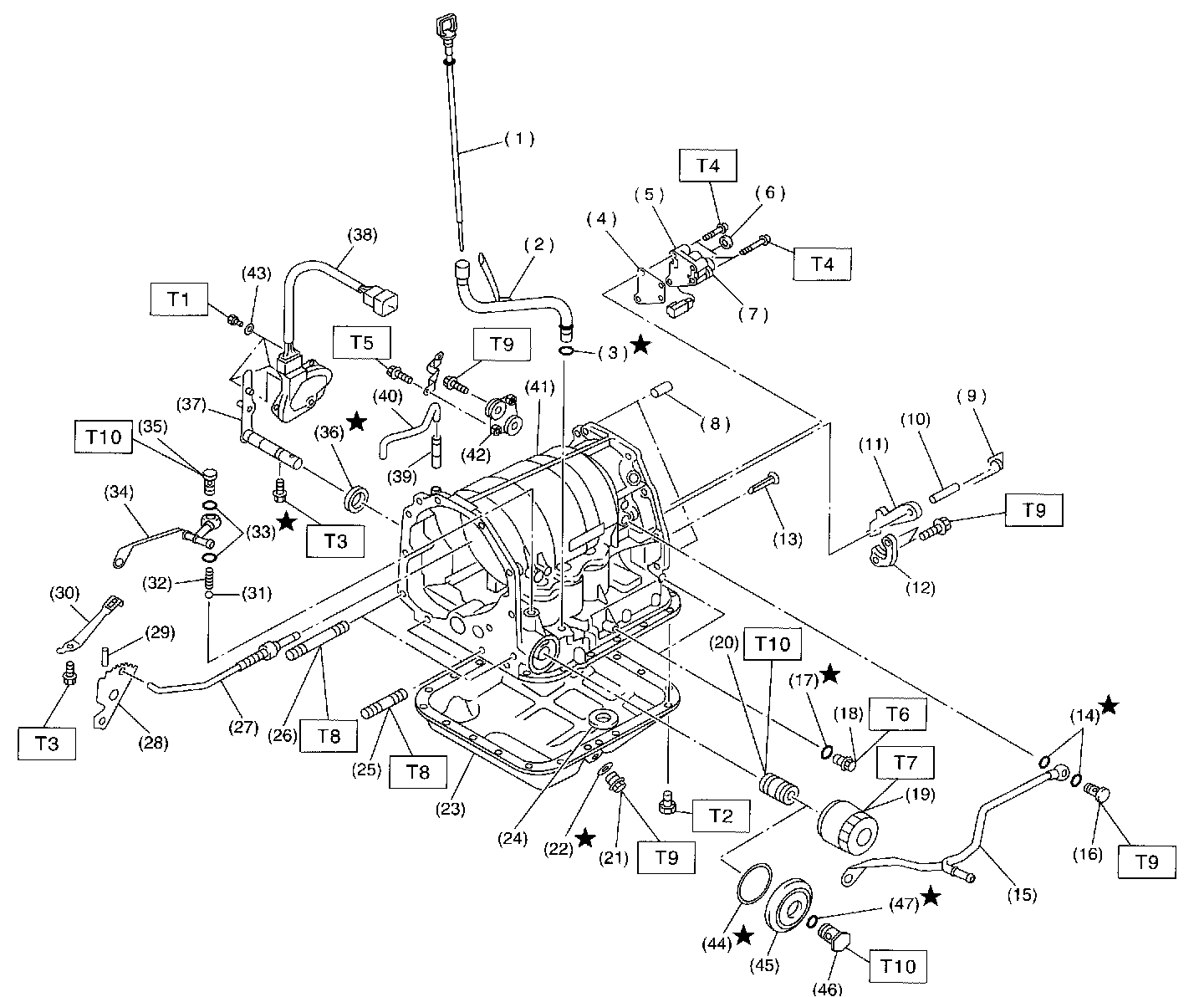

TRANSMISSION CASE AND CONTROL DEVICE

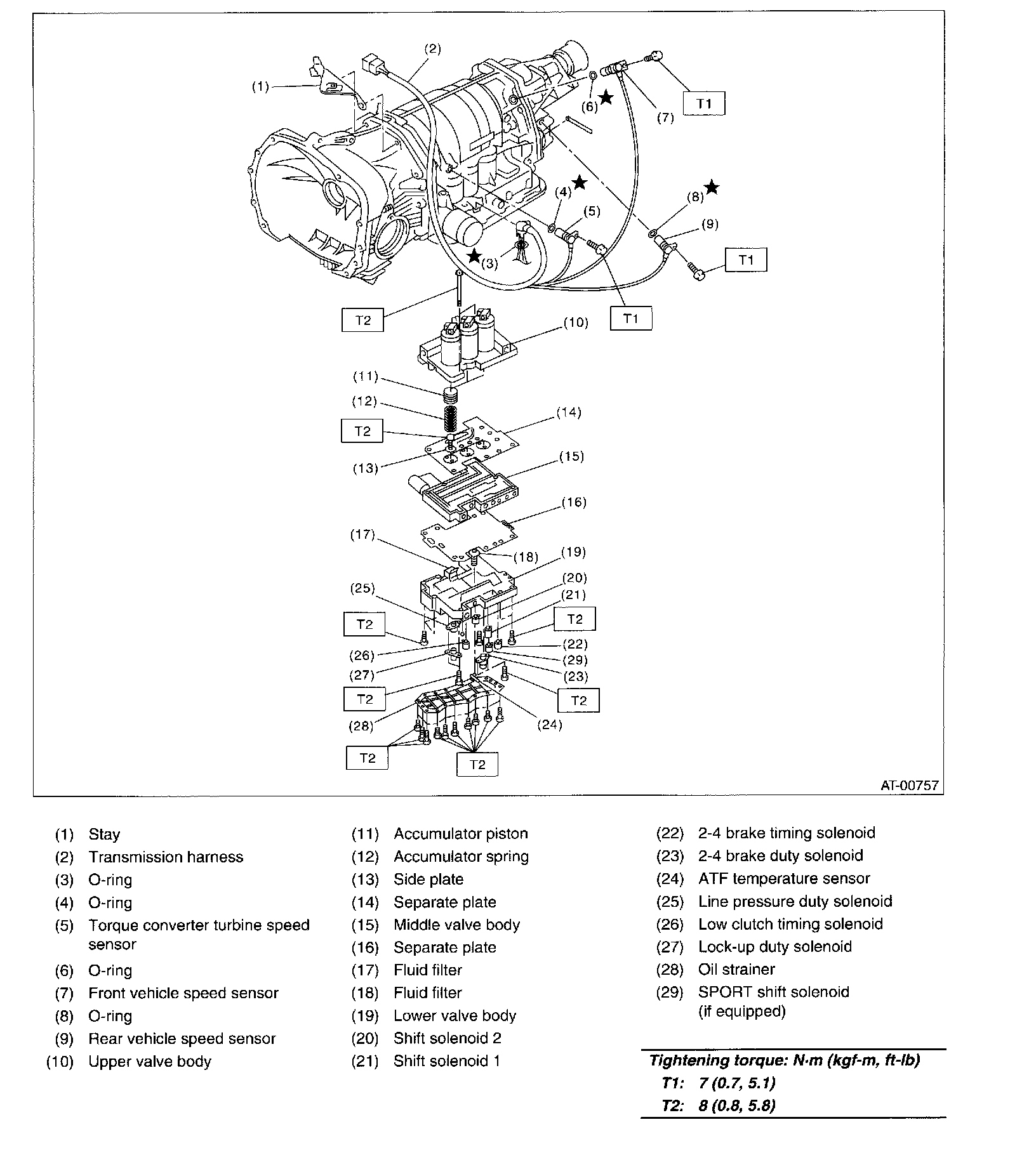

CONTROL VALVE AND HARNESS ROUTING

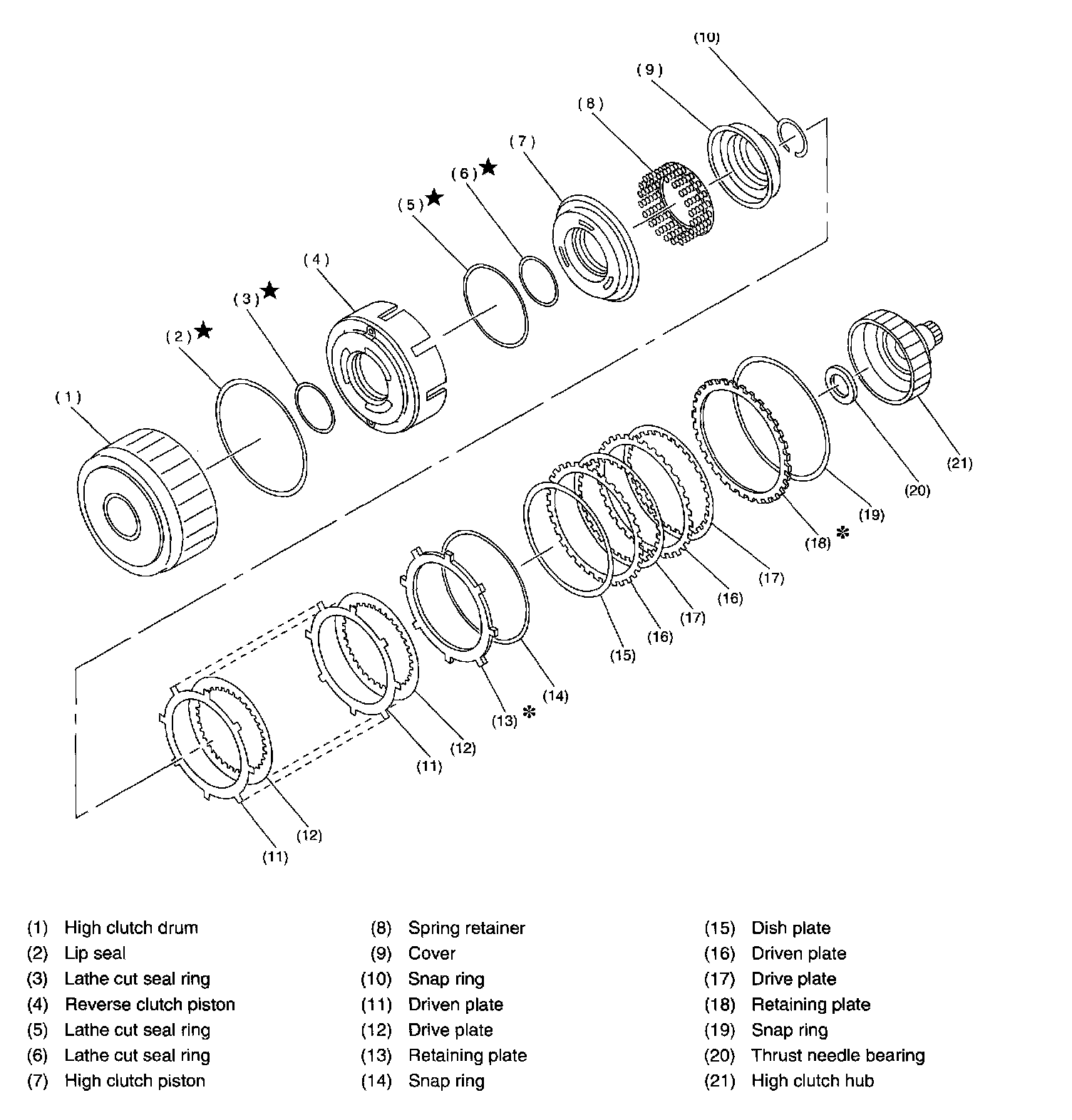

HIGH CLUTCH AND REVERSE CLUTCH

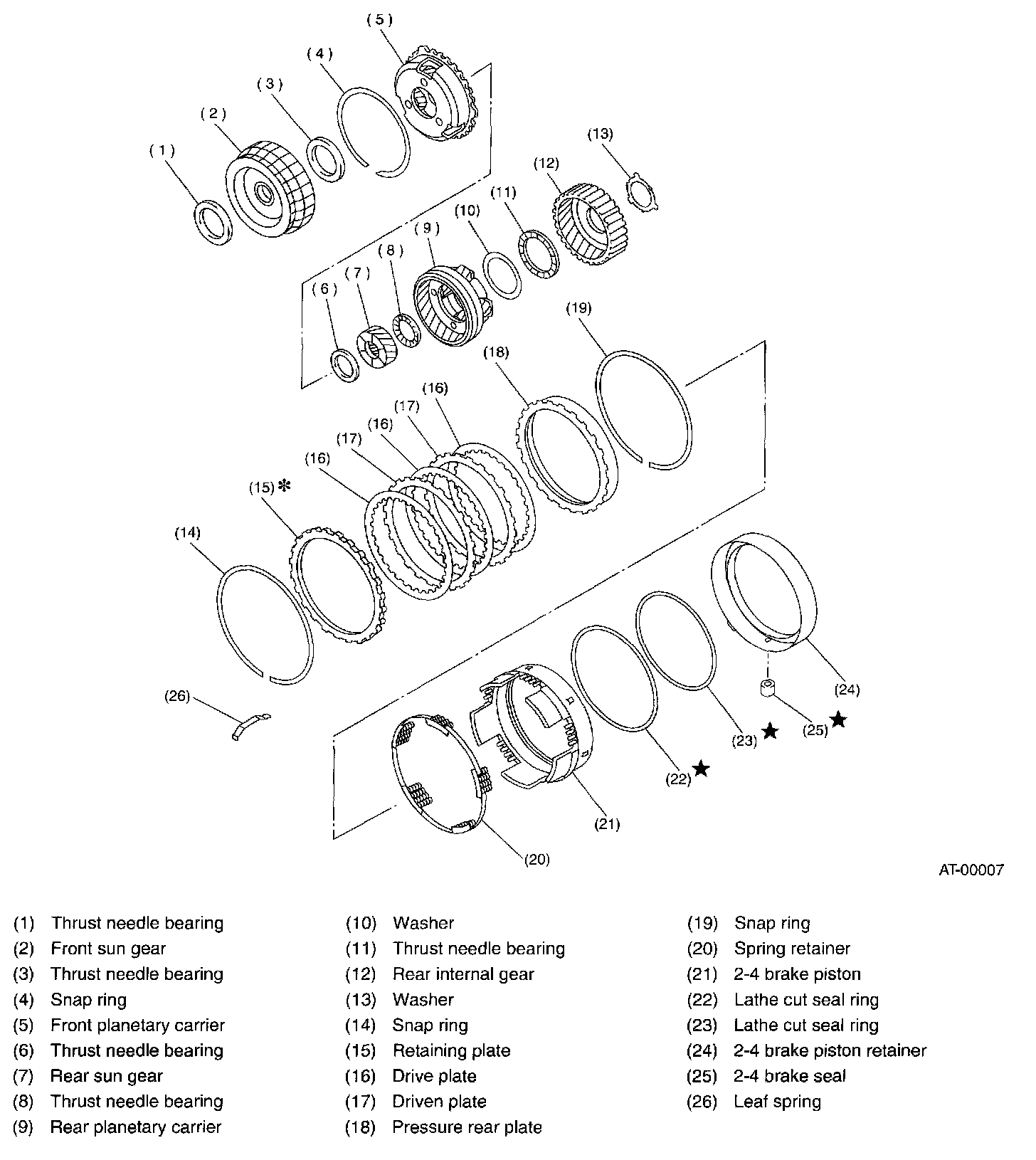

PLANETARY GEAR AND 2-4 BRAKE

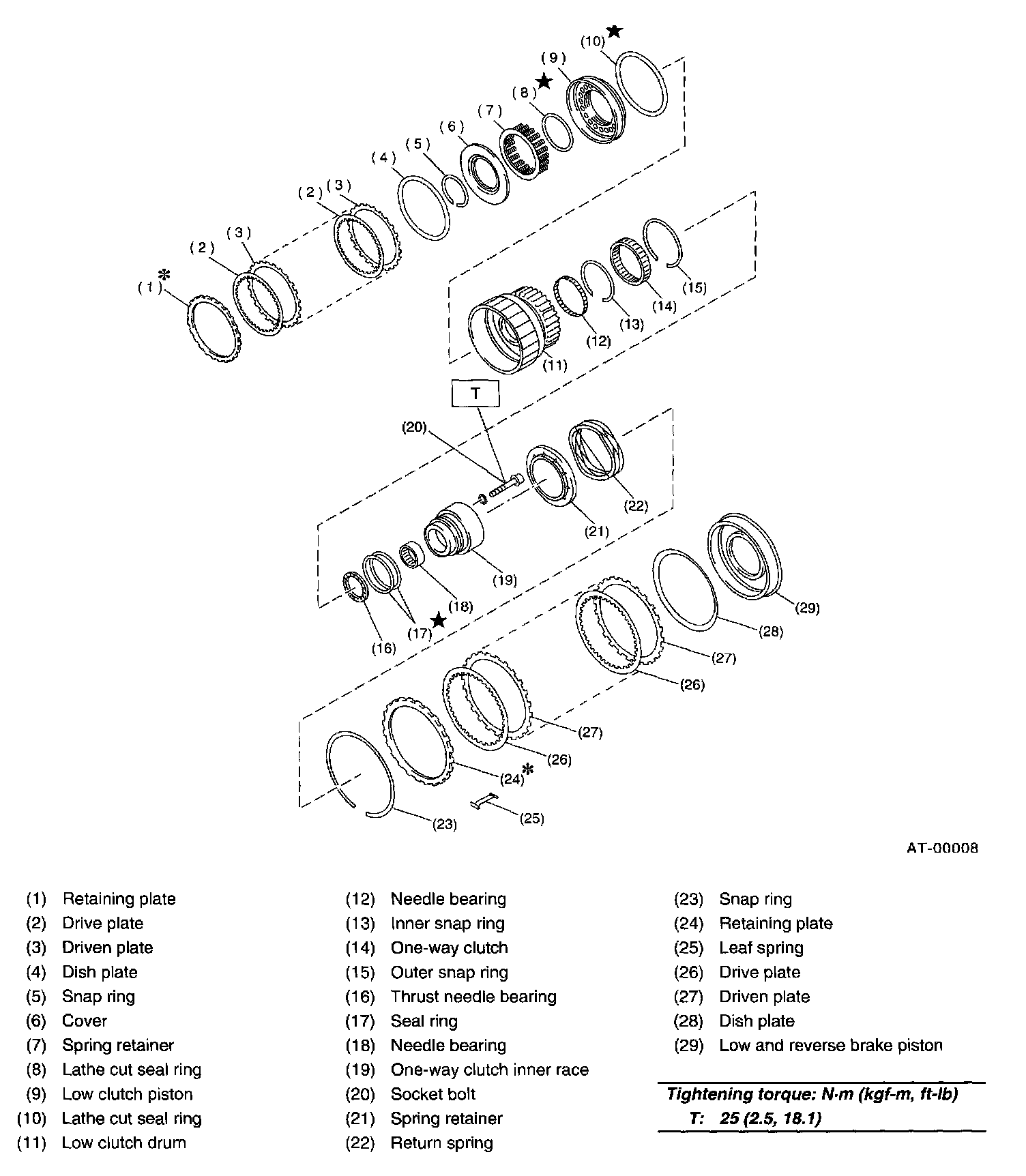

LOW CLUTCH AND LOW & REVERSE BRAKE

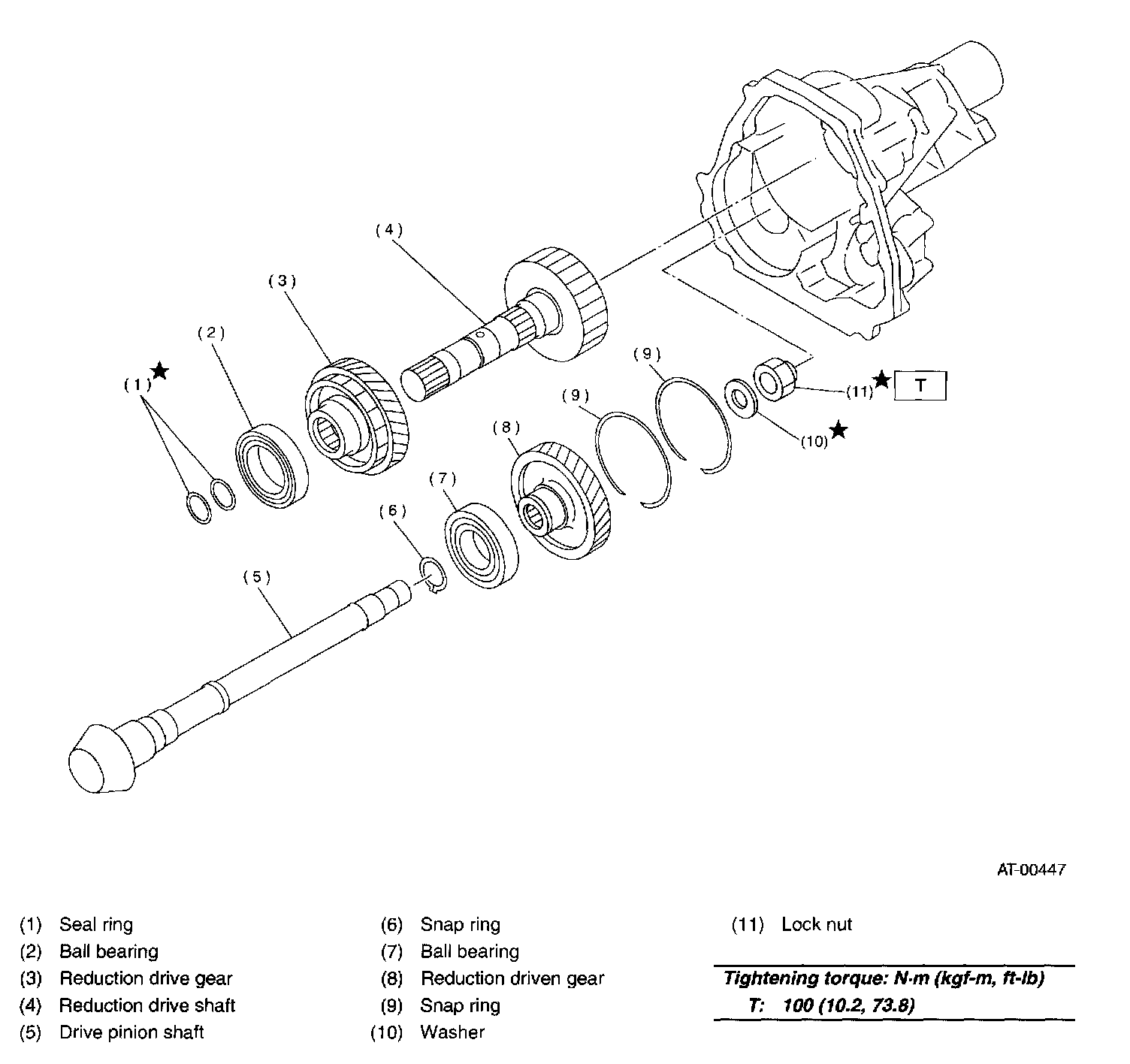

REDUCTION GEAR (APT)
REDUCTION GEAR (VTD)

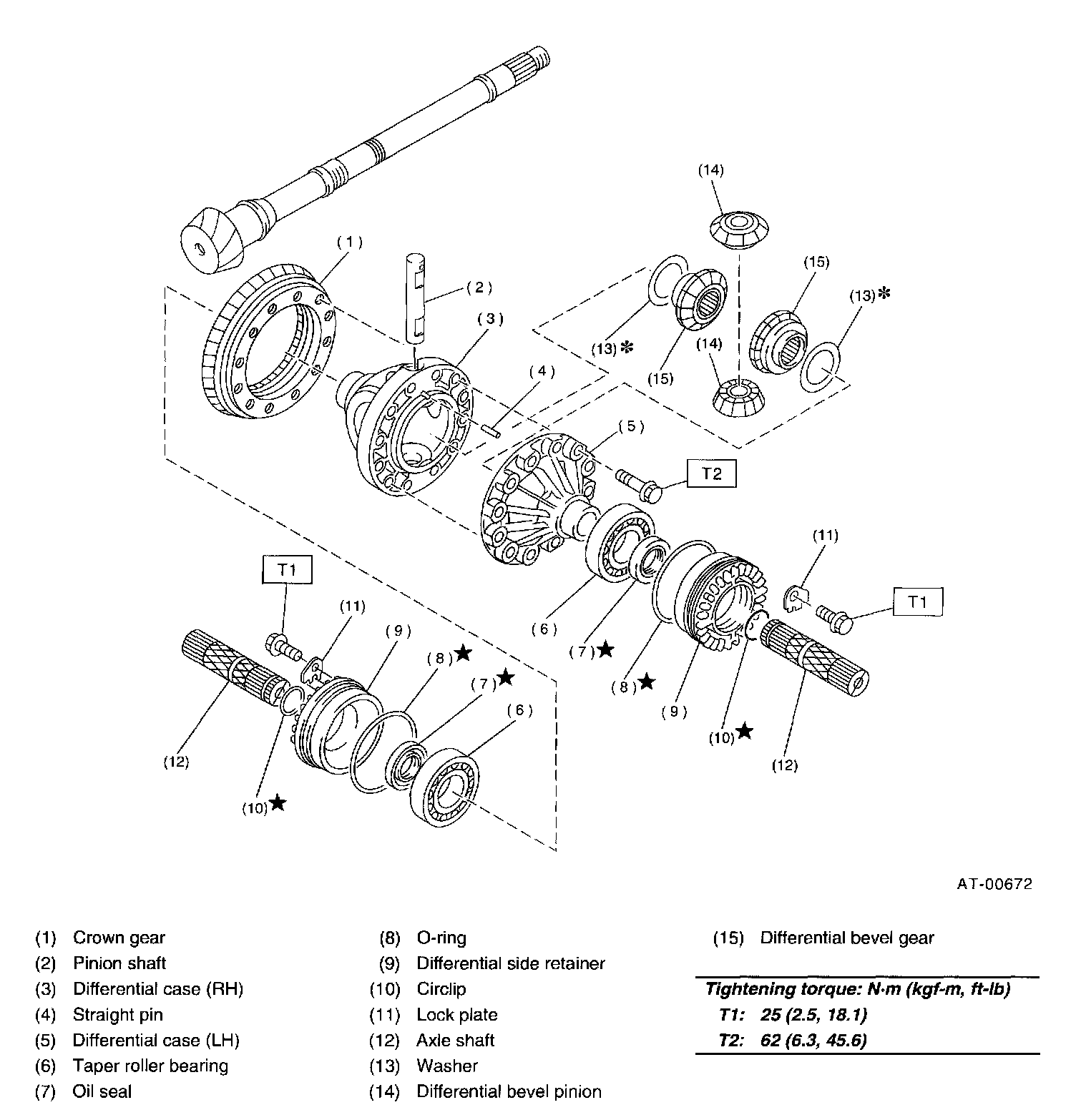

DIFFERENTIAL GEAR

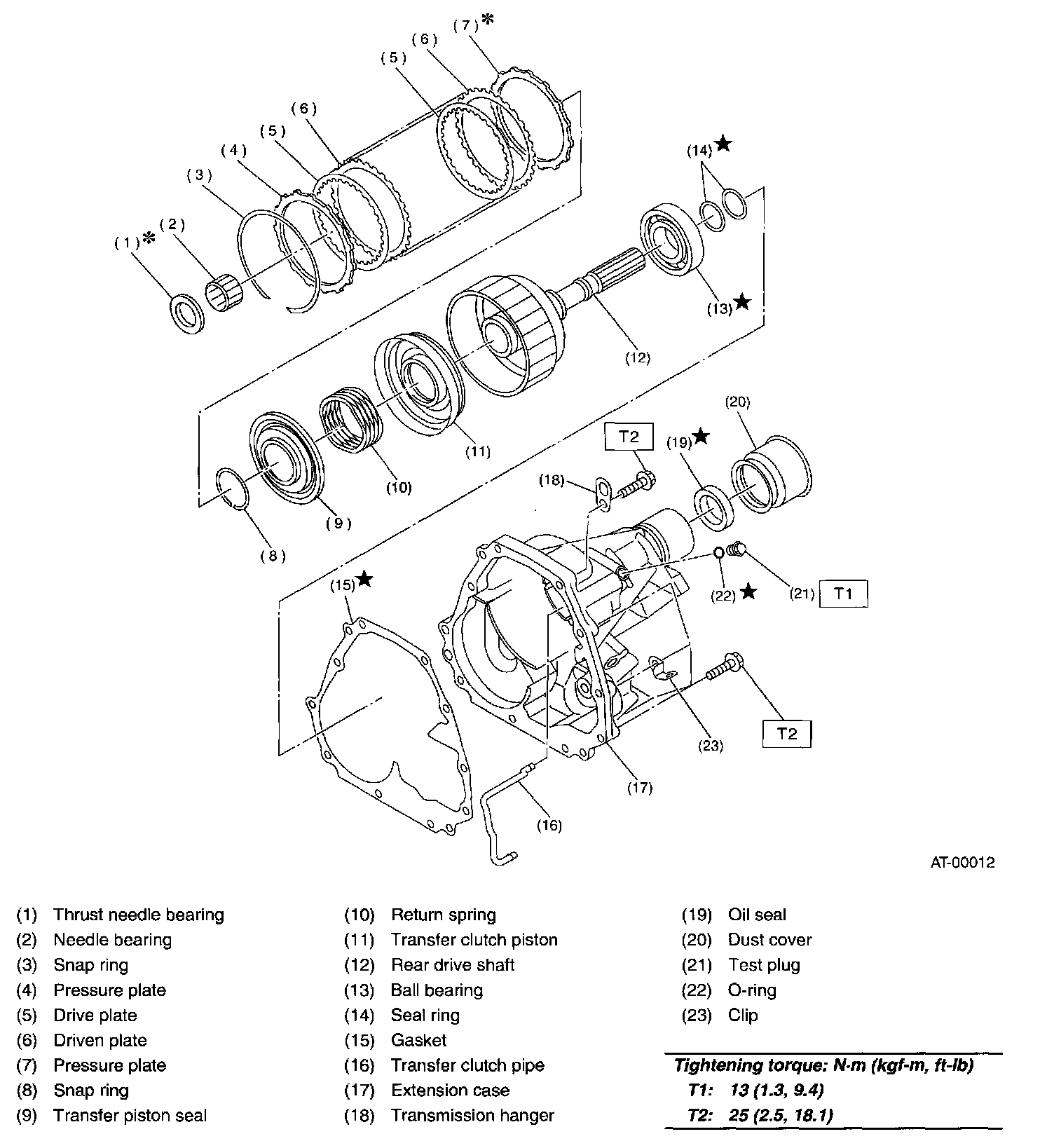

TRANSFER AND EXTENSION CASE (MPT)

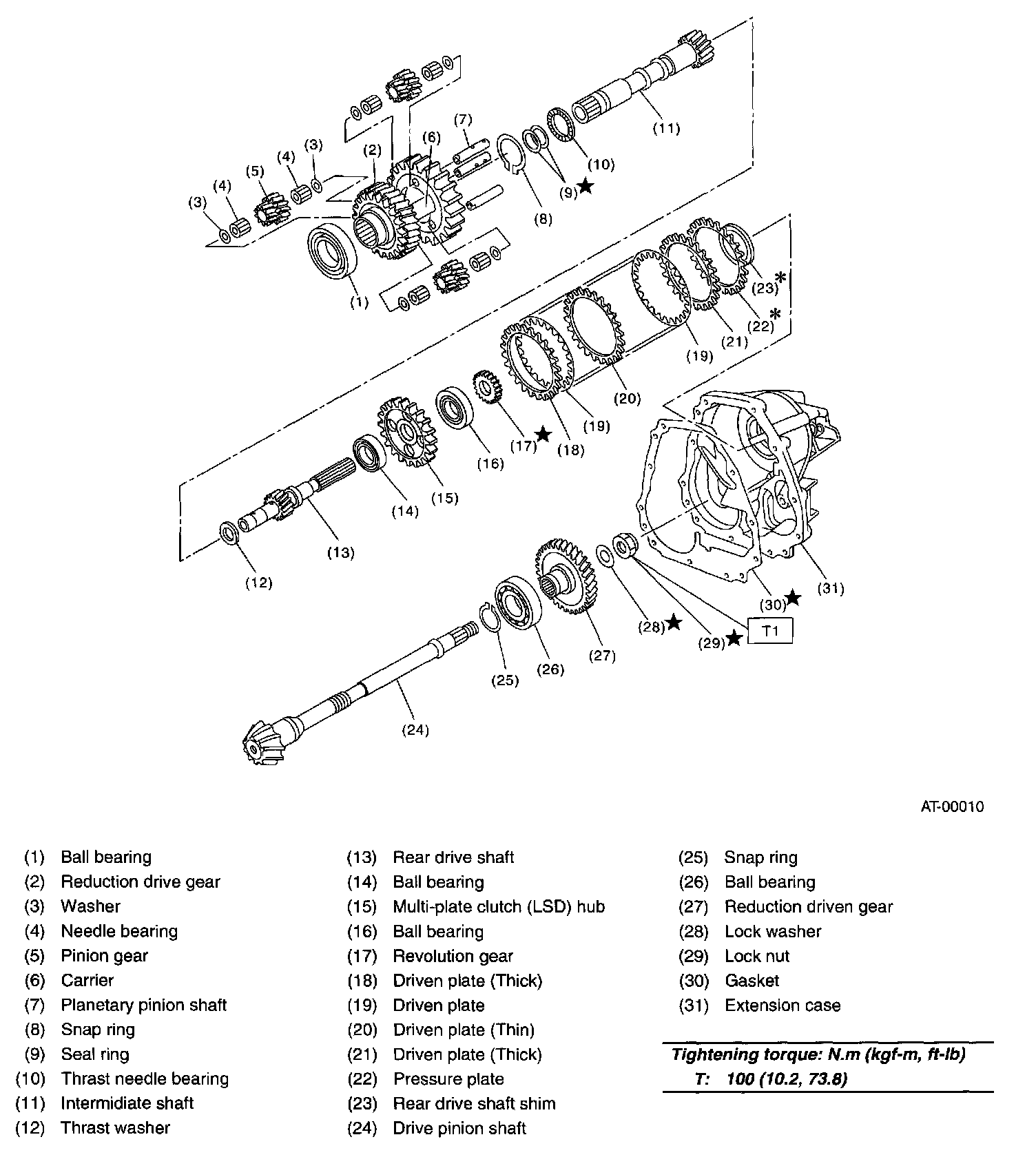

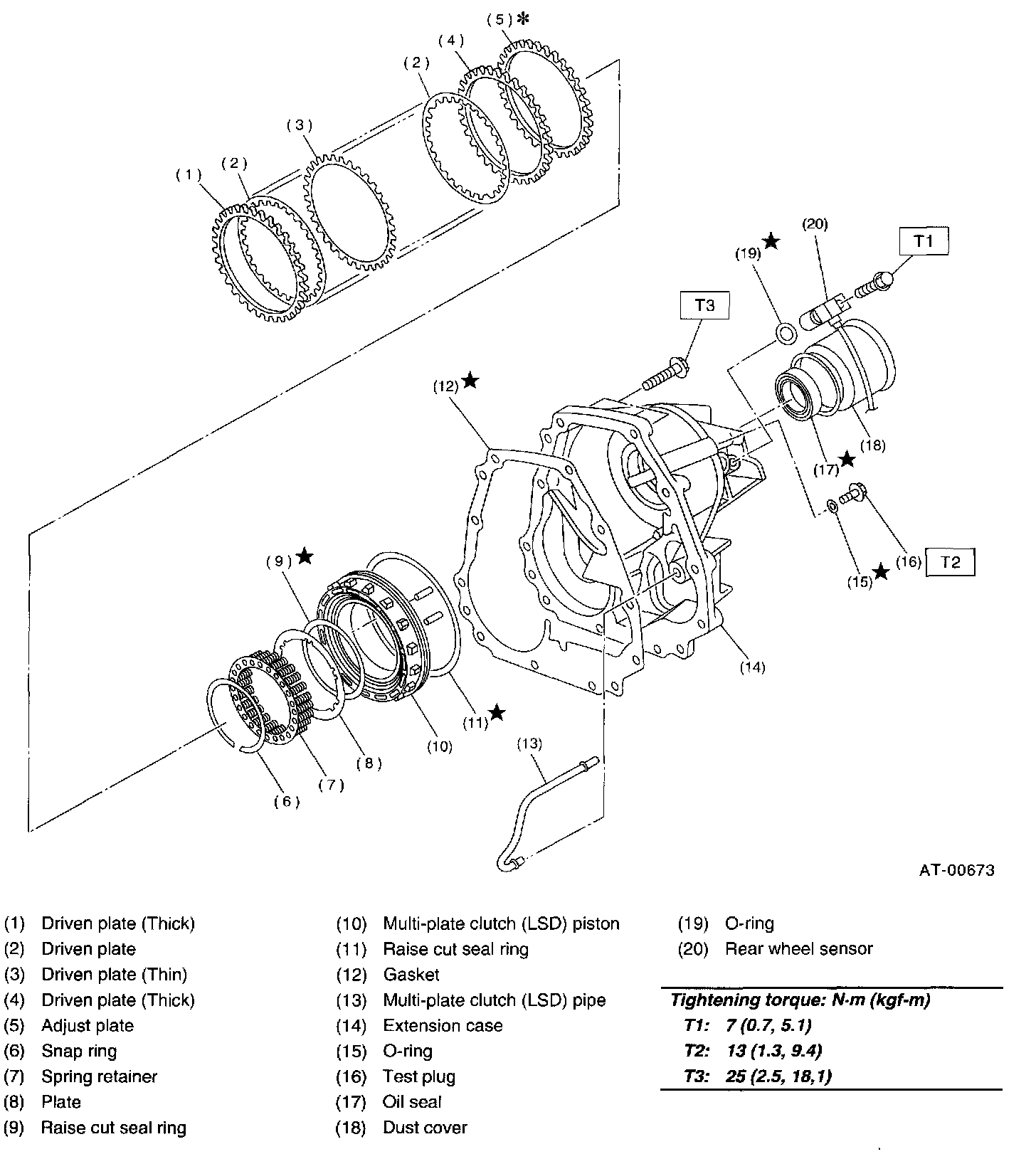

TRANSFER AND EXTENSION CASE (VTD)
