Self-Diagnosis Systems Do Not Operate

A/C AND/OR SELF-DIAGNOSIS SYSTEMS DO NOT OPERATE

TROUBLE SYMPTOM:

Wiring Diagram:




WIRING DIAGRAM:

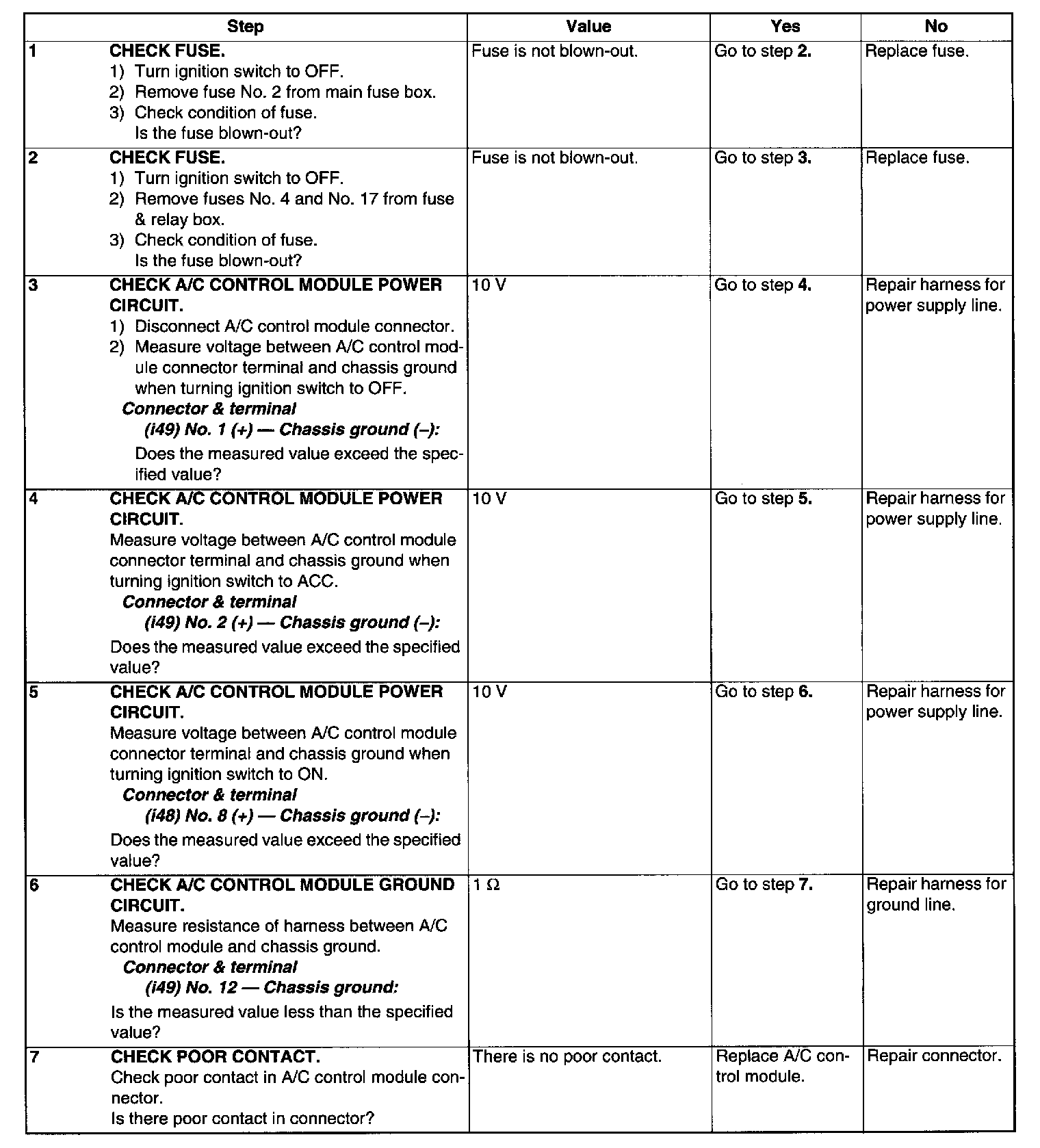

Step 1 - 7:




- "Set" temperature is not indicated on display, switch LEDs are faulty and switches do not operate.
- Self-diagnosis system does not operate.
