Drive Belt: Service and Repair

V-belt

REMOVAL

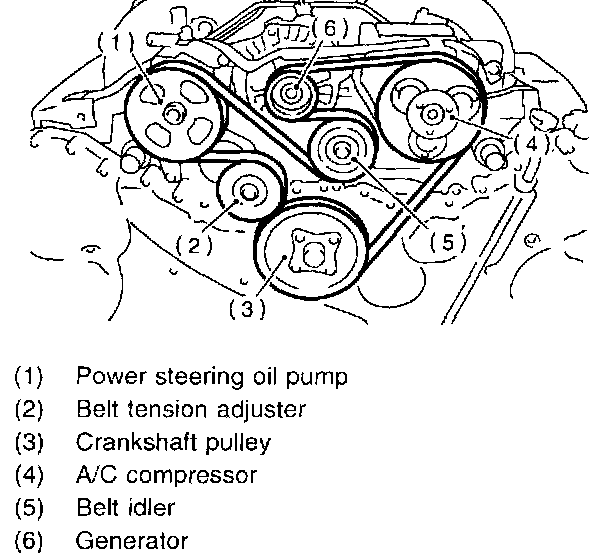

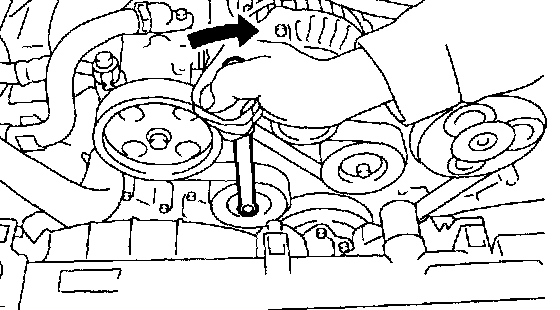

1. Fit the tool to the belt tensioner mounting bolt.





2. Turn the tool clockwise, and loosen the V-belt to remove.
3. Remove the V-belt cover.

INSTALLATION





1. Install in the reverse order of removal.

INSPECTION





1. Replace belts, if cracks, fraying or wear is found.

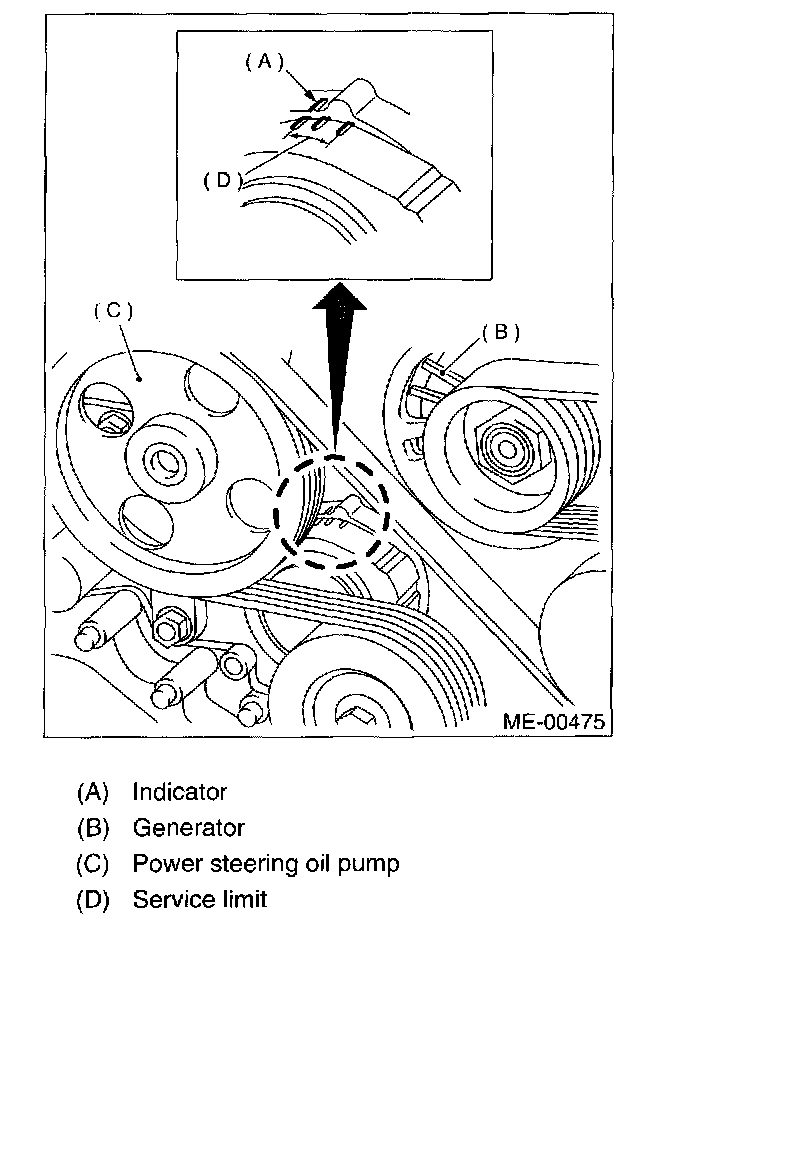

2. Check that the V-belt automatic tensioner indicator (A) is within the range (D).
