Relay Box: Locations

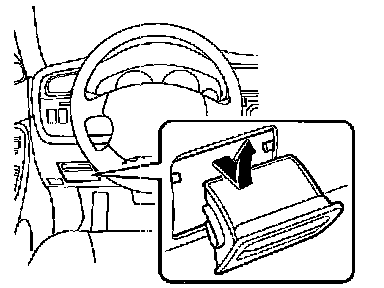

Fuse Panel Located Behind Coin Tray:







Fuse Box Locations

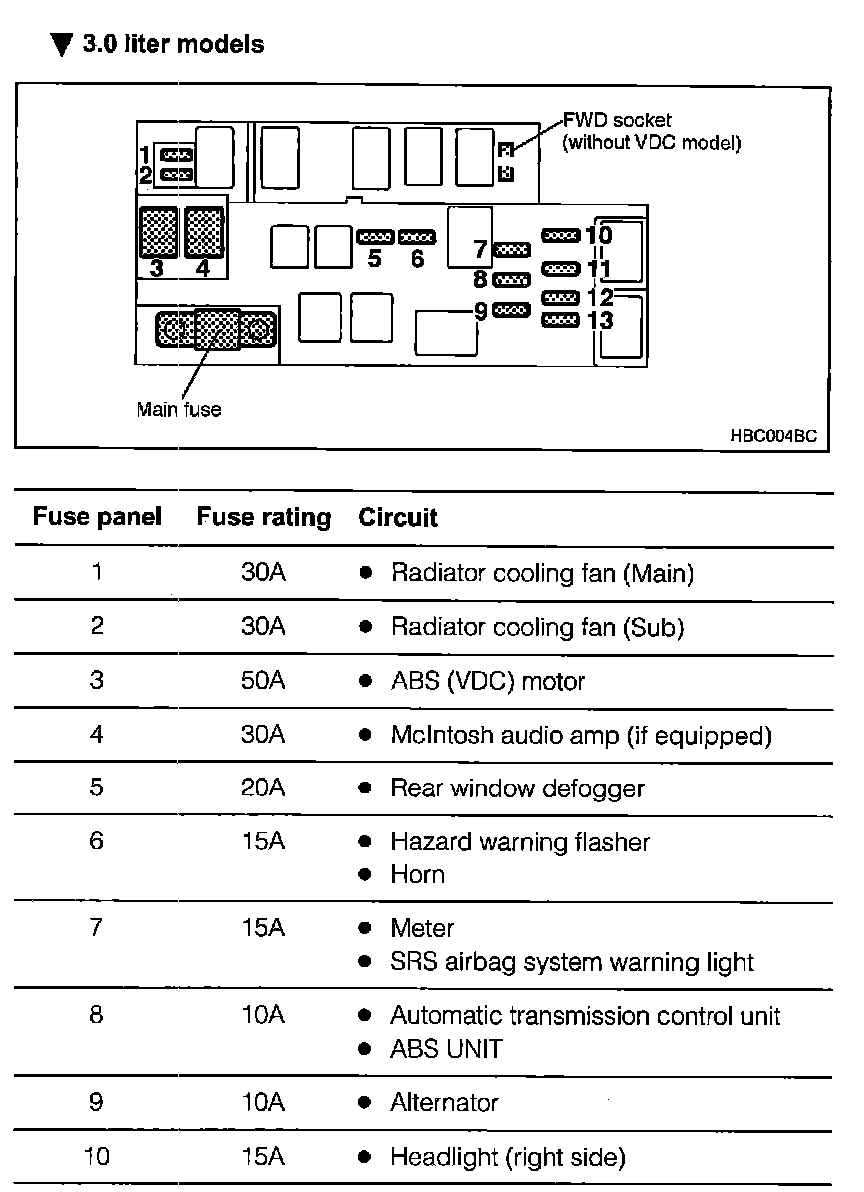

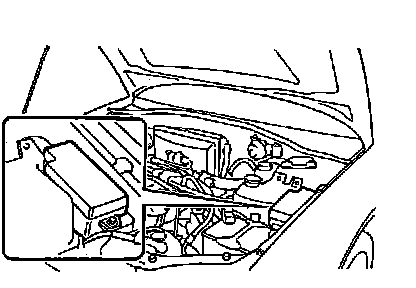

Main Fuse Box (M/B):

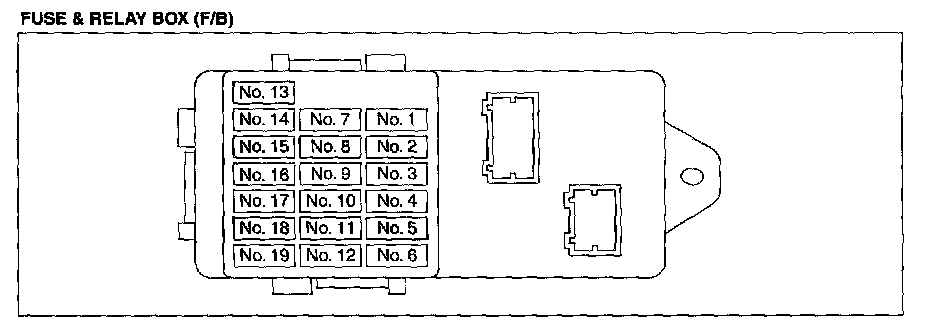

Fuse & Relay Box (F/B):

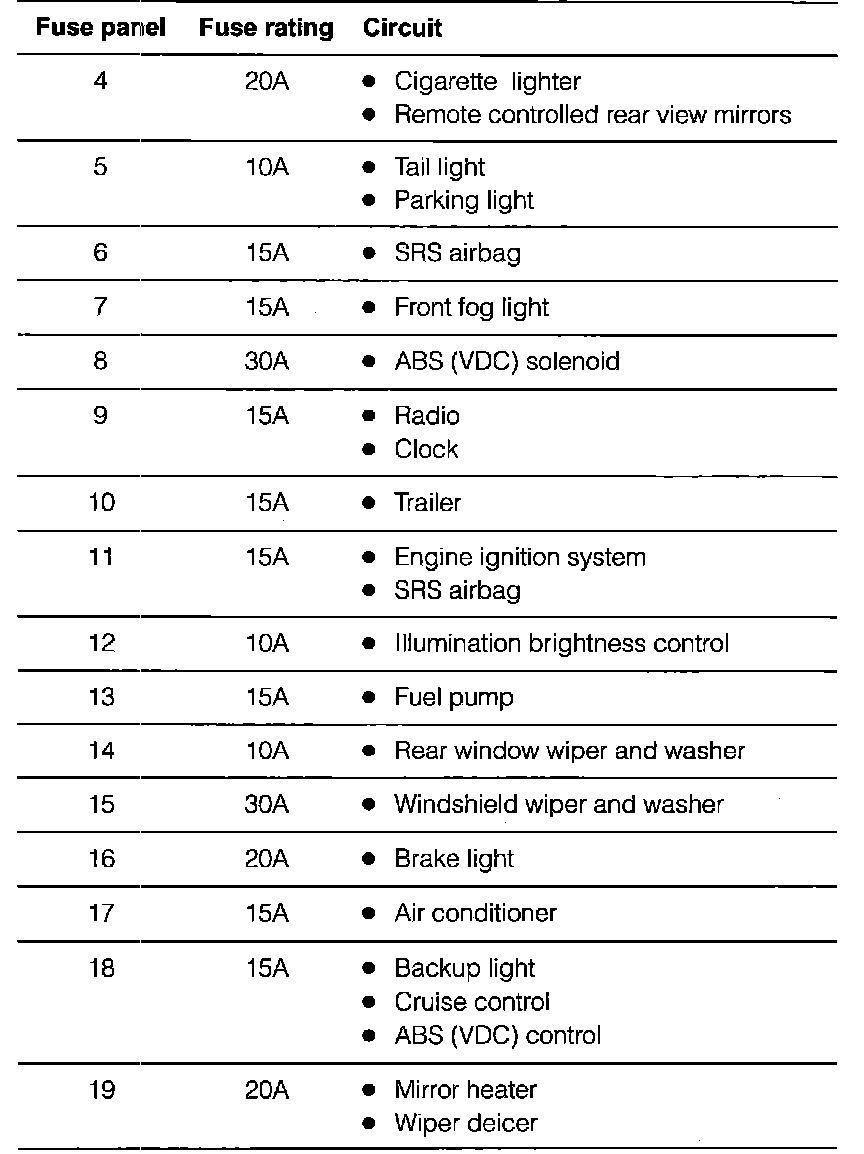

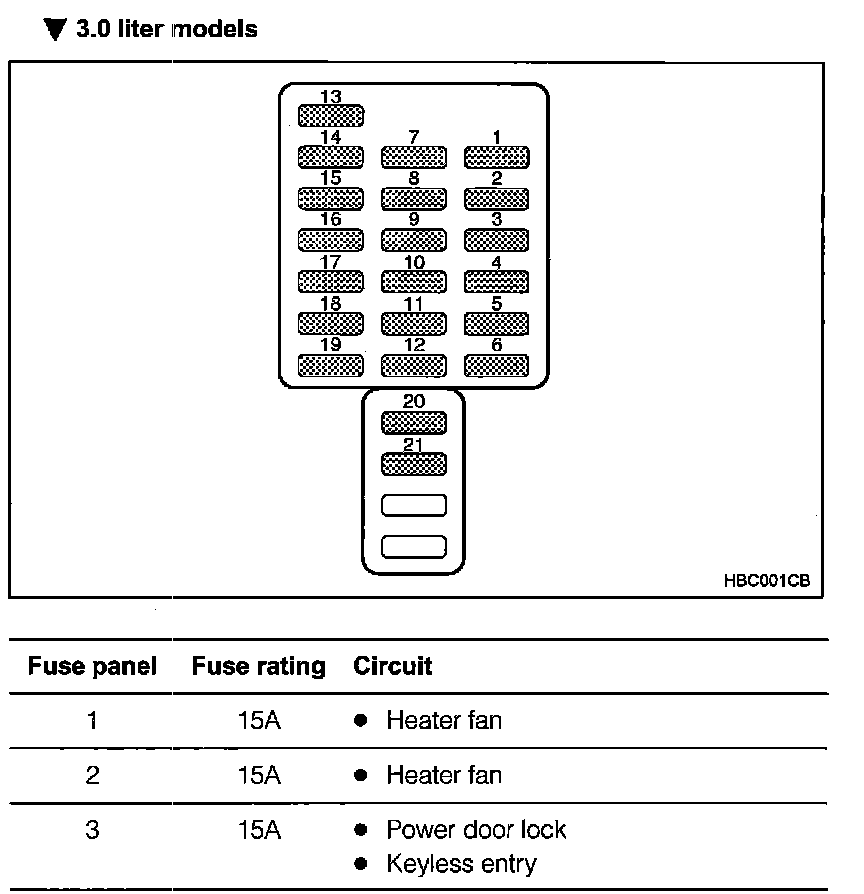

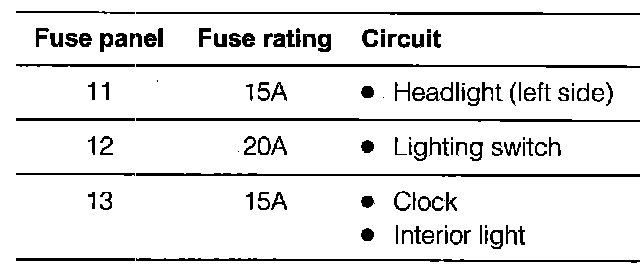

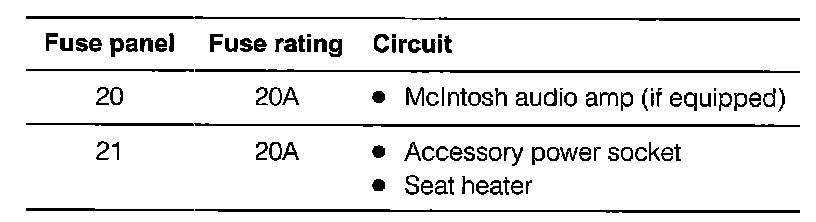

Fuse Panel Details
