Fuel Cut Control Unit: Service and Repair

Fuel Cut Valve

REMOVAL

1. Remove fuel tank.

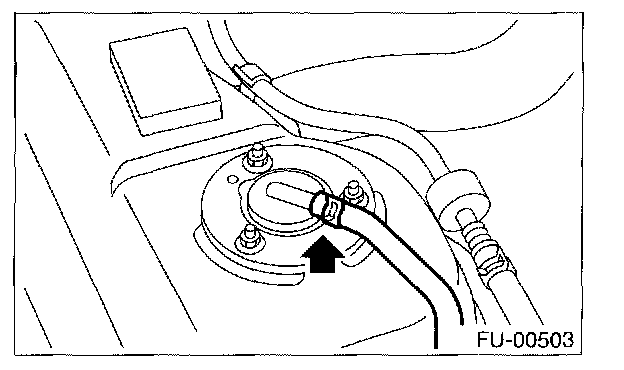

2. Move clip and disconnect evaporation hose from fuel cut valve.

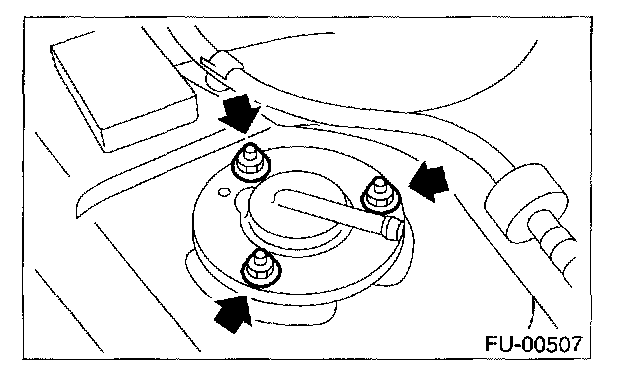

3. Remove bolts which install fuel cut valve.

INSTALLATION




Install in the reverse order of removal.

Tightening torque: 4.4 N.m (0.45 kgf-m, 3.3 ft-lb)
