Control Module Power Supply and Ground Line

CONTROL MODULE POWER SUPPLY AND GROUND LINE

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.

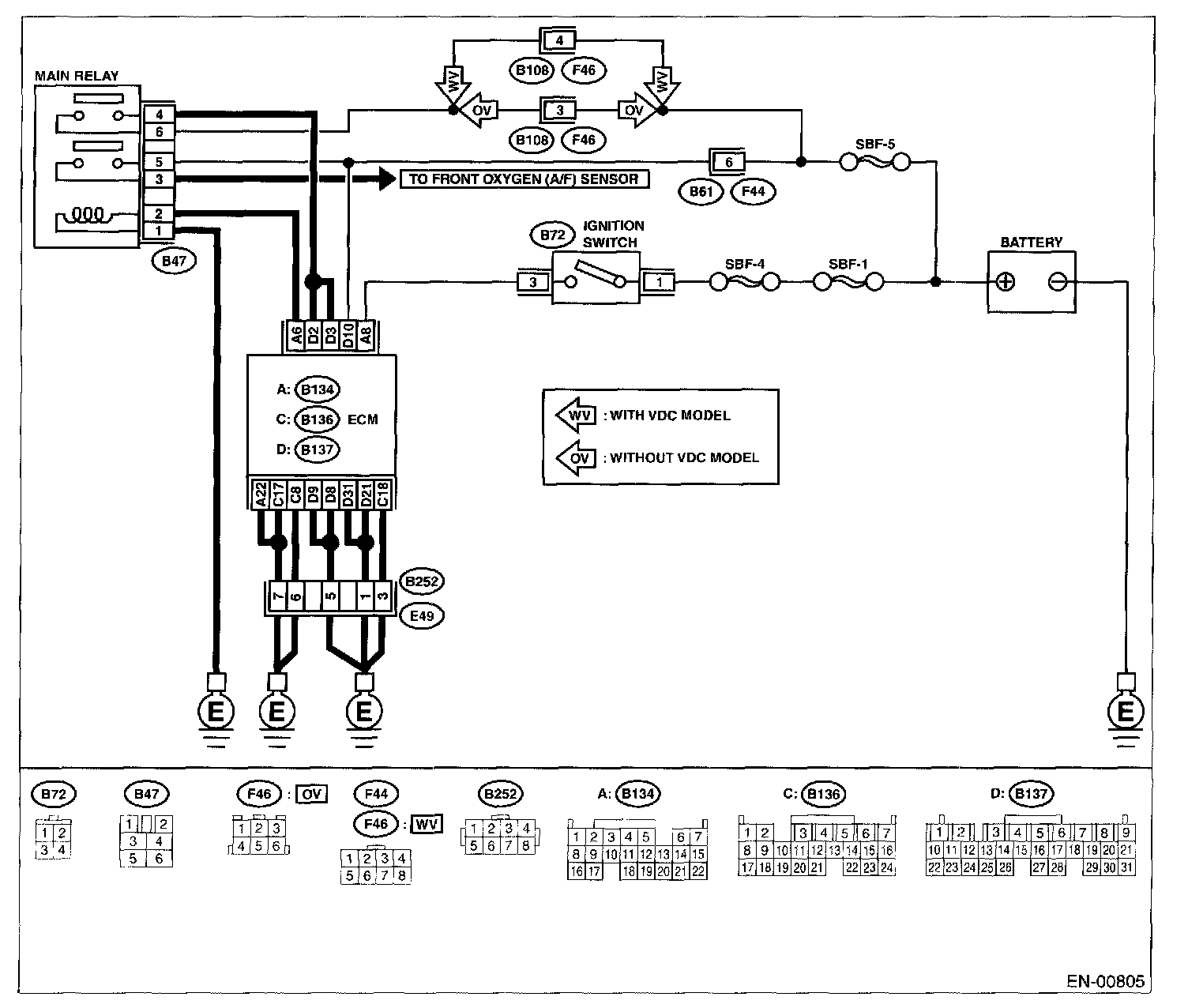

Wiring Diagram:




WIRING DIAGRAM

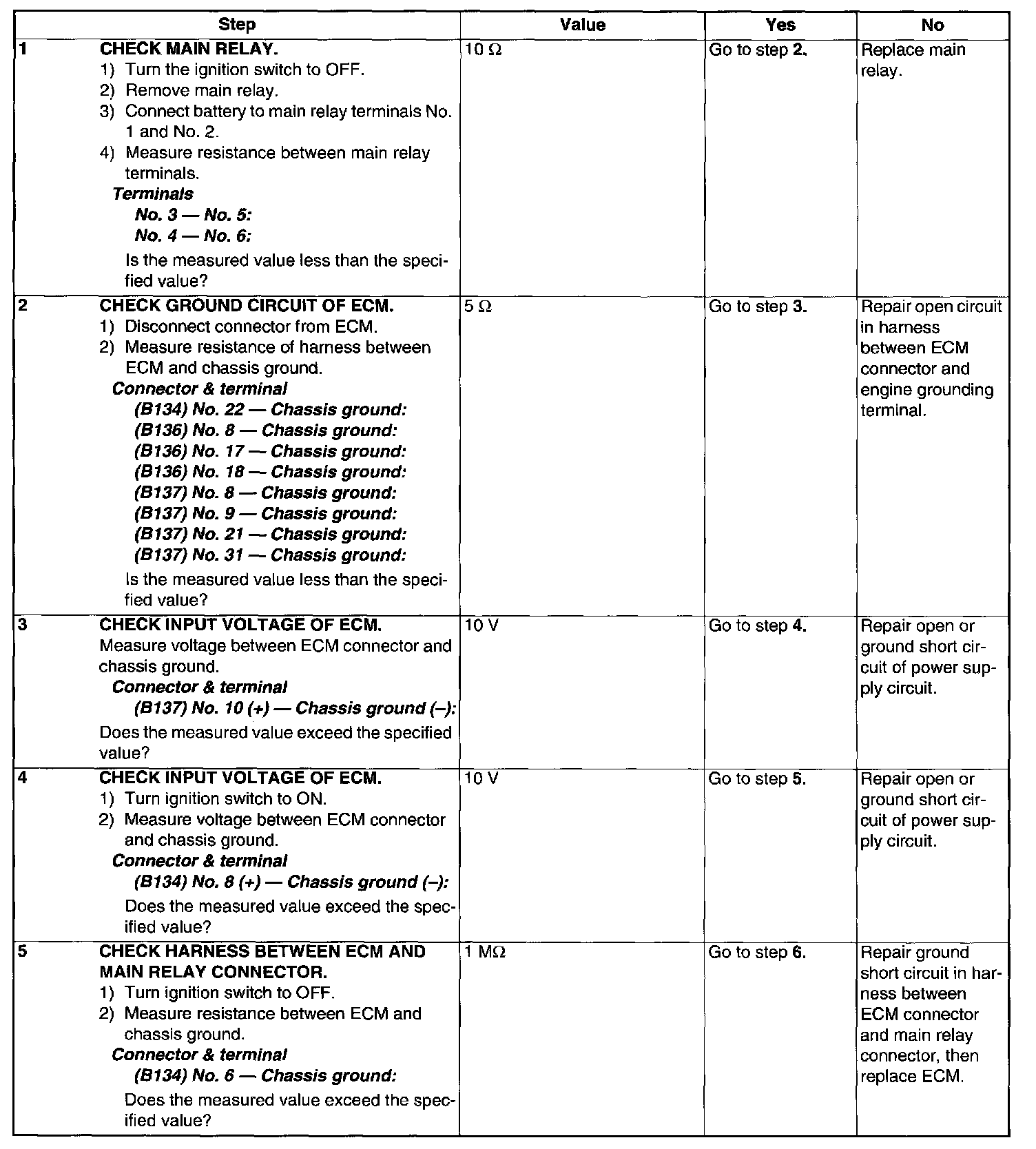

Step 1 - 5:

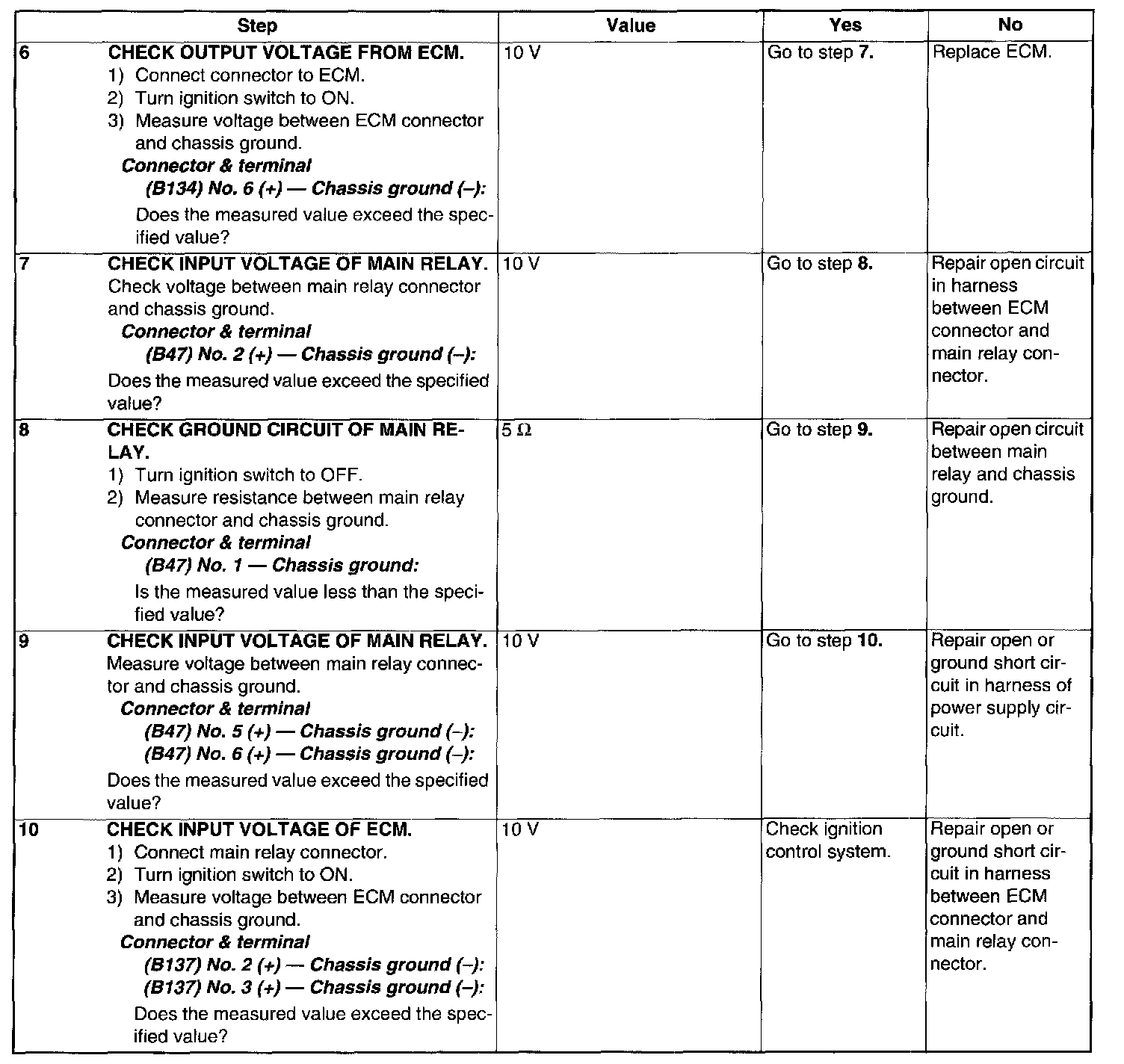

Step 6 - 10:
