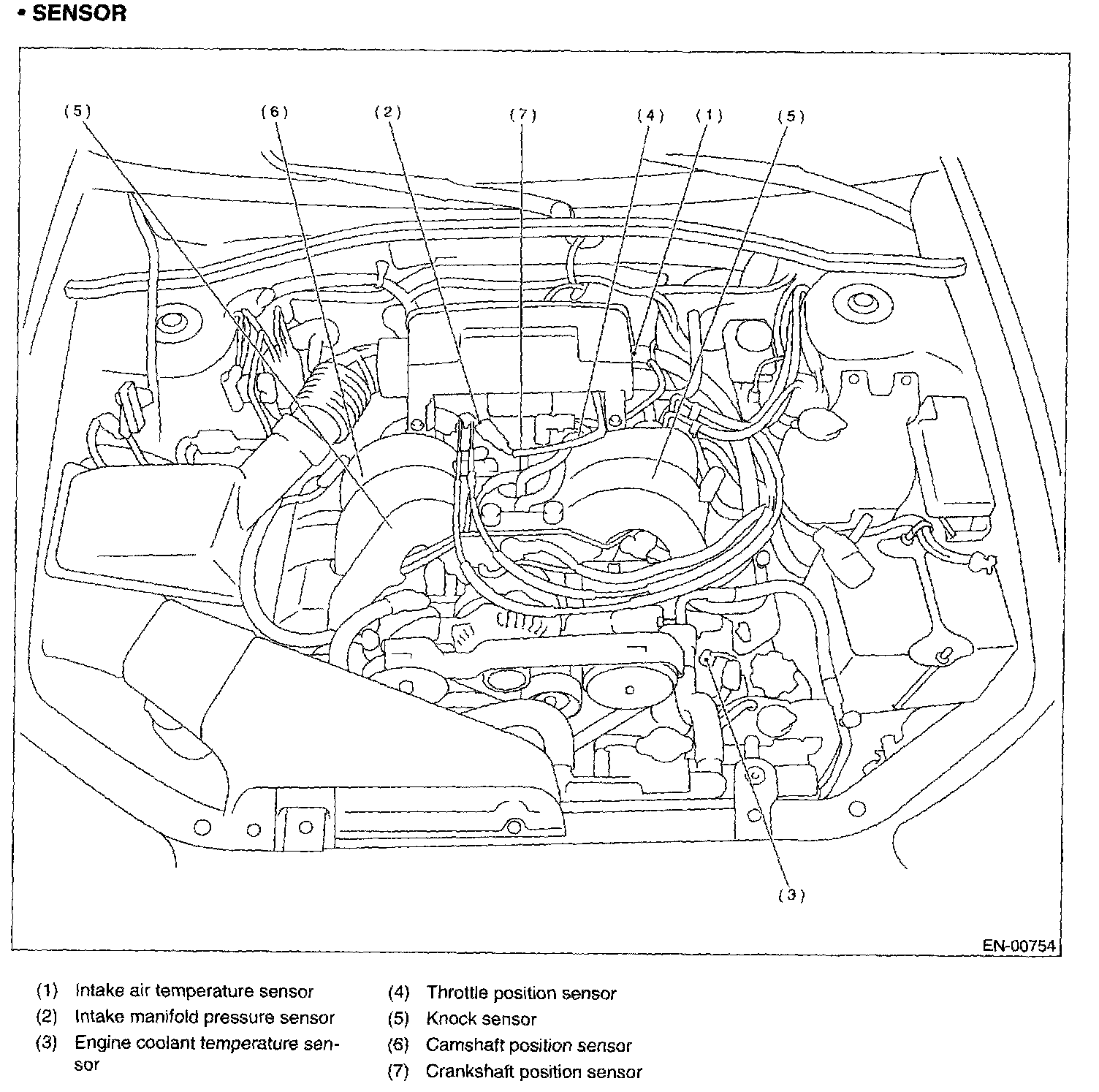

Throttle Position Sensor: Locations

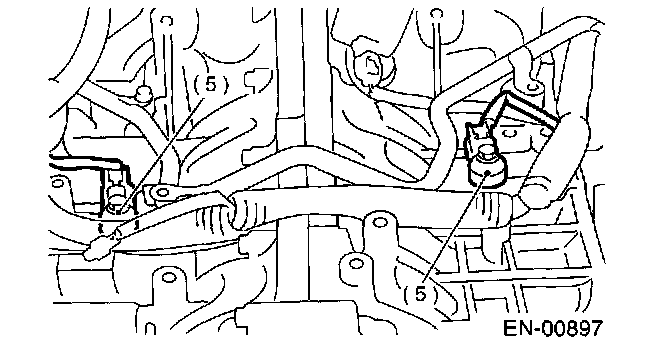

Knock Sensor:

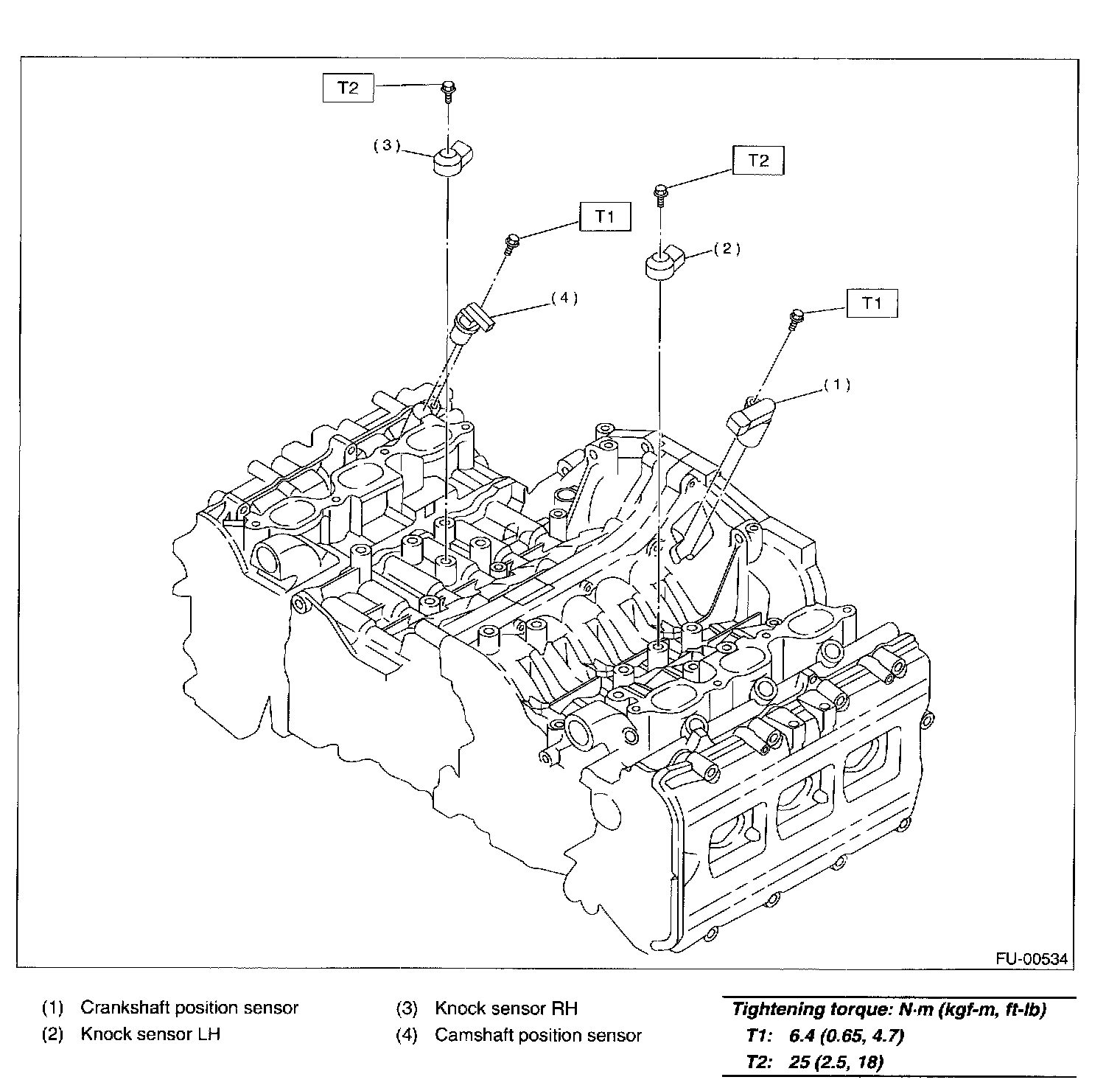

Crankshaft Position, Camshaft Position And Knock Sensors:
