Without Vdc Model

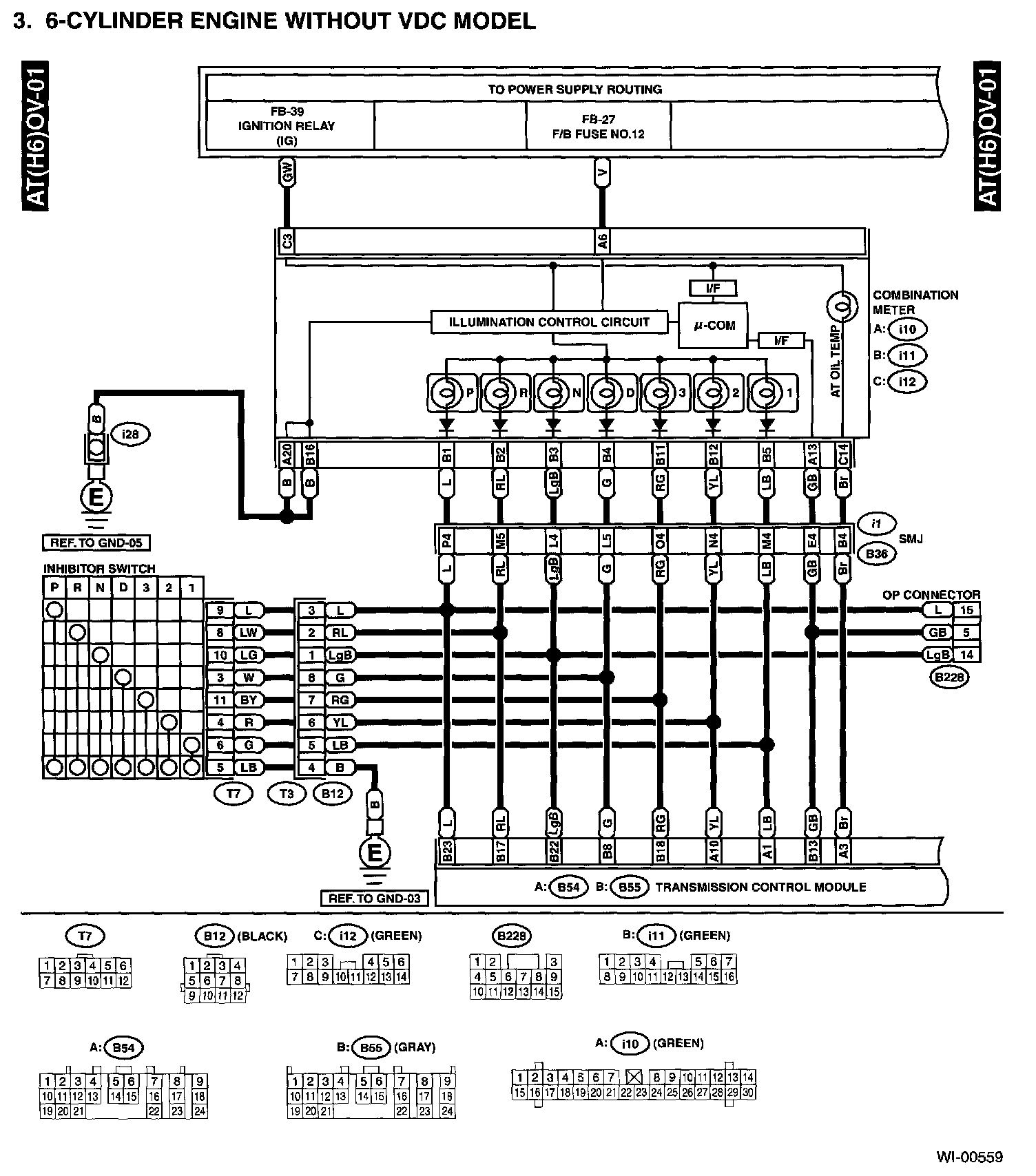

AT(H6)OV-01:

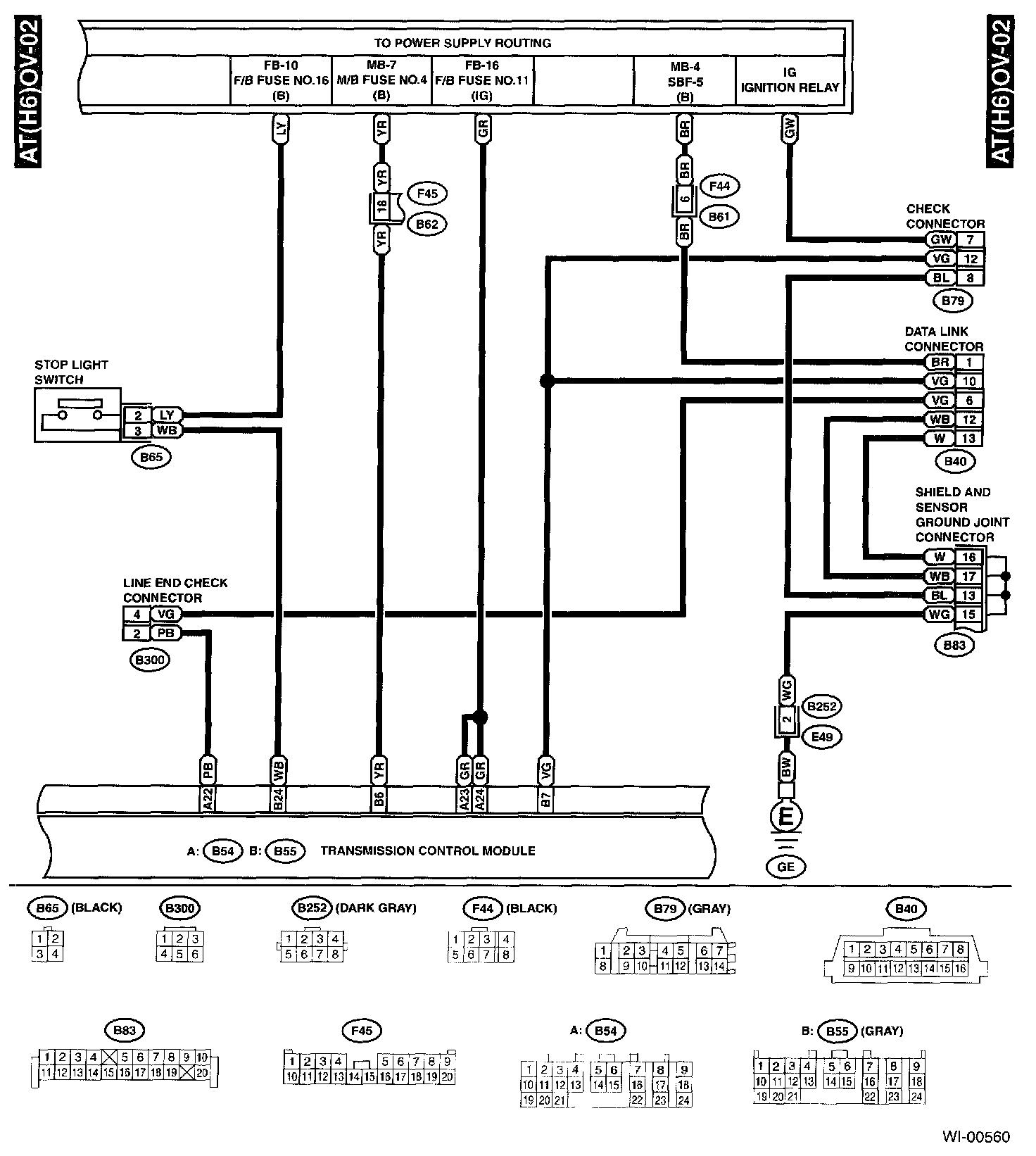

AT(H6)OV-02:

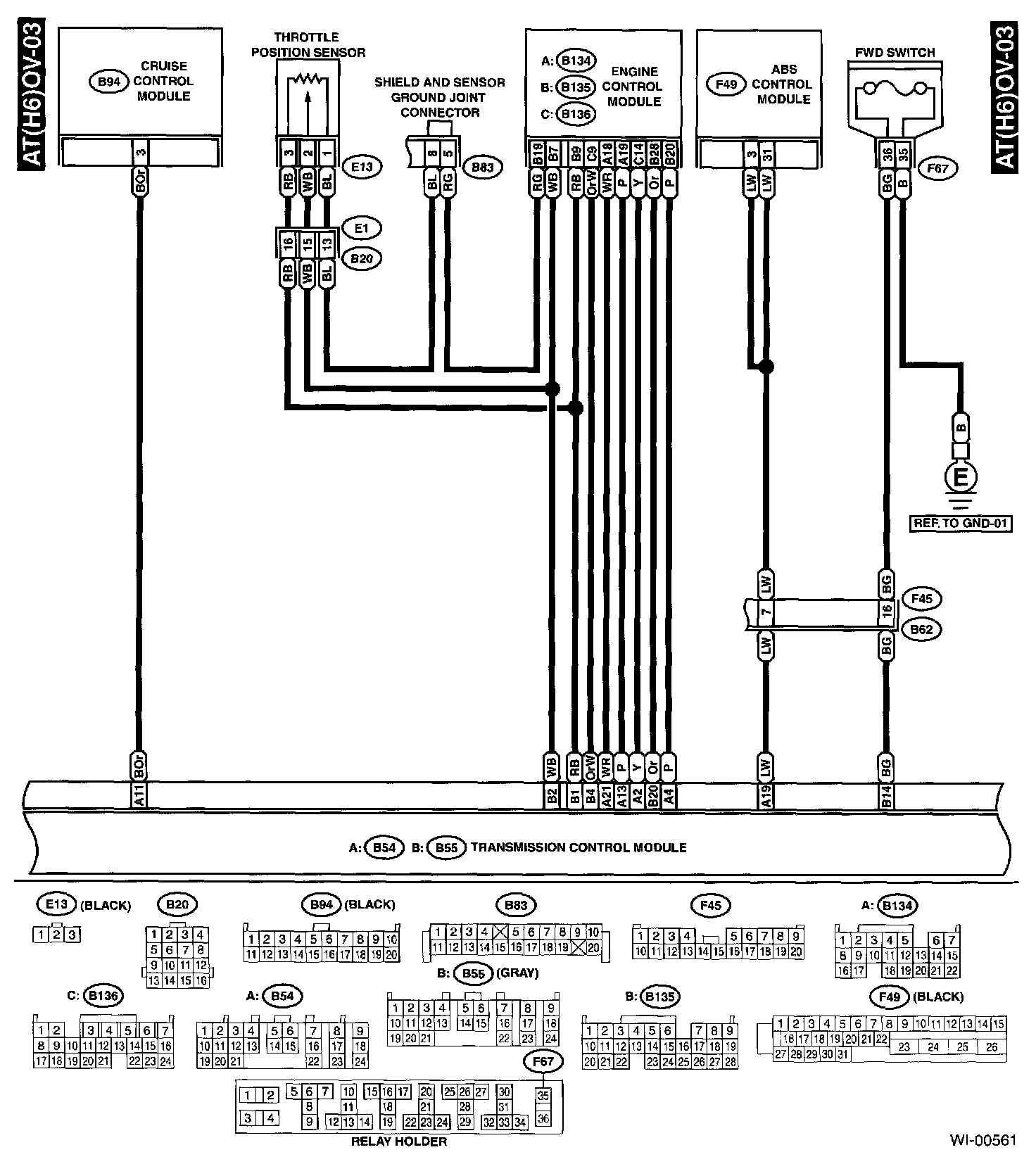

AT(H6)OV-03:

AT(H6)OV-04:

Diagrams: Other diagrams referred to by name within these diagrams (i.e. "REF. TO GND-01", etc) can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
