Check Sport Shift Switch
CHECK SPORT SHIFT SWITCHDIAGNOSIS:
SPORT shift switch input signal circuit is open or shorted.
TROUBLE SYMPTOM:
^ No SPORT shift mode occurs.
^ Does not shift gears in SPORT shift mode.

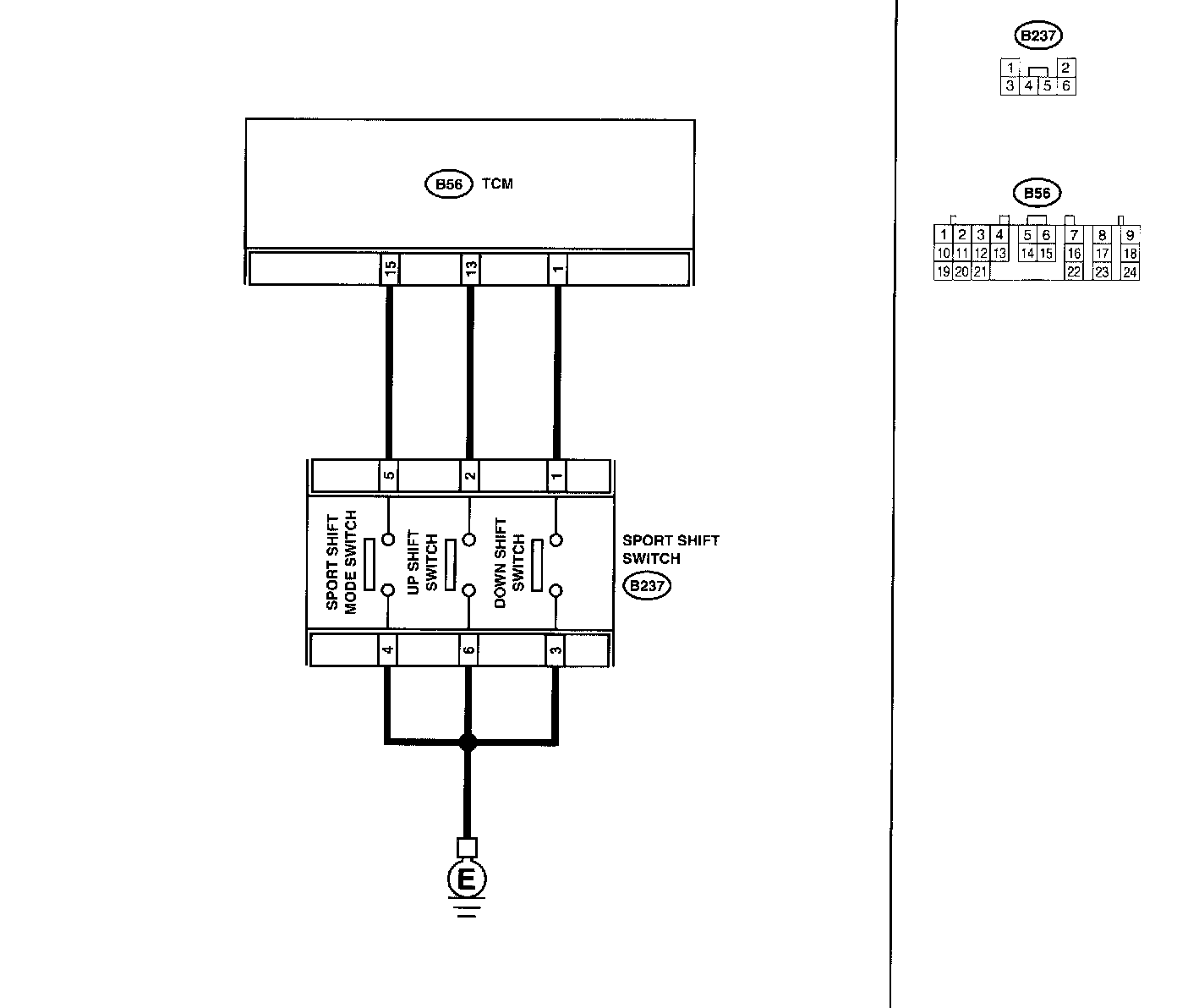

WIRING DIAGRAM:

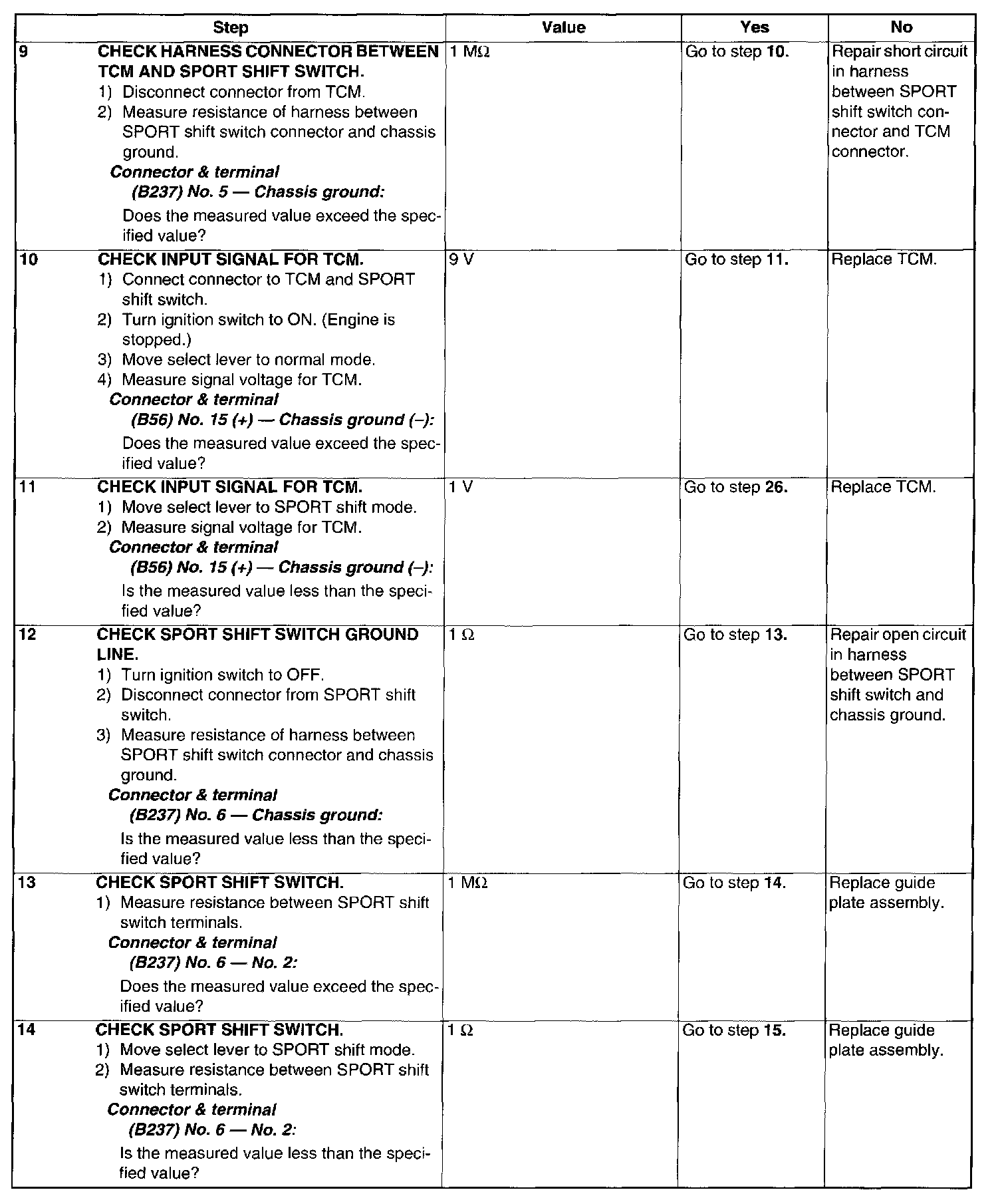

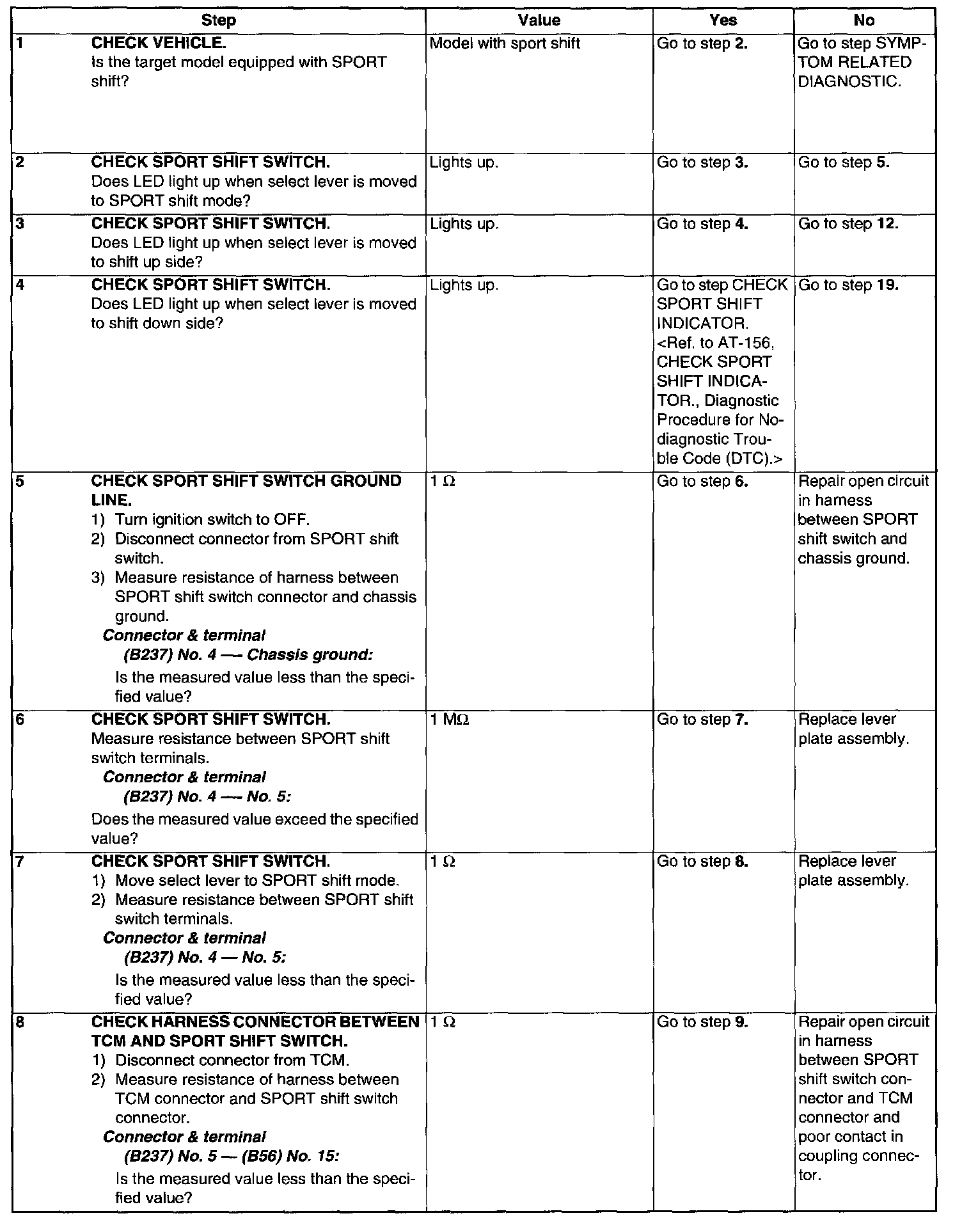

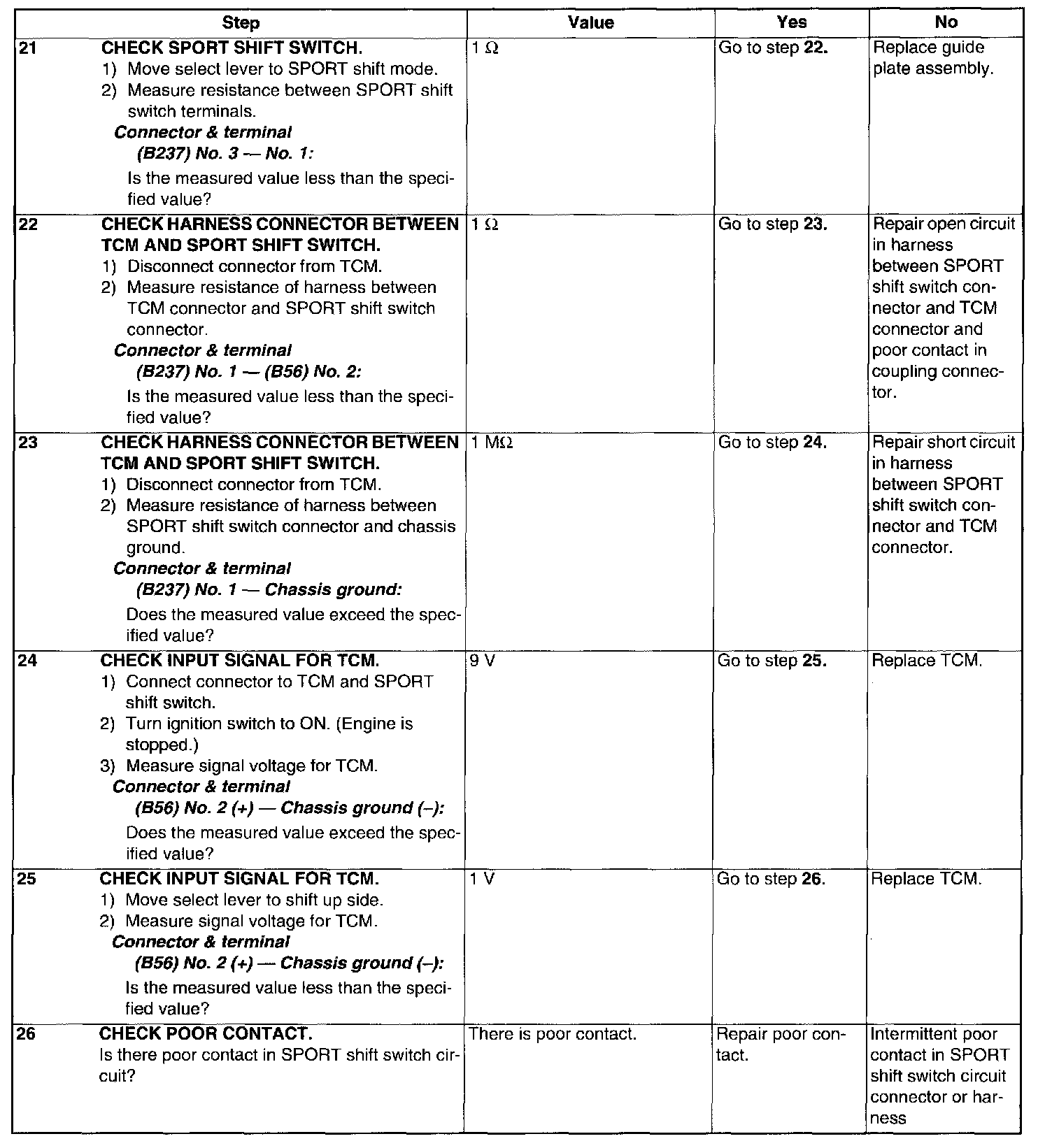

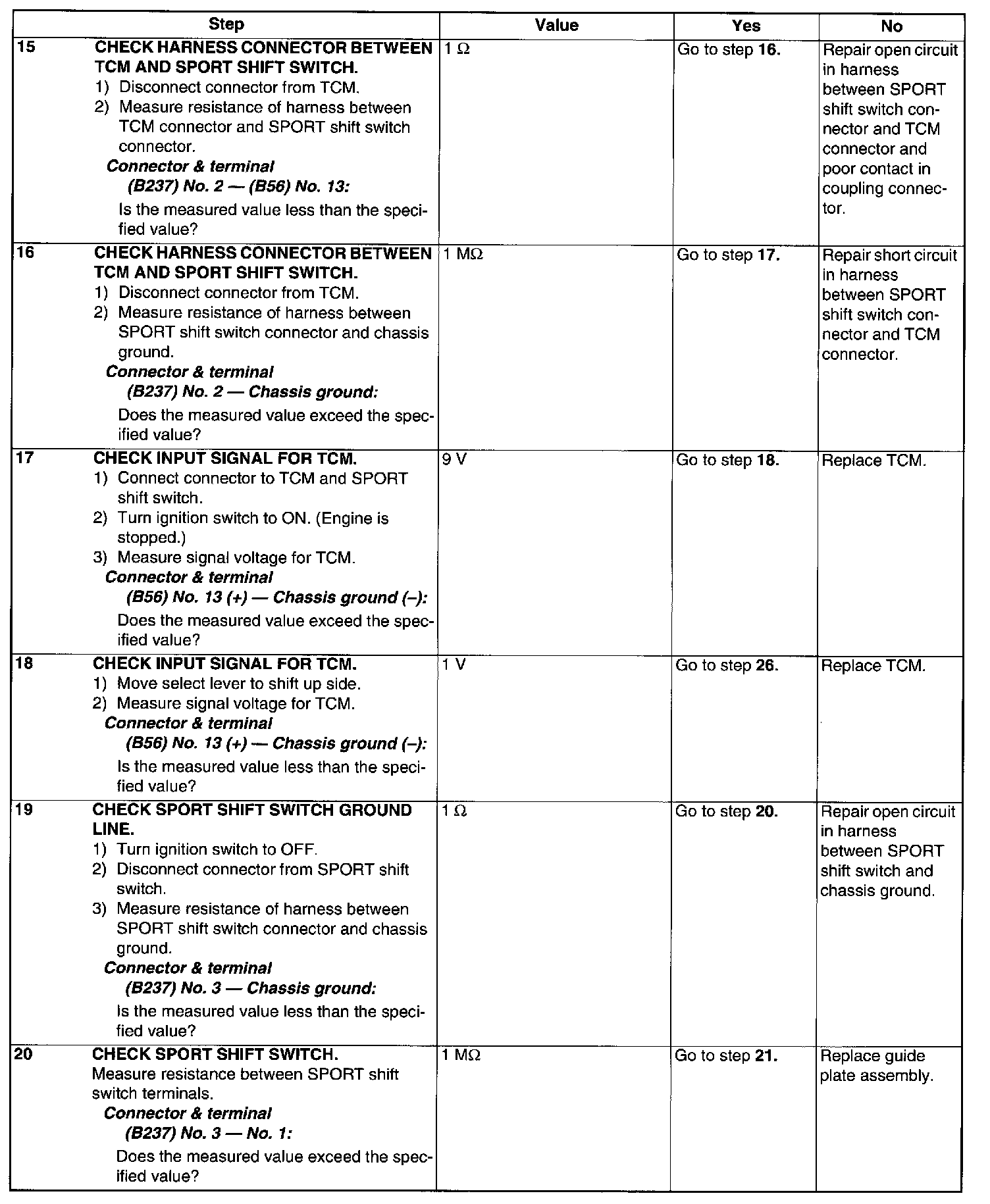

Test 1 Of 4:
Test 2 Of 4:
Test 3 Of 4:
Test 4 Of 4:
