Diagnostic Procedure For AT Oil Temp Warning Light
Diagnostic Procedure for AT OIL TEMP Warning LightAT OIL TEMP WARNING LIGHT DOES NOT COME ON OR GO OFF
DIAGNOSIS:
The AT OIL TEMP warning light circuit is open or shorted.
TROUBLE SYMPTOM:
^ When ignition switch is turned to ON (engine OFF), AT OIL TEMP warning light does not illuminate.
^ When on-board diagnostics is performed, AT OIL TEMP warning light remains illuminated.

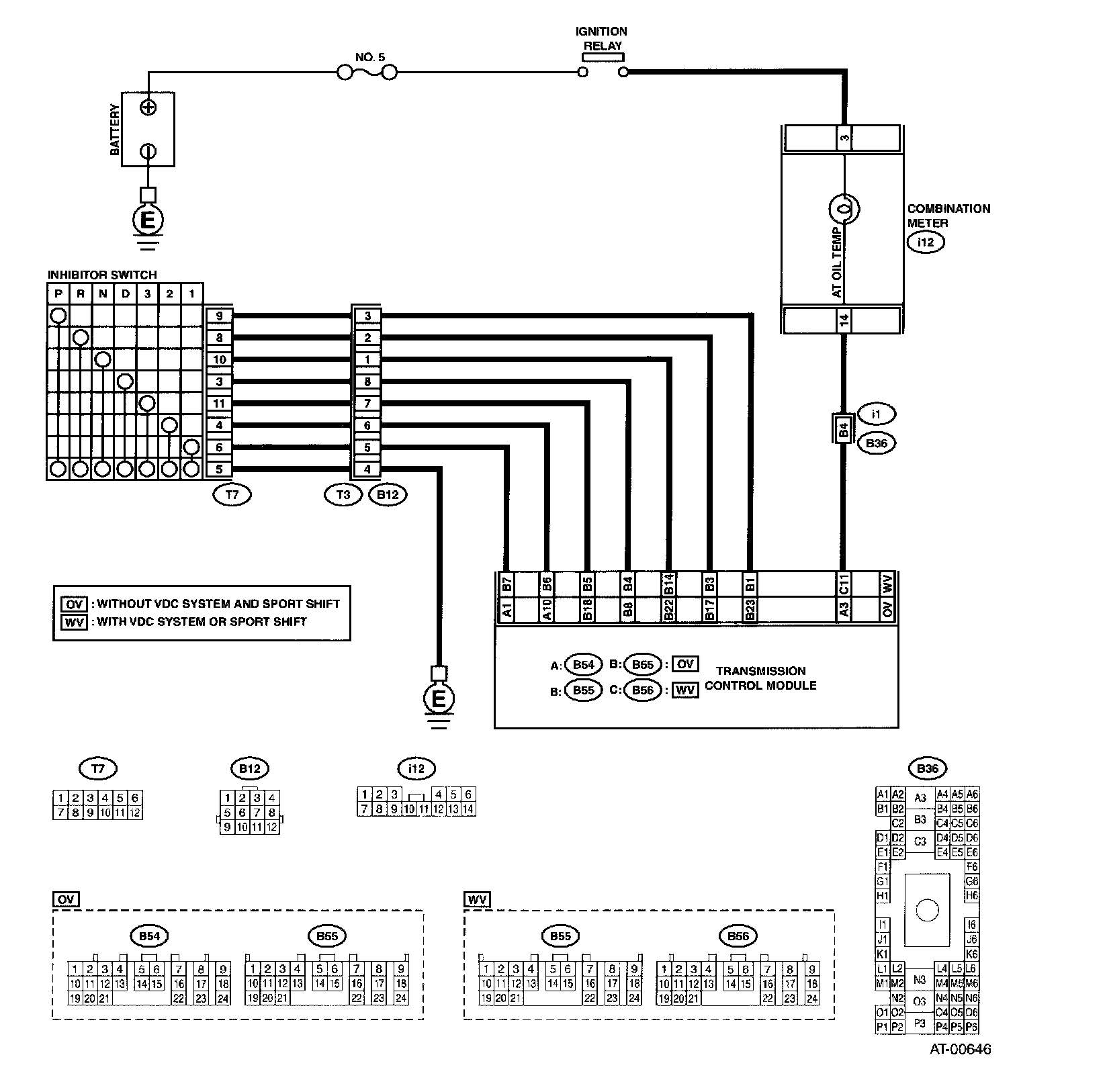

WIRING DIAGRAM:

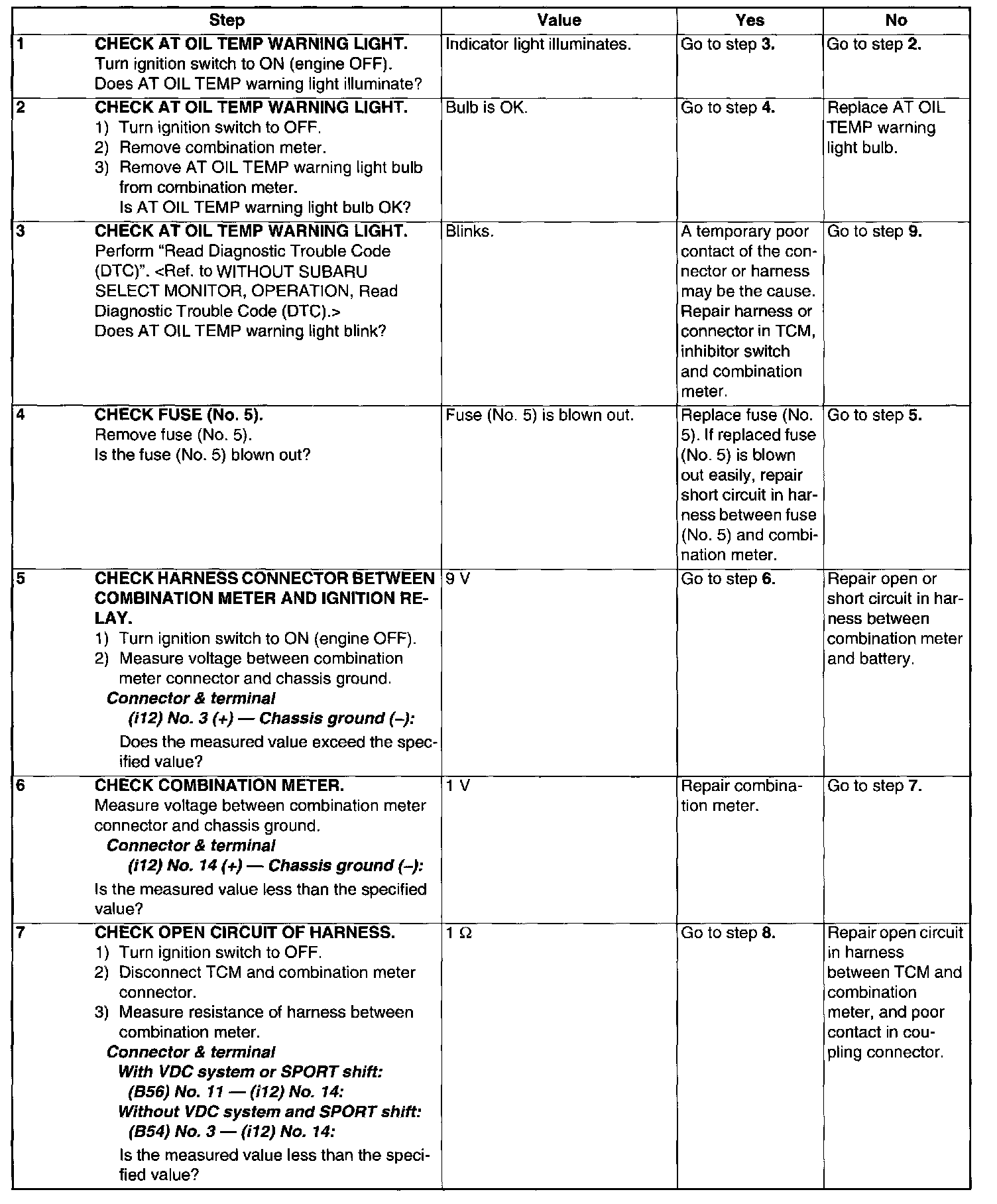

Test 1 Of 2:

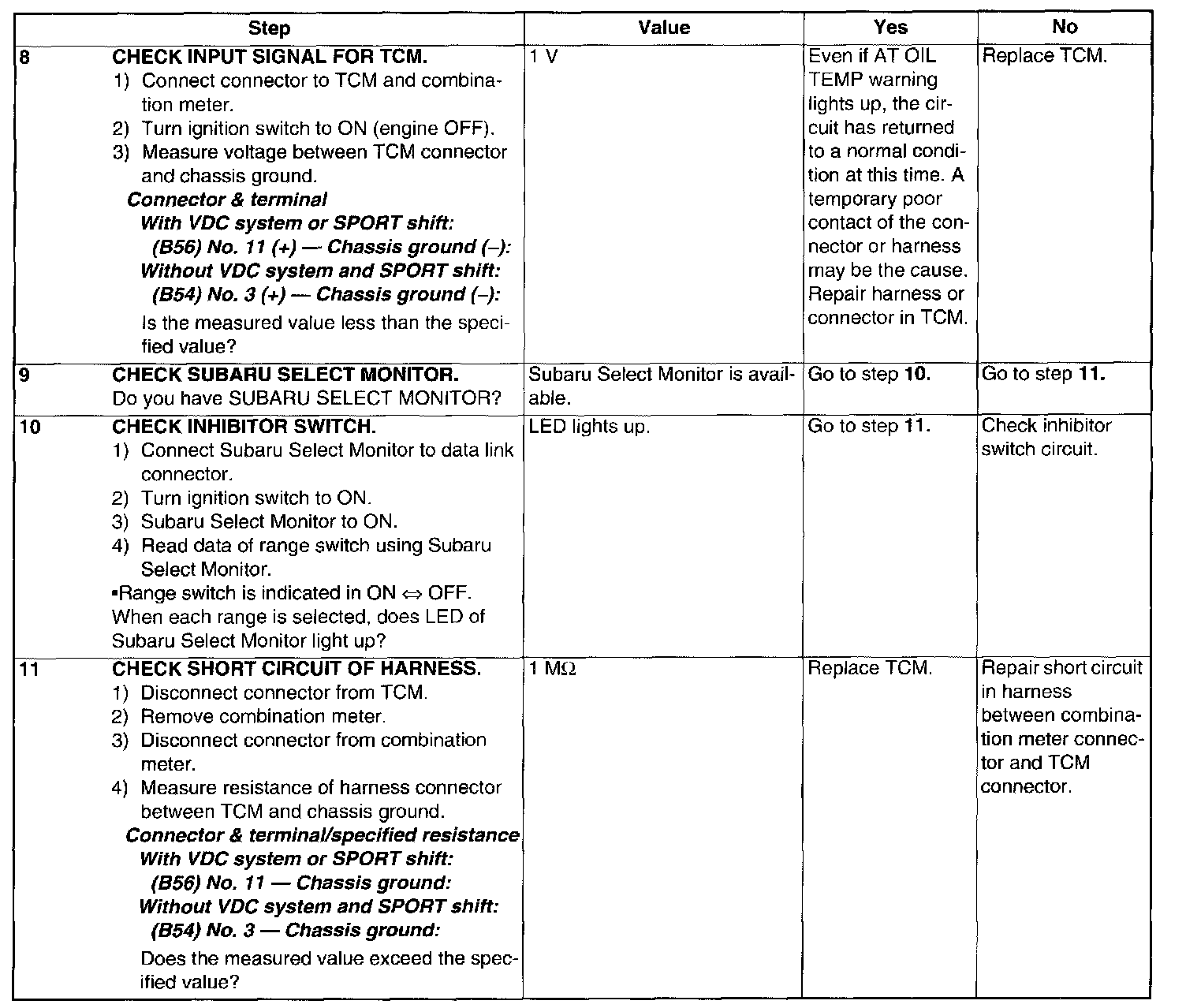

Test 2 Of 2:

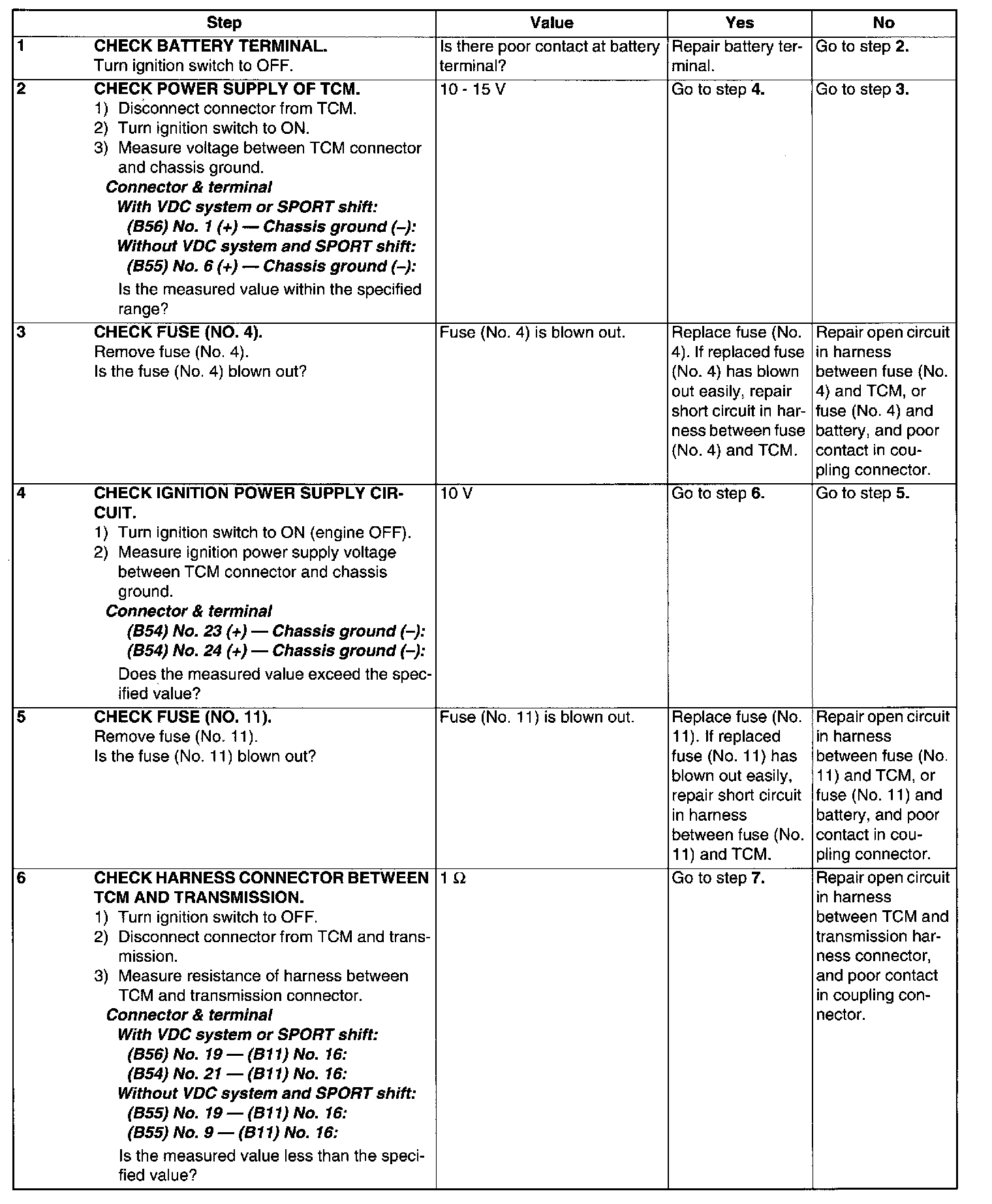

CHECK POWER SUPPLY AND GROUND LINE

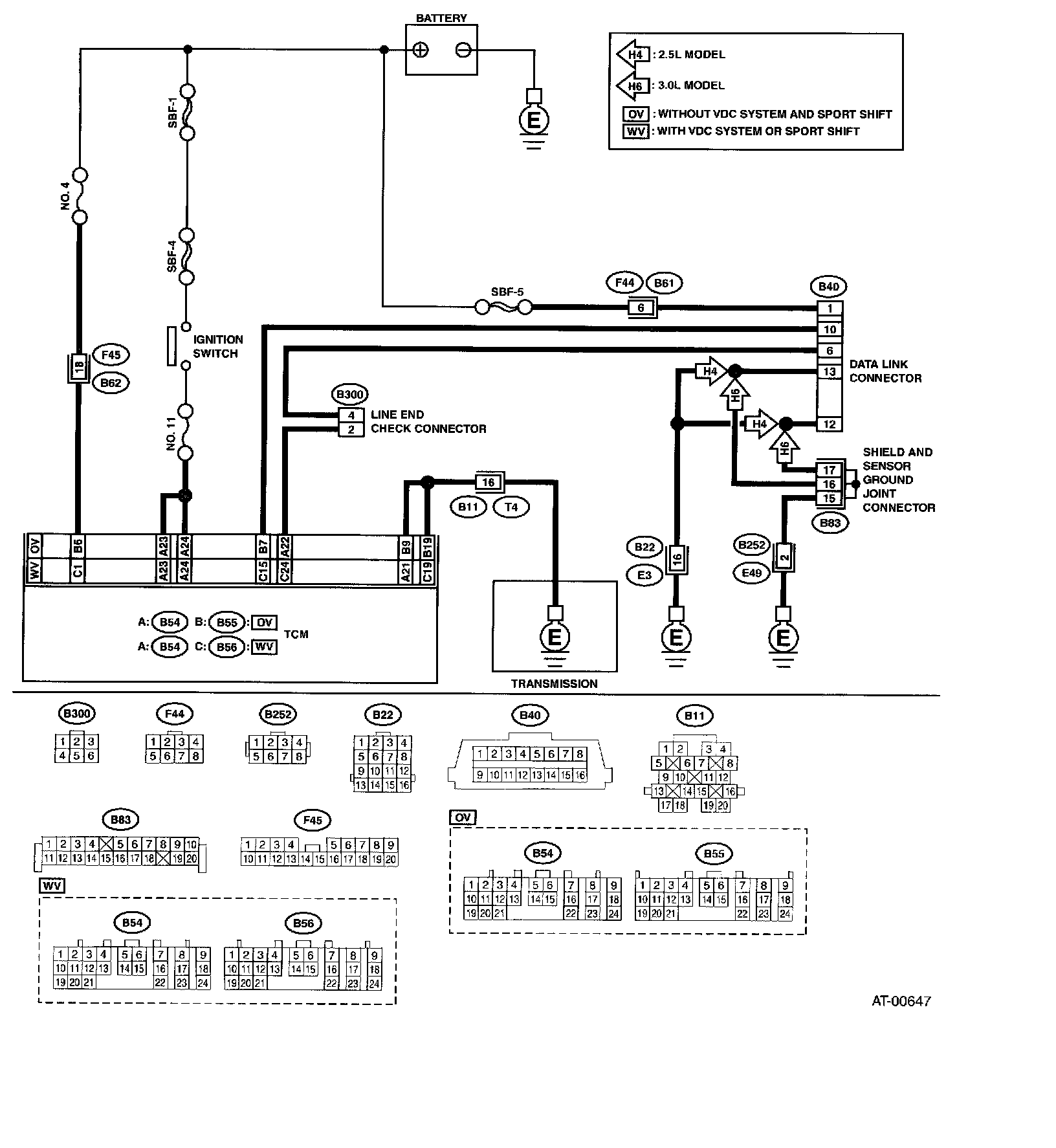

WIRING DIAGRAM:
Test 1 Of 2:
Test 2 Of 2:
