Differential Assembly

SPECIFICATIONS

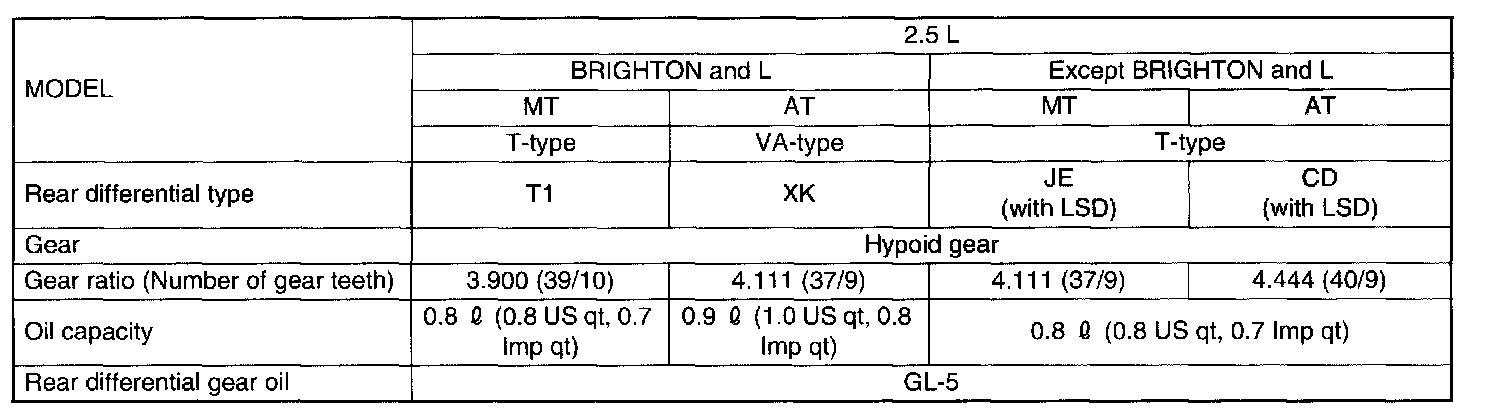

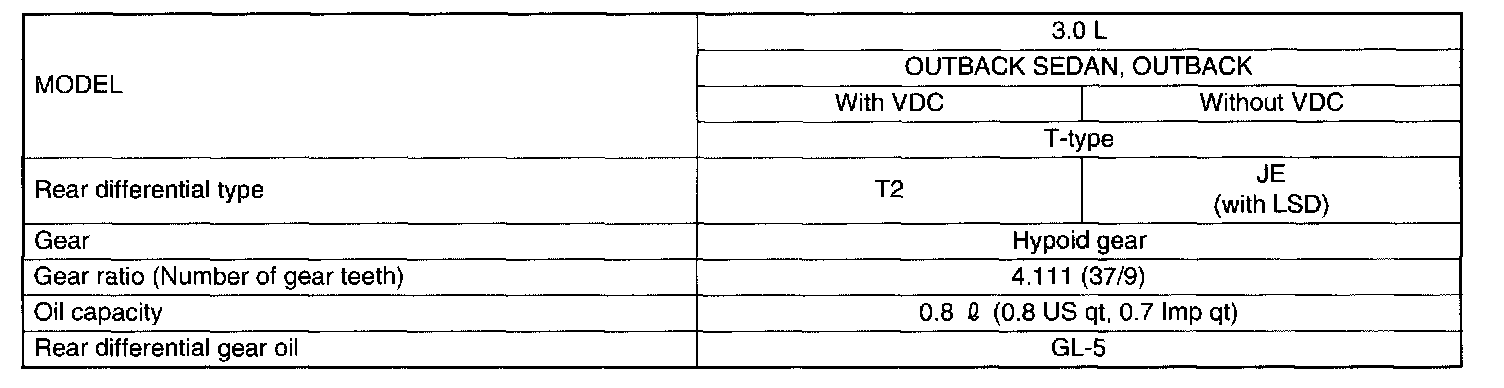

When replacing a rear differential assembly, select the correct one according to the following table.








NOTE: Using the different rear differential assembly causes the drive line and tires to "drag" or emit abnormal noise.

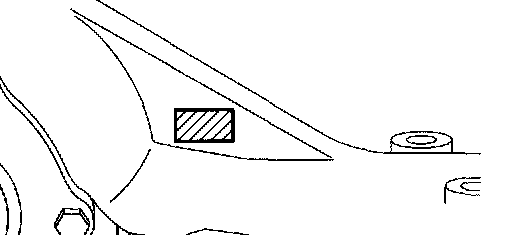

^ Identification

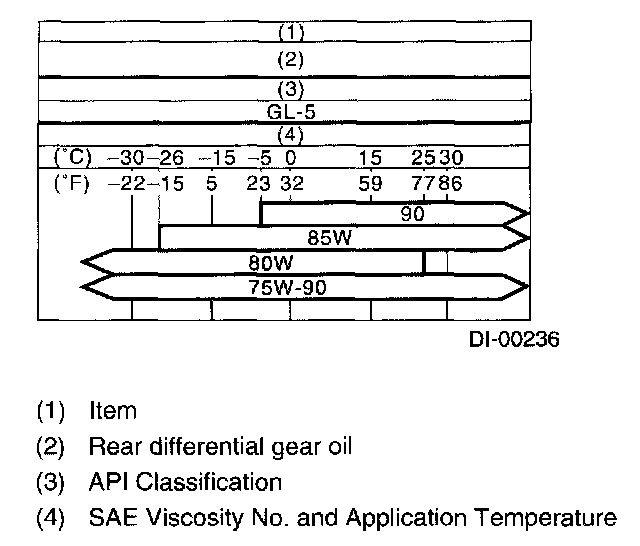

^ Rear differential gear oil Recommended oil

NOTE: Each oil manufacturer has its base oil and additives. Thus, do not mix two or more brands.

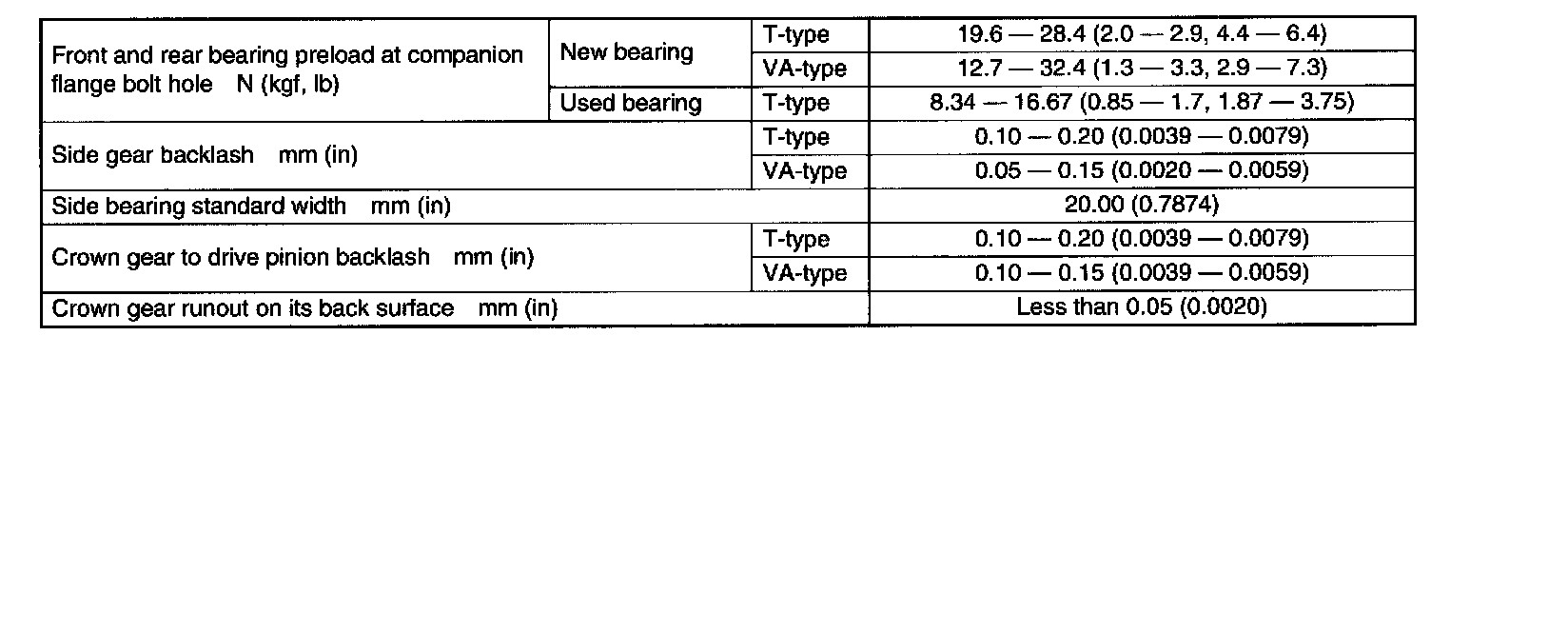

SERVICE DATA

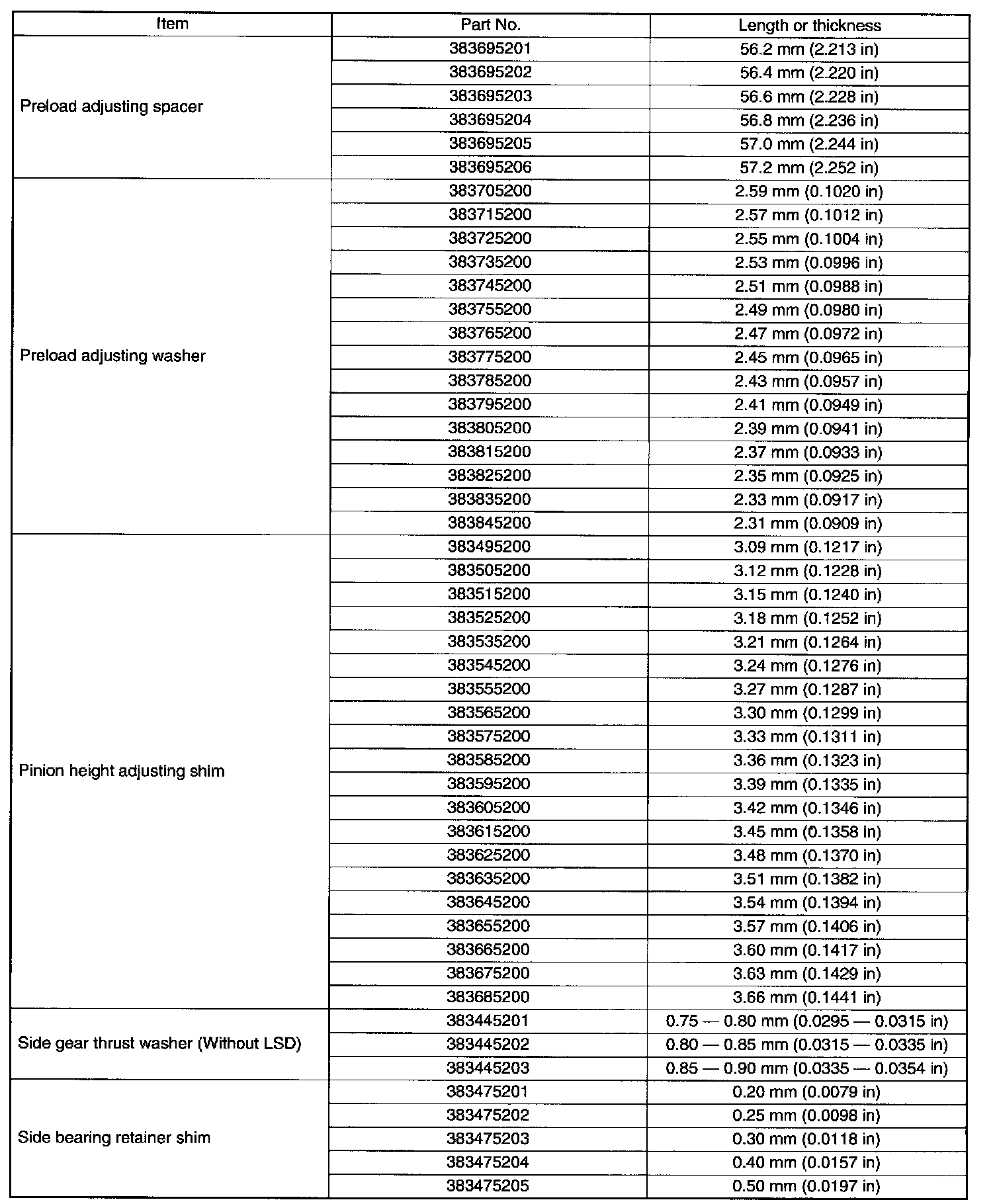

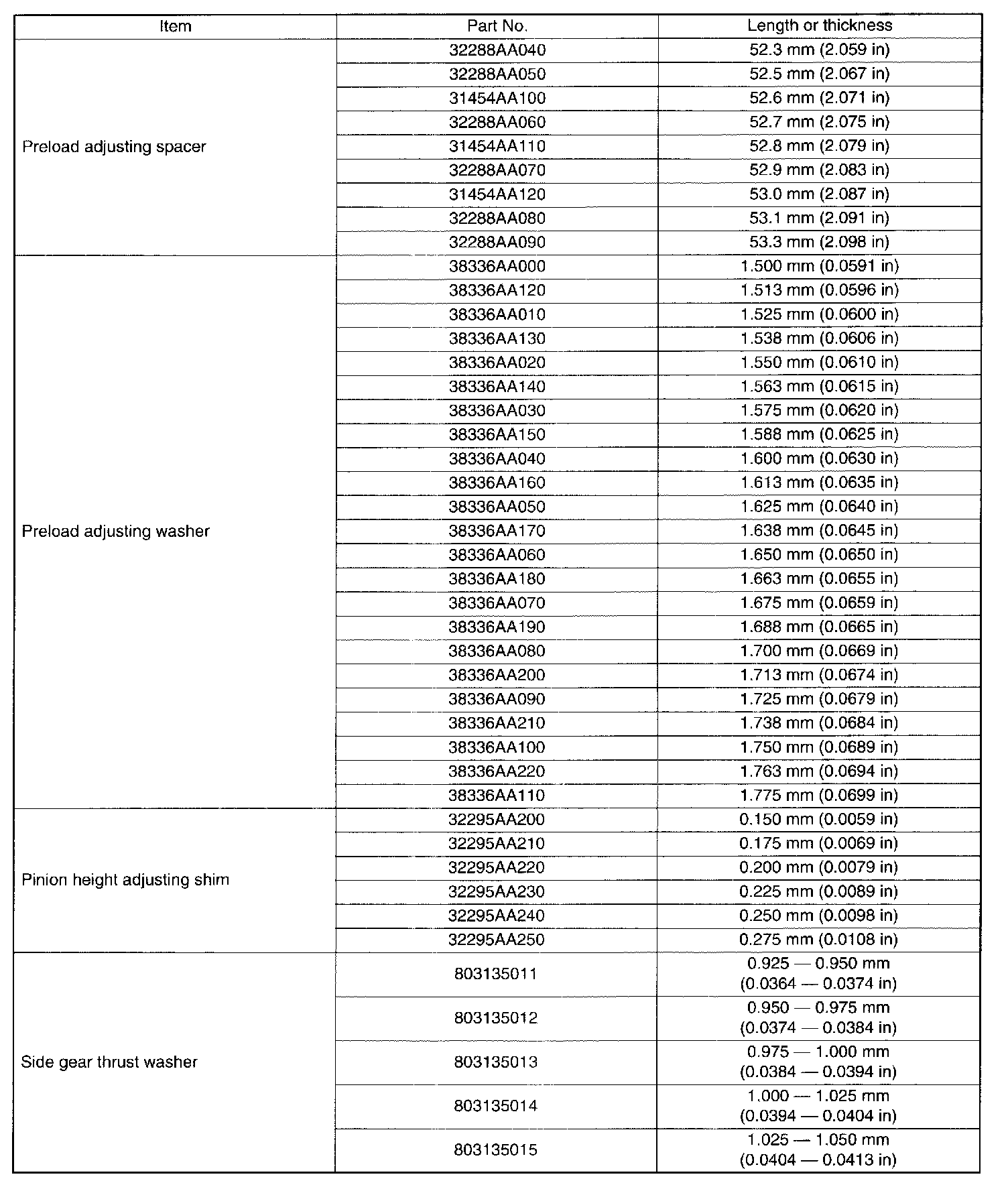

ADJUSTING PARTS





^ VA-tune





^ T-type
