General

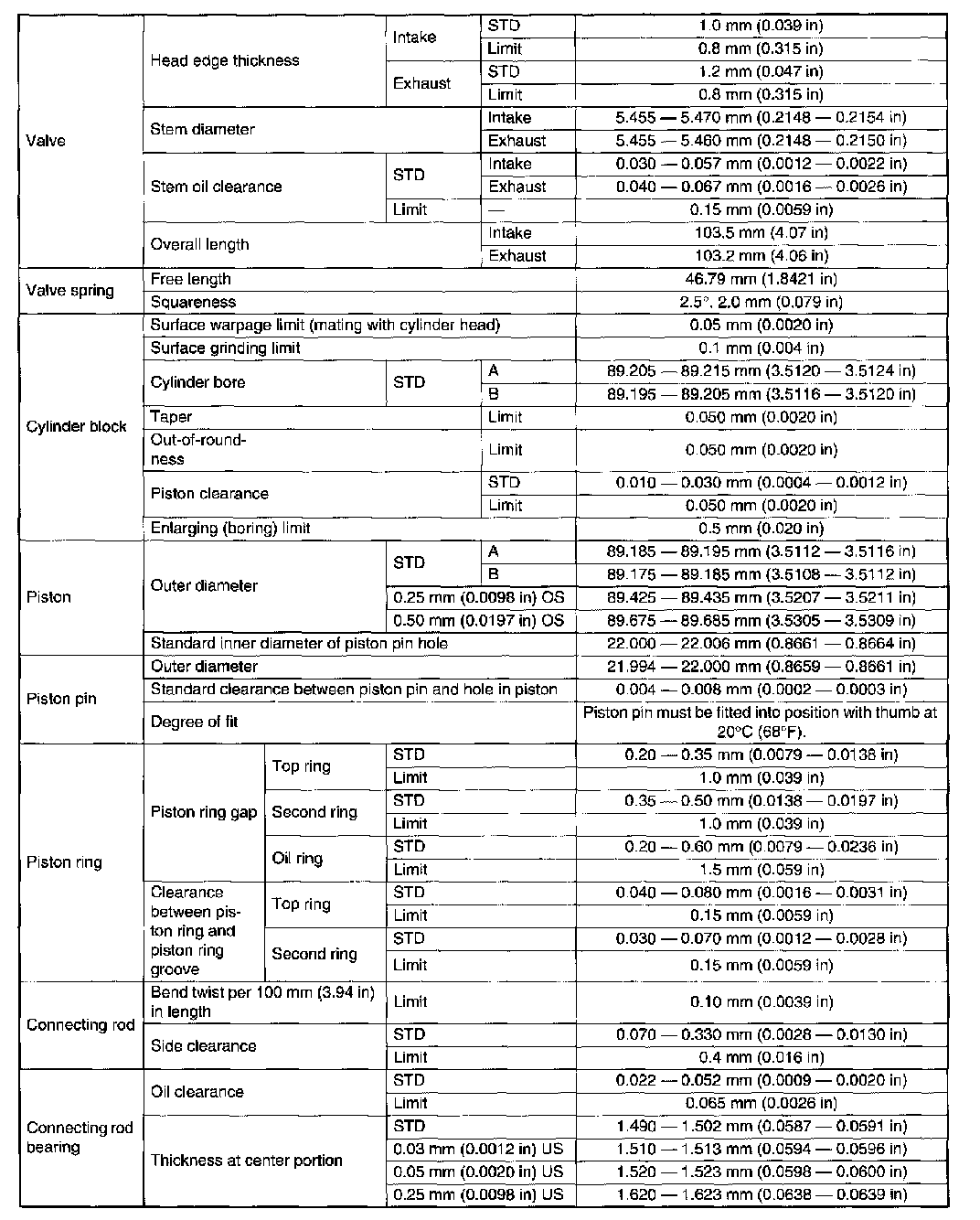

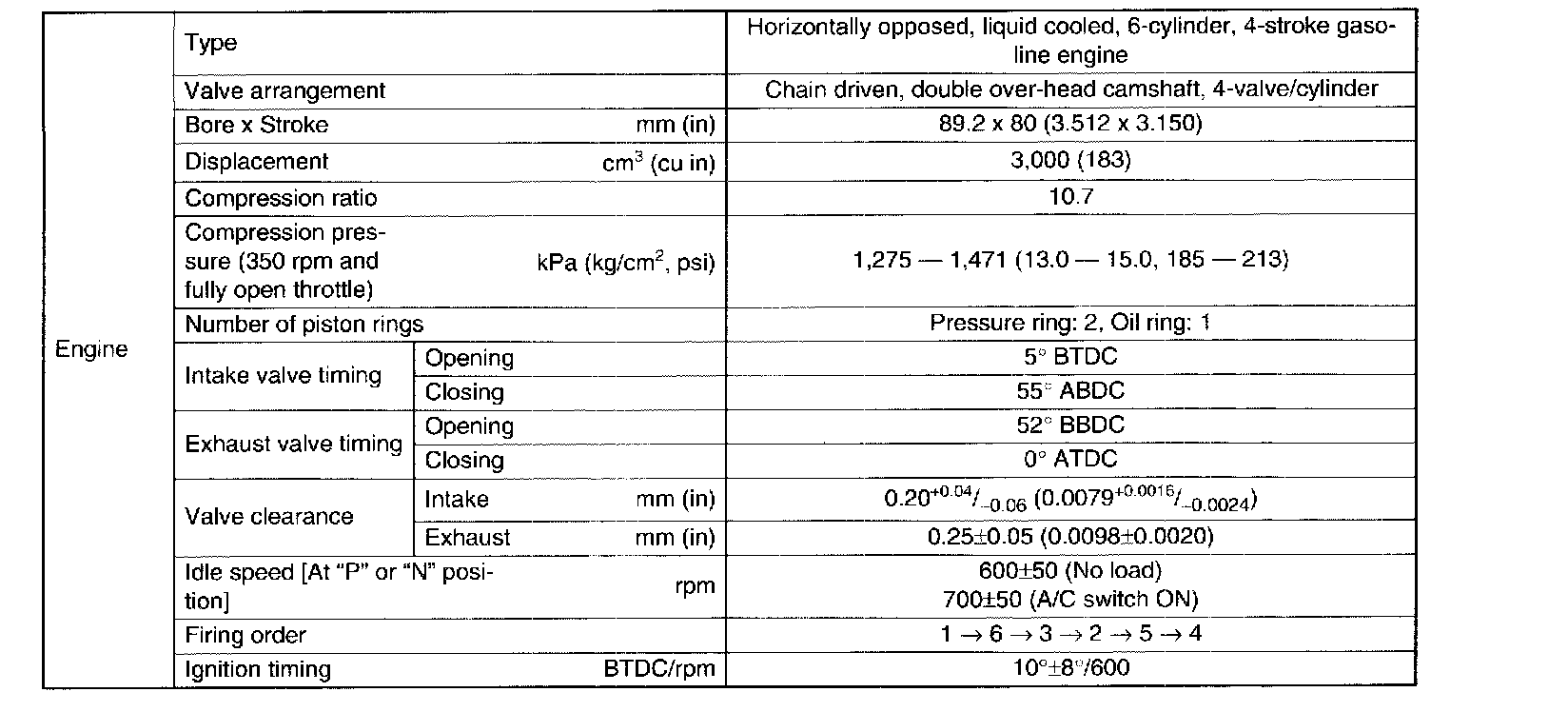

SPECIFICATIONS

NOTE: STD: Standard I.D.: Inner Diameter O.D.: Outer Diameter US: Undersize OS: Oversize

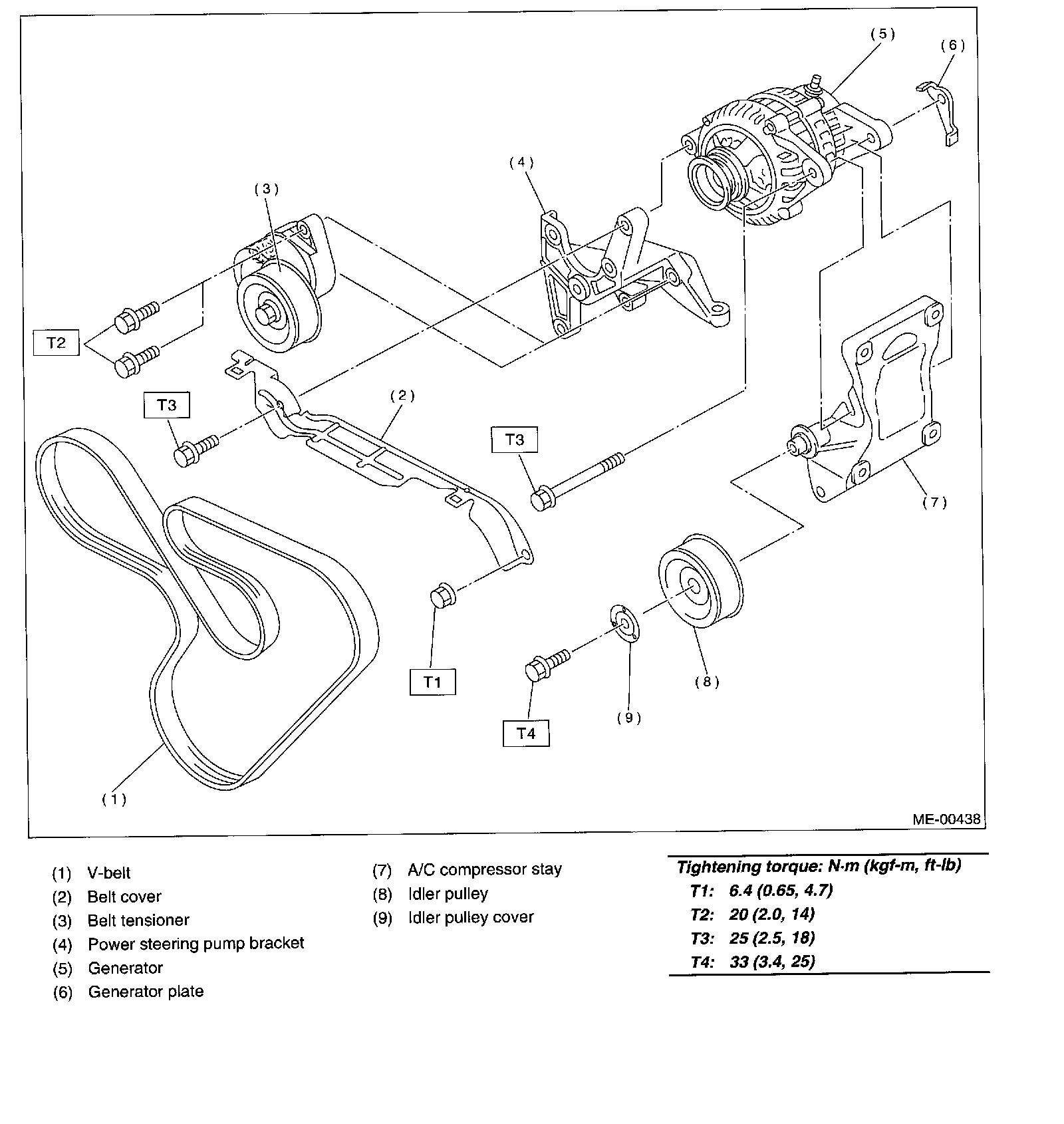

V-BELT





TIMING CHAIN COVER

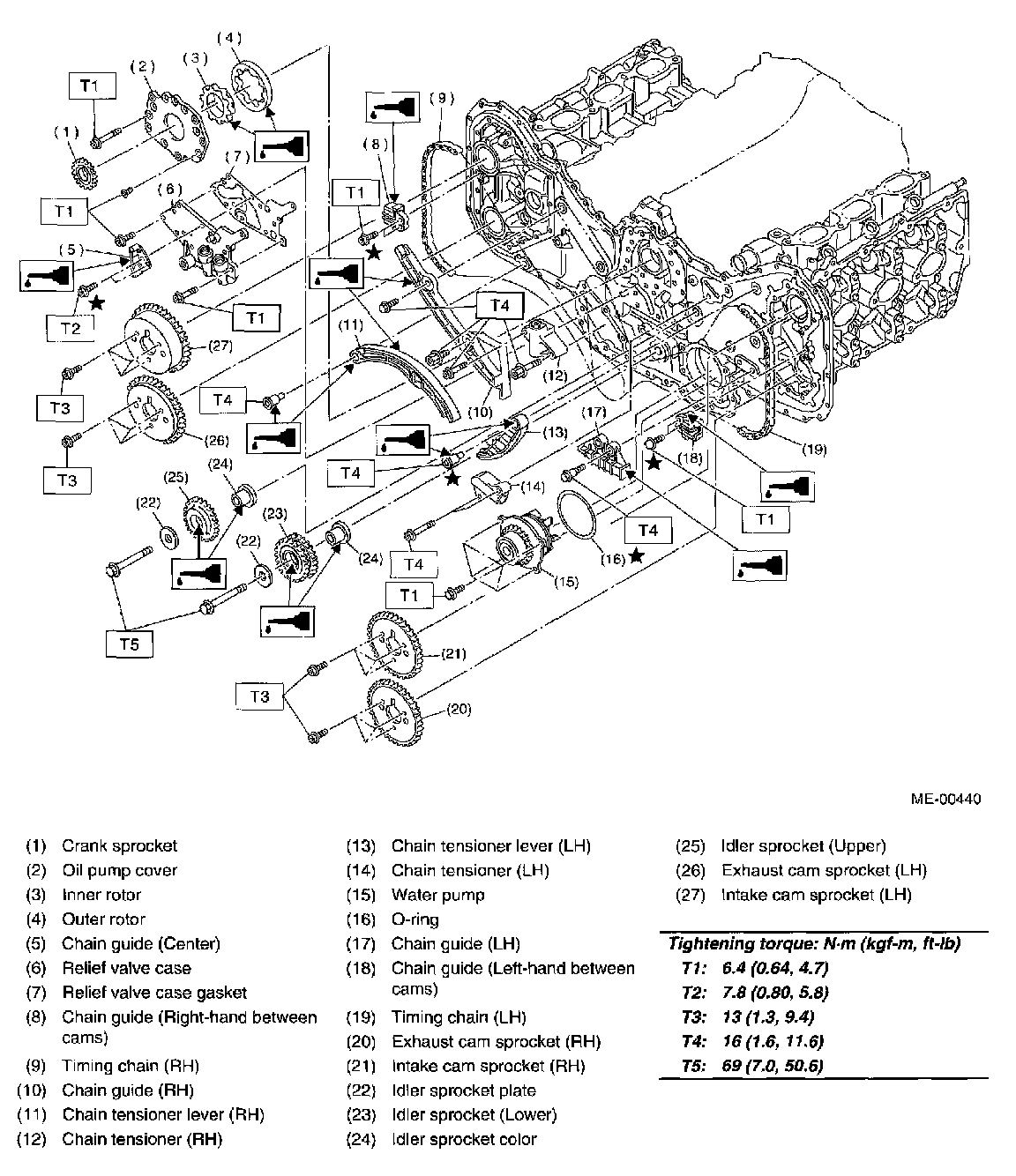

TIMING CHAIN

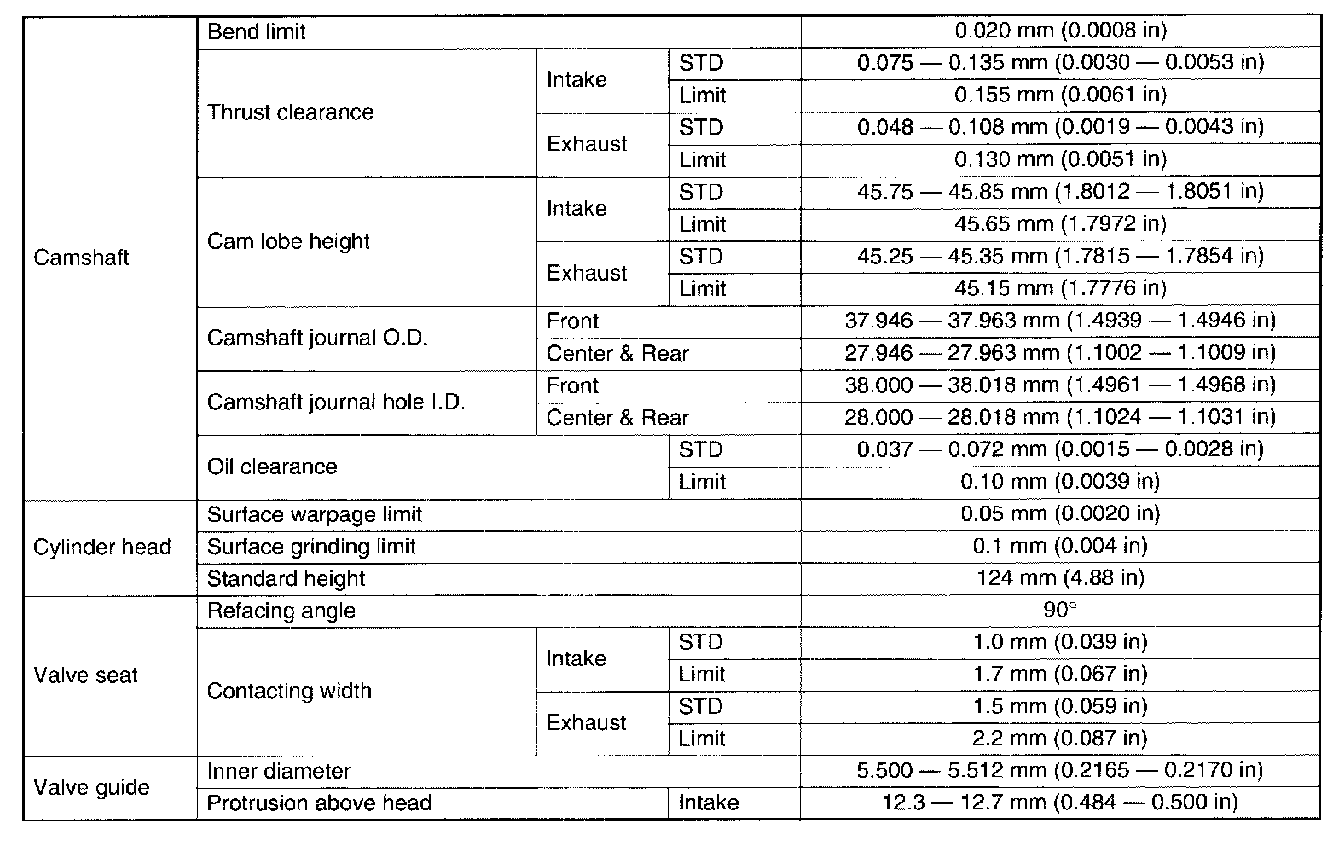

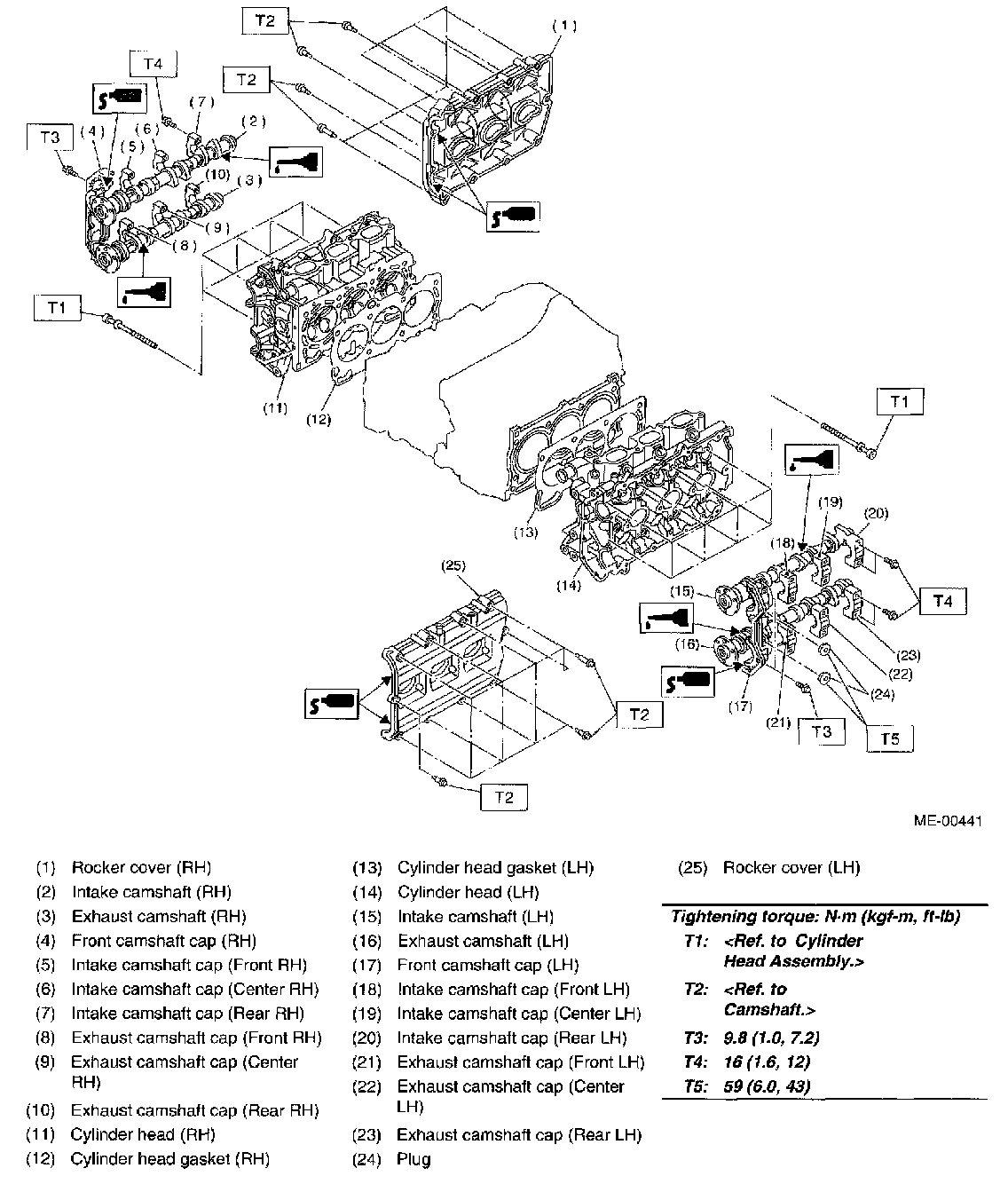

CYLINDER HEAD AND CAMSHAFT

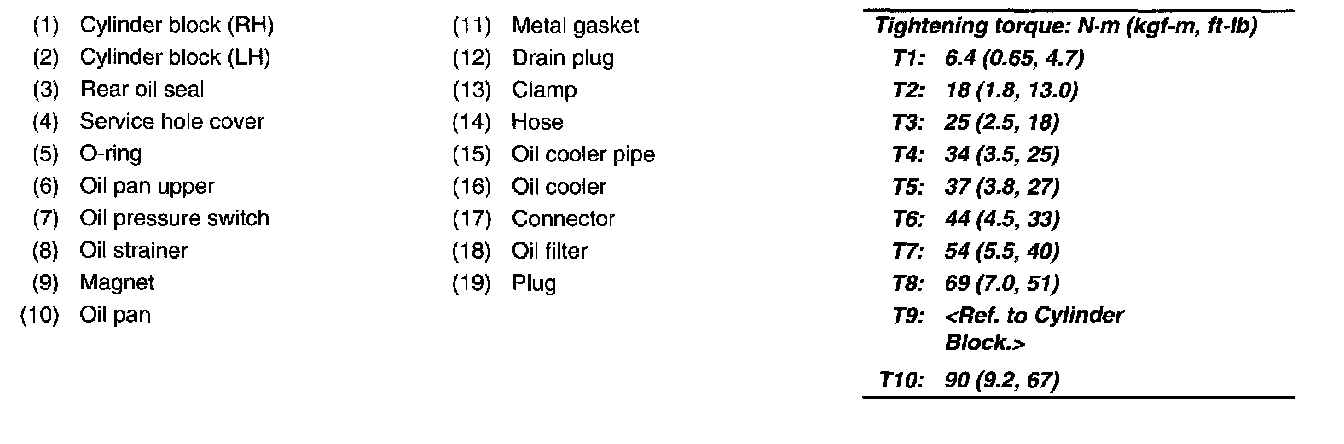

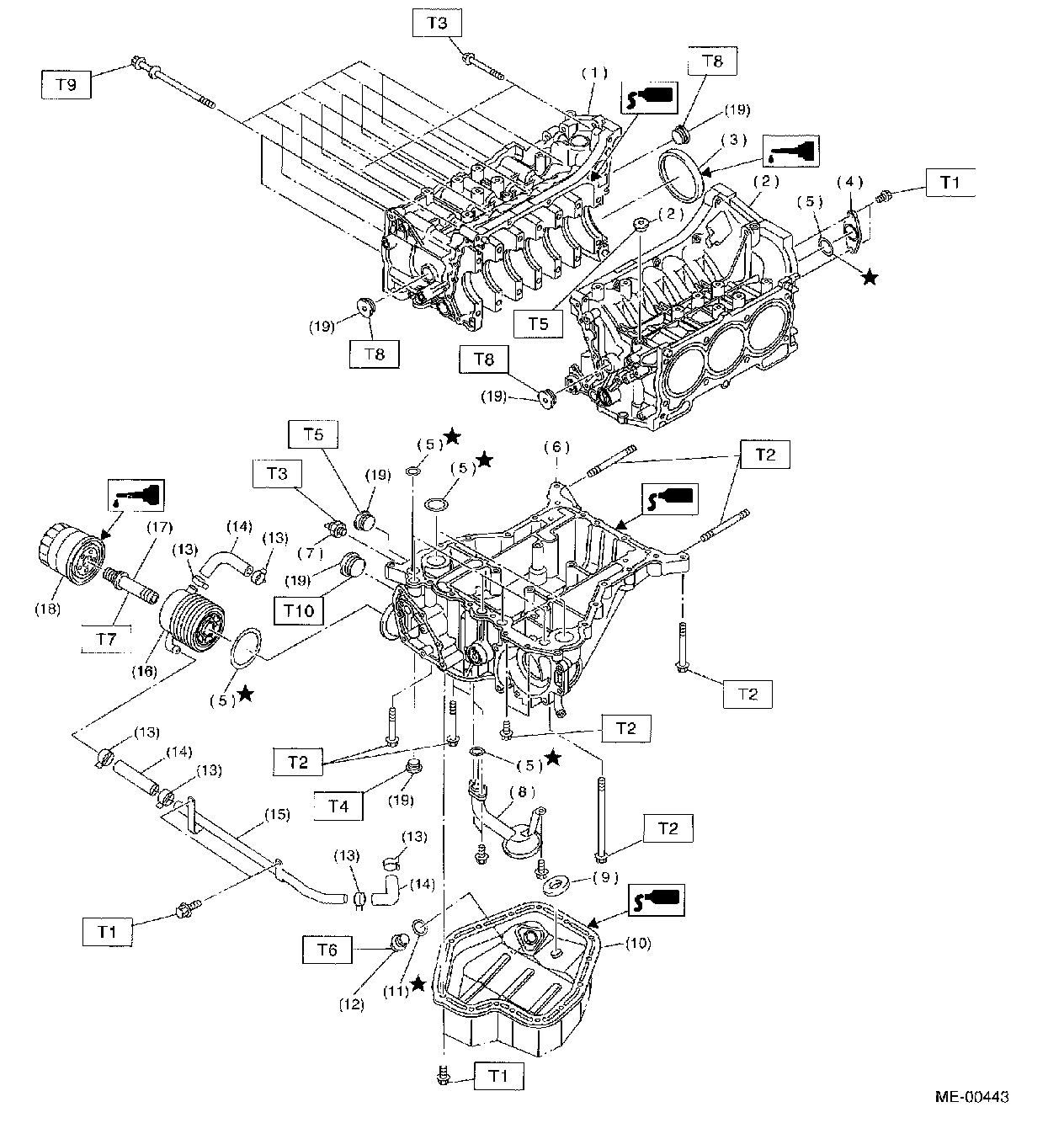

CYLINDER BLOCK

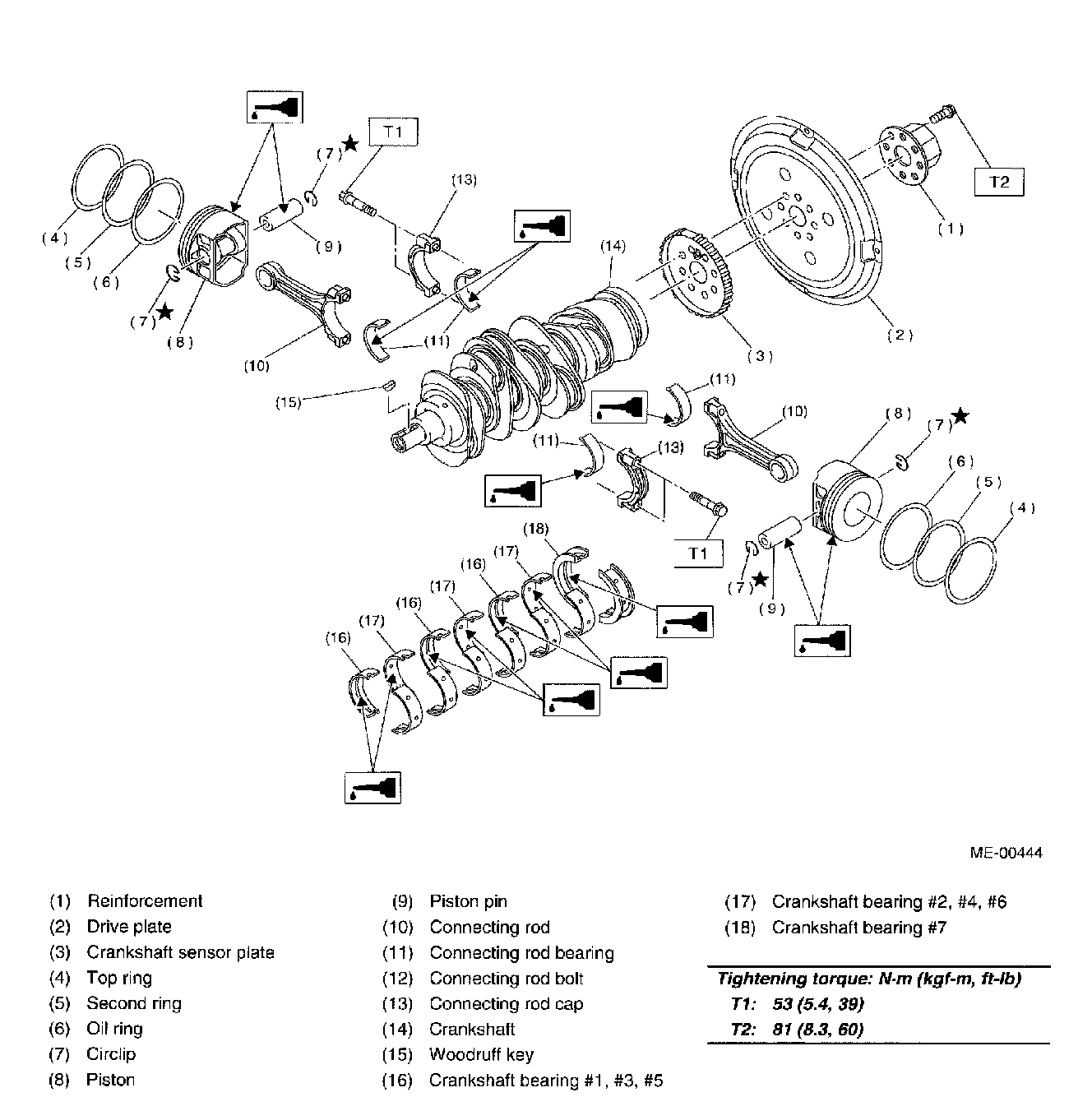

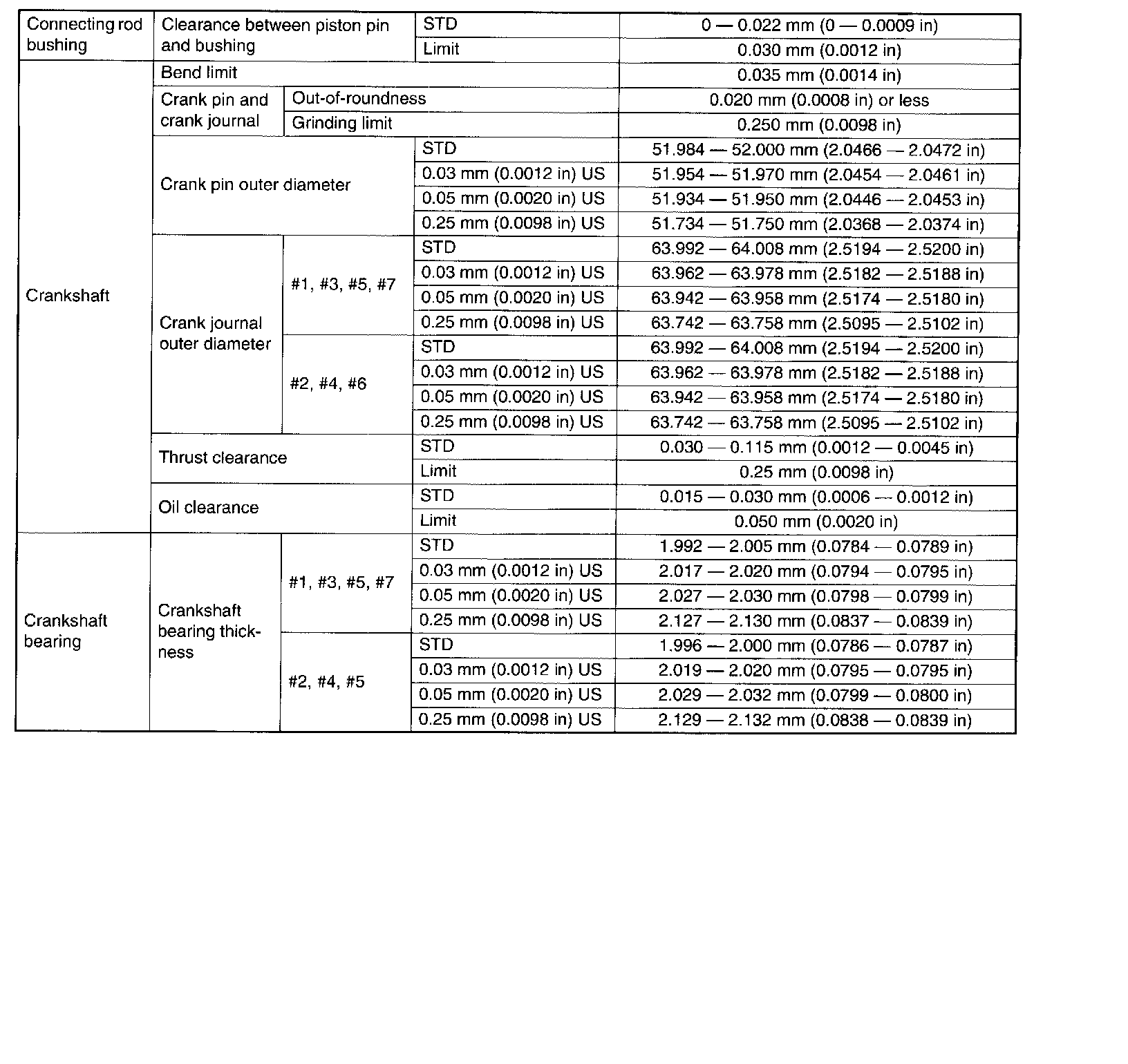

CRANKSHAFT AND PISTON





ENGINE MOUNTING

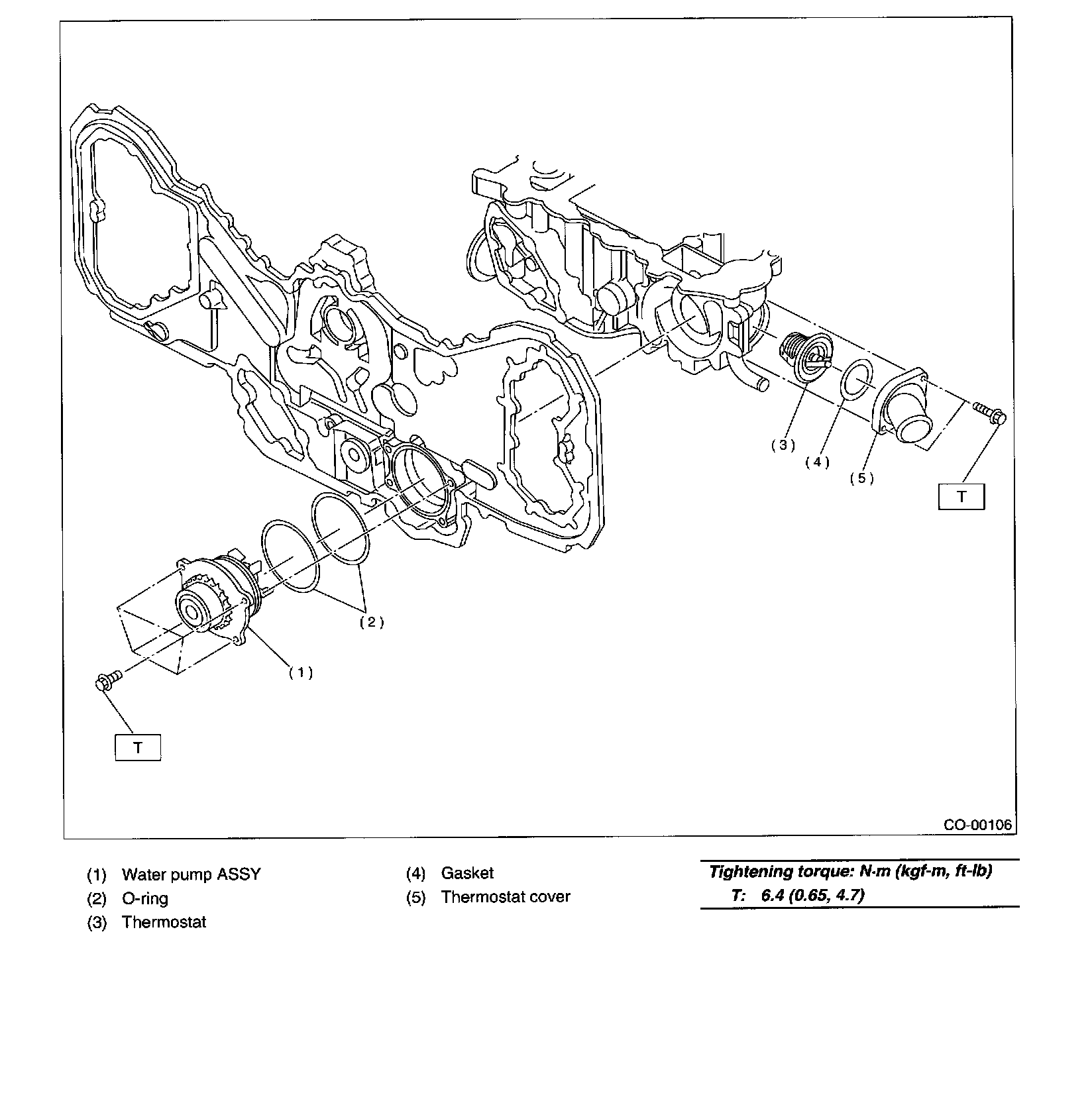

WATER PUMP

Part 1 Of 2:

Part 2 Of 2:

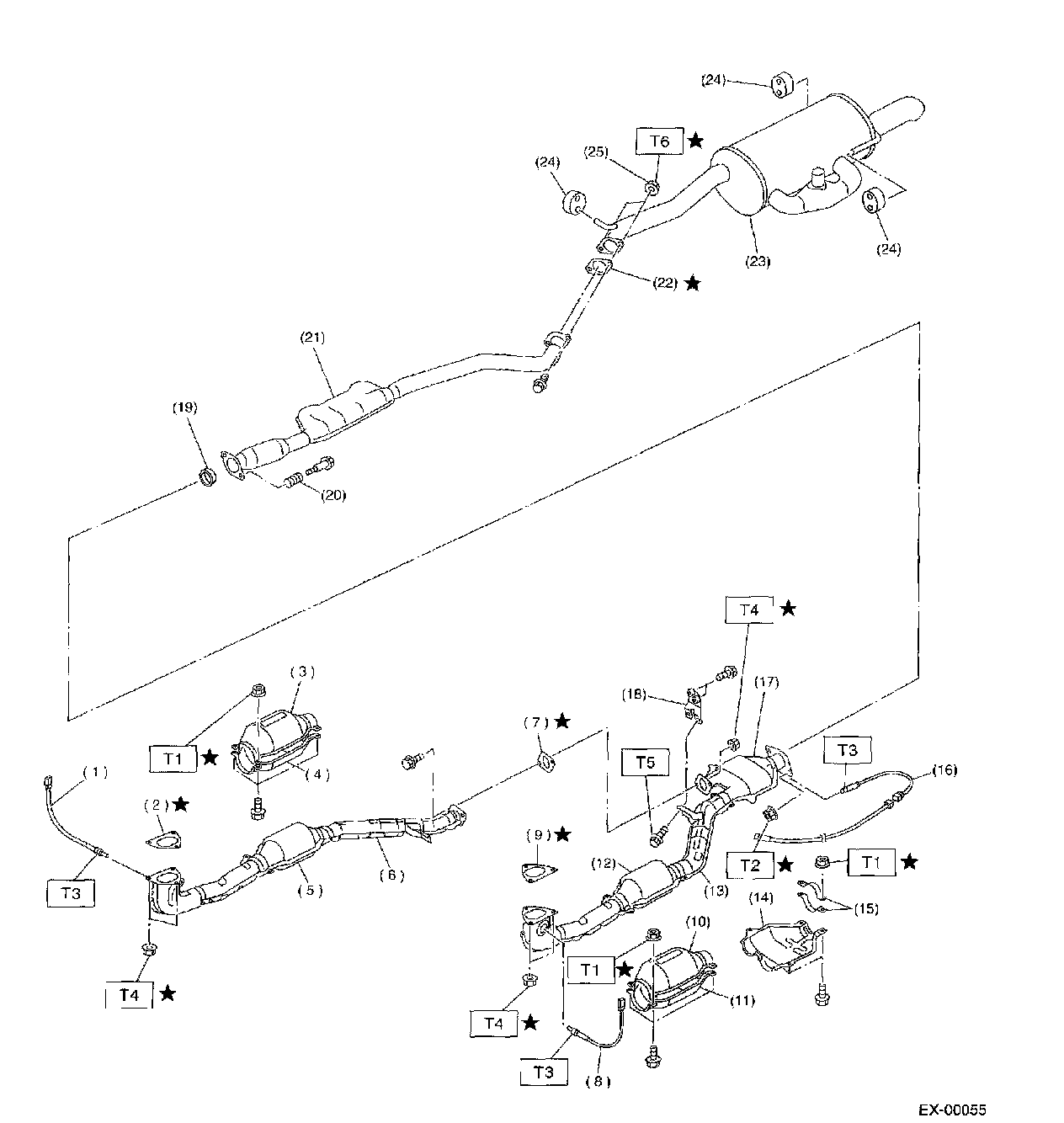

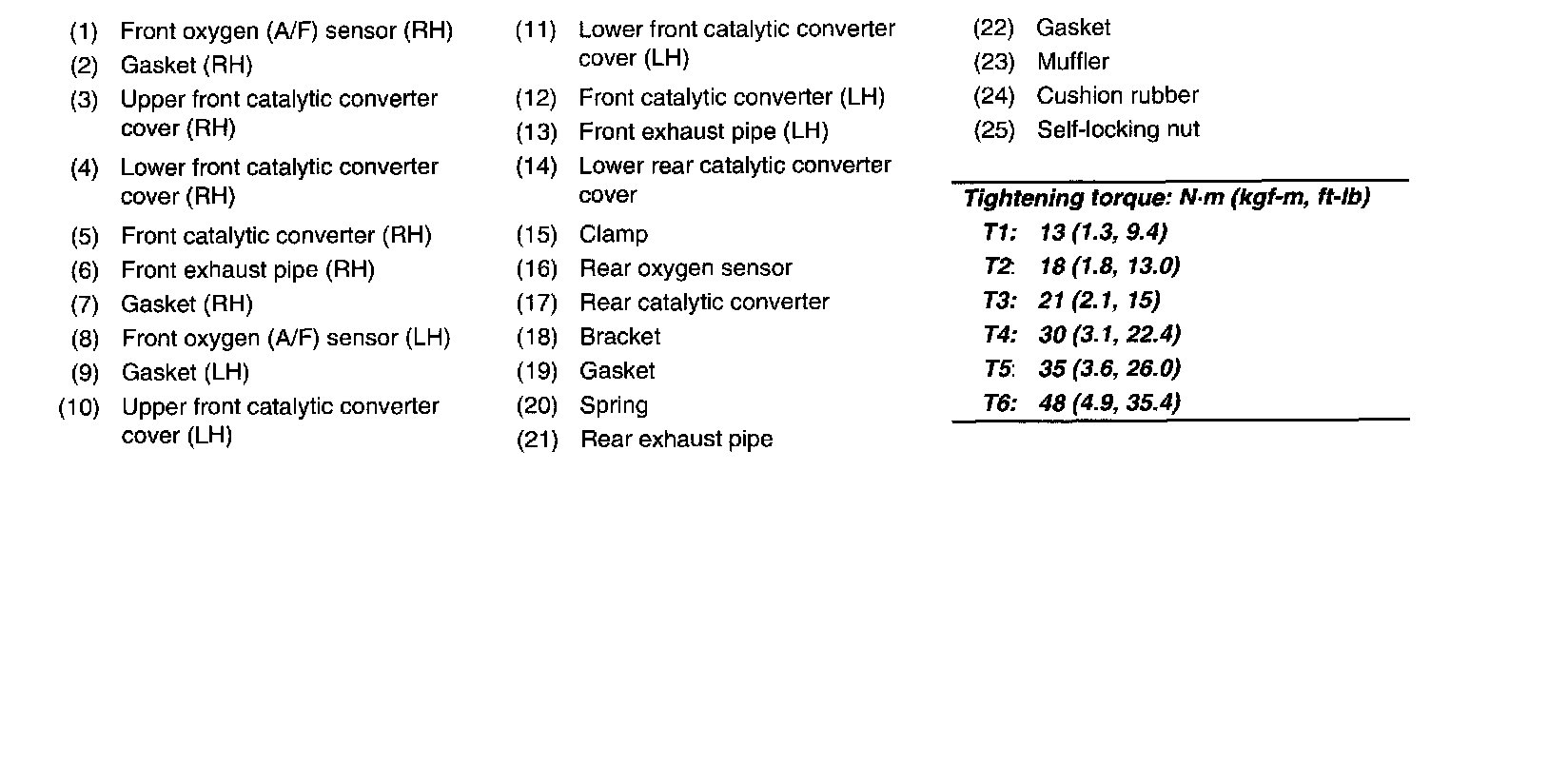

EXHAUST SYSTEM

For specifications regarding cylinder block connecting bolts, refer to service procedure. Removal and Installation

INTAKE MANIFOLD
Manifold to Cylinder Head 25 Nm (2.5 kgf-m, 18.1 ft-lb)

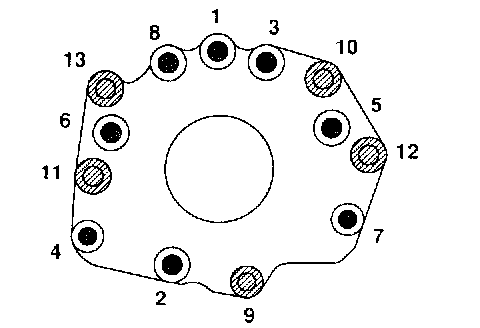

Oil Pump bolts sequence.
