Battery: Service and Repair

REMOVAL

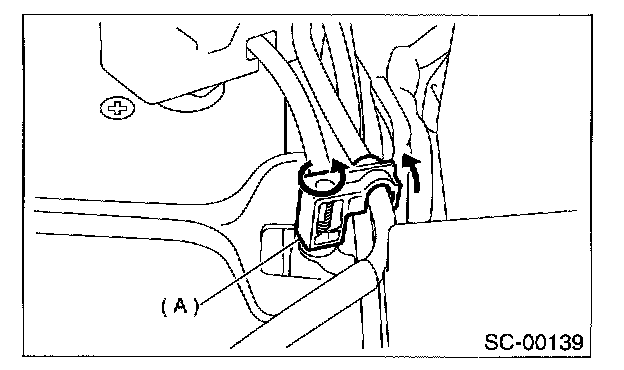

1. Remove battery cable holder (A) from battery rod.
2. Disconnect the positive (+) cable after disconnecting the negative (-) cable of battery.

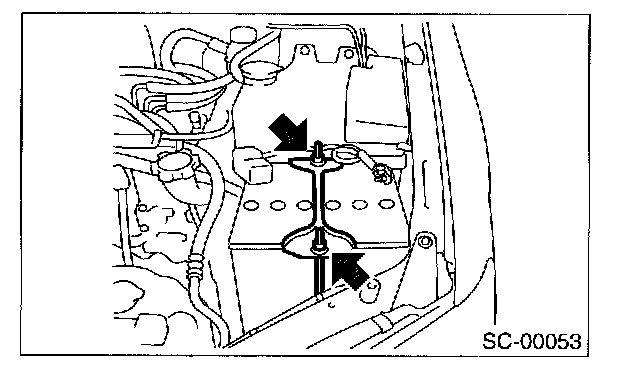

3. Remove flange nuts from battery rods and take off battery holder.
4. Remove battery.

INSTALLATION
Install in the reverse order of removal.

Tightening torque: 3.4 N.m (0.35 kgf-m, 2.5 ft-lb)

NOTE:
- Clean battery cable terminals and apply grease to prevent corrosion.
- Connect the positive (+) cable of battery and then the negative (-) cable of the battery.
