Ignition Lock: Service and Repair

Ignition Key Lock

REPLACEMENT

1. Disconnect ground cable from battery.
2. Remove the steering column.

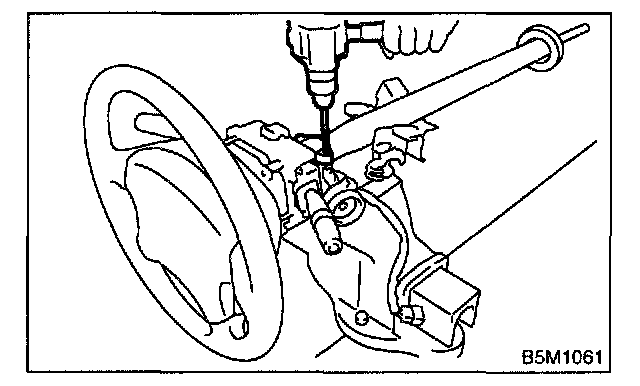

3. Secure the steering column in a vise. Remove the bolt with a drill.

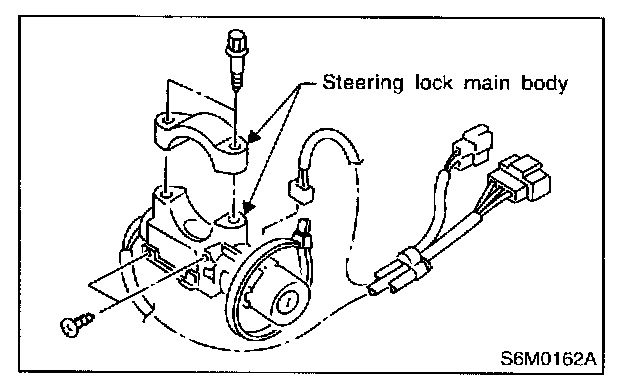

4. Remove the ignition key lock.




5. Use a new torn bolt. Tighten the torn bolt to the end of the thread.
