Shift Interlock Control Module: Service and Repair

Integrated Module

REMOVAL

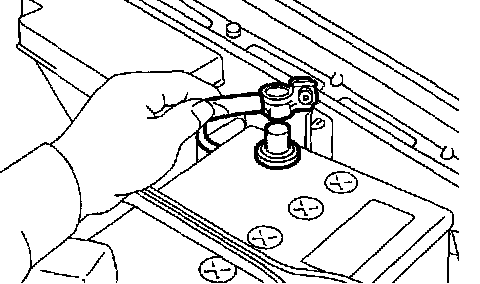

1. Disconnect the ground cable from battery.
2. Remove the lower cover.

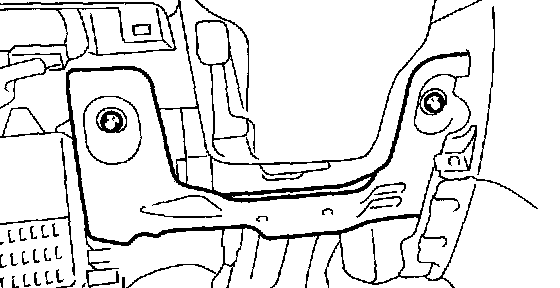

3. Remove the knee bolster.
4. Disconnect the connector from integrated module.

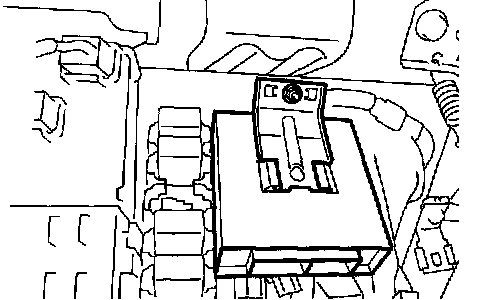

5. Remove the integrated module.

INSTALLATION
Install in the reverse order of removal.
