Clutch: Testing and Inspection

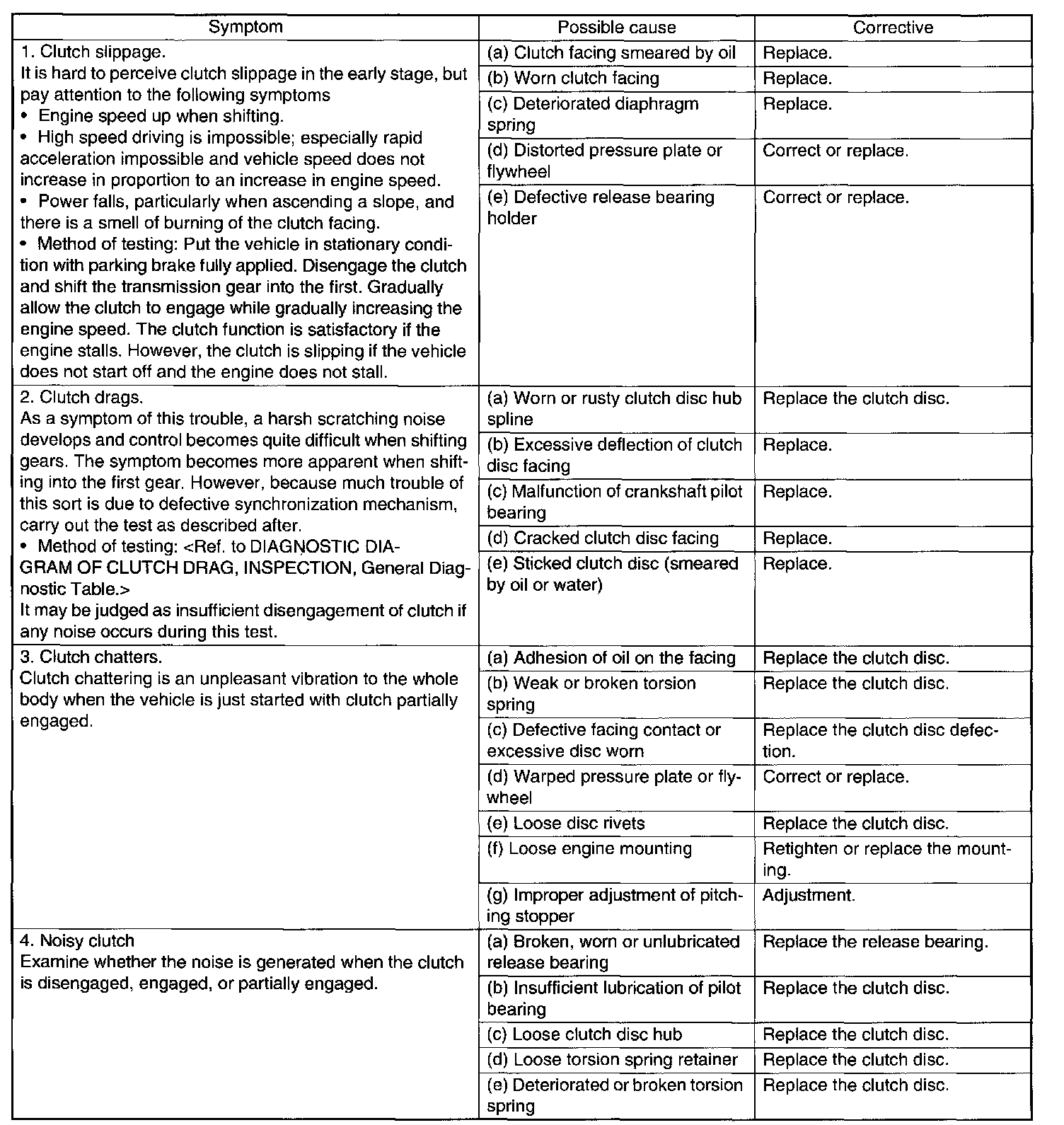

General Diagnostic Table

INSPECTION








CLUTCH





CLUTCH PEDAL

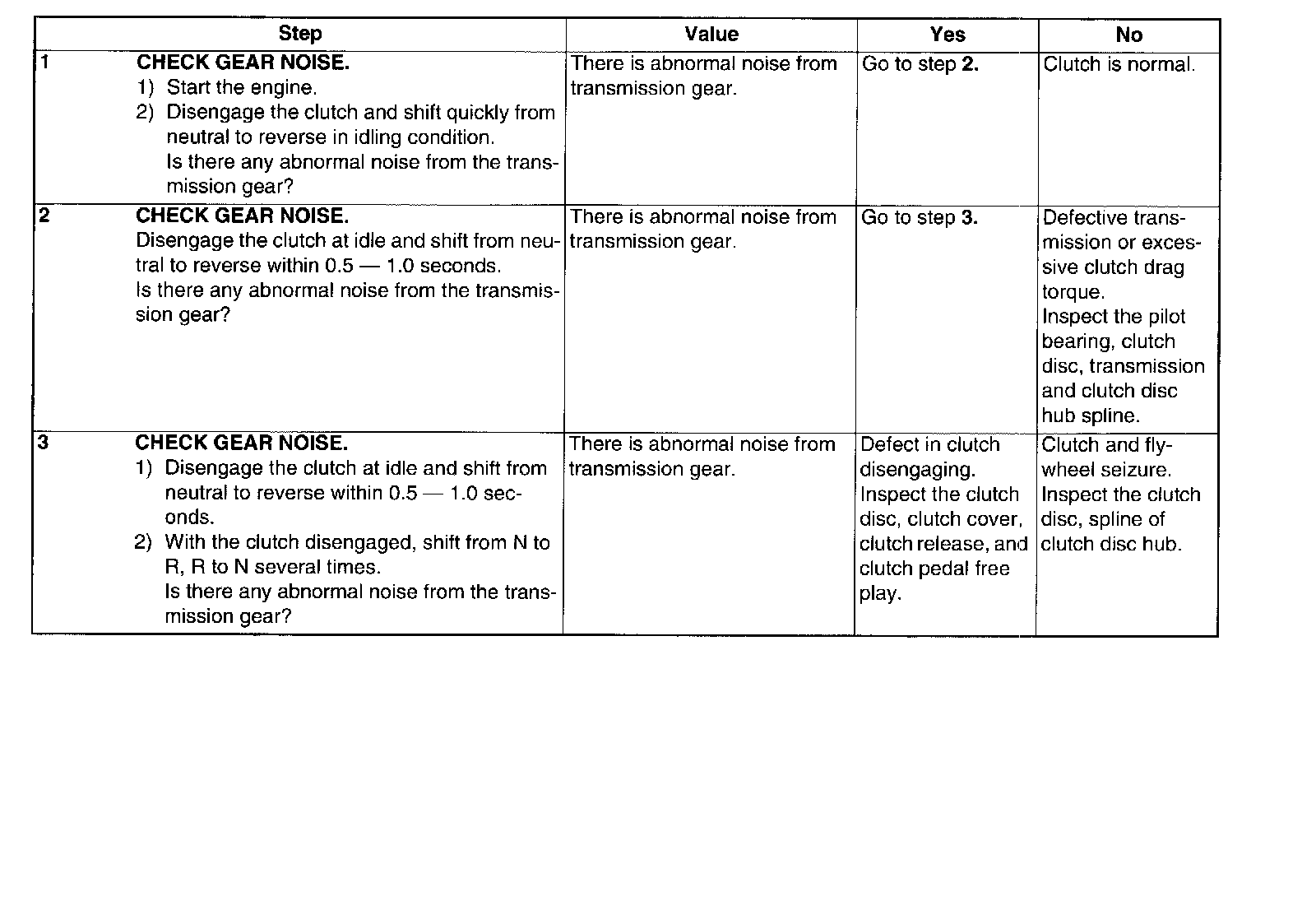

DIAGNOSTIC DIAGRAM OF CLUTCH DRAG
