Symptom Related Diagnostic Procedures

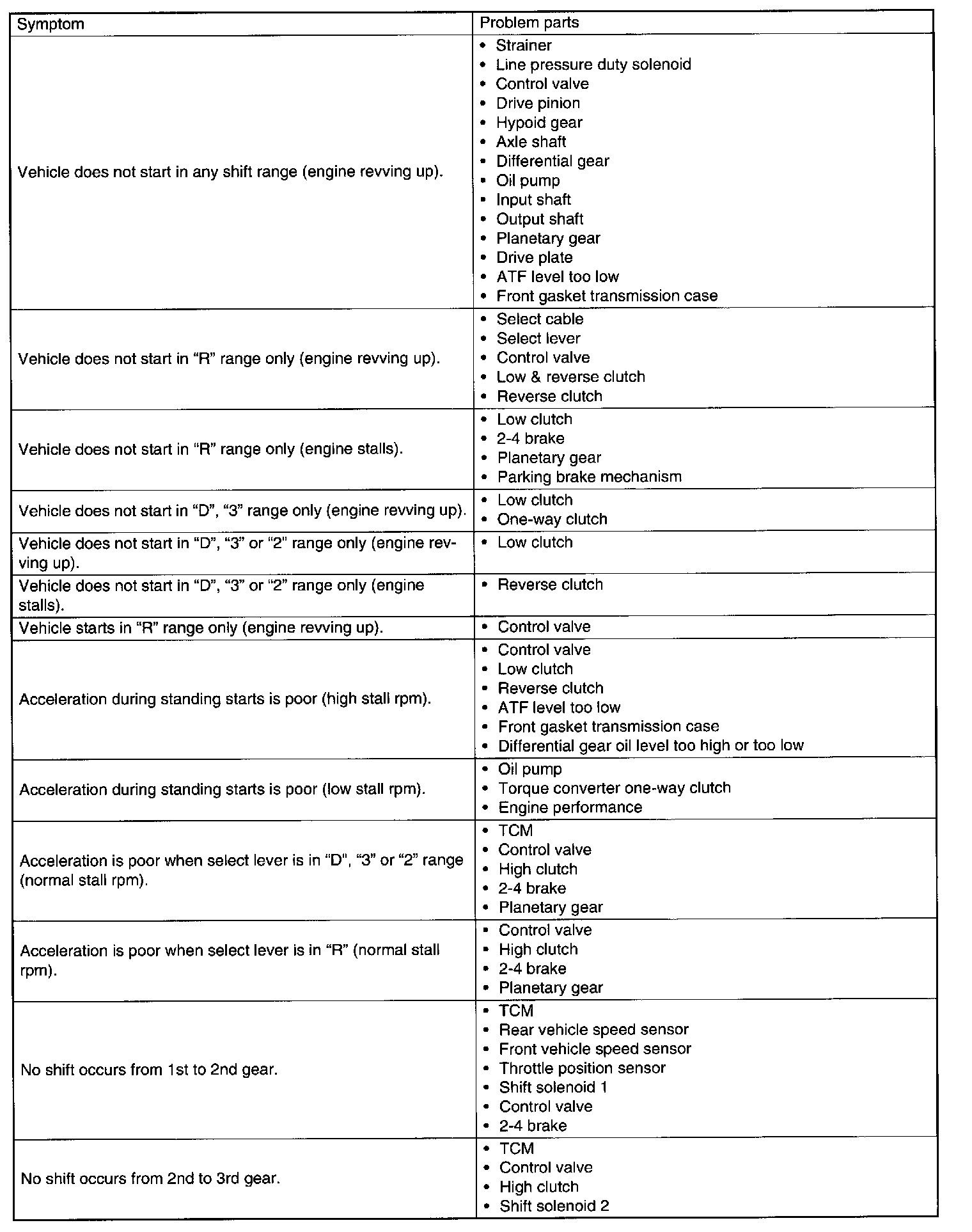

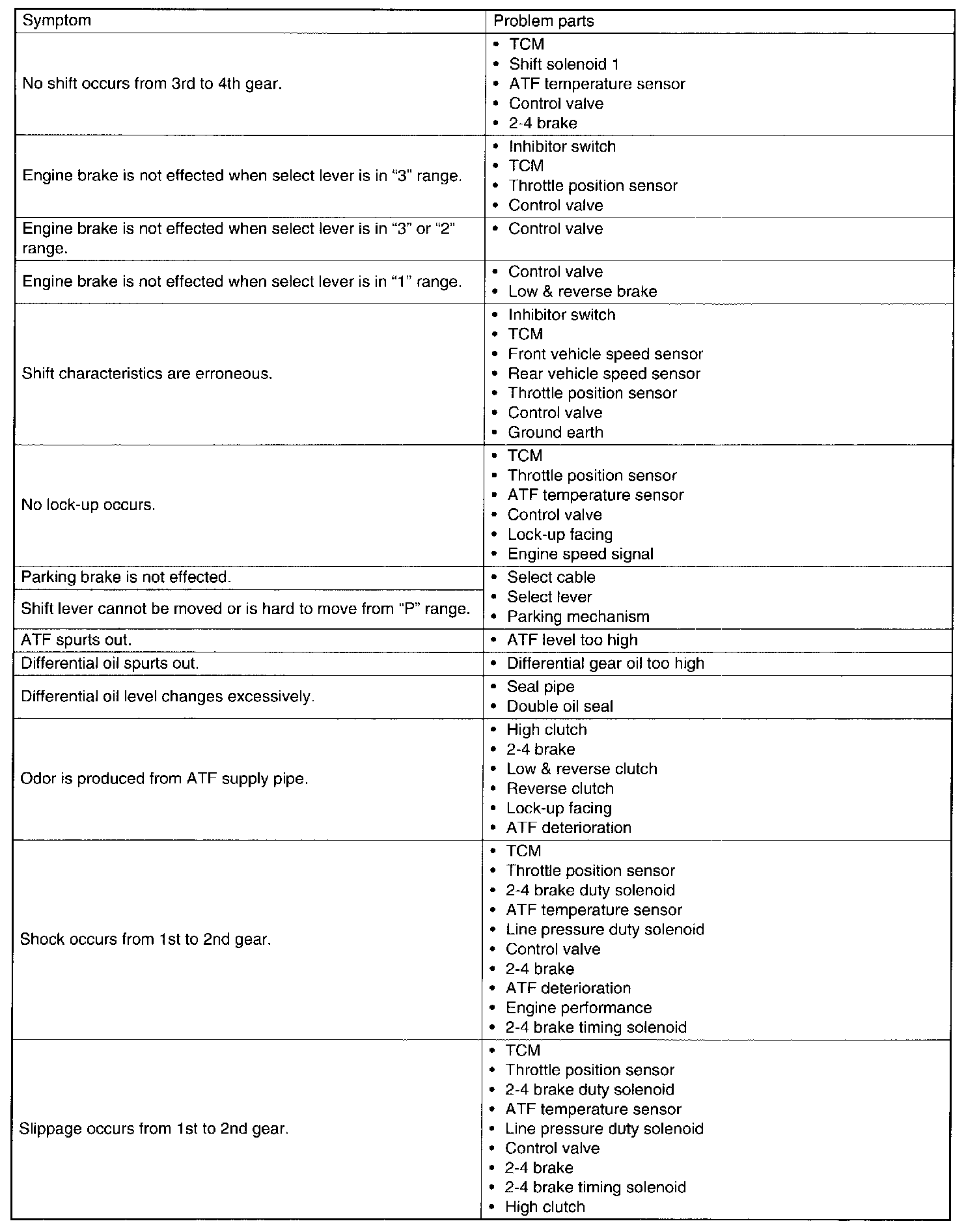

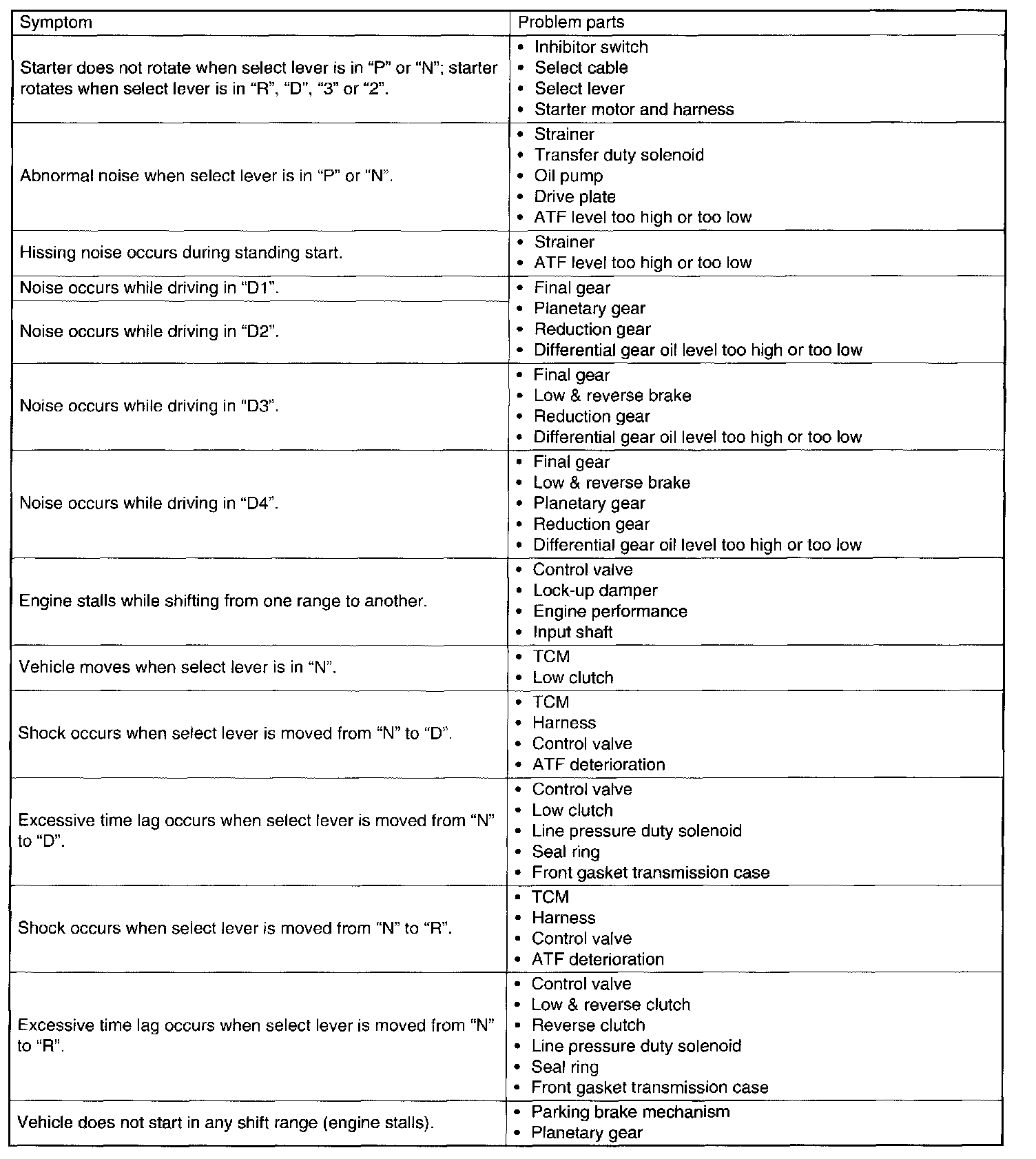

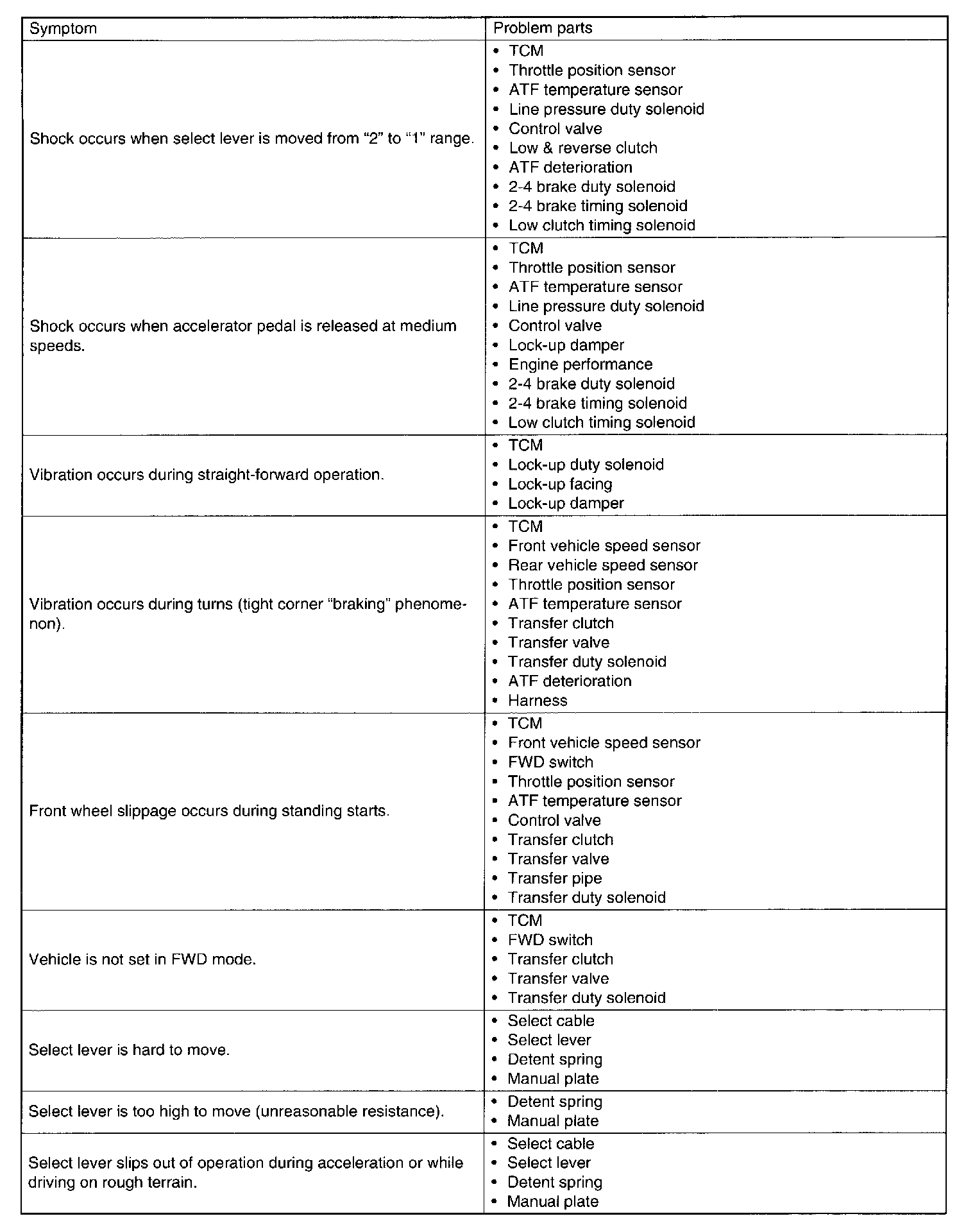

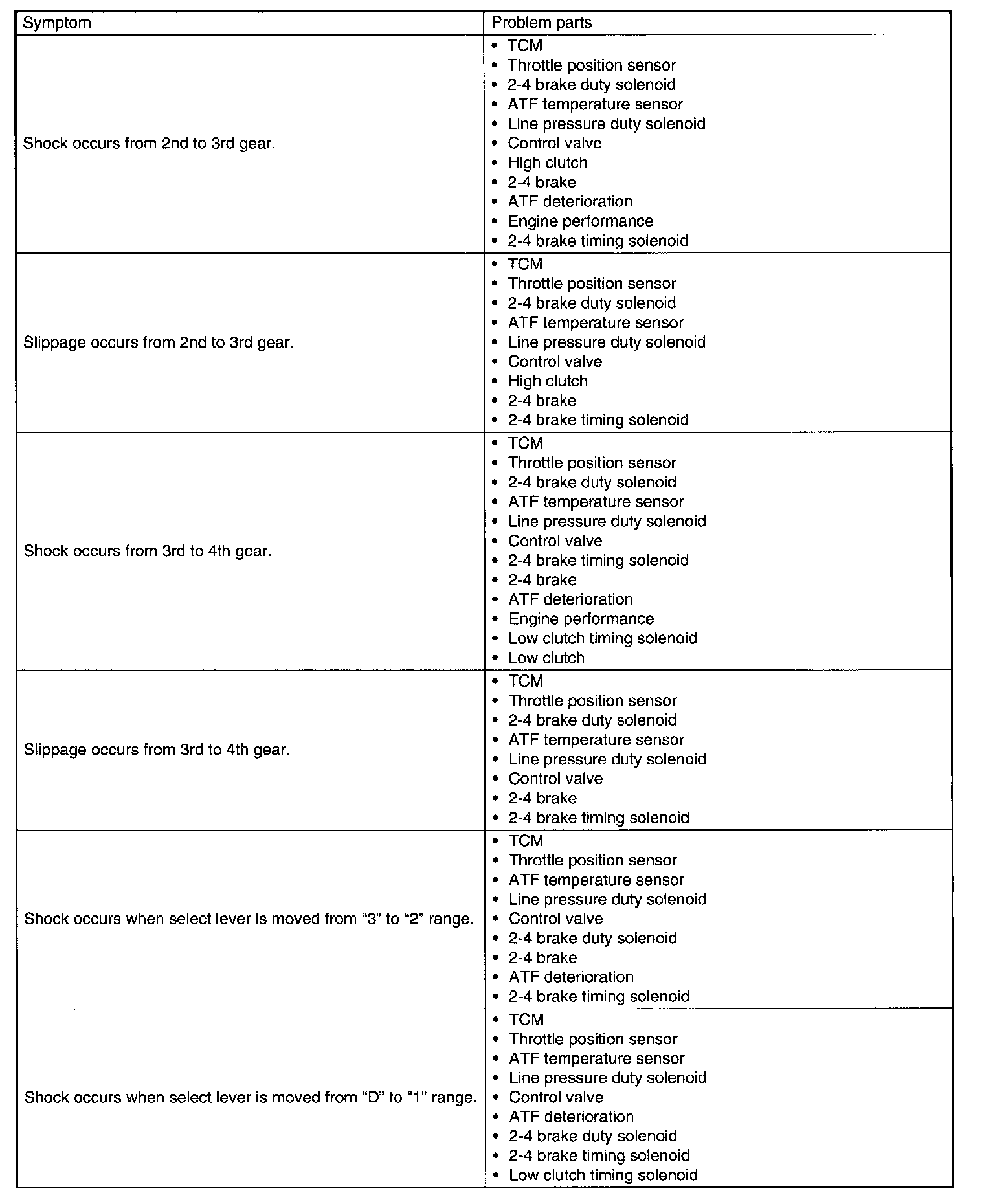

Symptom Related Diagnostic

Test 1 Of 6:




Test 2 Of 6:




Test 3 Of 6:




Test 4 Of 6:




Test 5 Of 6:




Test 6 Of 6:





INSPECTION
