Power Window Switch: Testing and Inspection

Power Window Control Switch

INSPECTION

1. MAIN SWITCH
Measure switch resistance.

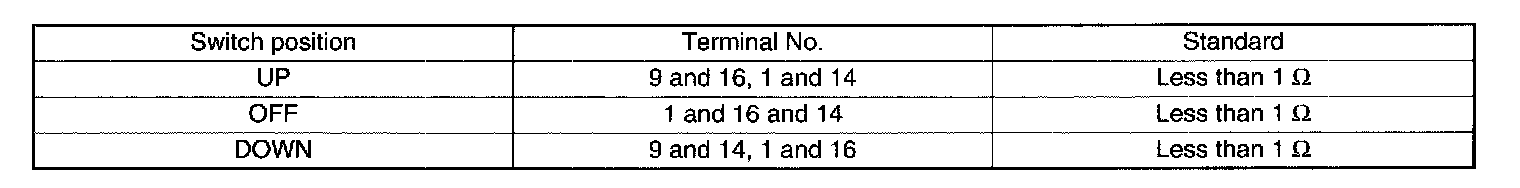

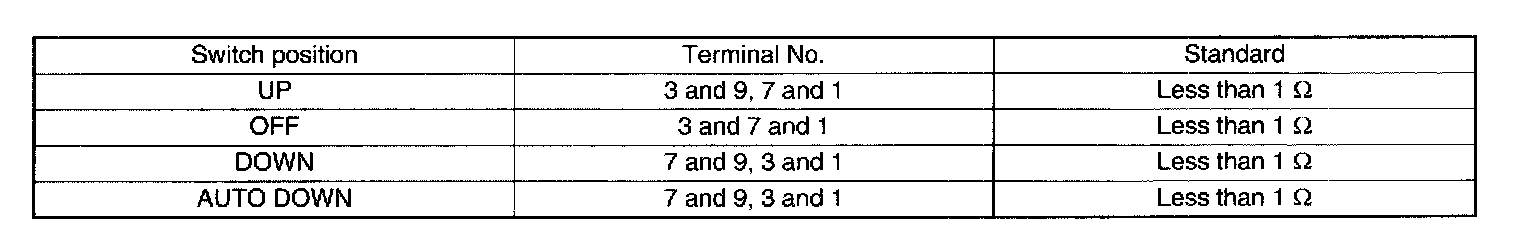

Driver's switch:

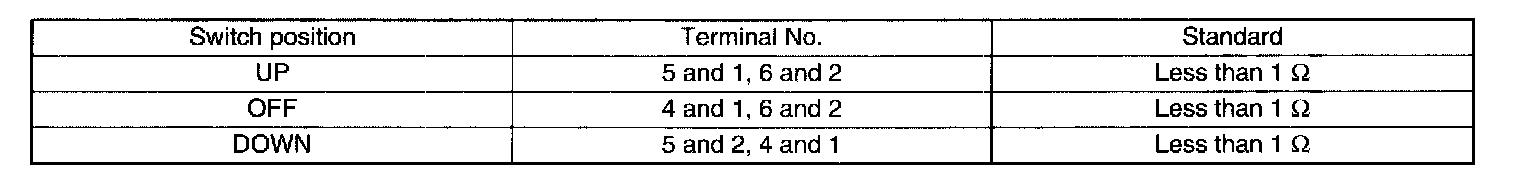

Front passenger's switch:

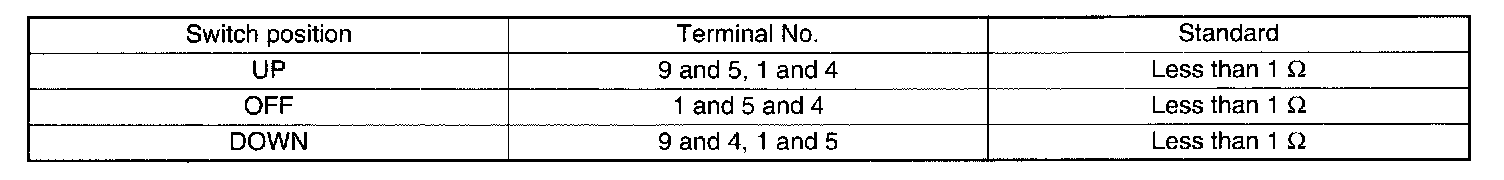

Rear left switch:

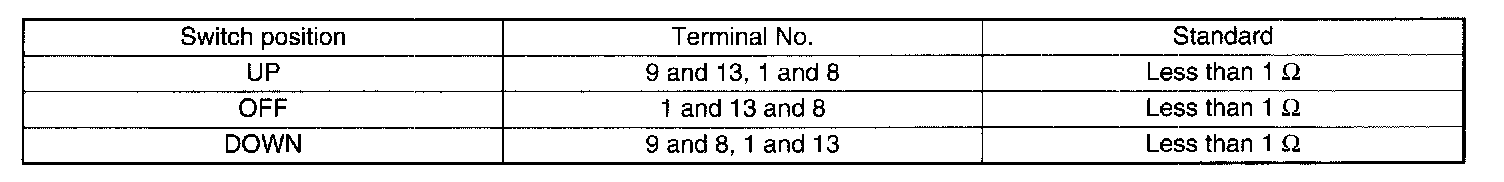

Rear right switch:
If NG, replace the main switch.

2. SUB-SWITCH
Measure switch resistance.




Front passenger's door switch and rear door switch:
If NG, replace the sub-switch.
