Crankshaft Position Sensor: Installation

Install in the reverse order of removal.

1. Tightening torque:  6.4 N.m (0.65 kgf-m, 4.7ft-lb)
   Fig 1: Installing Crankshaft Position Sensor

   Courtesy of SUBARU OF AMERICA, INC.

1. Tightening torque:  5.0 N.m (0.51 kgf-m, 3.7 ft-lb)

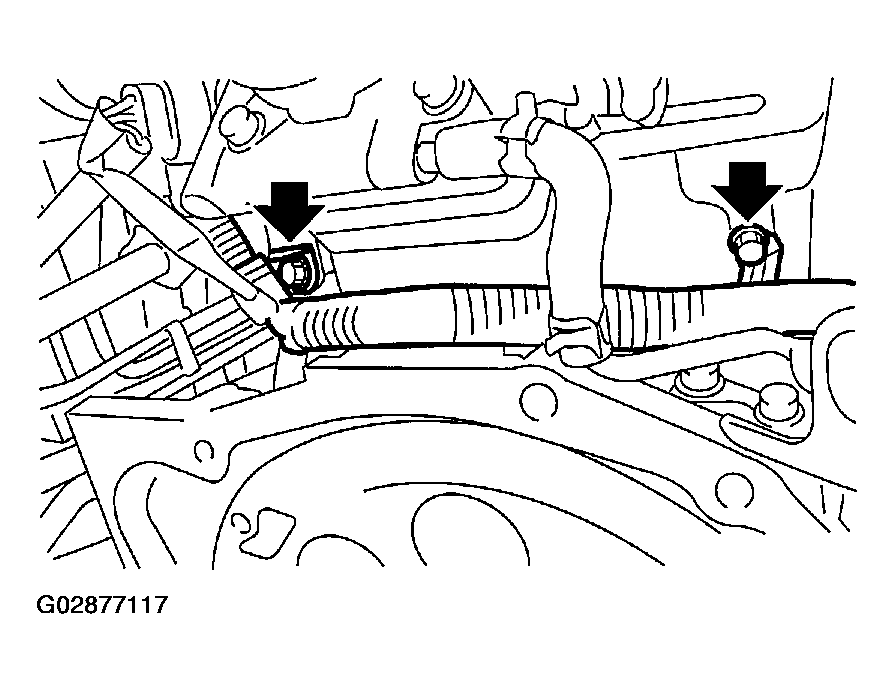

   Fig 2: Installing Engine Harness Bracket To Intake Manifold

   Courtesy of SUBARU OF AMERICA, INC.
