Crankshaft Position Sensor: Removal

Disconnect battery ground cable.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove air intake chamber.
< Ref. to REMOVAL , Air Intake Chamber.>
Remove engine harness bracket from intake manifold.

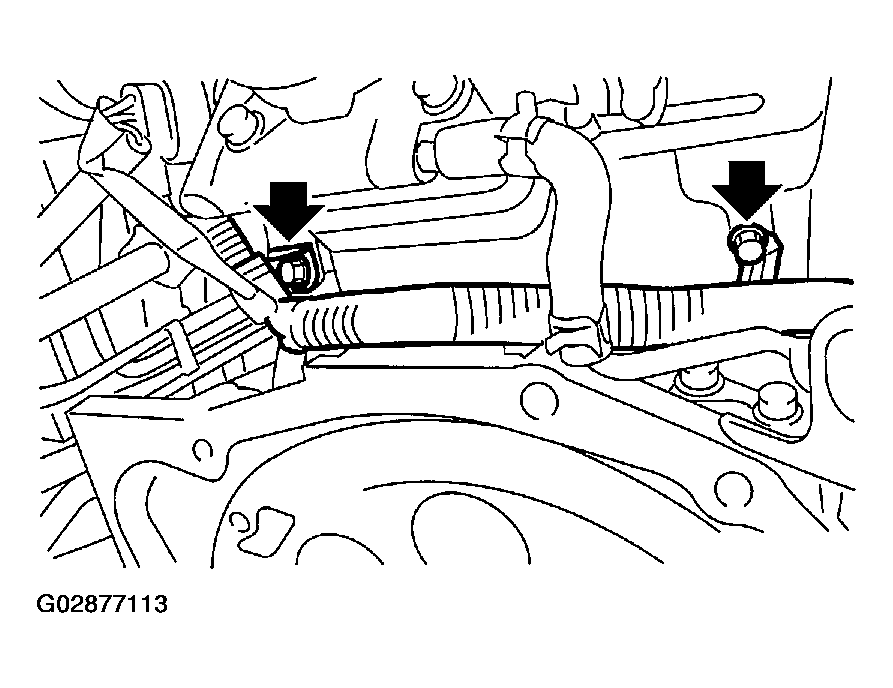

Fig 2: Removing Engine Harness Bracket From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove service hole cover.

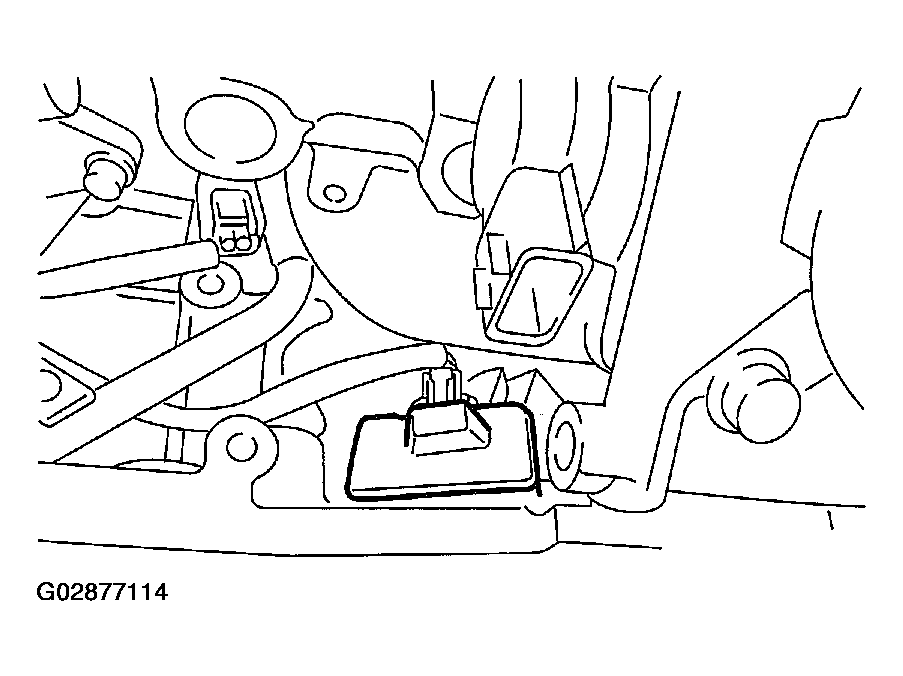

Fig 3: Removing Service Hole Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt which install crankshaft position sensor to cylinder block.
Remove crankshaft position sensor, and disconnect connector from it.

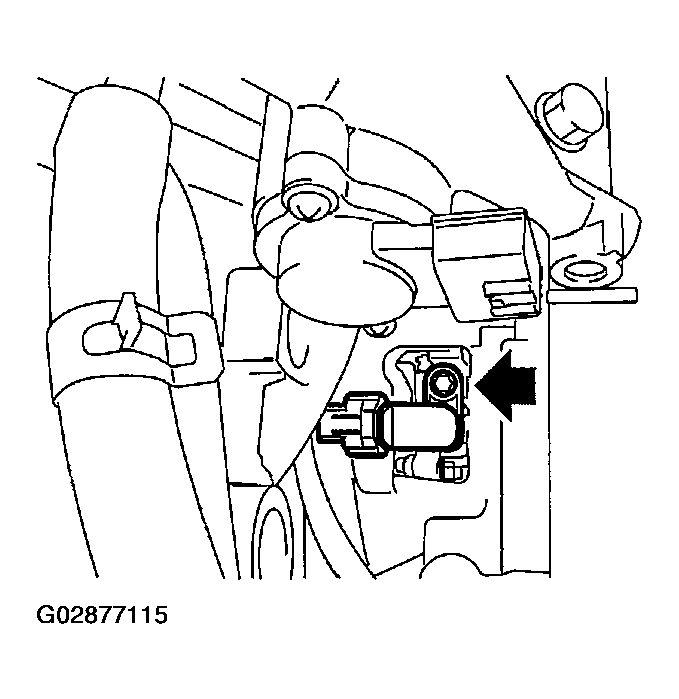

Fig 4: Removing Crankshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
