Engine Control Module: Removal

Disconnect battery ground cable.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove lower inner trim of passenger side. < Ref. to REMOVAL , Lower Inner Trim.>

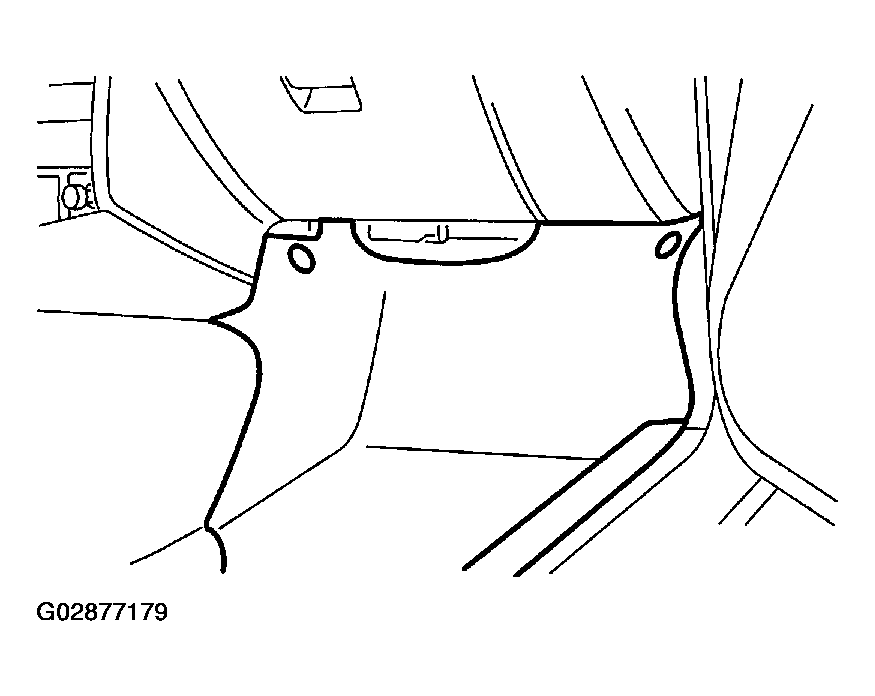

Detach floor mat of front passenger seat.

Fig 2: Detaching Floor Mat Of Front Passenger Seat
Courtesy of SUBARU OF AMERICA, INC.

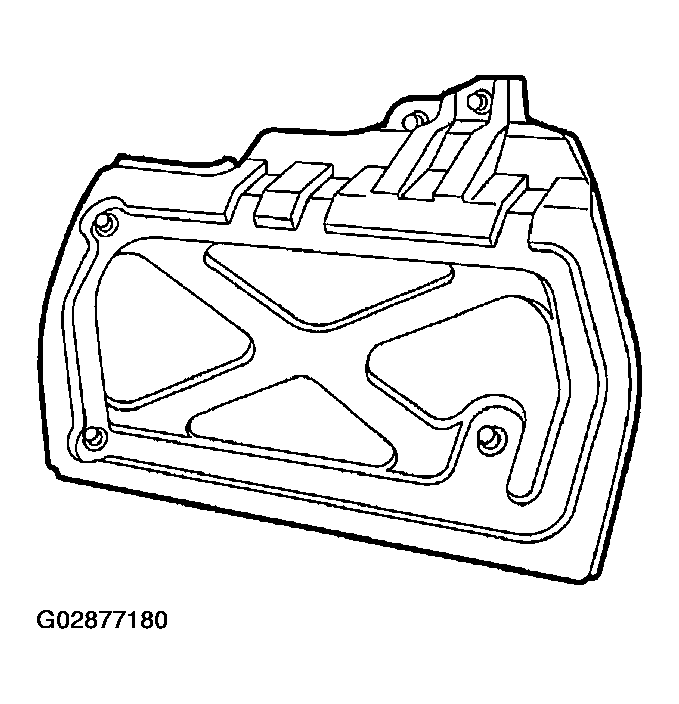

Remove protect cover.

Fig 3: Removing Protect Cover
Courtesy of SUBARU OF AMERICA, INC.

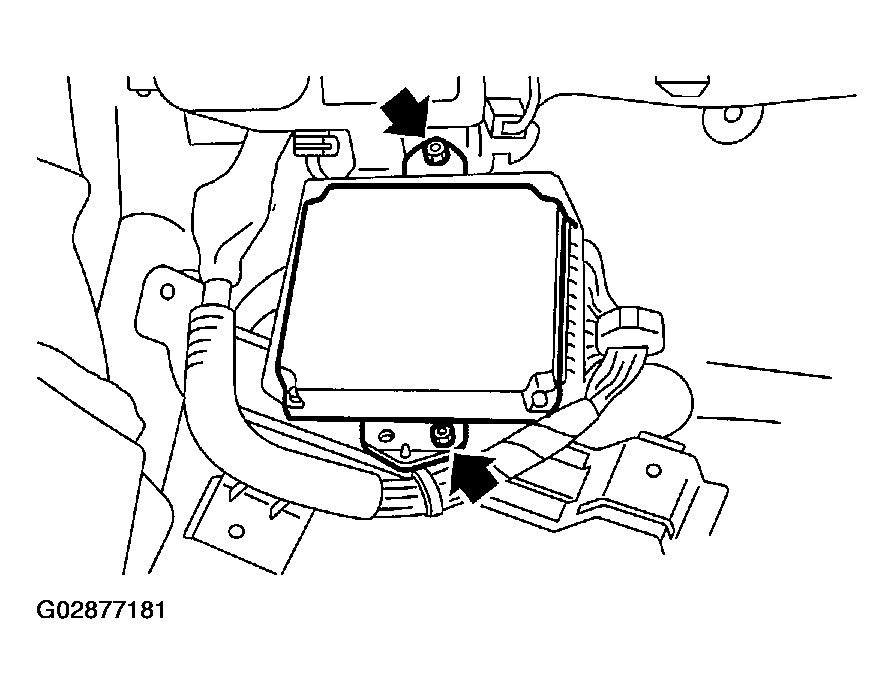

Remove nuts which hold ECM to bracket.

Fig 4: Removing ECM
Courtesy of SUBARU OF AMERICA, INC.

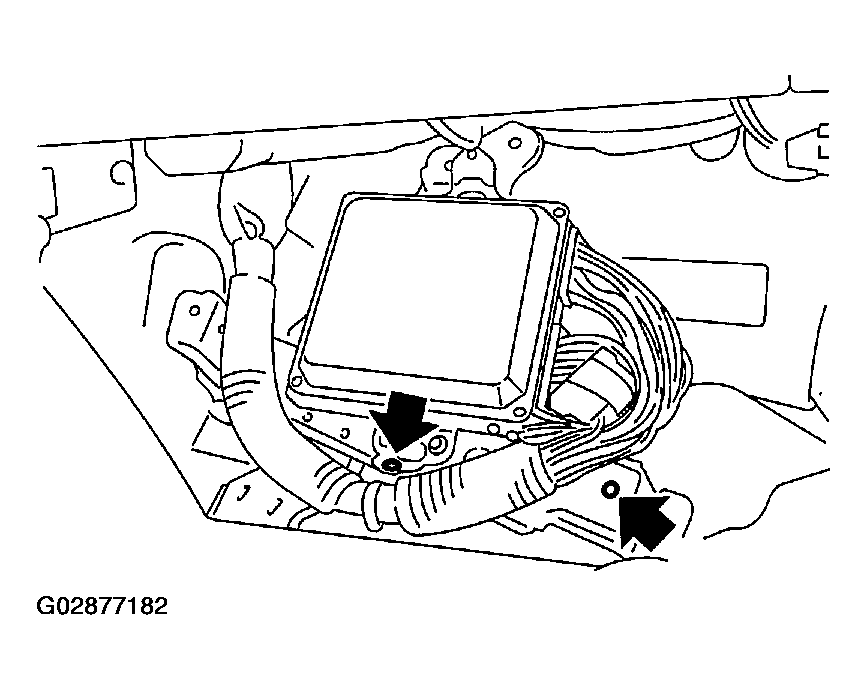

Remove clip from bracket.

Fig 5: Removing Clip From Bracket
Courtesy of SUBARU OF AMERICA, INC.
Disconnect ECM connectors and take out ECM.
