Fuel Pump Controller: Removal

  1. Disconnect battery ground cable.
    Fig 1: Disconnecting Battery Ground Cable
    G02877187Courtesy of SUBARU OF AMERICA, INC.
  2. Remove rear quarter Trim. < Ref. to REMOVAL , Rear Quarter Trim.>
  3. Disconnect connector from fuel pump control unit.

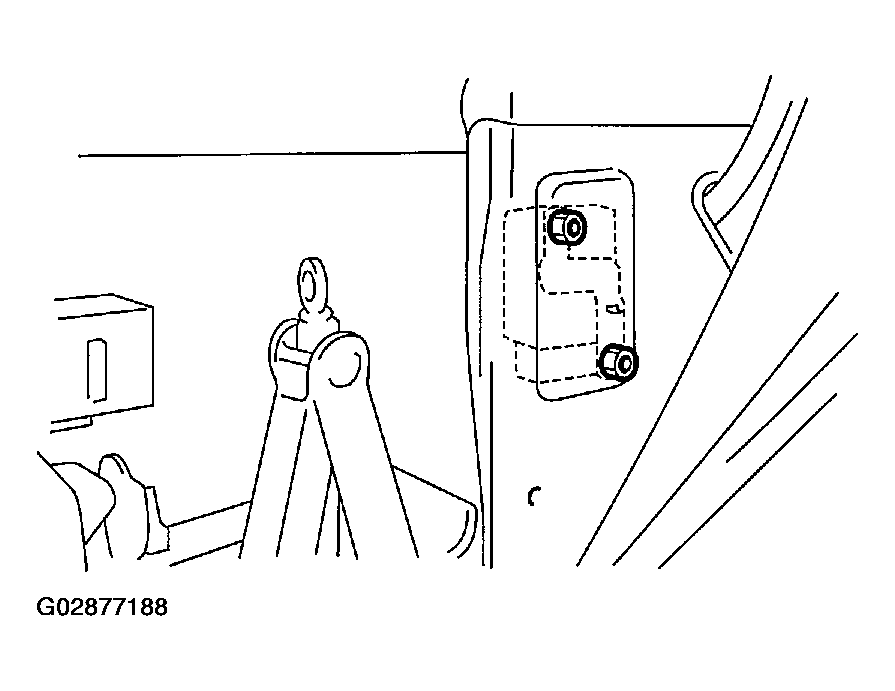

    Fig 2: Disconnecting Connector From Fuel Pump Control Unit
    G02877188Courtesy of SUBARU OF AMERICA, INC.
  4. Remove fuel pump control unit.
