Induction Valve Control Solenoid: Removal

  1. Disconnect battery ground cable.
  2. Remove intake manifold.

    < Ref. to REMOVAL , Intake Manifold

  3. Disconnect connector from induction valve control solenoid.
  4. Remove induction valve control solenoid from intake manifold.

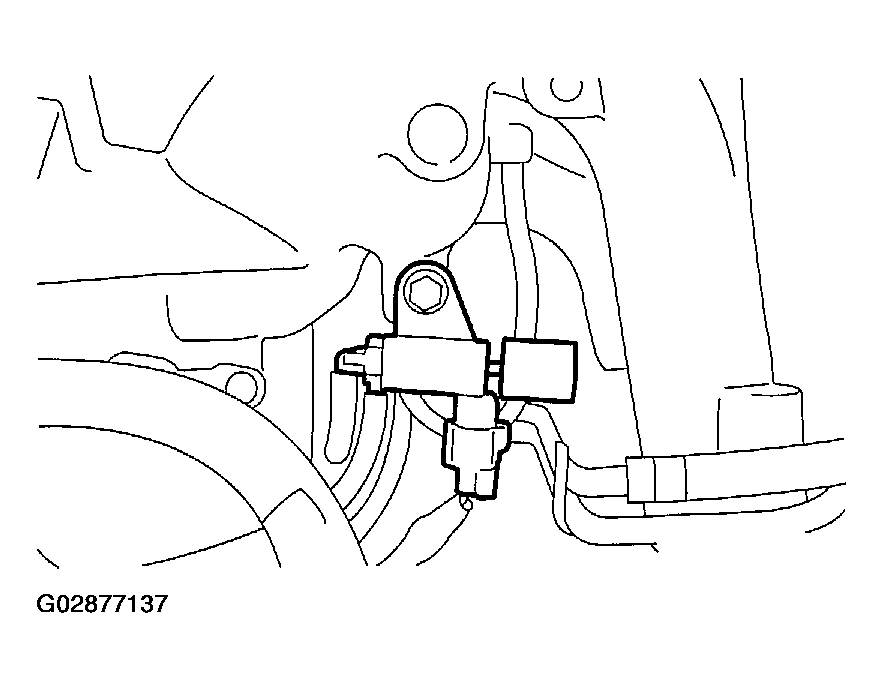

    Fig 1: Removing Induction Valve Control Solenoid From Intake Manifold
    G02877137Courtesy of SUBARU OF AMERICA, INC.
