Induction Valve: Removal

  1. Disconnect battery ground cable.
  2. Remove intake manifold.

    < Ref. to REMOVAL , Intake Manifold.>

  3. Remove induction valve from intake manifold.

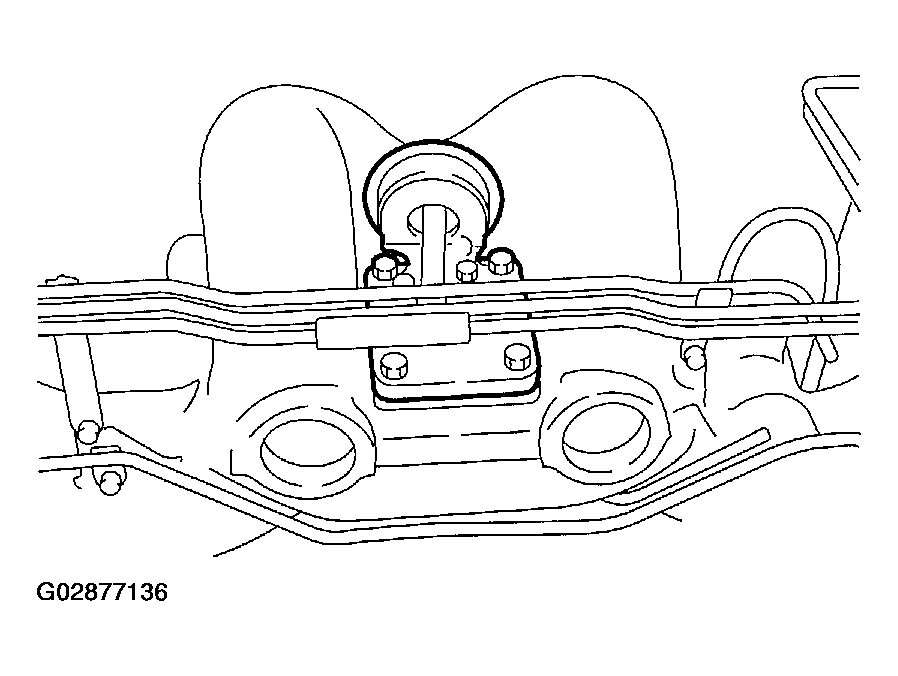

    Fig 1: Removing Induction Valve From Intake Manifold
    G02877136Courtesy of SUBARU OF AMERICA, INC.
