Intake Manifold Pressure Sensor: Removal

  1. Disconnect battery ground cable.

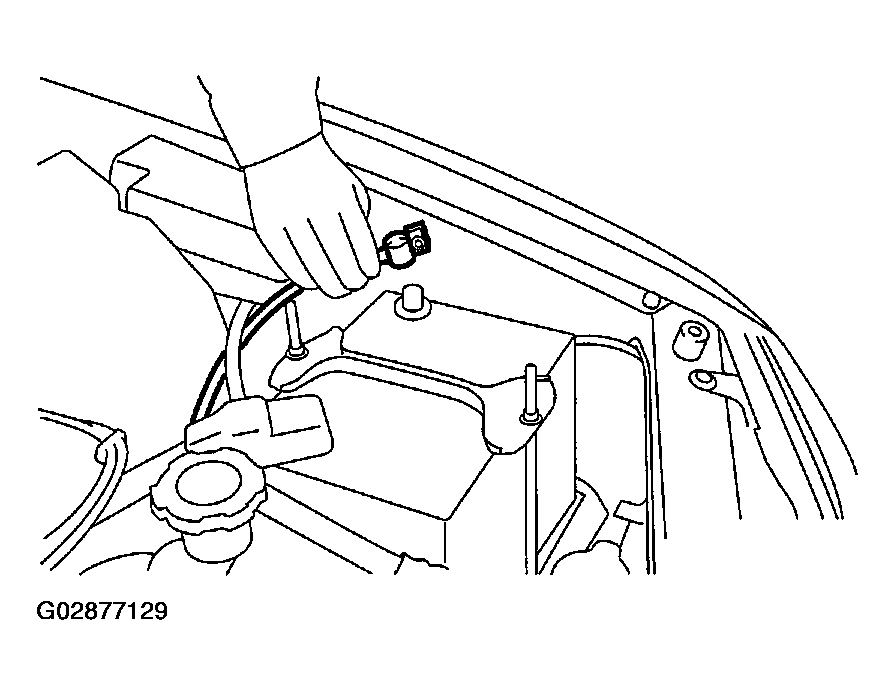

    Fig 1: Disconnecting Battery Ground Cable
    G02877129Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector from intake manifold pressure sensor.
  3. Remove intake manifold pressure sensor from throttle body.

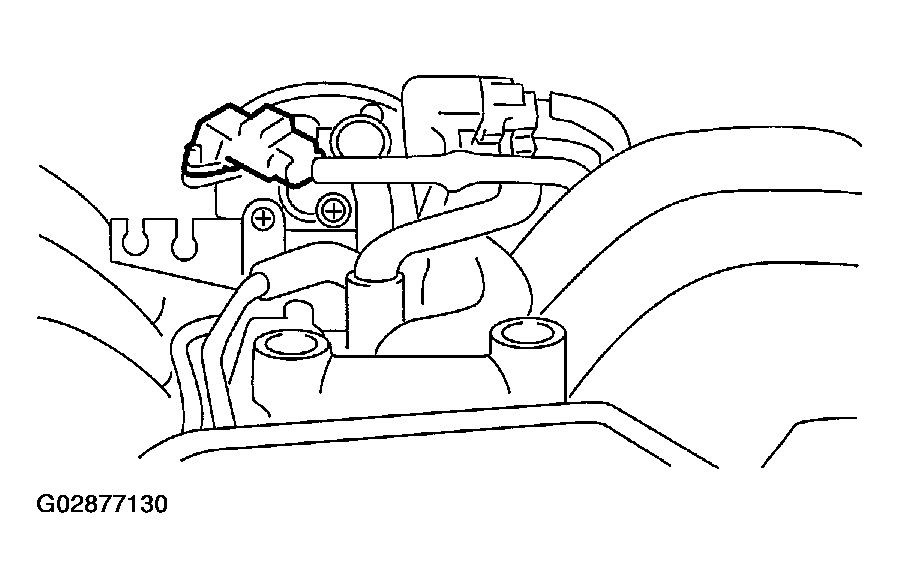

    Fig 2: Removing Intake Manifold Pressure Sensor From Throttle Body
    G02877130Courtesy of SUBARU OF AMERICA, INC.
