Intake Manifold: Disassembly

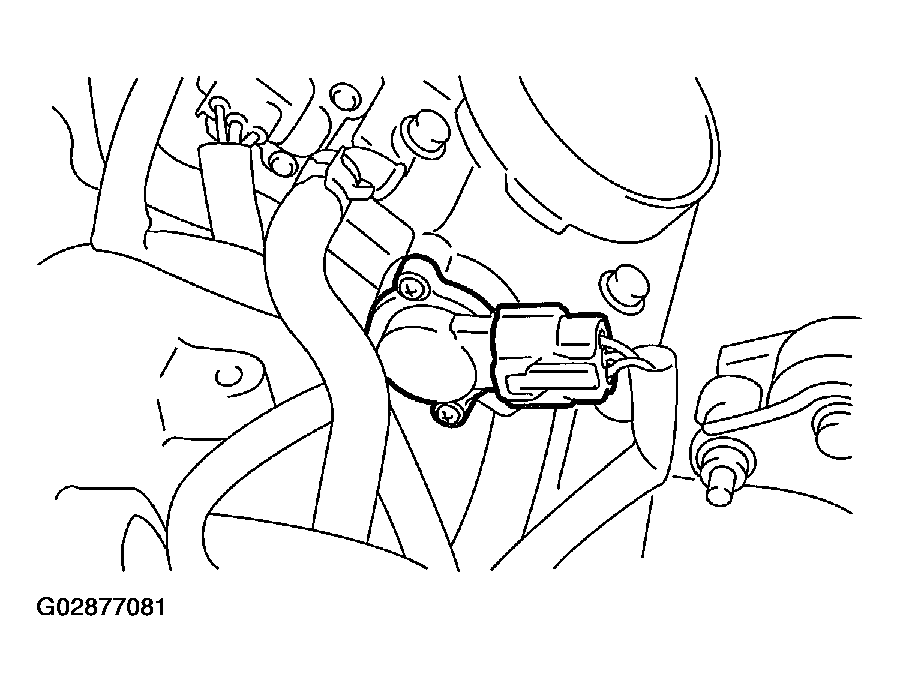

Disconnect connectors from throttle position sensor.

Fig 1: Disconnecting Connectors From Throttle Position Sensor
Courtesy of SUBARU OF AMERICA, INC.

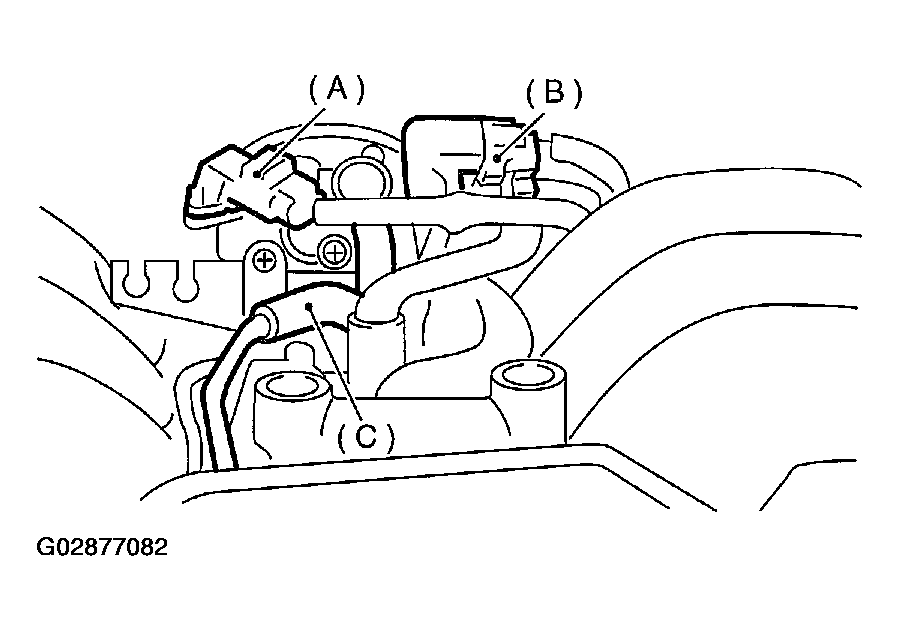

Disconnect connectors from intake manifold pressure sensor (B) and idle air control solenoid valve (A).
Disconnect air by-pass hose (C) from idle air control solenoid valve.

Fig 2: Disconnecting Air By-Pass Hose From Idle Air Control Solenoid Valve
Courtesy of SUBARU OF AMERICA, INC.

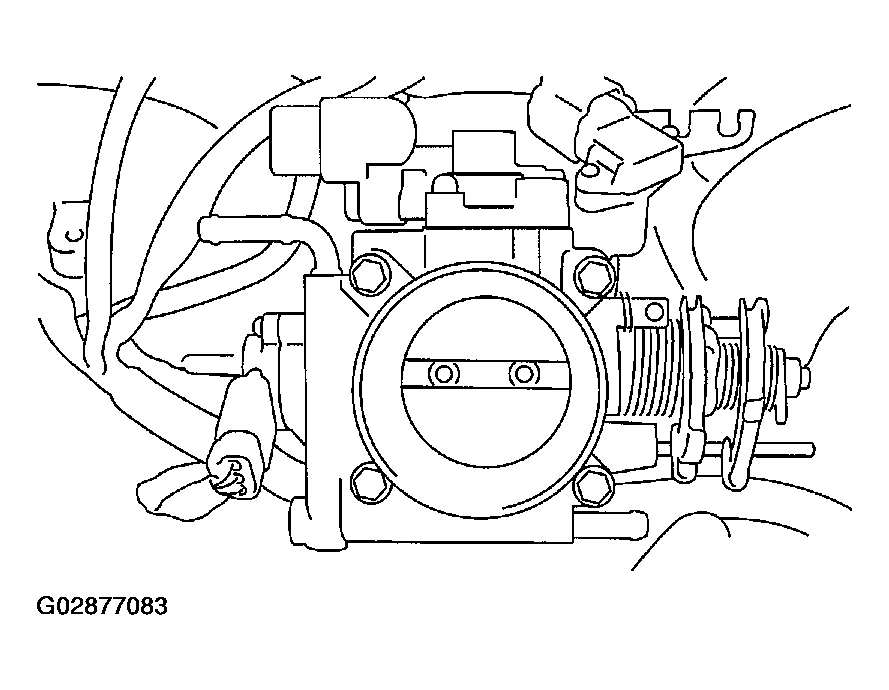

Remove throttle body.

Fig 3: Removing Throttle Body
Courtesy of SUBARU OF AMERICA, INC.

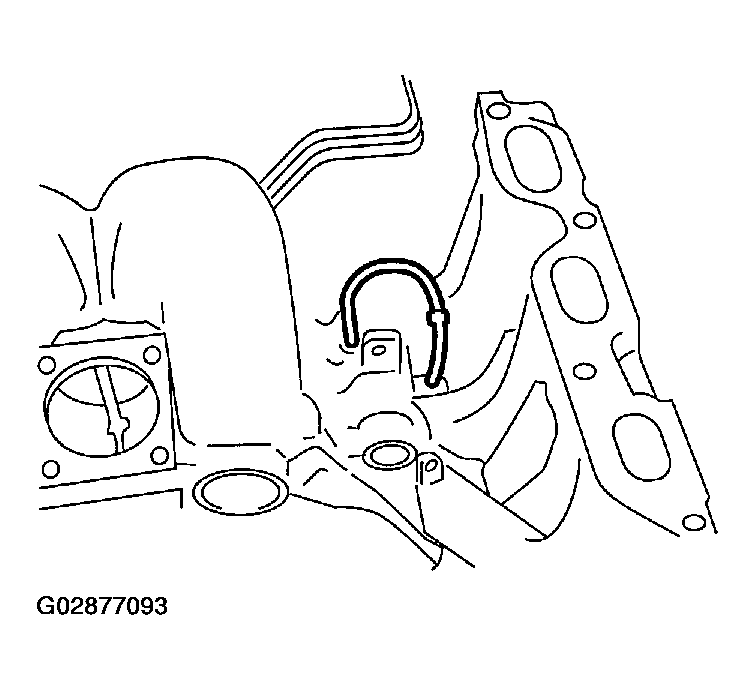

Remove induction valve.

Fig 4: Removing Induction Valve
Courtesy of SUBARU OF AMERICA, INC.

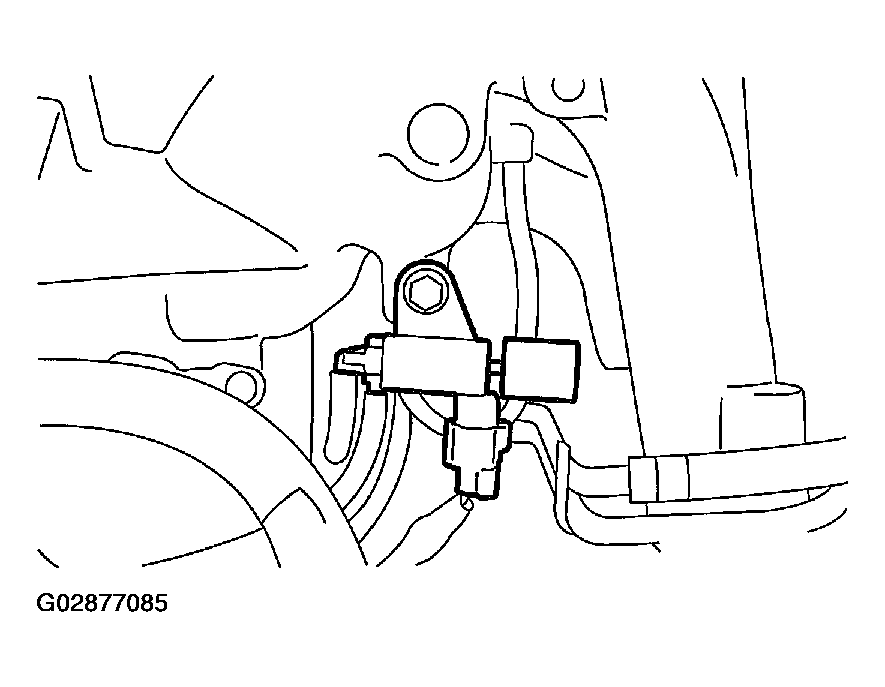

Disconnect connector from induction valve control solenoid.

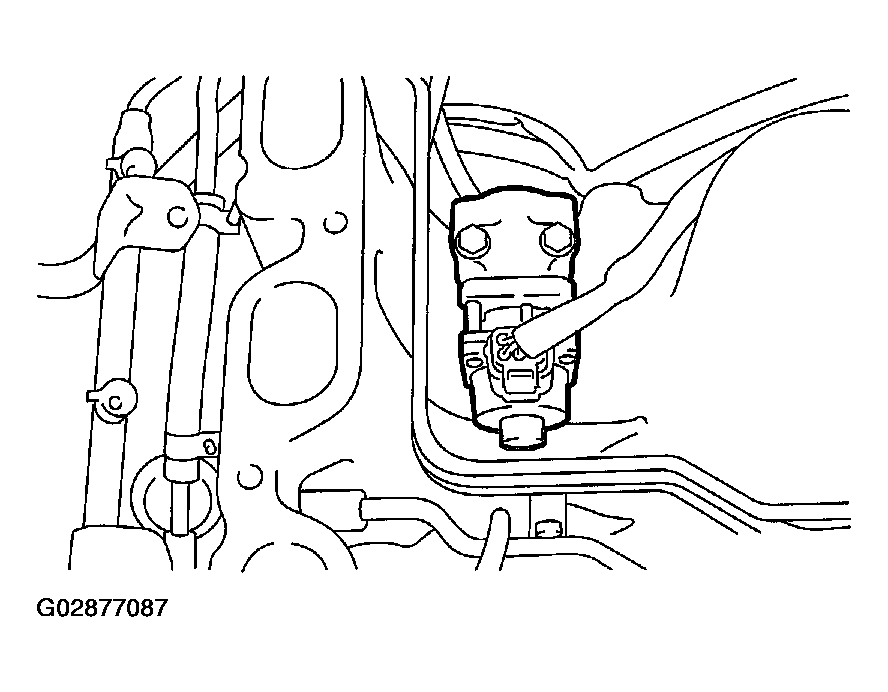

Remove induction valve control solenoid.

Fig 5: Removing Induction Valve Control Solenoid
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from purge control solenoid valve.

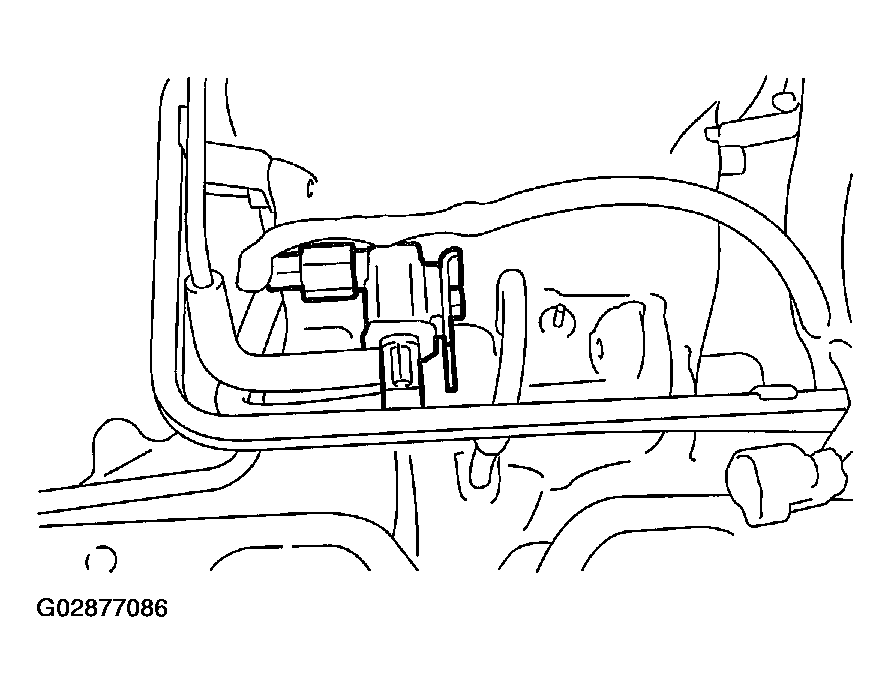

Remove purge control solenoid valve.

Fig 6: Removing Purge Control Solenoid Valve
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from EGR valve.
Remove EGR valve.

Fig 7: Removing EGR Valve
Courtesy of SUBARU OF AMERICA, INC.

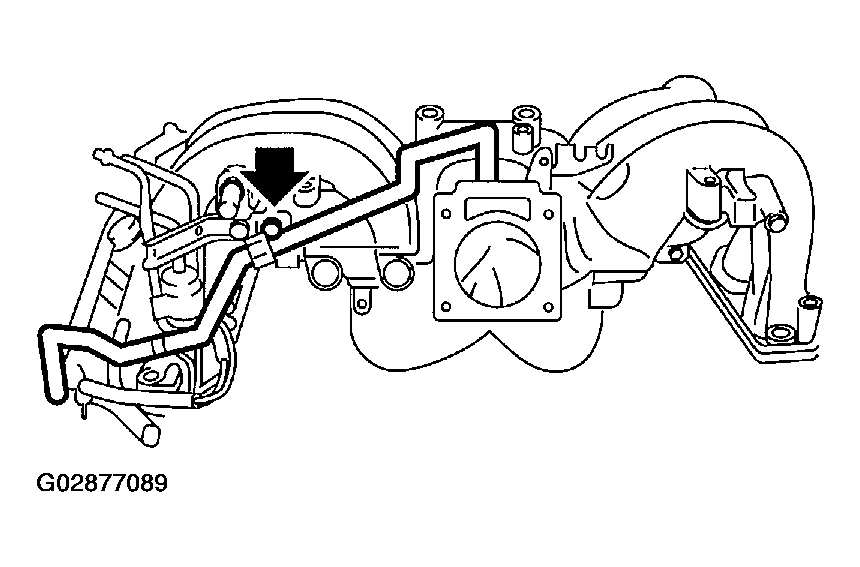

Remove engine harness assembly from intake manifold.

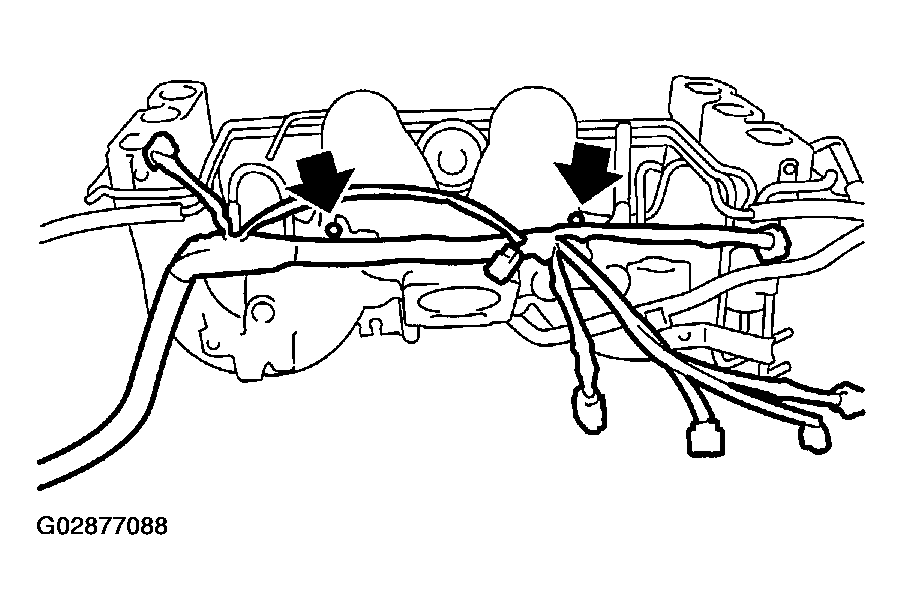

Fig 8: Removing Engine Harness Assembly From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove PCV pipe from intake manifold.

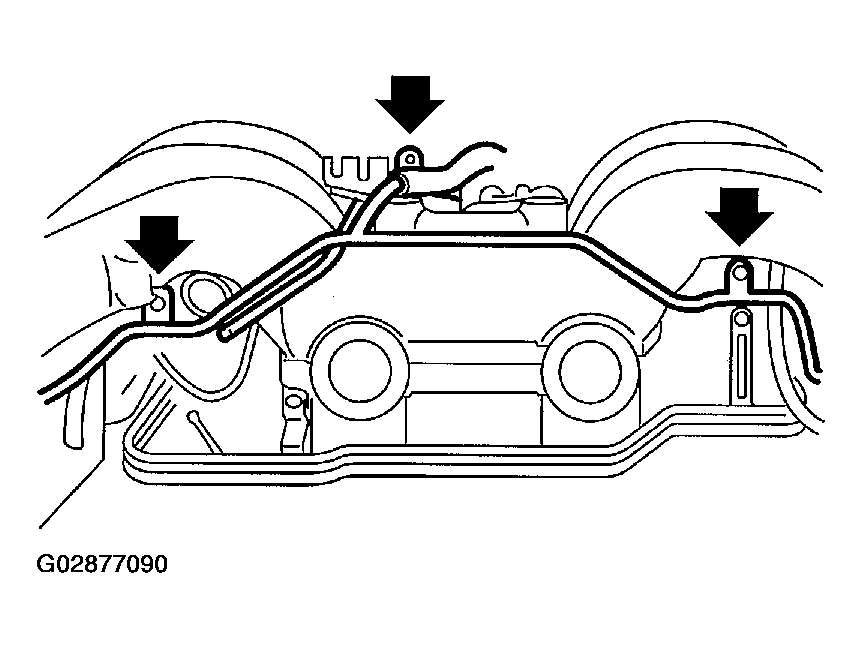

Fig 9: Removing PCV Pipe From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove air assist and purge pipe assembly.

Fig 10: Removing Air Assist & Purge Pipe Assembly
Courtesy of SUBARU OF AMERICA, INC.
Disconnect pressure regulator vacuum hose (A) from intake manifold.
Remove fuel pipe and injector pipe assembly.

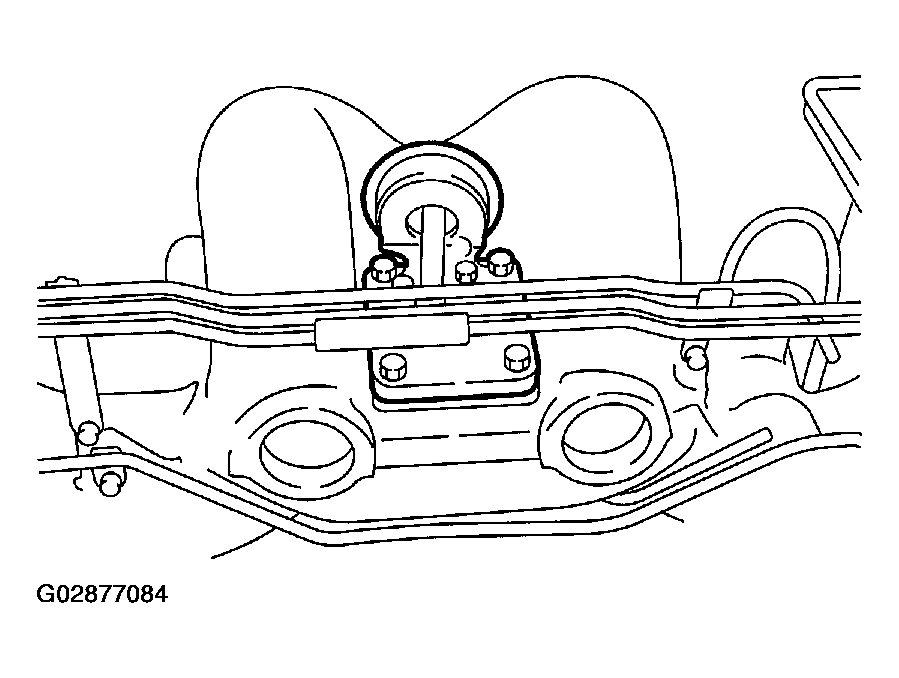

Fig 11: Removing Fuel Pipe & Injector Pipe Assembly (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

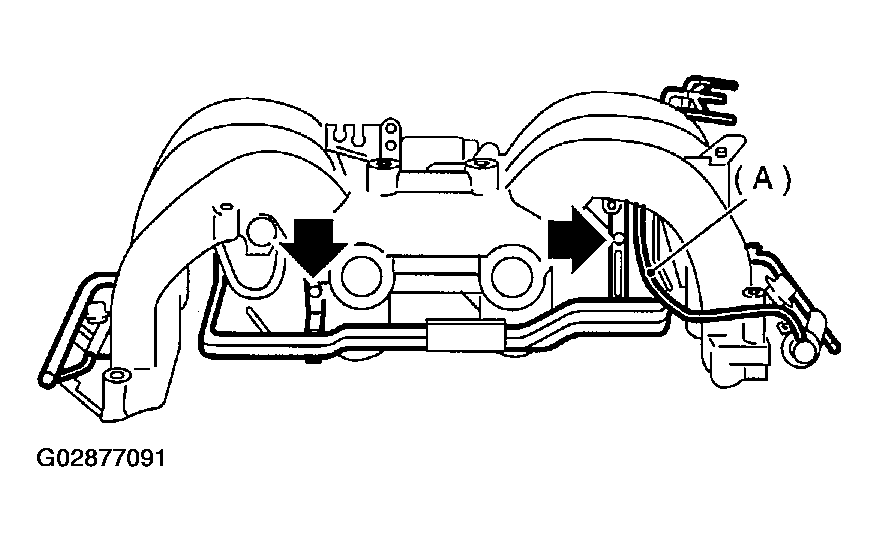

Fig 12: Removing Fuel Pipe & Injector Pipe Assembly (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Remove induction valve vacuum hose from intake manifold.

Fig 13: Removing Induction Valve Vacuum Hose From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
