Intake Manifold: Installation

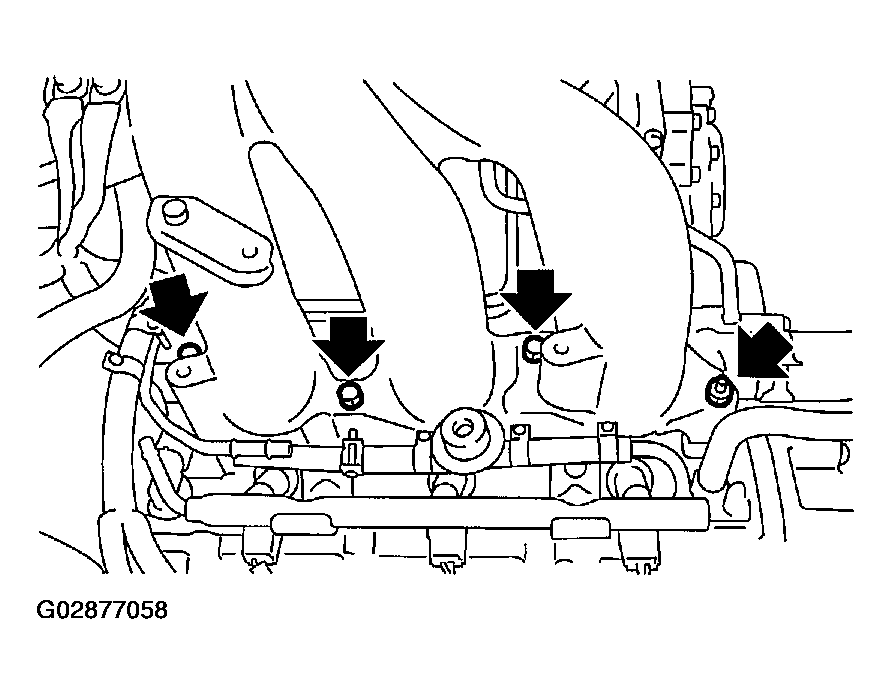

Install intake manifold onto cylinder heads.
NOTE: Always use new gaskets.

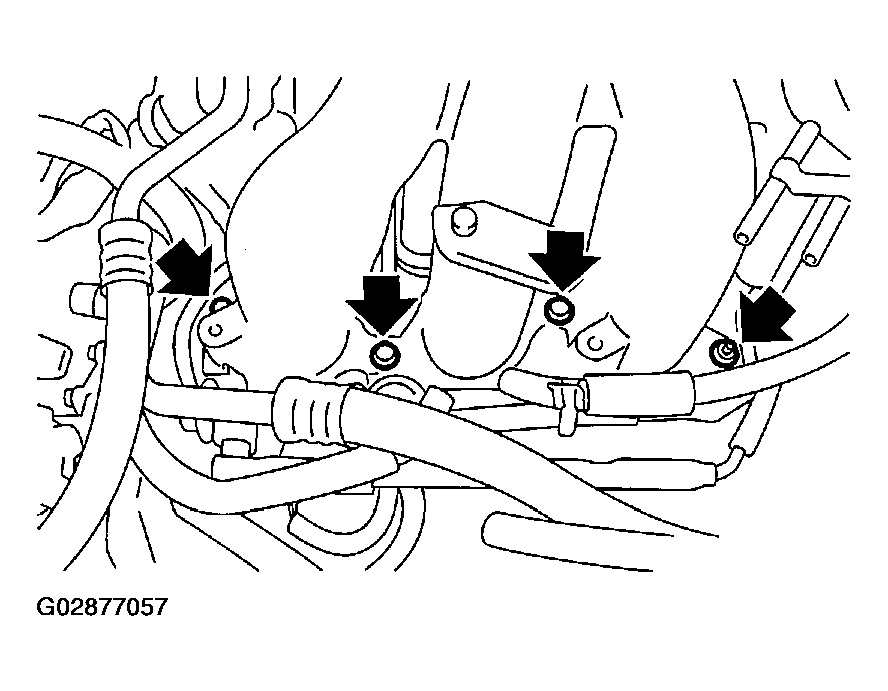

1. Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)
Fig 1: Installing Intake Manifold (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Installing Intake Manifold (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

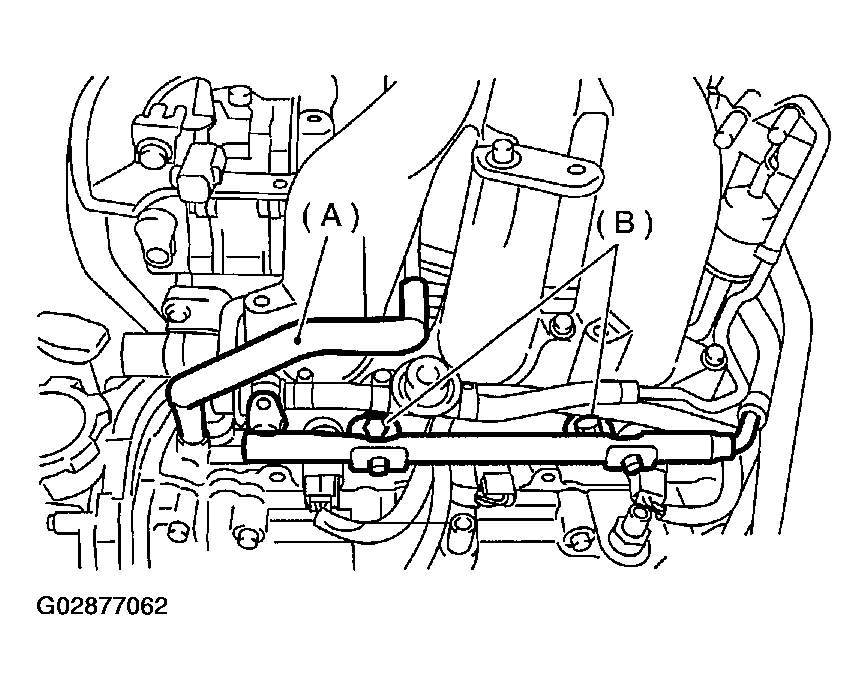

Install the bolt (B), which holds fuel injector pipe RH onto cylinder head.
1. Tightening torque: 19 N.m (1.9 kgf-m, 14 ft-lb)

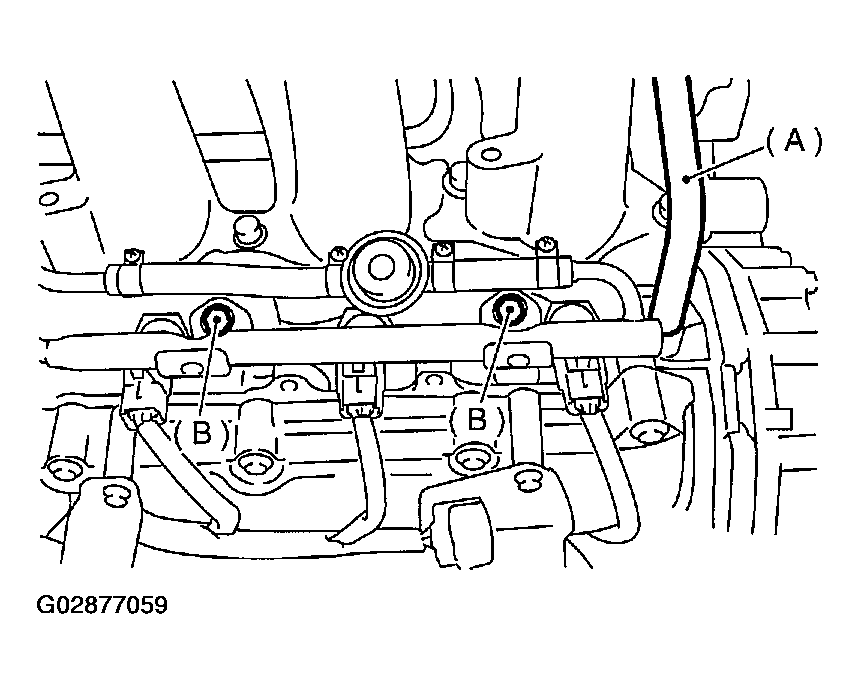

Connect air assist hose (A).

Fig 3: Connecting Air Assist Hose
Courtesy of SUBARU OF AMERICA, INC.

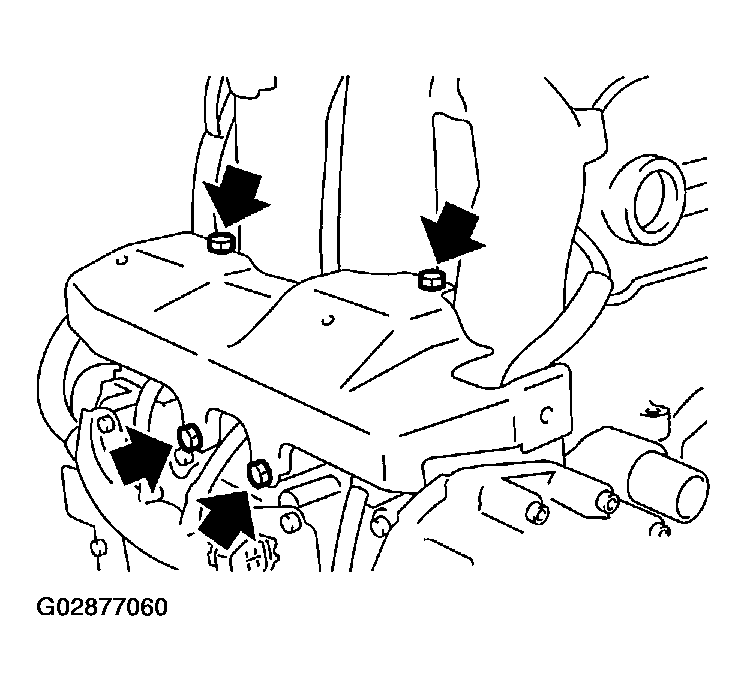

Install fuel pipe protector RH.
1. Tightening torque: 19 N.m (1.9 kgf-m, 14 ft-lb)
Fig 4: Installing Fuel Pipe Protector RH
Courtesy of SUBARU OF AMERICA, INC.

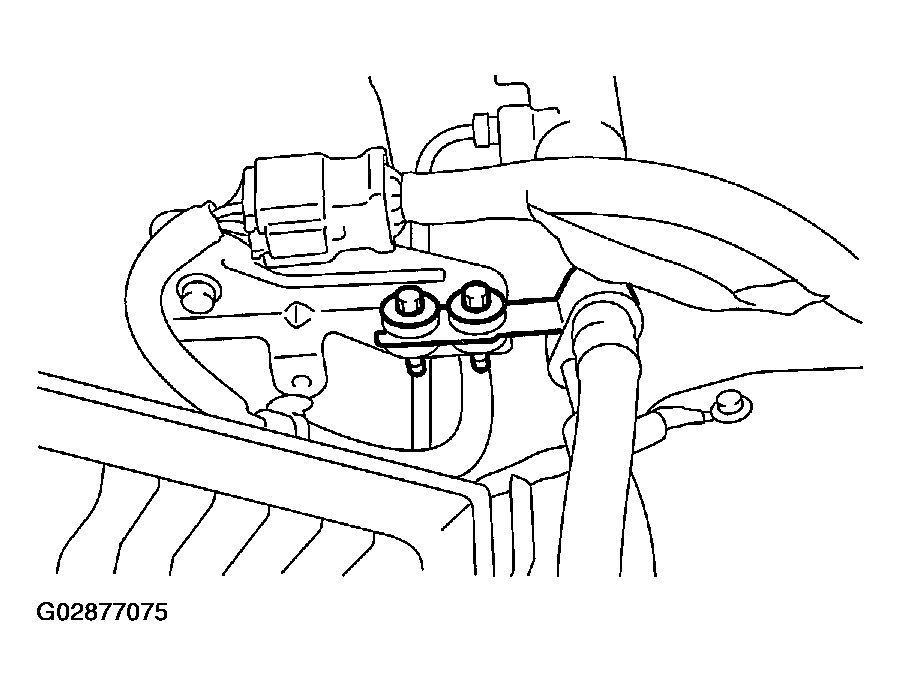

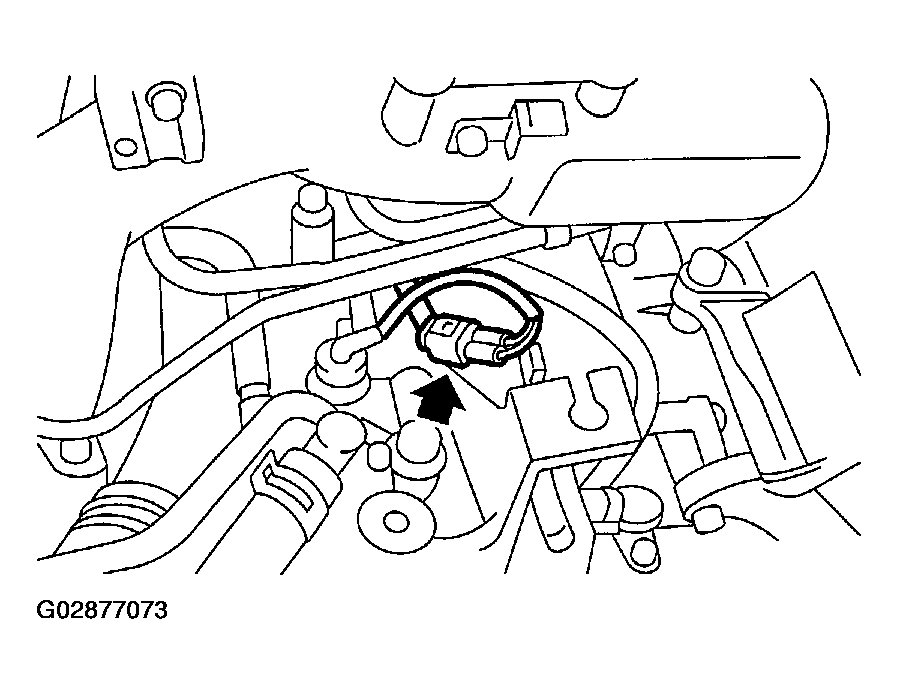

Install ground cable to fuel pipe protector RH.

Fig 5: Installing Ground Cable To Fuel Pipe Protector RH
Courtesy of SUBARU OF AMERICA, INC.
Install the bolt (B) which holds fuel injector pipe RH onto cylinder head.
1. Tightening torque: 19 N.m (1.9 kgf-m, 14 ft-lb)
Connect air assist hose (A).

Fig 6: Connecting Air Assist Hose
Courtesy of SUBARU OF AMERICA, INC.

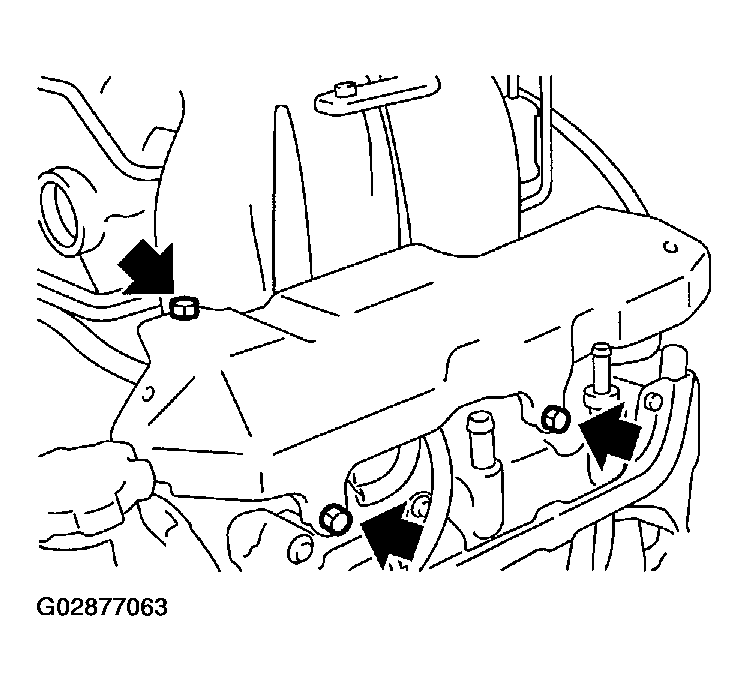

Install fuel pipe protector LH.
1. Tightening torque: 19 N.m (1.9 kgf-m, 14 ft-lb)
Fig 7: Installing Fuel Pipe Protector LH
Courtesy of SUBARU OF AMERICA, INC.

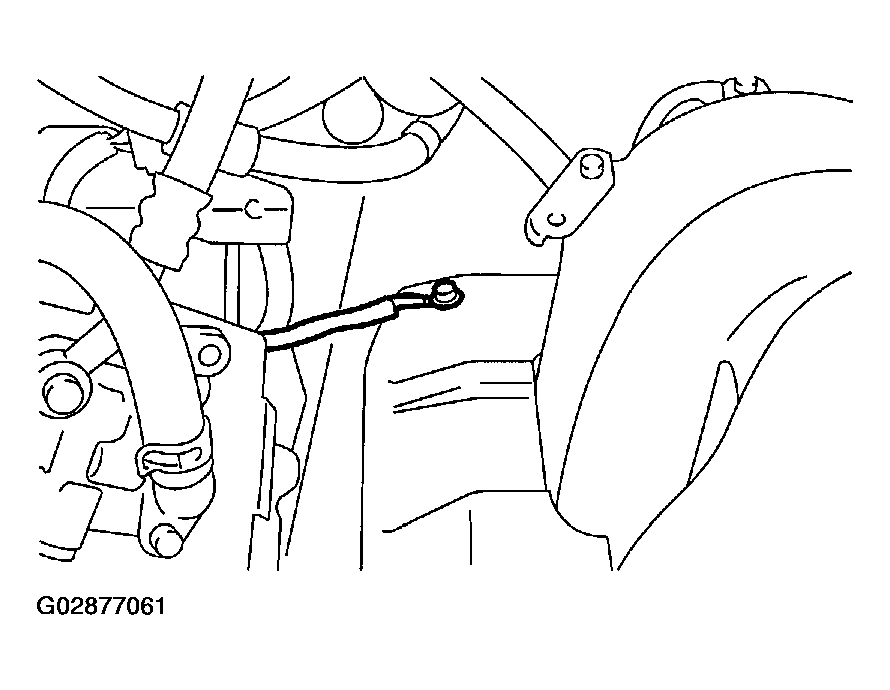

Install ground cable to fuel pipe protector LH.

Fig 8: Installing Ground Cable To Fuel Pipe Protector LH
Courtesy of SUBARU OF AMERICA, INC.

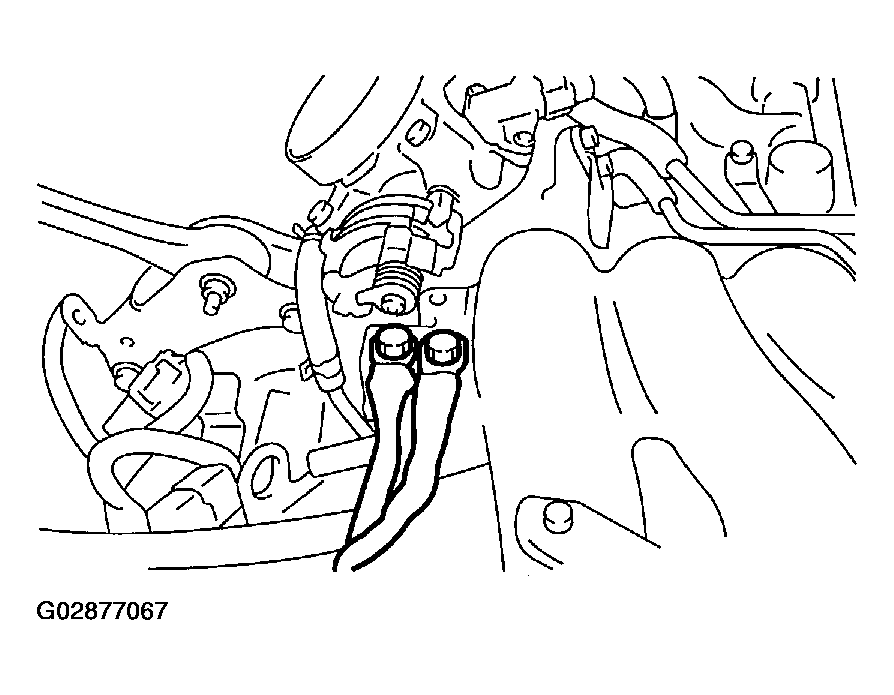

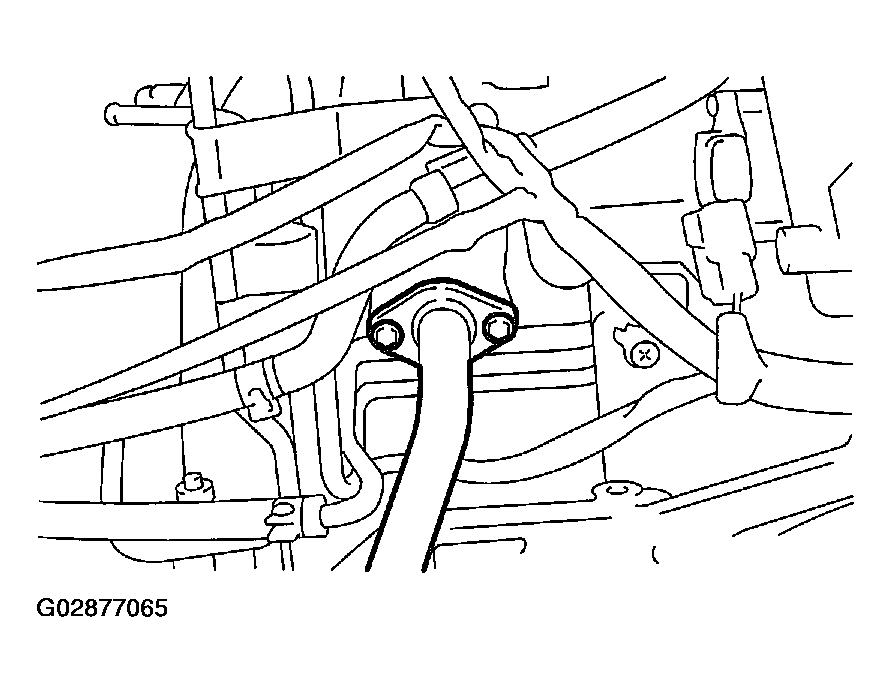

Install EGR pipe to EGR valve.
NOTE: Always use new gasket.
1. Tightening torque: 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)
Fig 9: Installing EGR Pipe To EGR Valve
Courtesy of SUBARU OF AMERICA, INC.
Connect fuel hoses.

Fig 10: Connecting Fuel Hoses
Courtesy of SUBARU OF AMERICA, INC.

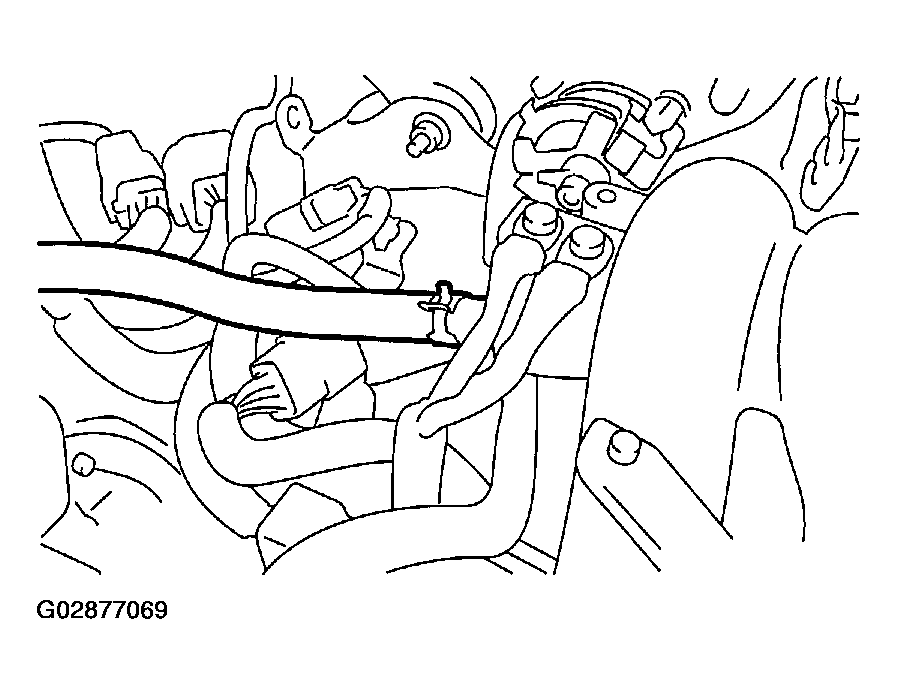

Connect engine ground terminal to intake manifold.

Fig 11: Connecting Engine Ground Terminal To Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.

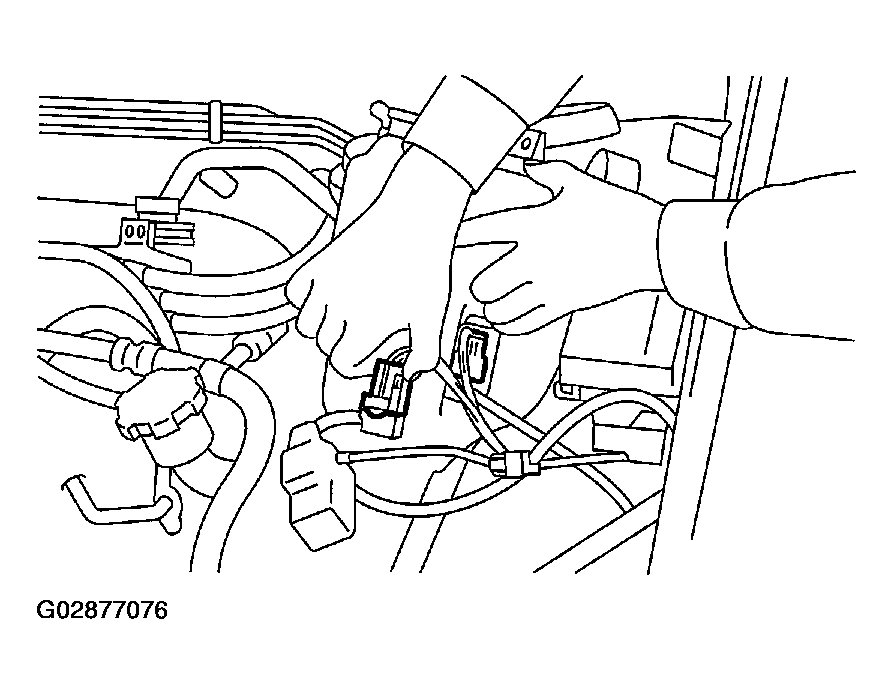

Connect engine harness connectors to bulkhead connectors.

Fig 12: Connecting Engine Harness Connectors To Bulkhead Connectors
Courtesy of SUBARU OF AMERICA, INC.
Connect brake booster hose.

Fig 13: Connecting Brake Booster Hose
Courtesy of SUBARU OF AMERICA, INC.

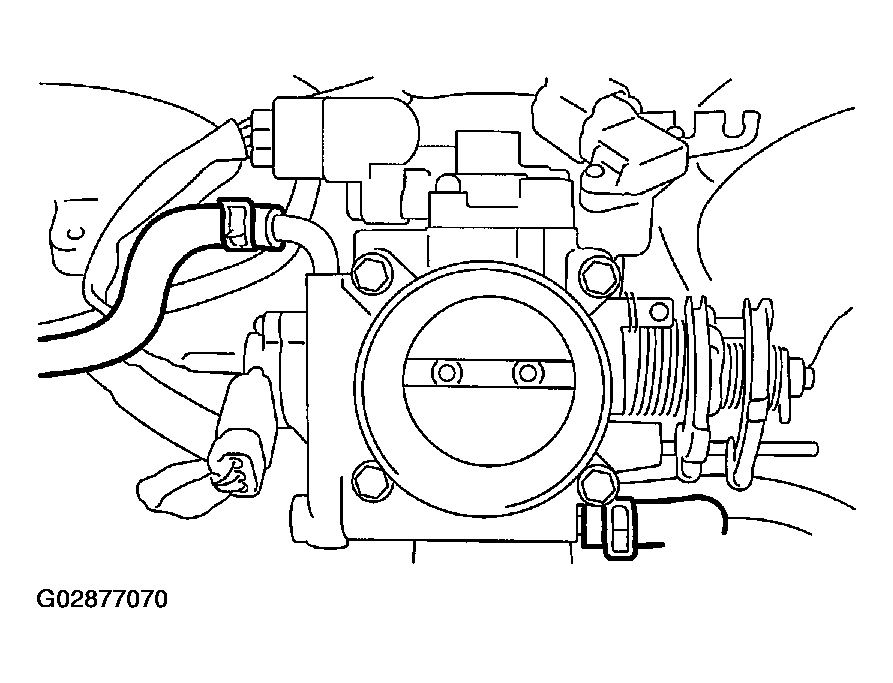

Connect engine coolant hose to throttle body.

Fig 14: Connecting Engine Coolant Hose To Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Connect PCV hose to cylinder head cover.

Fig 15: Connecting PCV Hose To Cylinder Head Cover
Courtesy of SUBARU OF AMERICA, INC.
Install power steering pump and tank on brackets.

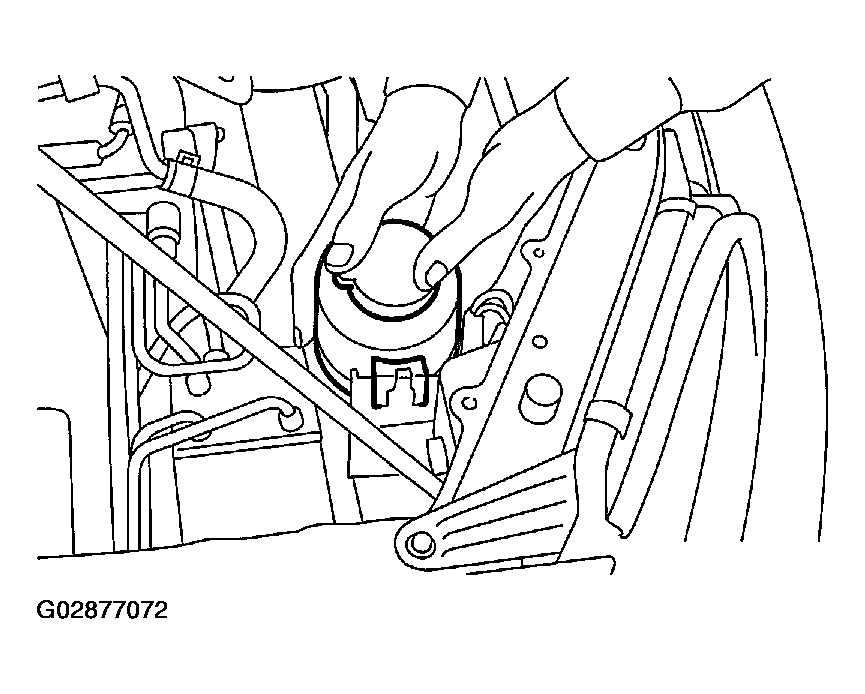

1. Install power steering tank on bracket.

  Fig 16: Installing Power Steering Tank On Bracket
  Courtesy of SUBARU OF AMERICA, INC.
2. Connect connector to power steering pump switch.

  Fig 17: Connecting Connector To Power Steering Pump Switch
  Courtesy of SUBARU OF AMERICA, INC.

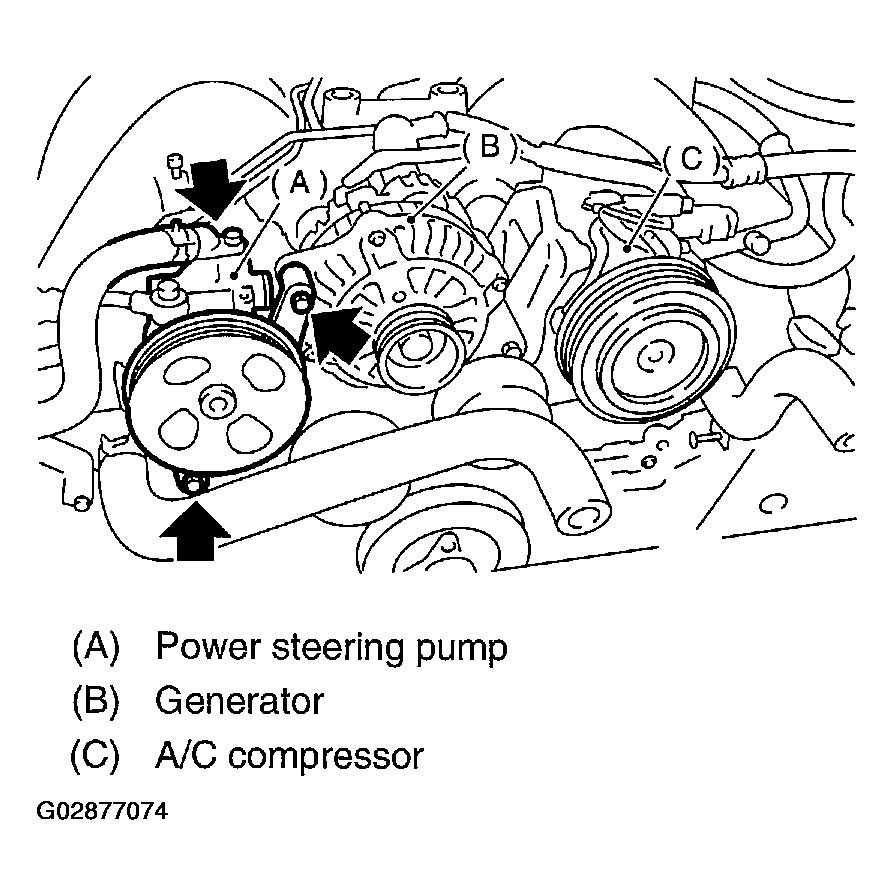

3. Tighten bolts which install power steering pump on bracket.
  1. Tightening torque: 20.1 N.m (2.05 kgf-m, 14.8 ft-lb)
  Fig 18: Installing Power Steering Pump On Bracket
  Courtesy of SUBARU OF AMERICA, INC.

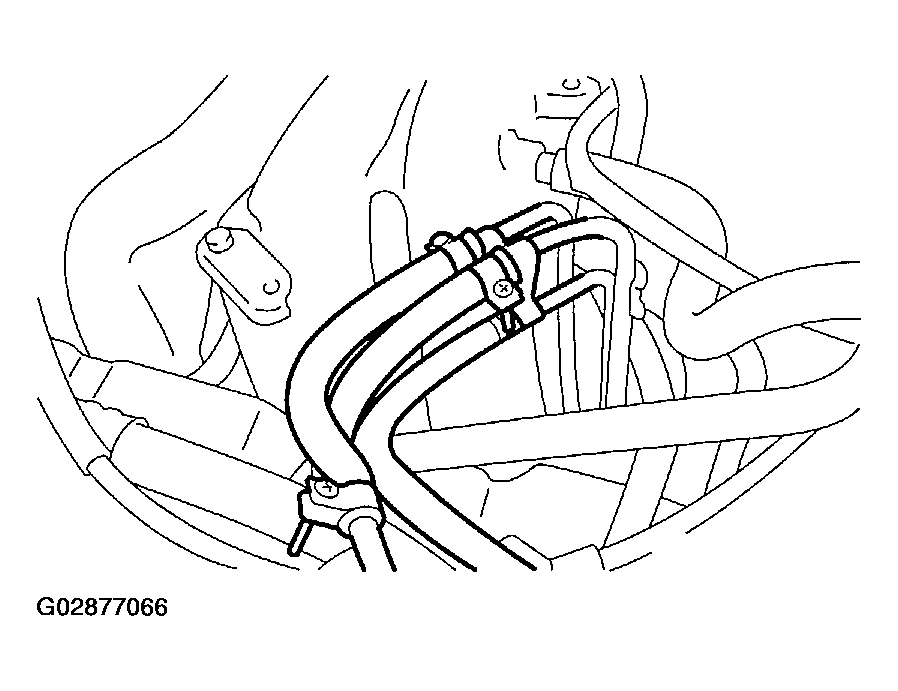

4. Install power steering pipes with bracket.

  Fig 19: Installing Power Steering Pipes With Bracket
  Courtesy of SUBARU OF AMERICA, INC.
5. Install V-belt. < Ref. to INSTALLATION , V-belt.>

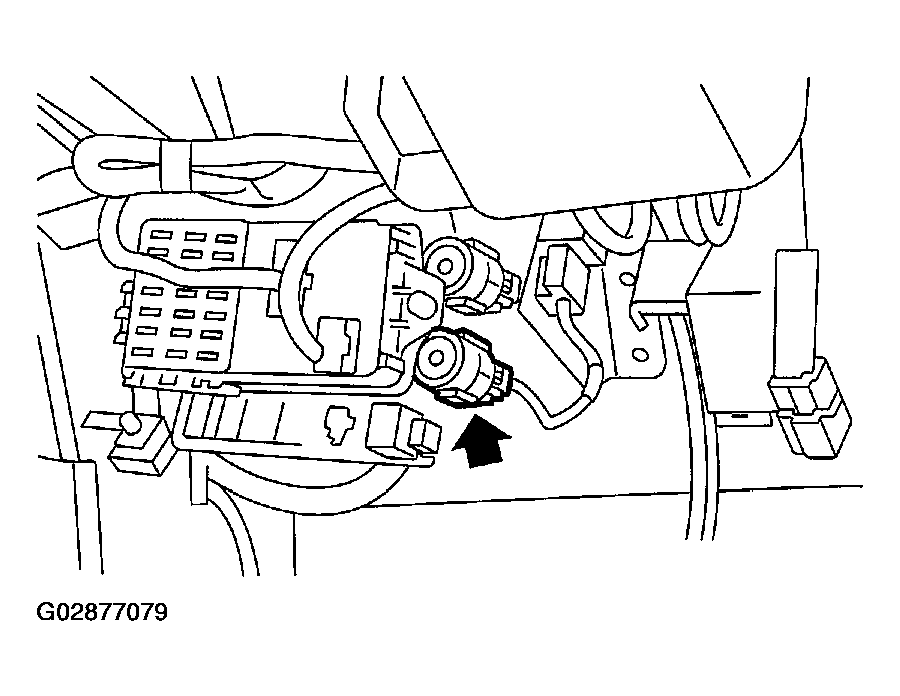

Connect rear window washer hose to washer motor.
Connect front window washer motor connector.
Connect rear window washer motor connector.

Fig 20: Connecting Rear Window Washer Motor Connector
Courtesy of SUBARU OF AMERICA, INC.

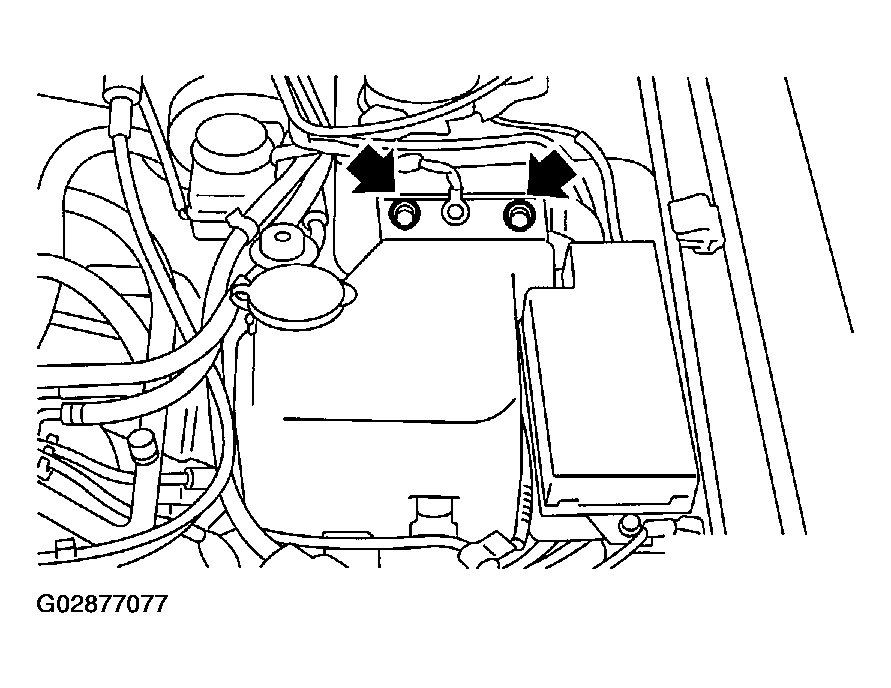

Install washer tank on body.

Fig 21: Installing Washer Tank On Body
Courtesy of SUBARU OF AMERICA, INC.

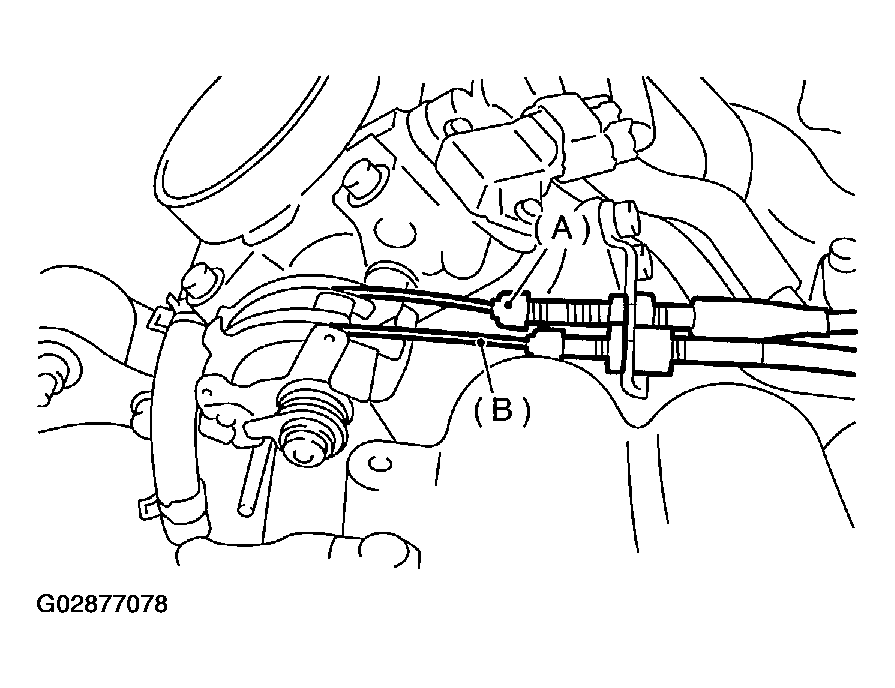

Connect accelerator cable (A).
Connect cruise control cable (B). (With cruise control models)

Fig 22: Connecting Cruise Control Cable (With Cruise Control Models)
Courtesy of SUBARU OF AMERICA, INC.
Install air intake duct, air cleaner and air intake chamber. < Ref. to INSTALLATION , Air Intake Duct> and < Ref. to INSTALLATION , Air Cleaner> and < Ref. to INSTALLATION , Air Intake Chamber.>

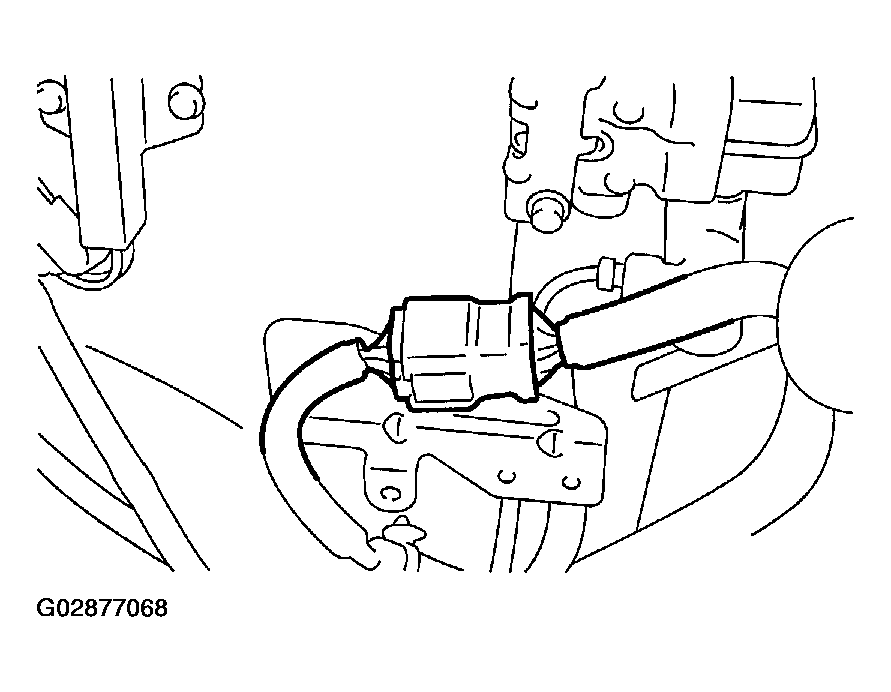

Connect connector to fuel pump relay.

Fig 23: Connecting Connector To Fuel Pump Relay
Courtesy of SUBARU OF AMERICA, INC.

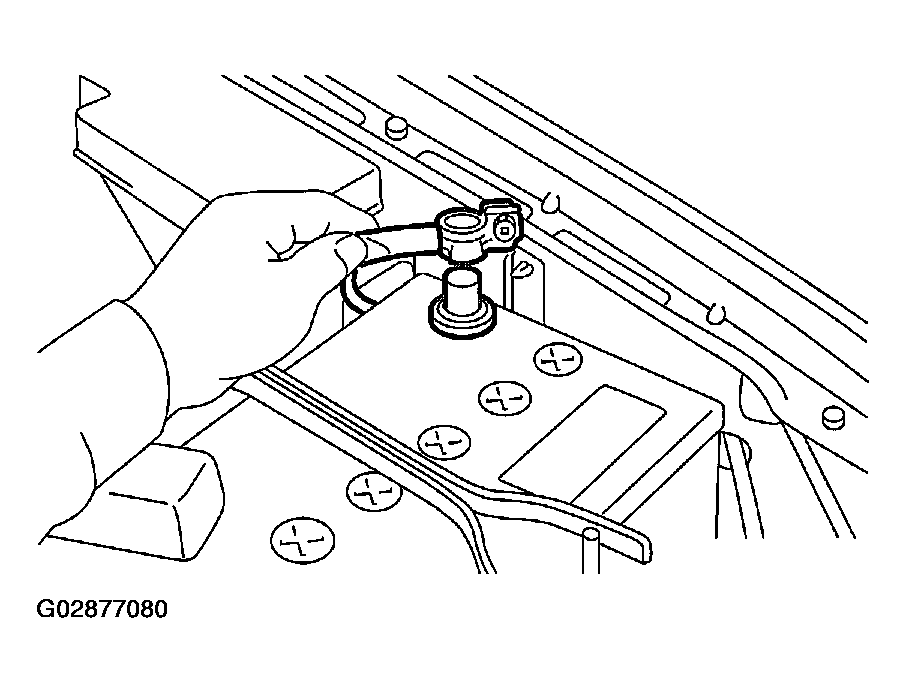

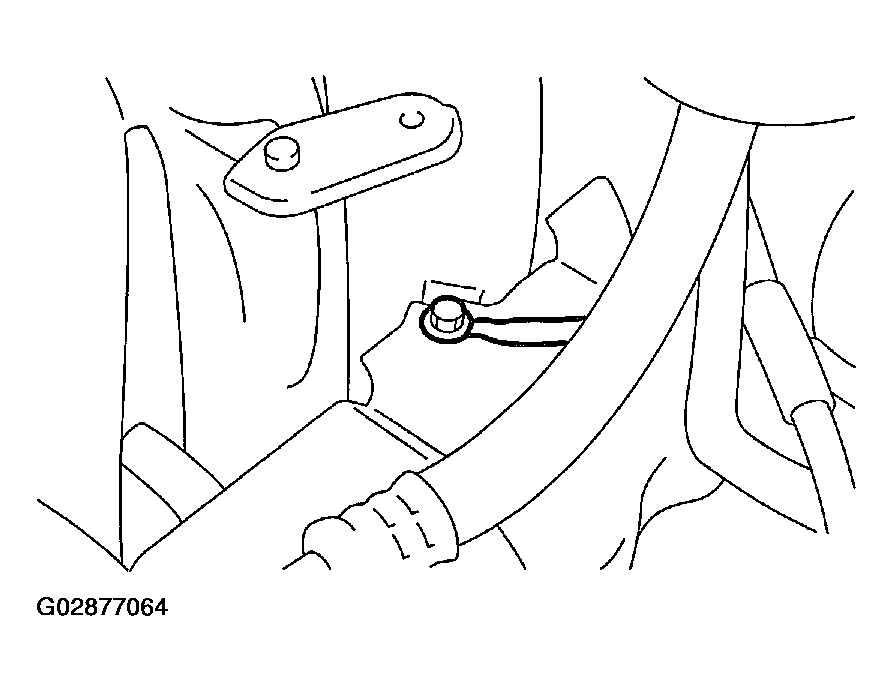

Connect battery ground cable.

Fig 24: Connecting Battery Ground Cable
