Throttle Position Sensor: Removal

Disconnect battery ground cable.

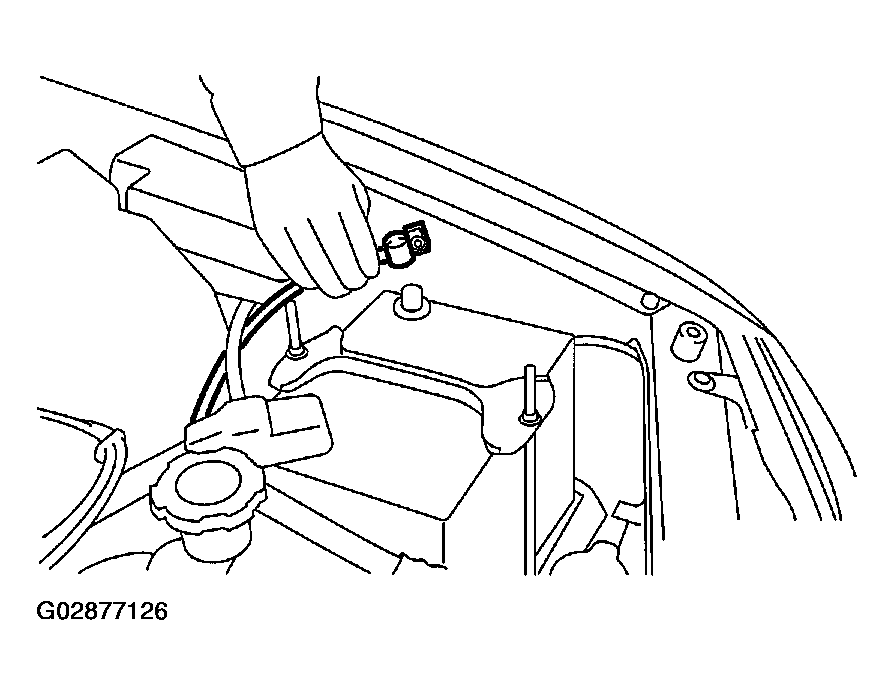

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.

Remove air intake chamber. < Ref. to REMOVAL , Air Intake Chambers.>
Disconnect connector from throttle position sensor.
Remove throttle position sensor holding screws, and remove throttle position sensor itself.

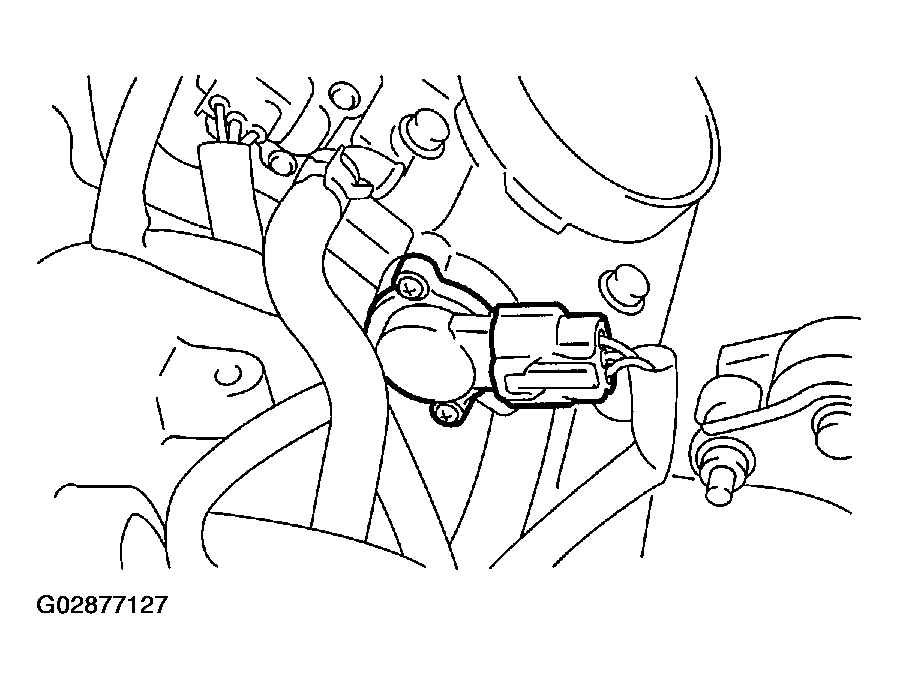

Fig 2: Removing Throttle Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
