ABS Control Module and Hydraulic Control Unit (ABSCM & H/U): Inspection: Notes

  1. Check connected and fixed condition of connector.
  2. Check specifications of the mark with ABSCM & H/U.

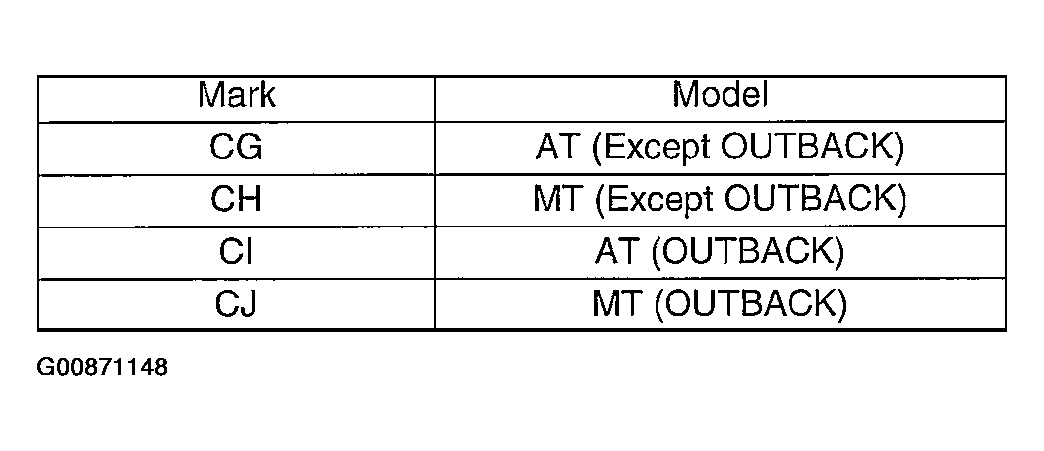

    Fig 1: Mark Specifications Chart
    G00871148Courtesy of SUBARU OF AMERICA, INC.

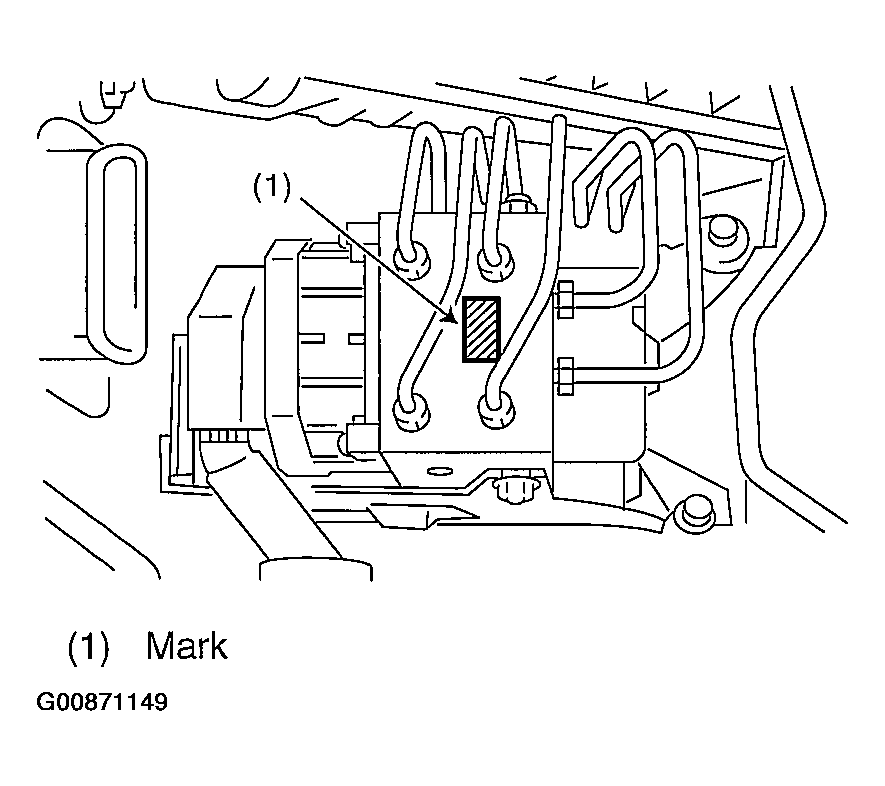

    Fig 2: Identifying Mark With ABSCM & H/U
    G00871149Courtesy of SUBARU OF AMERICA, INC.
