Front ABS Sensor: Removal
- Disconnect ground cable from battery.
- Disconnect front ABS sensor connector located next to front strut mounting house in engine compartment.

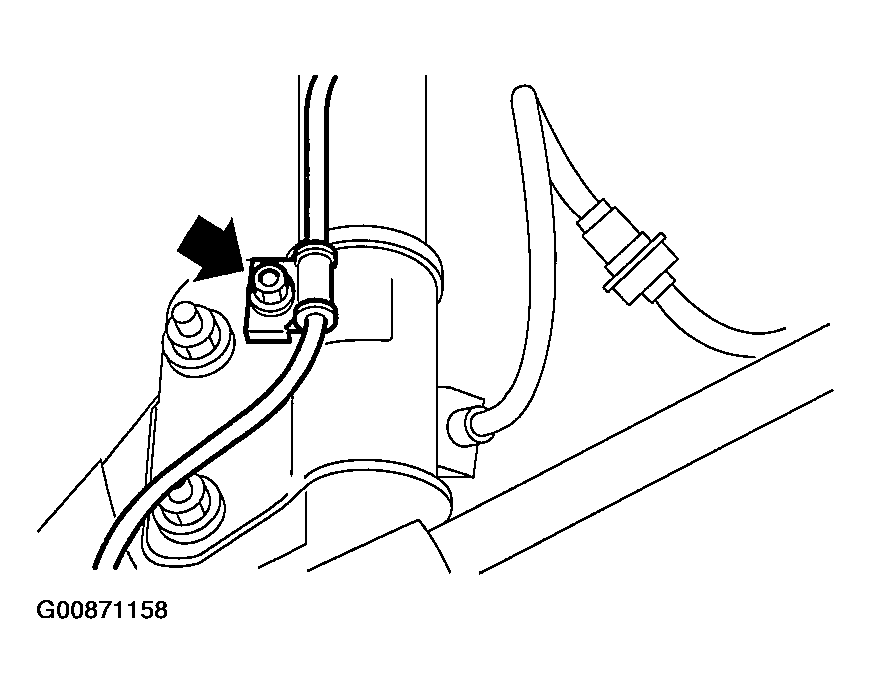

- Remove bolts which secure sensor harness to strut.
Courtesy of SUBARU OF AMERICA, INC.

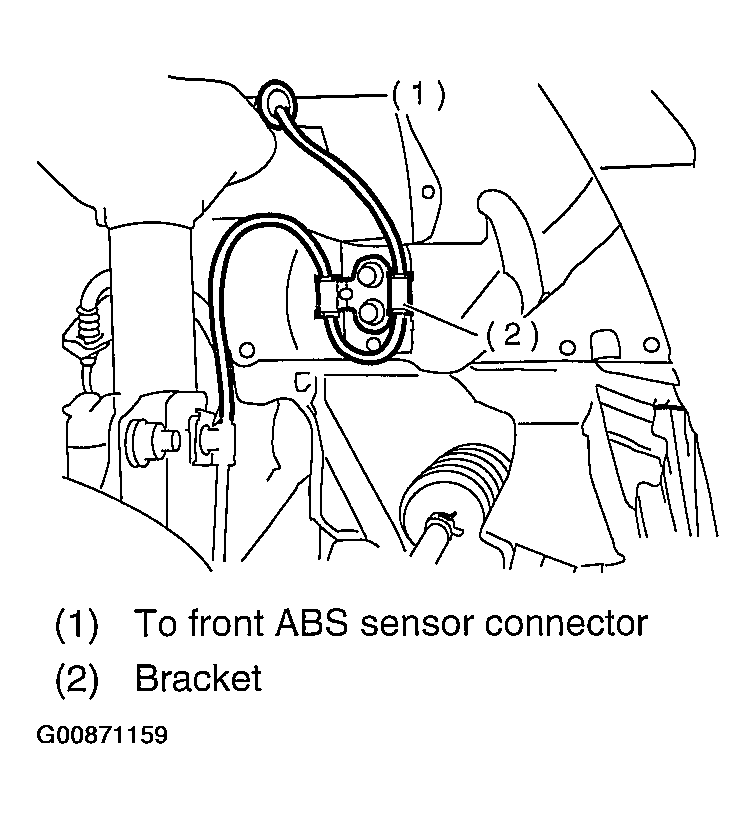

- Remove bolts which secure sensor harness to body.
Courtesy of SUBARU OF AMERICA, INC.

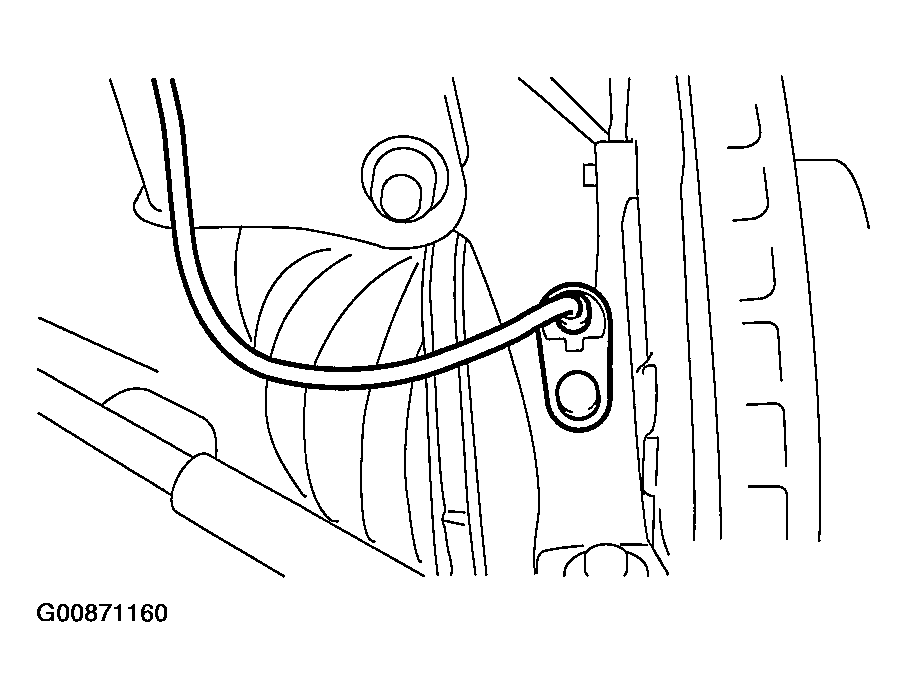

- Remove bolts which secure front ABS sensor to housing, and remove front ABS sensor.
CAUTION:
- Be careful not to damage pole piece located at tip of the sensor and teeth faces during removal.
- Do not pull sensor harness during removal.
Courtesy of SUBARU OF AMERICA, INC.
