Traction Control: Abs: Sensor: Removal

  1. Disconnect ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G00871189Courtesy of SUBARU OF AMERICA, INC.
  2. Remove console cover.

    Refer to REMOVAL , Console Box.

  3. Disconnect connector from G sensor.
  4. Remove G sensor from body.
    CAUTION: Do not drop or bump G sensor.

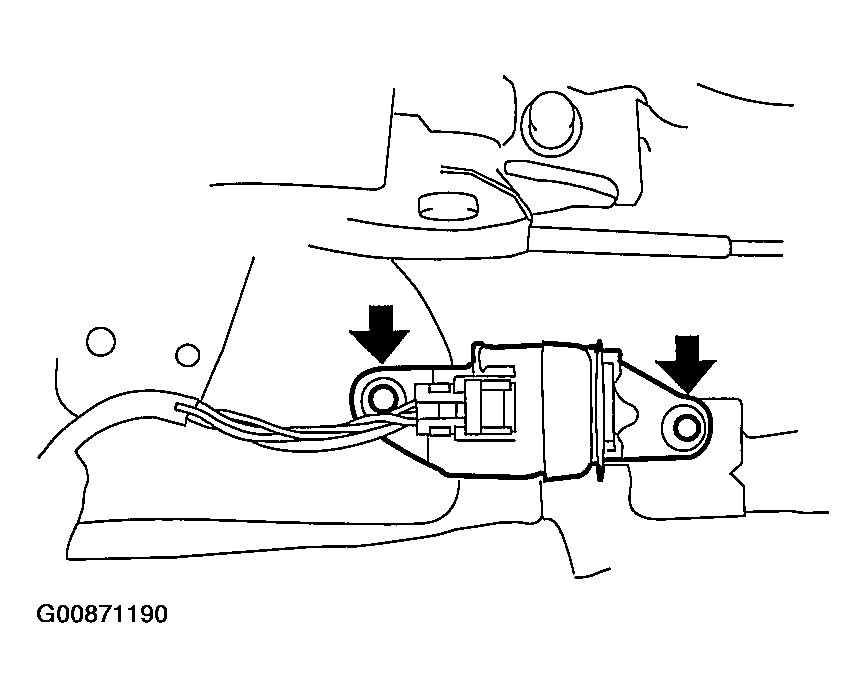

    Fig 2: Disconnecting Connector From G Sensor
    G00871190Courtesy of SUBARU OF AMERICA, INC.
