Generator Specifications
NOTE:

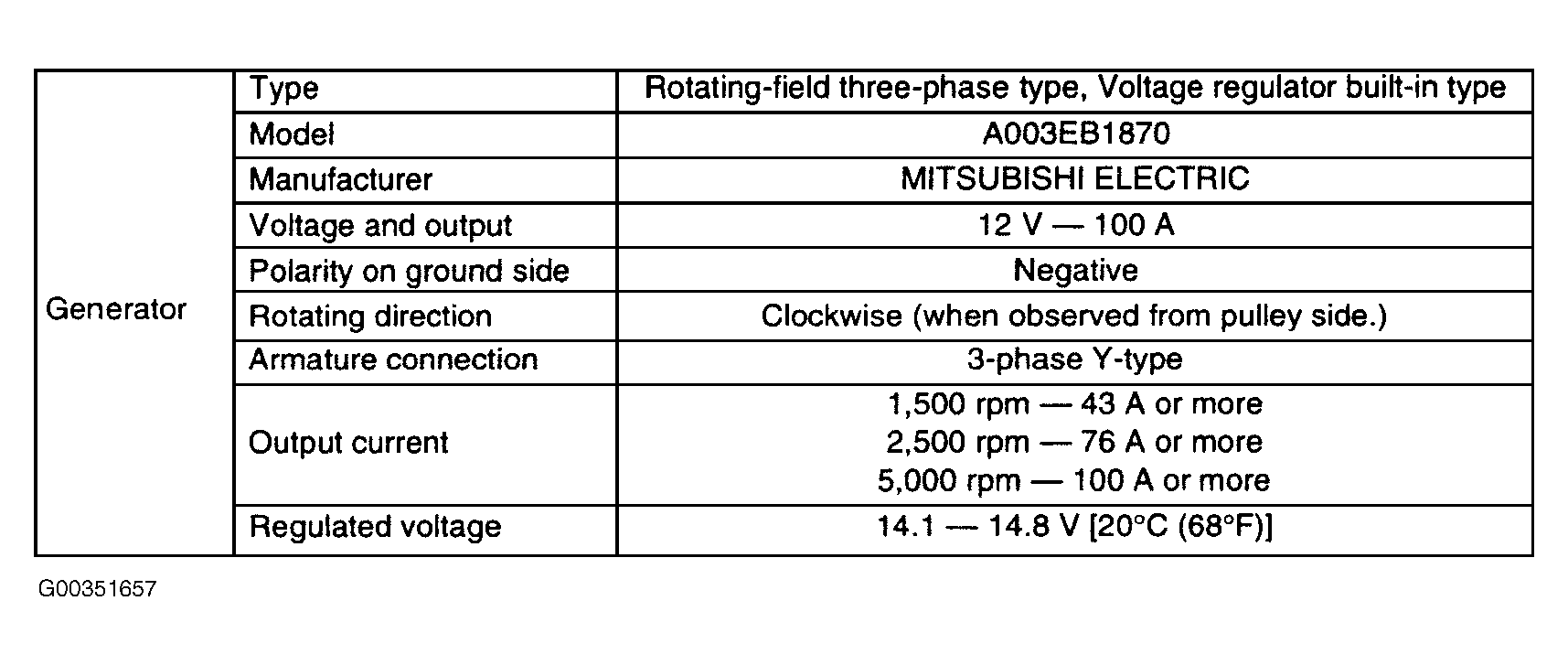

For additional generator specifications, see Fig 1
.
BRUSH SPECIFICATIONS
| Application (1) | Specification | |||
|---|---|---|---|---|
| Brush Length | ||||
| Standard | .728" (18.5 mm) | |||
| Limit | .197" (5 mm) | |||
| Brush Spring Pressure | ||||
| New | 17.26-21.60 oz. (4.8-6.0 N) | |||
| Replace | 7.91 oz. (2.2 N) | |||
|
||||
ROTOR ASSEMBLY SPECIFICATIONS
| Application | Specifications | |
|---|---|---|
| Slip Ring Continuity Test | ||
| Specified Resistance | 2.0-2.4 Ohms | |
| Slip Ring Outer Diameter | ||
| Standard | .894" (22.7 mm) | |
| Limit | .87" (22.1 mm) | |
