Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

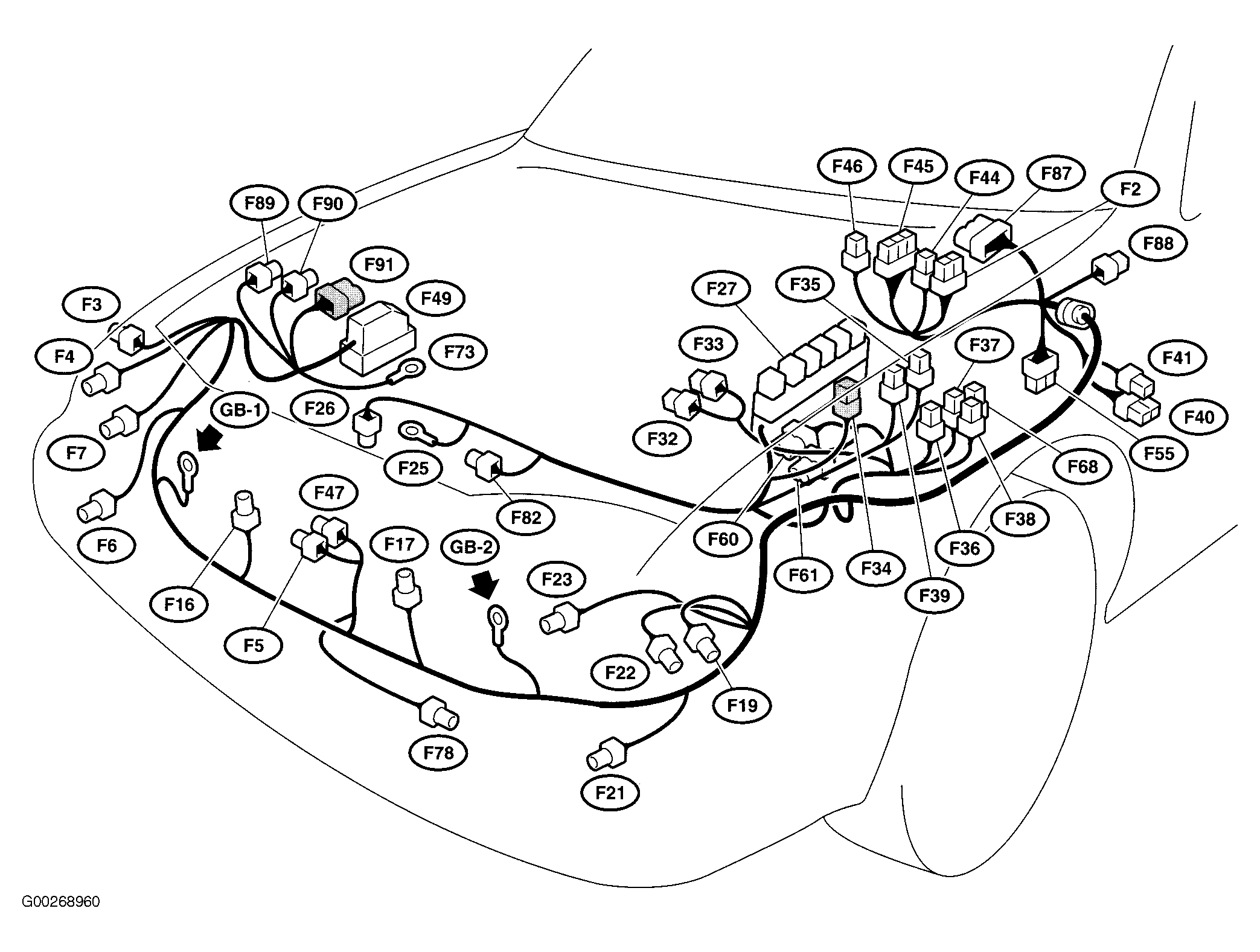

| ABS Control Module (F49) | Right side of engine compartment. See Figure. |

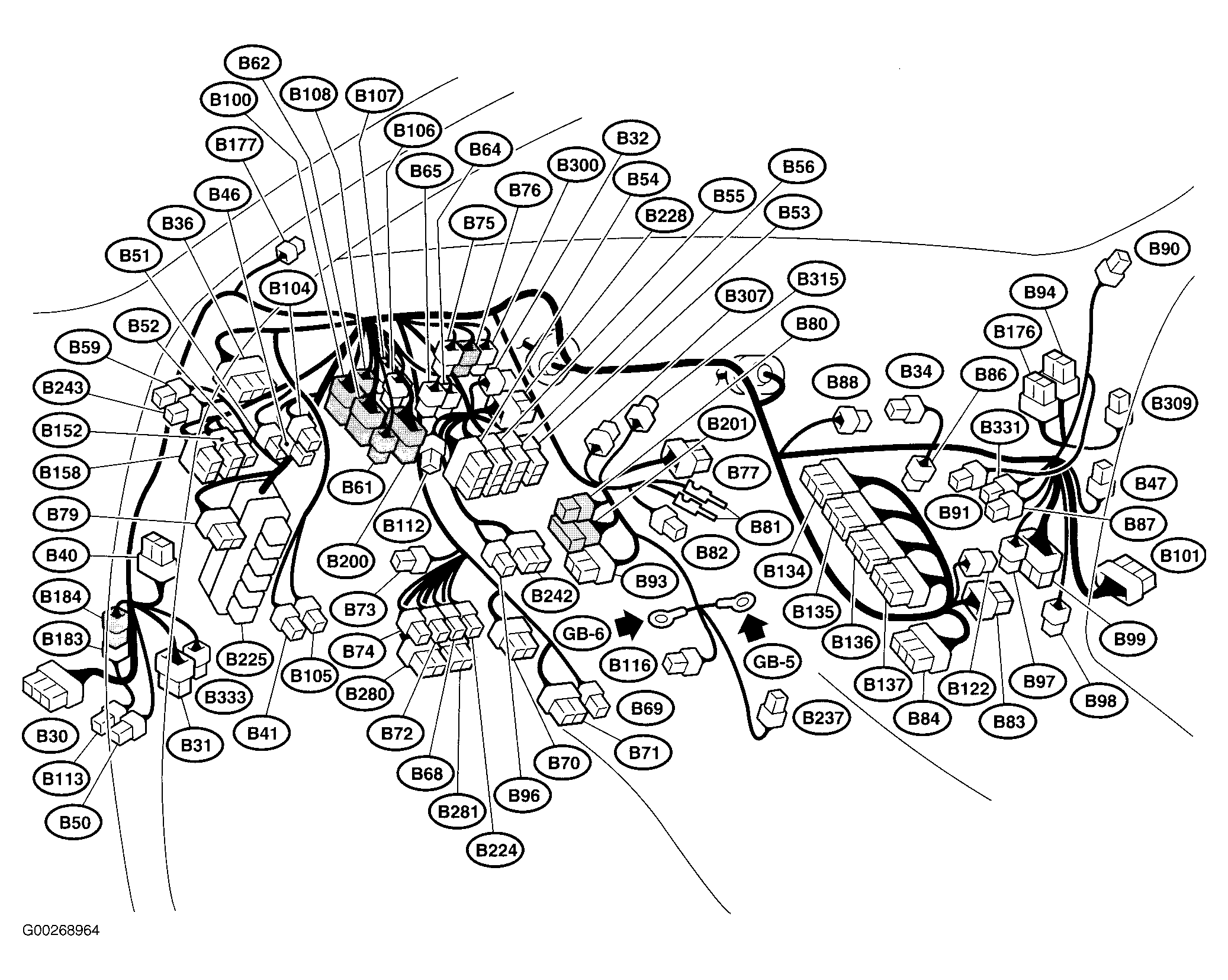

| Cruise Control Module (2.5L) (B94) | Behind right side of dash. See Figure. |
| Daytime Running Light Control Module (2.5L) (B96, B242) | Behind left center of dash. See Figure. |

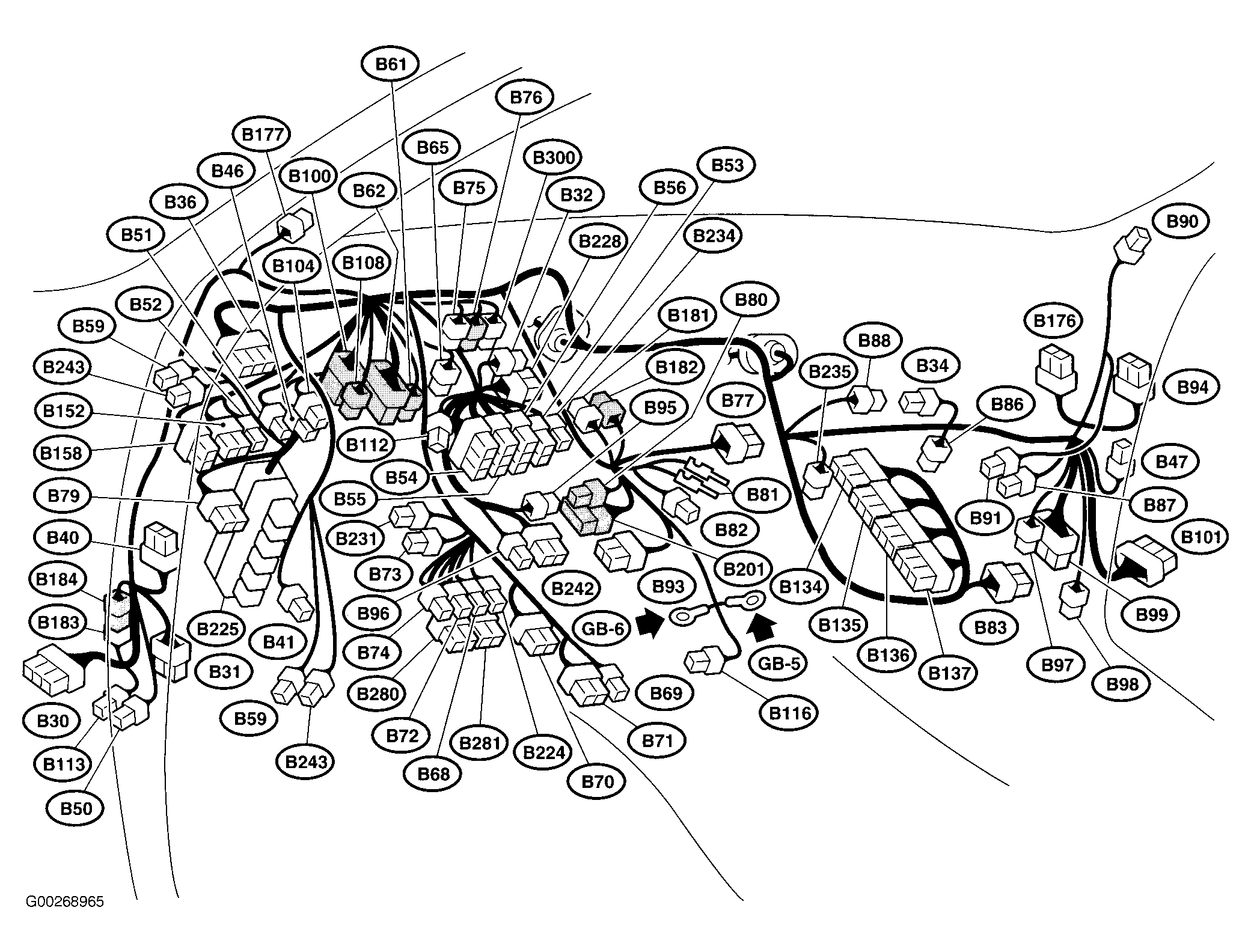

| Daytime Running Light Control Module (3.0L) (B96, B242) | Behind left center of dash. See Figure. |
| Engine Control Module (2.5L) (B84, B134, B135, B136, B137) | In passenger side front footwell below carpet and protective panel. See Figure. |
| Engine Control Module (3.0L) (B134, B135, B136, B137) | In passenger side front footwell below carpet and protective panel. See Figure. |
| Fuel Gauge Sub Module (Pick-Up) (R59) | On top of fuel tank. See Figure. |
| Fuel Gauge Sub Module (Sedan) (R59) | On top of fuel tank. See Figure. |
| Fuel Gauge Sub Module (Wagon) (R59) | On top of fuel tank. See Figure. |
| Fuel Pump Assembly & Fuel Gauge Module (Pick-Up) (R58) | On top of fuel tank. See Figure. |
| Fuel Pump Assembly & Fuel Gauge Module (Sedan) (R58) | On top of fuel tank. See Figure. |
| Fuel Pump Assembly & Fuel Gauge Module (Wagon) (R58) | On top of fuel tank. See Figure. |

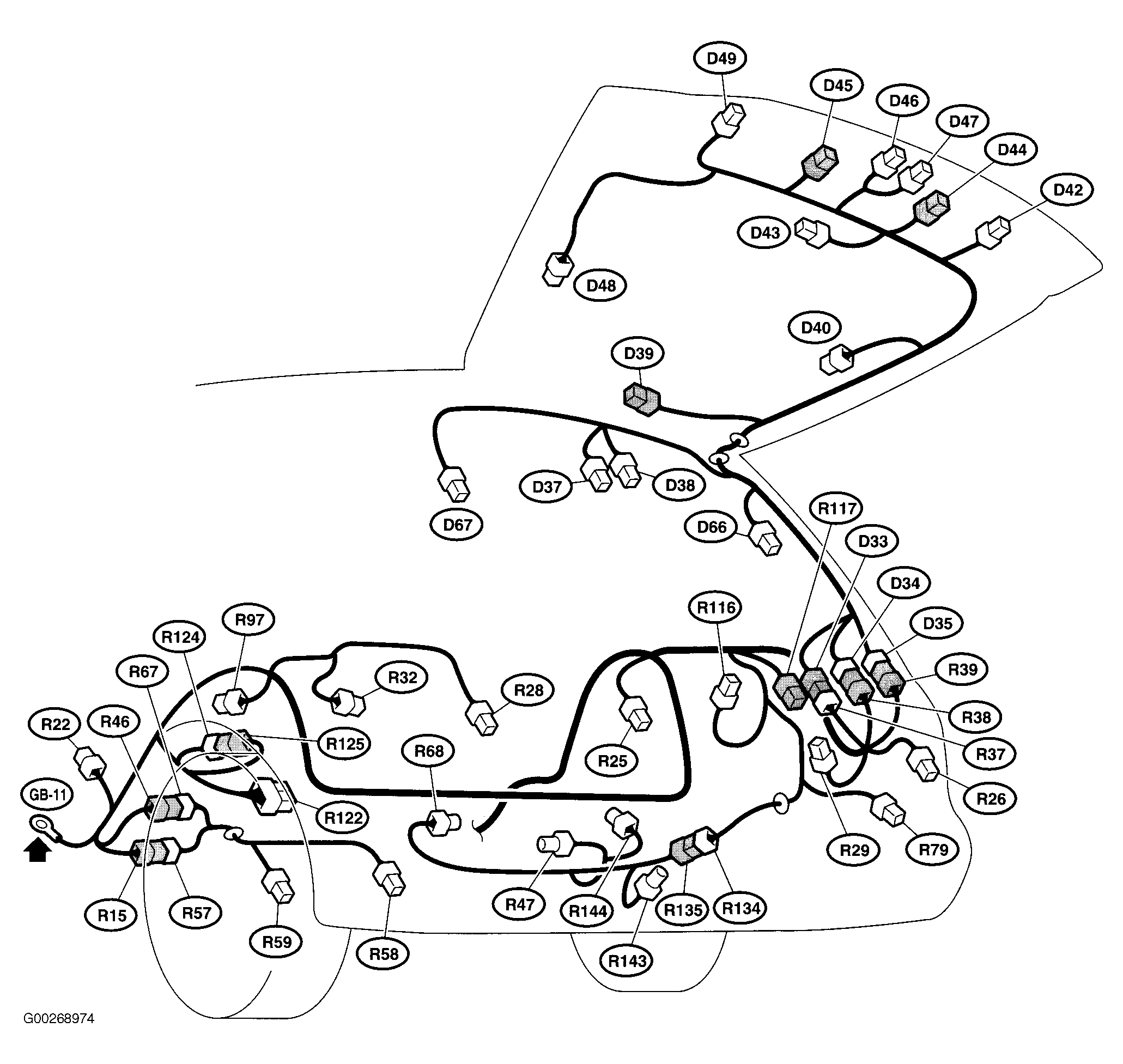

| Fuel Pump Control Module (Pick-Up) (R122) | Near fuel tank. See Figure. |

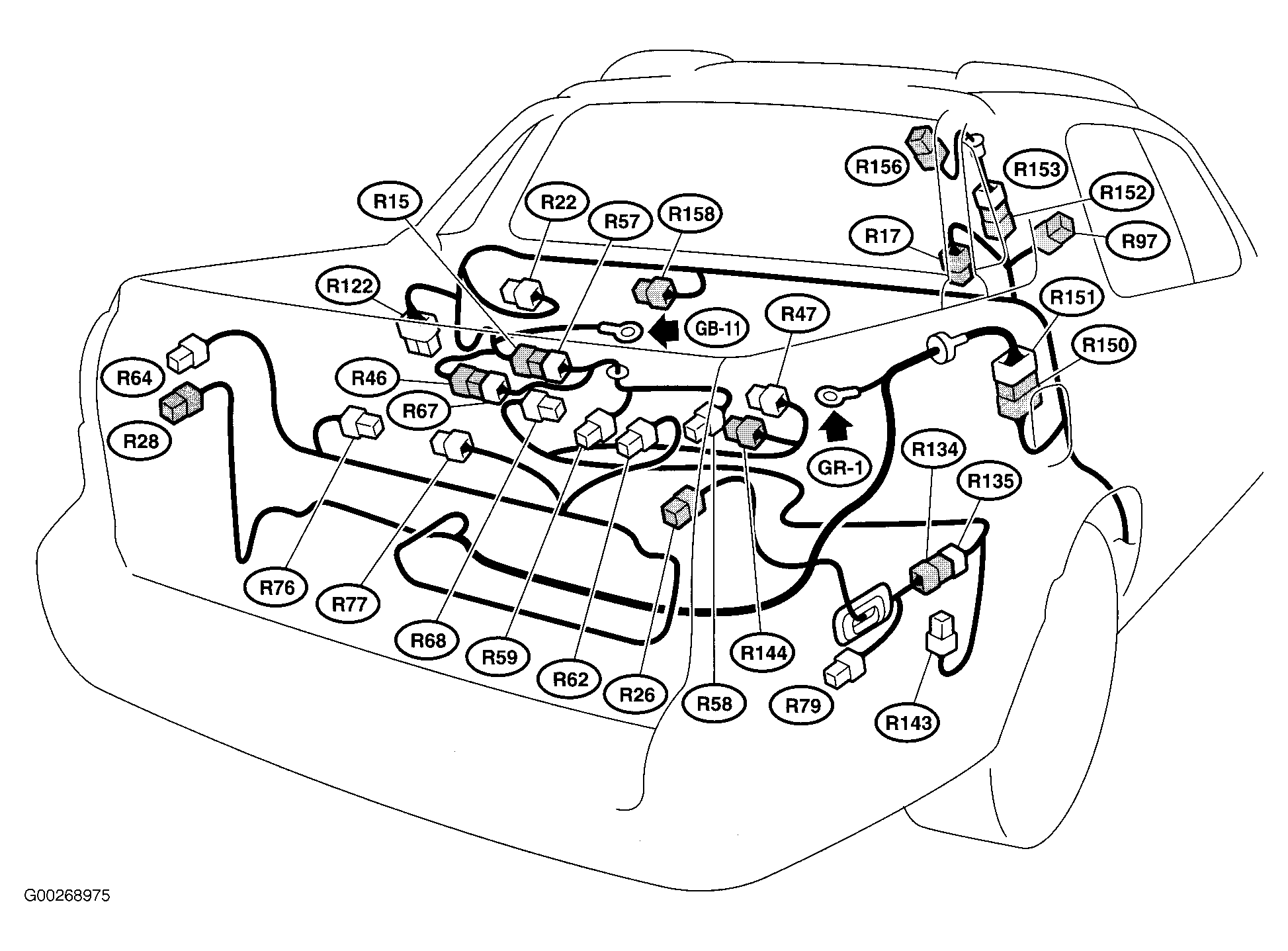

| Fuel Pump Control Module (Sedan) (R122) | Left side of trunk. See Figure. |

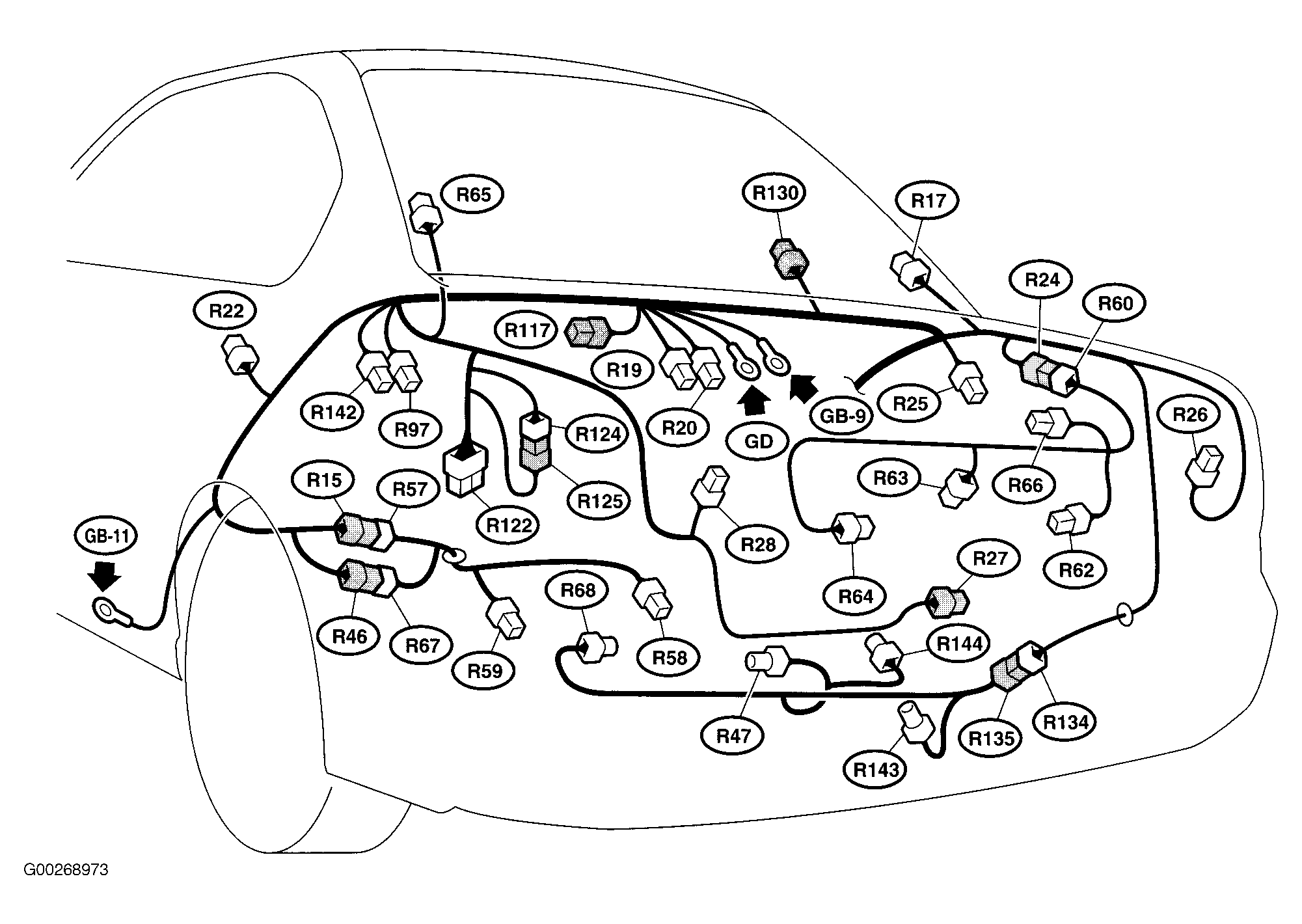

| Fuel Pump Control Module (Wagon) (R122) | Left side of luggage compartment. See Figure. |
| Hydraulic Module (VDC) (F91) | Right side of engine compartment. See Figure. |
| Integrated Module (2.5L) (B280, B281) | Lower left side of dash. See Figure. |
| Integrated Module (3.0L) (B280. B281) | Lower left side of dash. See Figure. |
| Keyless Entry Control Module (2.5L) (B176) | Behind right side of dash. See Figure. |
| Keyless Entry Control Module (3.0L) (B176) | Behind right side of dash. See Figure. |
| Rear Wiper Intermittent Module (Wagon) (R116) | At right rear or cargo compartment. See Figure. |
| Security Control Module (2.5L) (B93) | Behind center of dash. See Figure. |
| Security Control Module (3.0L) (B93) | Behind center of dash. See Figure. |
| Stop & Turn Module (2.5L) (B333) | Behind left side of dash. See Figure. |

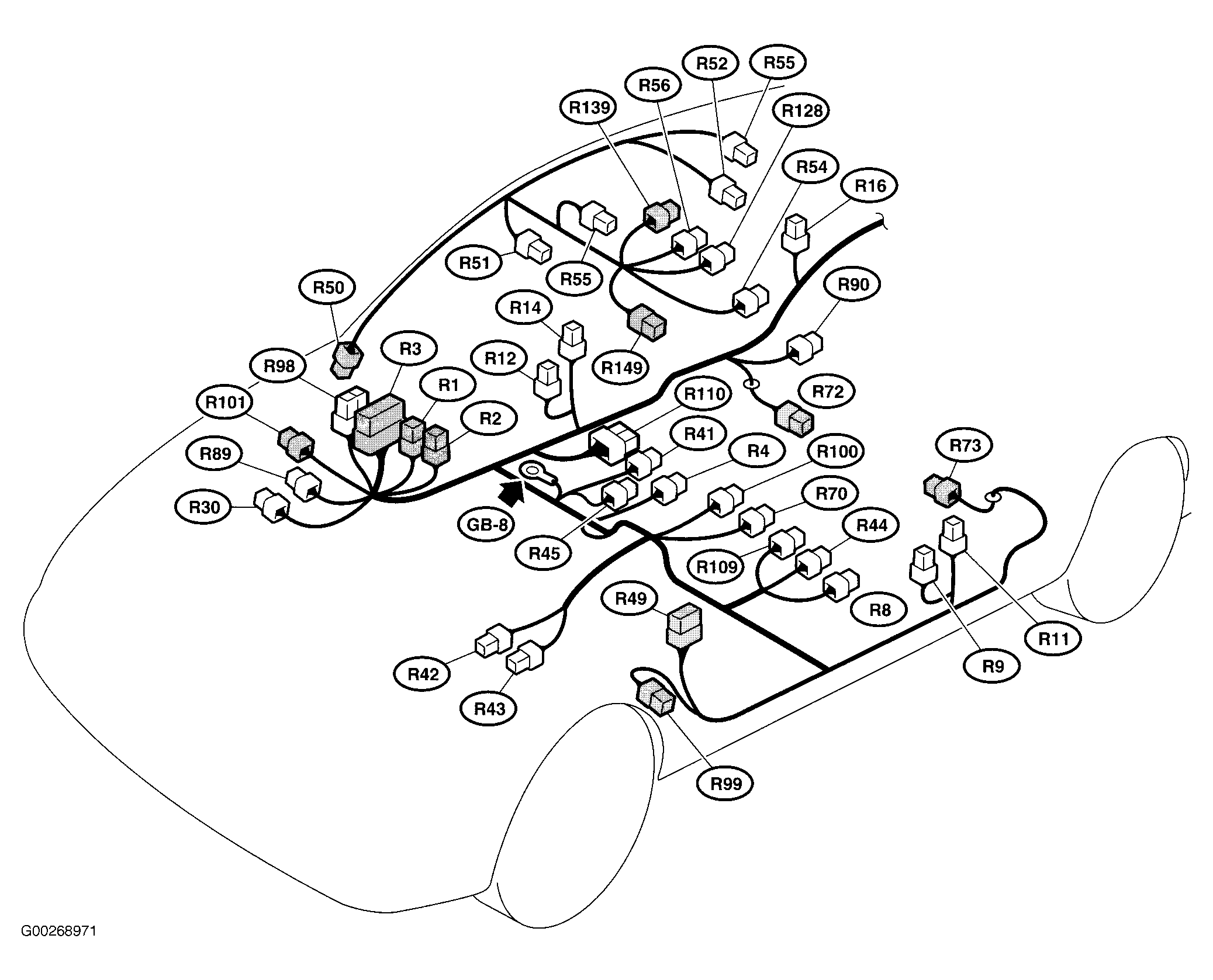

| Sunroof Control Module (Wagon) (R55) | At rear of sun roof opening. See Figure. |
| Transmission Control Module (2.5L) (B54, B55, B56) | Behind left side of dash. See Figure. |
| Transmission Control Module (3.0L) (B54, B55, B56) | Behind left side of dash. See Figure. |
| Turn & Hazard Module (2.5L) (B32) | Behind left side of dash. See Figure. |
| Turn & Hazard Module (3.0L) (B32) | Behind left side of dash. See Figure. |
| VDC Control Module (F87) | At left rear corner of engine compartment. See Figure. |

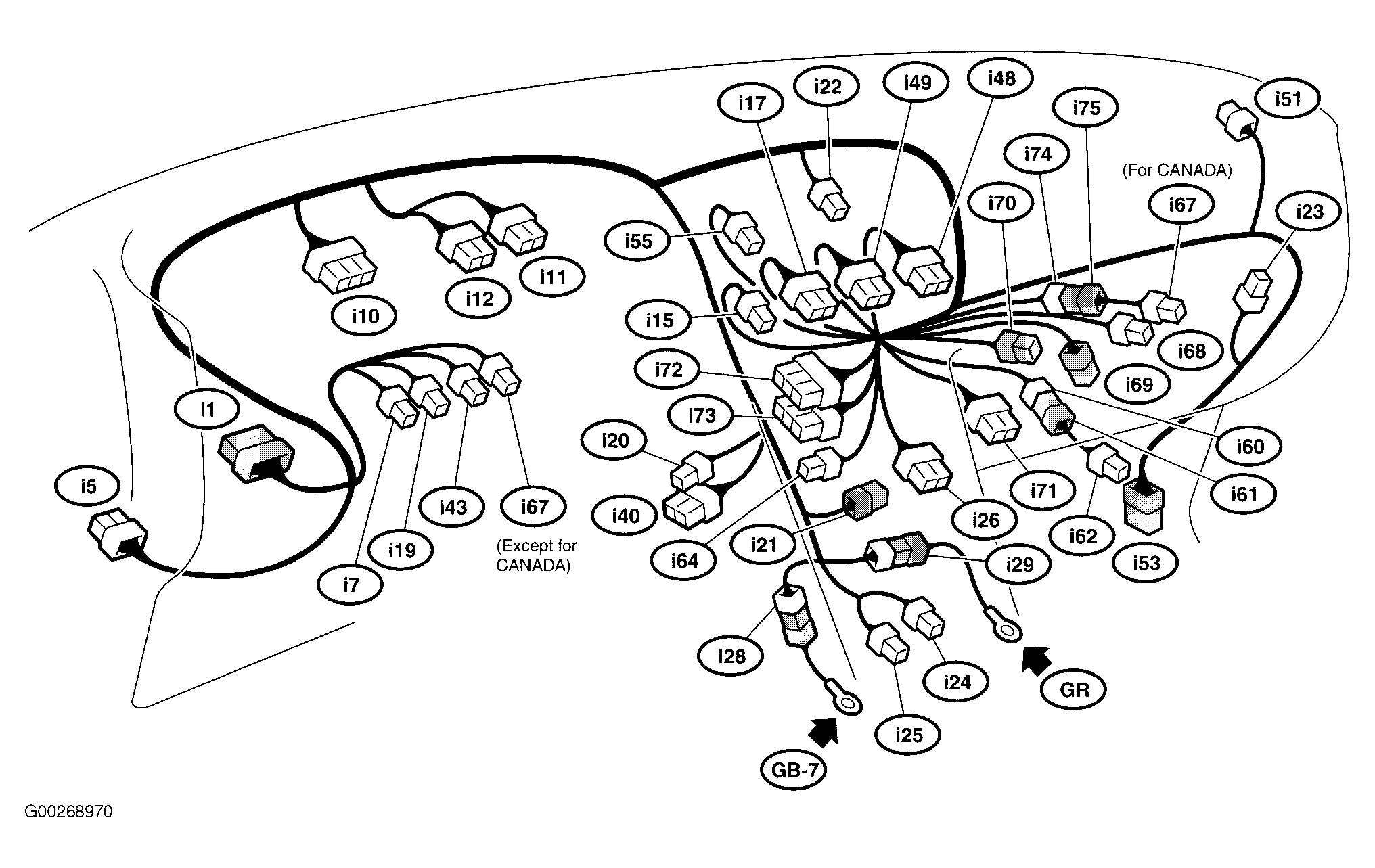

| Vehicle Interface Module (I71, I72, I73) | Behind lower right side of dash. See Figure. |
