Starter Specifications
NOTE:

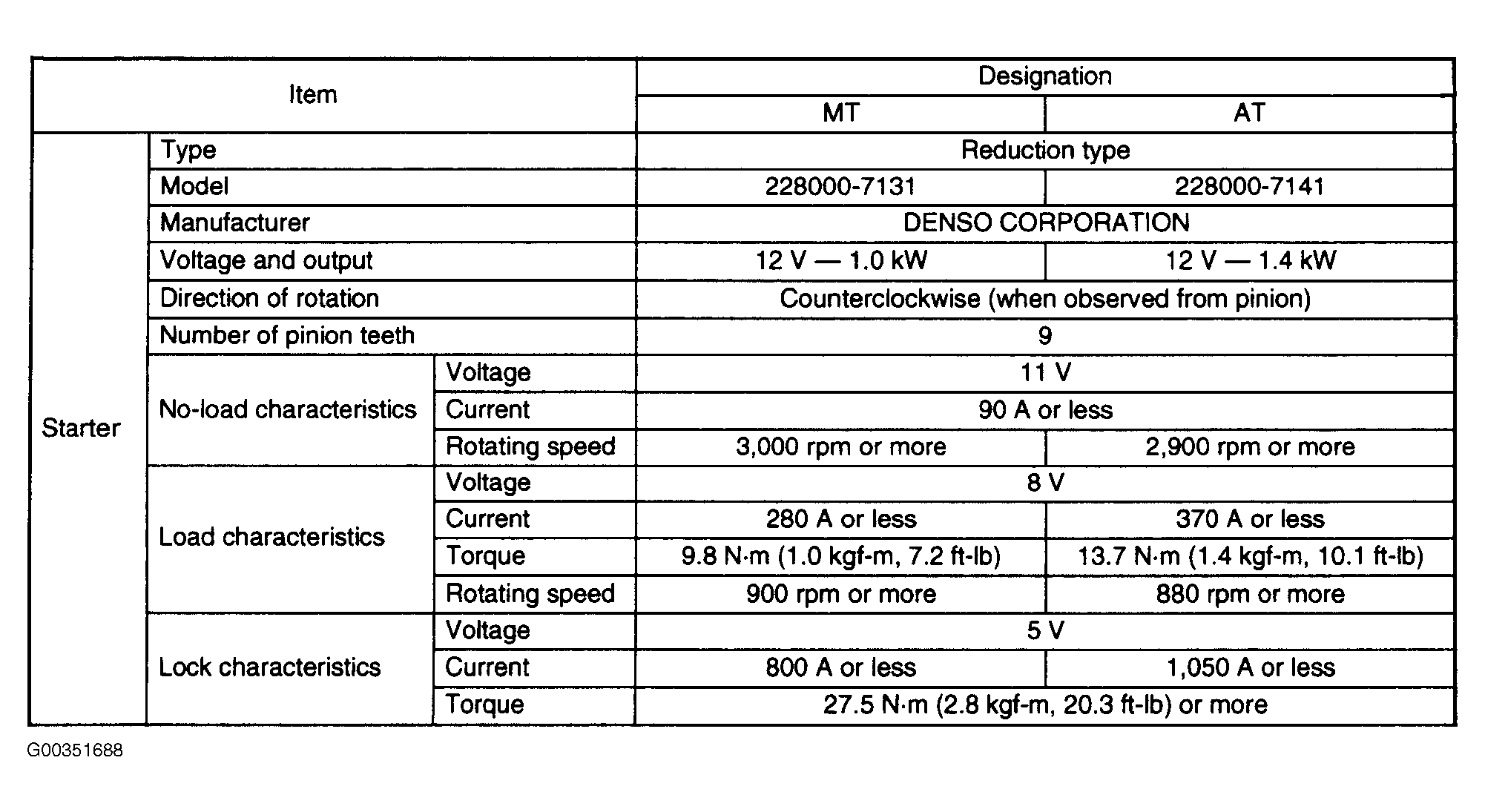

For additional starter specifications, see Fig 1.
STARTER SPECIFICATIONS
| Application | Specifications | |
|---|---|---|
| Brush Length | ||
| Standard | .59" (15 mm) | |
| Limit | .39" (10 mm) | |
| Brush Spring Force | ||
| Standard (New) | 4 Lbs (19 N) | |
| Limit | 2 Lbs (7 N) | |
| Commutator Run-Out | ||
| Standard | .0008" (.02 mm) or less | |
| Service Limit | Less than.0020" (.05 mm) | |
| Depth Of Segment Mold | ||
| Standard | .024" (.6 mm) | |
| Limit | .008" (.2 mm) | |
