EGR Valve: Installation

Install in the reverse order of removal.

  1. Tightening torque:  19 N.m (1.9 kgf-m, 14.0 ft-lb)

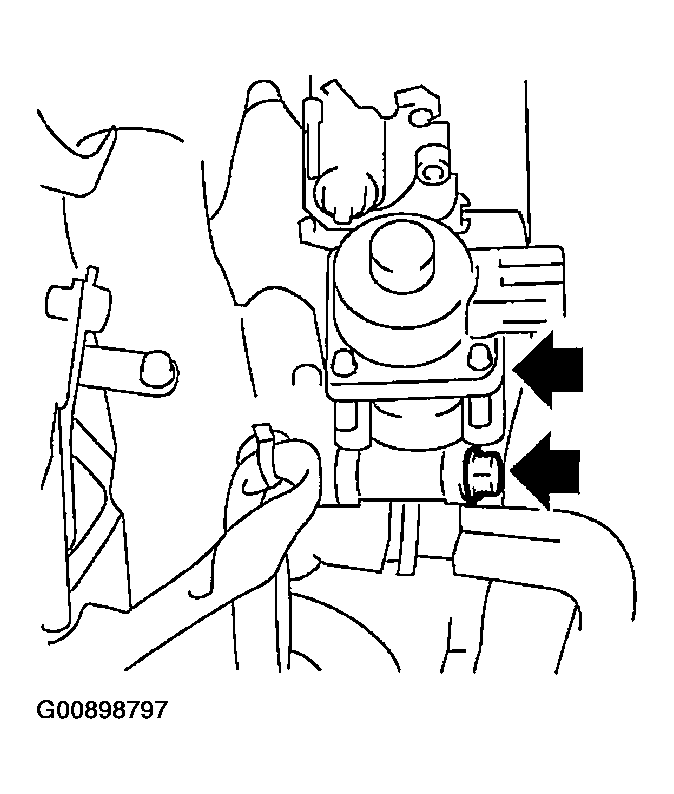

    Fig 1: Installing EGR Valve
    G00898797Courtesy of SUBARU OF AMERICA, INC.
