Fuel Filler Pipe: Removal

1. Drain fuel from tank. Refer to DRAINING FUEL , OPERATION, FUEL.
2. Remove rear exhaust pipe and muffler.
   NOTE: To facilitate removal, apply a coat of SUBARU CRC to matching area of rubber cushions in advance.

SUBARU CRC:  Part No. 004301003

1. Separate rear exhaust pipe from center exhaust pipe.

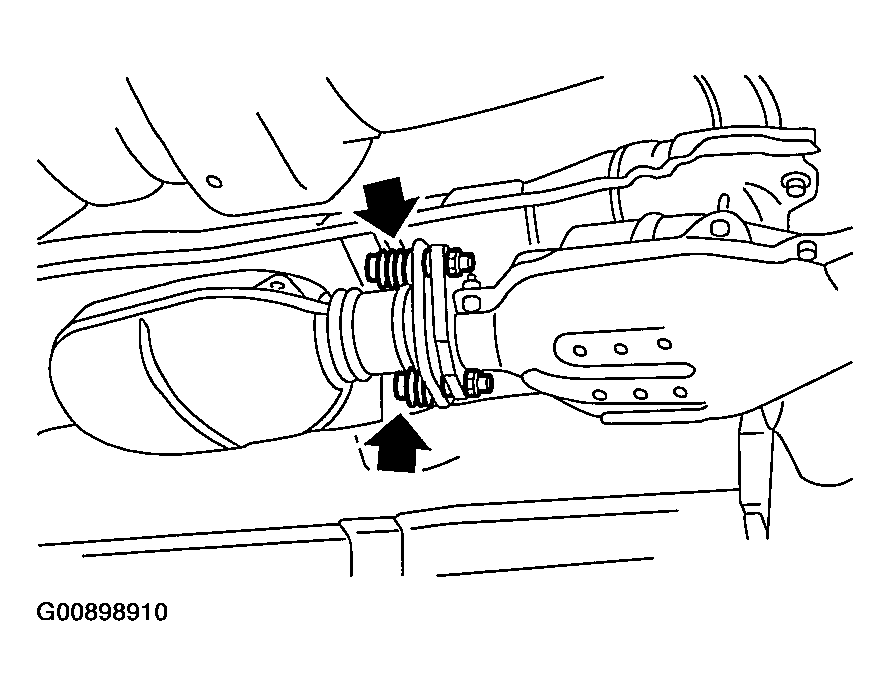

   Fig 1: Removing Rear Exhaust Pipe From Center Exhaust Pipe

   Courtesy of SUBARU OF AMERICA, INC.
2. Remove left and right rubber cushions.
   CAUTION: Be careful not to pull down muffler.
   Fig 2: Removing Left & Right Rubber Cushions

   Courtesy of SUBARU OF AMERICA, INC.
3. Remove front rubber cushion and detach muffler assembly.
   Fig 3: Removing Front Rubber Cushion & Detaching Muffler Assembly

   Courtesy of SUBARU OF AMERICA, INC.
4. Remove heat sealed cover.

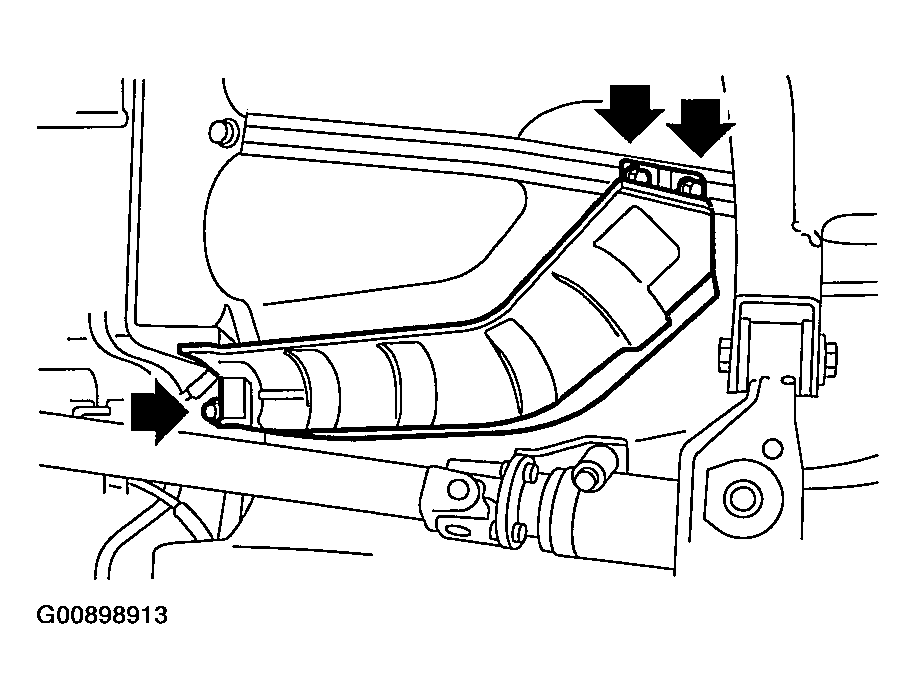

   Fig 4: Removing Heat Sealed Cover

   Courtesy of SUBARU OF AMERICA, INC.
5. Place transmission jack under sub frame.

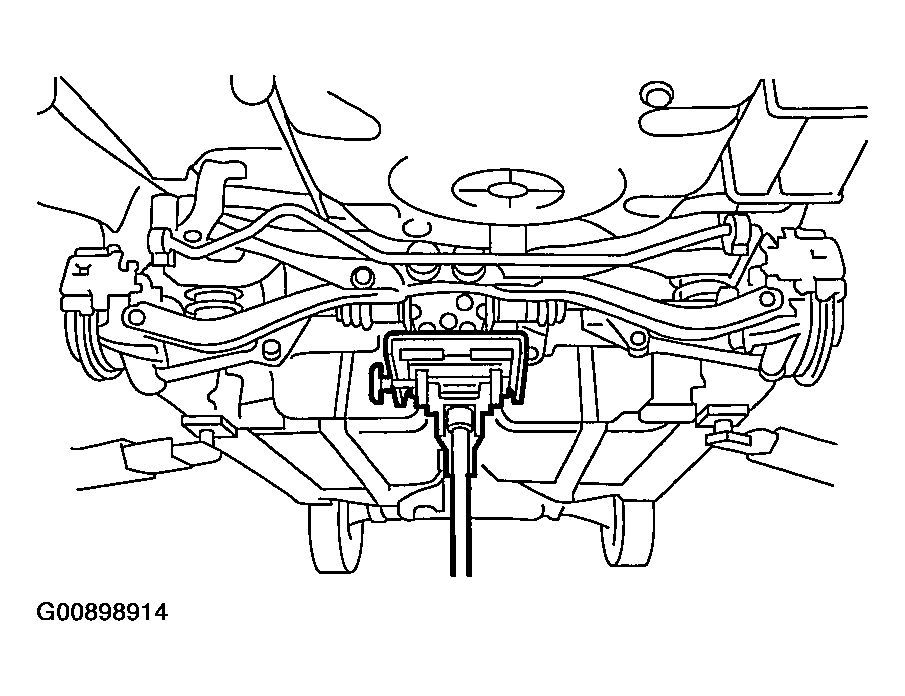

   Fig 5: Installing Transmission Jack Under Sub Frame

   Courtesy of SUBARU OF AMERICA, INC.

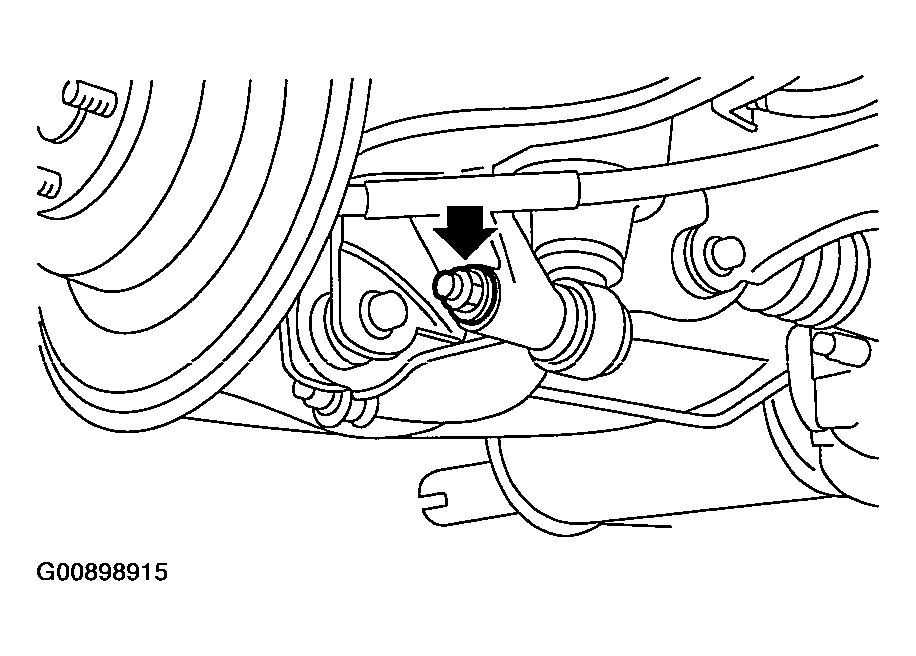

6. Remove bolt which holds rear shock absorber to rear suspension arm.
   Fig 6: Removing Bolt Holding Rear Shock Absorber To Rear Suspension Arm

   Courtesy of SUBARU OF AMERICA, INC.
7. Remove bolts which hold rear sub frame on body.

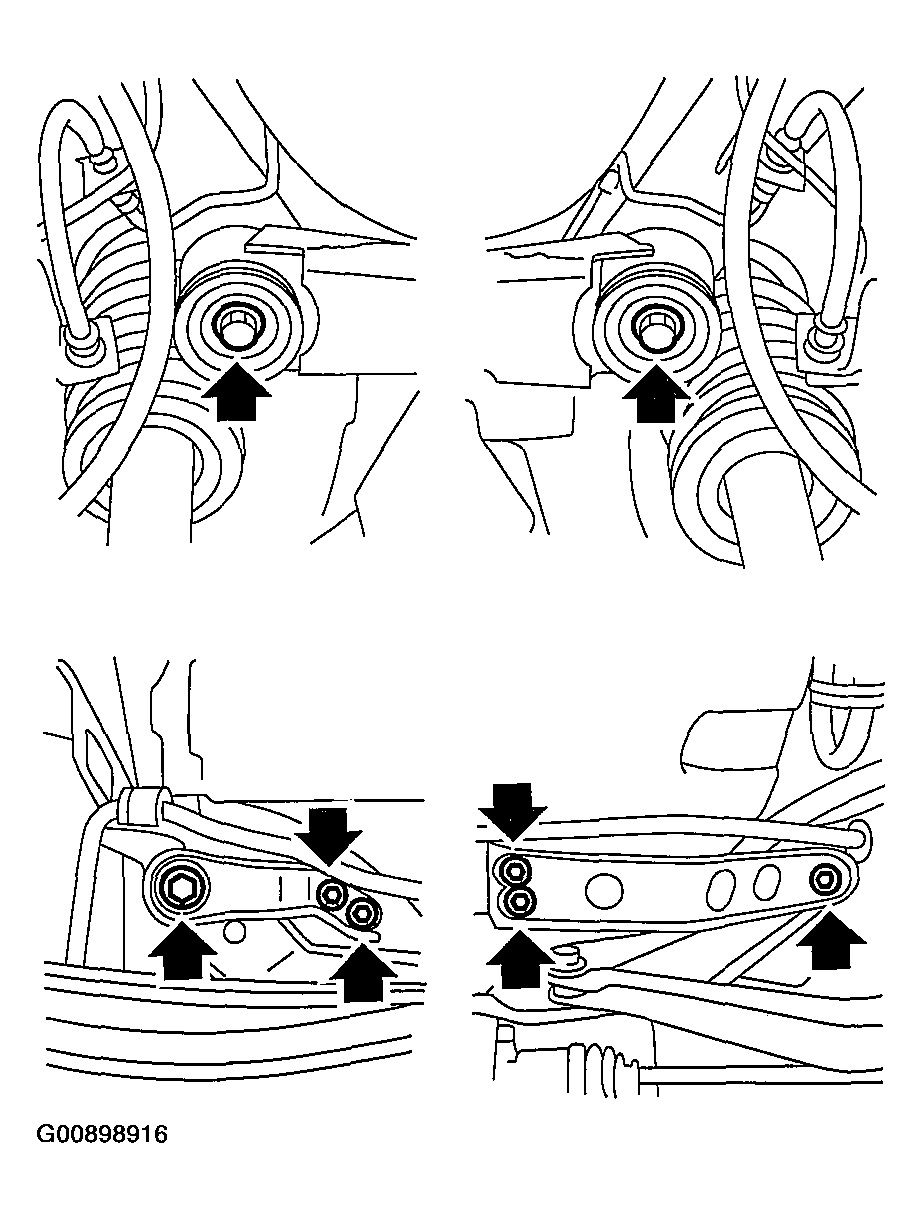

   Fig 7: Removing Bolts Which Hold Rear Sub Frame On Body

   Courtesy of SUBARU OF AMERICA, INC.
8. Lower the rear sub frame.
   CAUTION: Be sure to lower sub frame slowly.
   1. A =  150 mm (5.91 in)

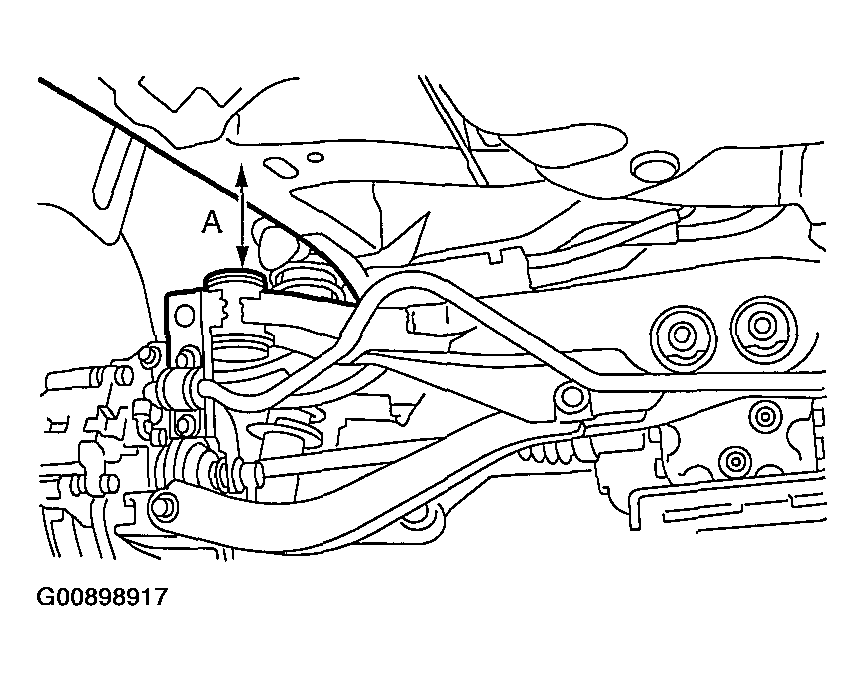

   Fig 8: Lowering Rear Sub Frame

   Courtesy of SUBARU OF AMERICA, INC.
9. Remove fuel filler pipe protector.

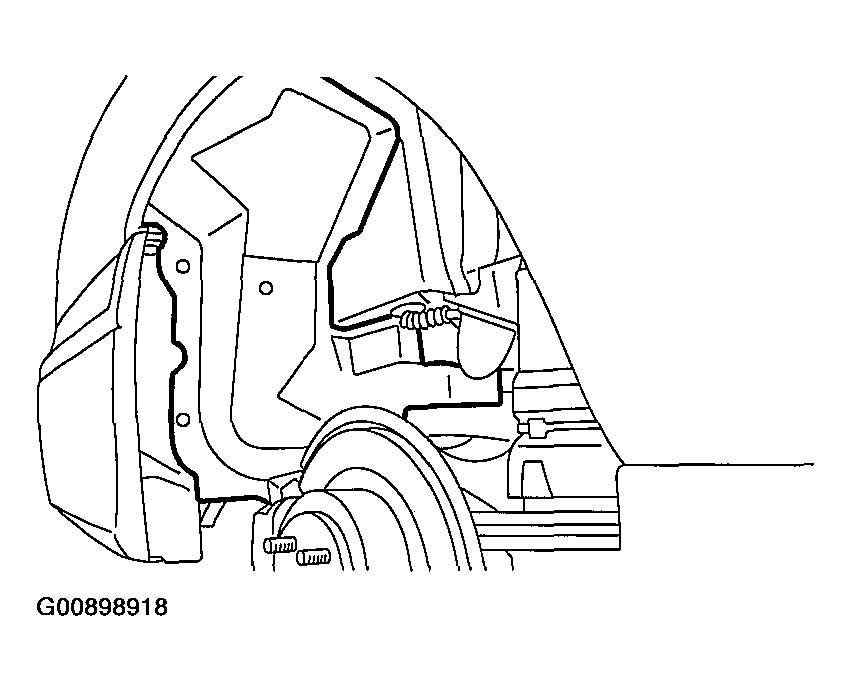

   Fig 9: Removing Fuel Filler Pipe Protector

   Courtesy of SUBARU OF AMERICA, INC.
10. Disconnect air vent hose (A) and evaporation hose (B) from evaporation pipe assembly.
11. Disconnect evaporation hose (C) from pressure control solenoid value.
    Fig 10: Disconnecting Evaporation Hose From Pressure Control Solenoid Value

    Courtesy of SUBARU OF AMERICA, INC.
12. Remove bolt which holds evaporation pipe assembly on body.

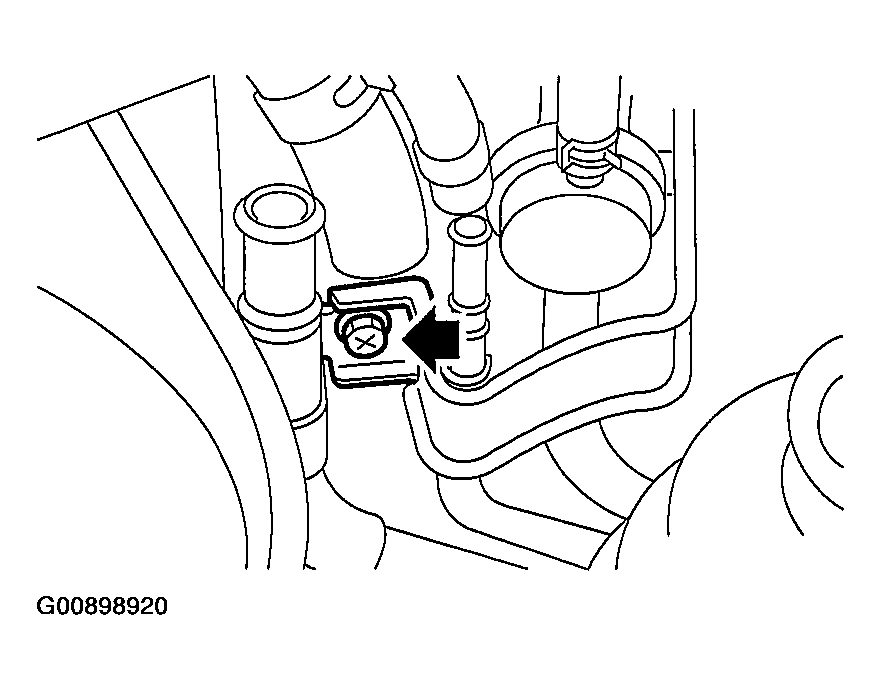

    Fig 11: Removing Bolt Holding Evaporation Pipe Assembly On Body

    Courtesy of SUBARU OF AMERICA, INC.
13. Disconnect fuel filler hose.

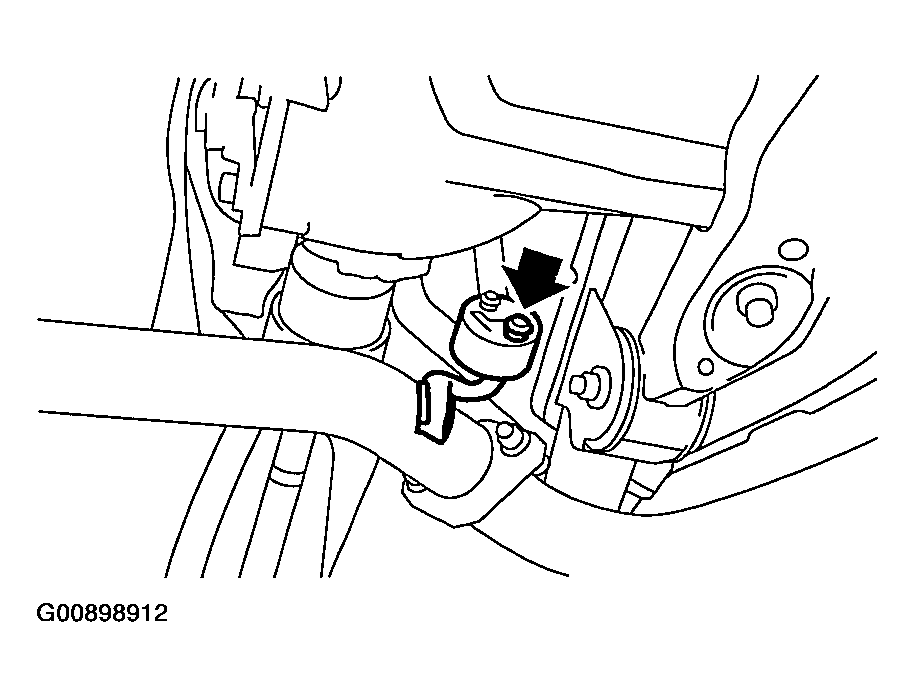

14. Remove bolt which holds fuel pressure sense on fuel filler pipe and remove bolt which holds fuel filler pipe on body.

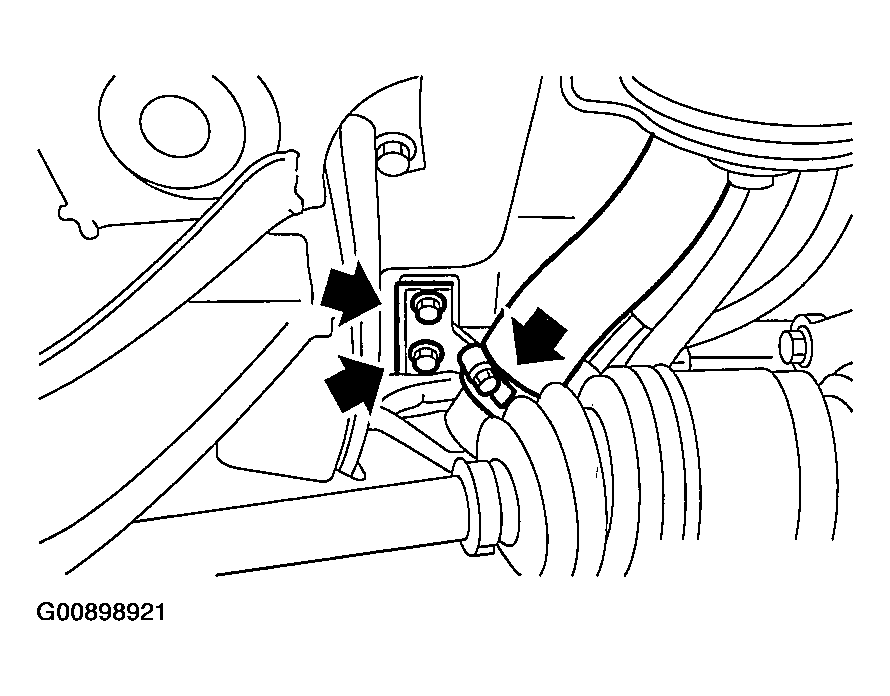

    Fig 12: Removing Bolt Holding Fuel Pressure Sense On Fuel Filler Pipe

    Courtesy of SUBARU OF AMERICA, INC.
15. Disconnect canister hose from evaporation pipe assembly.
    Fig 13: Disconnecting Canister Hose From Evaporation Pipe Assembly

    Courtesy of SUBARU OF AMERICA, INC.
16. Disconnect evaporation hose (O) from fuel filler pipe.
    Fig 14: Disconnecting Evaporation Hose From Fuel Filler Pipe

    Courtesy of SUBARU OF AMERICA, INC.
17. Remove bolt which holds fuel filler pipe to body.
    Fig 15: Removing Bolt Holding Fuel Filler Pipe To Body

    Courtesy of SUBARU OF AMERICA, INC.
18. Remove fuel filler pipe from under side of the vehicle.
