Fuel Pump Relay: Removal

  1. Disconnect ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G00898847Courtesy of SUBARU OF AMERICA, INC.
  2. Remove lower cover. Refer to REMOVAL , Instrument Panel Assembly.
  3. Disconnect connector from fuel pump relay.

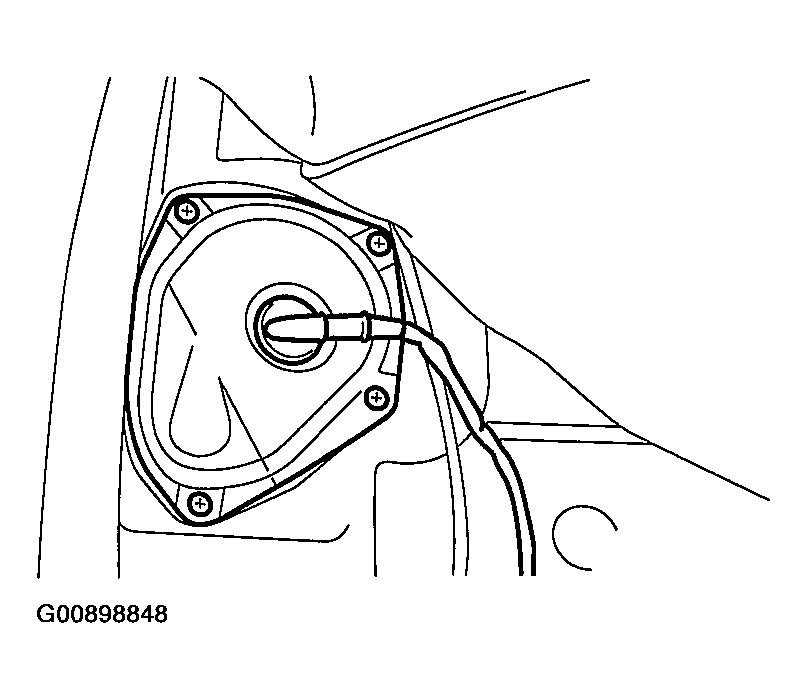

    Fig 2: Disconnecting Connector From Fuel Pump Relay
    G00898848Courtesy of SUBARU OF AMERICA, INC.
  4. Remove fuel pump relay from mounting bracket.
