Fuel Pump: Removal

WARNING:

NOTE: Fuel pump assembly consists of fuel pump and fuel level sensor.

Release fuel pressure. Refer to RELEASING OF FUEL PRESSURE , OPERATION, Fuel.
Drain fuel from tank. Refer to DRAINING FUEL , OPERATION, Fuel.
Raise rear seat and turn floor mat up.
Remove access hole lid.

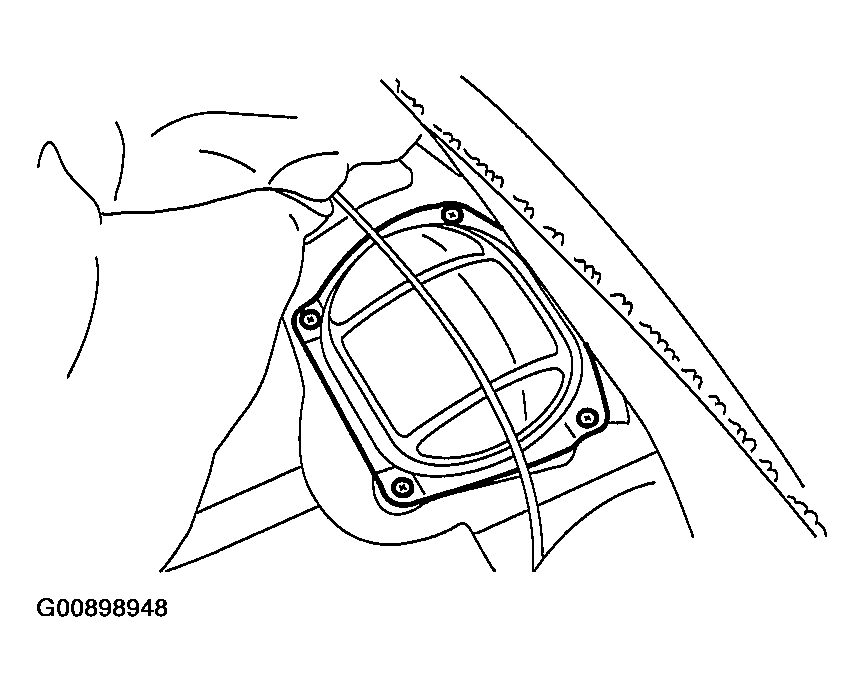

Fig 1: Removing Rear Seat & Turning Floor Mat Up
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from fuel pump.

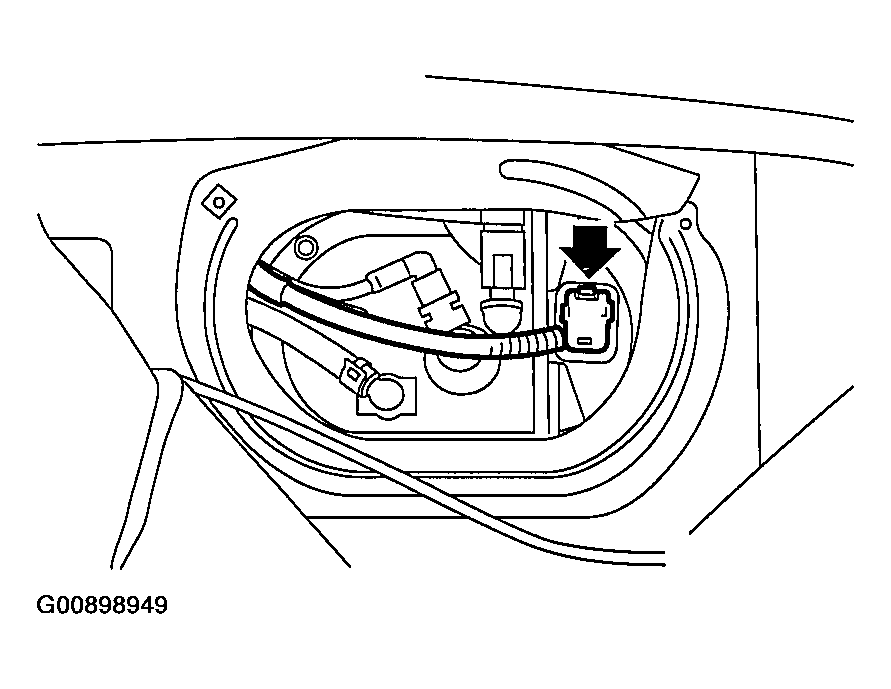

Fig 2: Removing Connector From Fuel Pump
Courtesy of SUBARU OF AMERICA, INC.
Disconnect quick connector and then disconnect fuel delivery hose (A) and return hose (B). Refer to REMOVAL , Fuel Delivery, Return and Evaporation Lines.

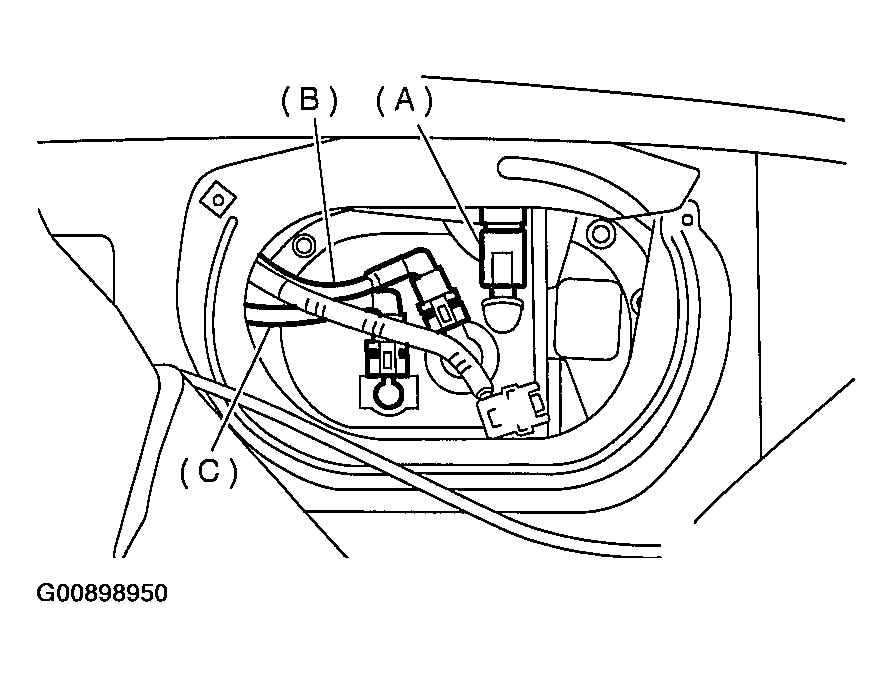

Fig 3: Removing Quick Connector And Fuel Delivery Hose And Return Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove nuts which install fuel pump assembly onto fuel tank.

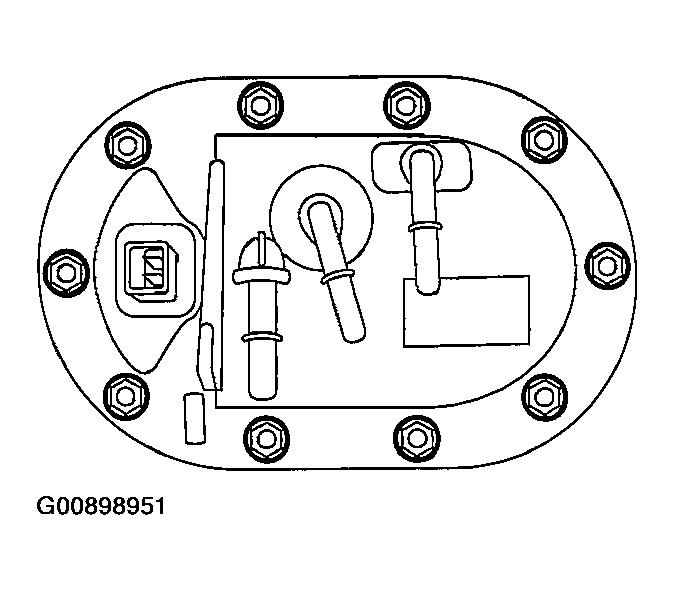

Fig 4: Removing Nuts Installing Fuel Pump Assembly Onto Fuel Tank
Courtesy of SUBARU OF AMERICA, INC.
Take off fuel pump assembly from fuel tank.
