Fuel Injection (Fuel Systems) (H4SO): General Description: Specifications

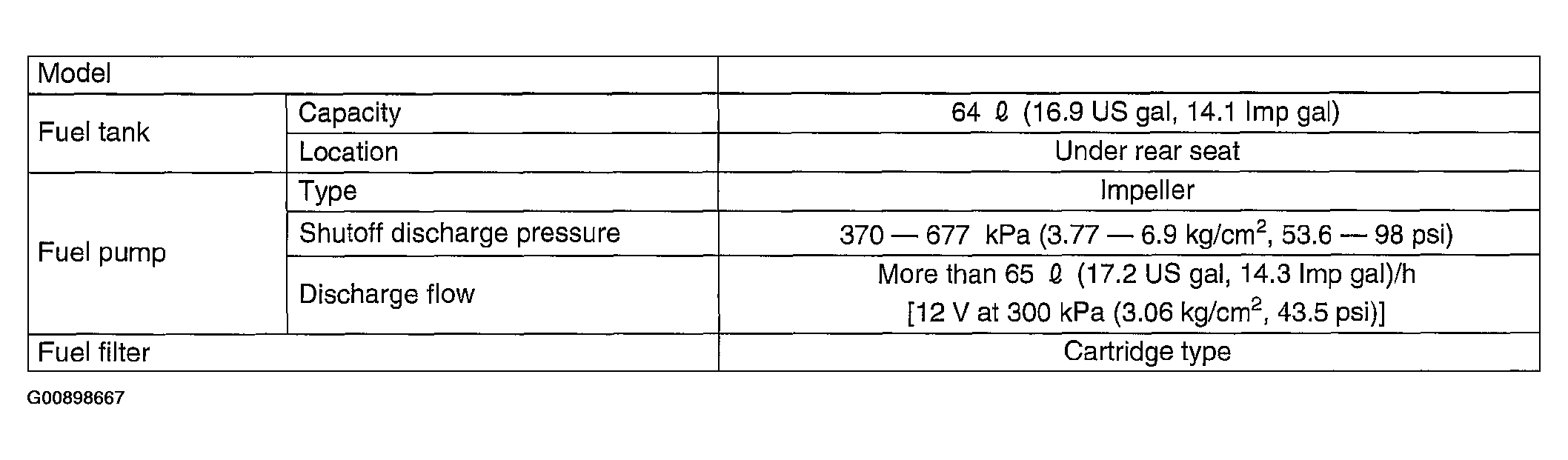

Fig 1: General Description Chart
G00898667Courtesy of SUBARU OF AMERICA, INC.
